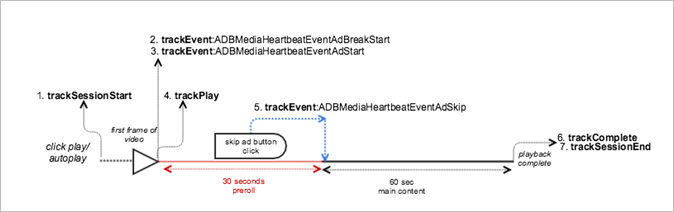

이 시나리오는 광고를 건너뛴 VOD 콘텐츠 재생으로 구성됩니다.
이 시나리오는 애플리케이션에서 사용자가 건너뛰기 버튼을 클릭하면 광고를 건너뛸 수 있는 기능을 제공한다는 점을 제외하고, 프리롤 광고가 있는 VOD 재생 시나리오와 동일합니다.
트리거 | 하트비트 메서드 | 네트워크 호출 | 참고 |
---|---|---|---|
사용자가 재생 클릭 | trackSessionStart() |
Analytics 콘텐츠 시작, 하트비트 콘텐츠 시작 | 측정 라이브러리는 프리롤 광고가 있다는 것을 인식하지 못합니다. 이러한 네트워크 호출은 광고 없이 VOD 재생과 동일합니다. |
광고가 시작됨. |
|
Analytics 광고 시작, 하트비트 광고 시작 | |
광고의 첫 프레임이 재생됩니다. | trackPlay() |
하트비트 광고 재생 | 광고 콘텐츠가 주 콘텐츠 전에 재생되면 광고 재생이 시작될 때 하트비트가 시작됩니다. |
광고가 재생됩니다. | 광고 하트비트 | ||
광고를 건너뜀. | trackEvent:trackAdSkip |
광고 완료 네트워크 호출이 없습니다. | |
콘텐츠가 재생됩니다. | 콘텐츠 하트비트 | 이러한 네트워크 호출은 광고 없이 VOD 재생 시나리오와 동일합니다. | |
콘텐츠 재생이 완료됨. | trackComplete() |
하트비트 콘텐츠 완료 | 이 네트워크 호출은 광고 없이 VOD 재생 시나리오와 동일합니다. |
세션이 끝남. | trackSessionEnd() |
SessionEnd |
매개 변수는 광고 완료가 없고 광고 브레이크 완료 호출이 없다는 점을 제외하고는 프리롤 광고가 있는 VOD 재생 시나리오의 매개 변수와 동일합니다.
Android에서 이 시나리오를 보려면 다음 코드를 설정합니다.
// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD
);
HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// Pre-roll
MediaObject adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
ADBREAK_POSITION,
ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
AD_ID,
AD_POSITION,
AD_LENGTH);
// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts to play.
// Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdBreakStart"
// event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);
.......
.......
// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts to play.
// Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdStart" event
// before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);
.......
.......
// 4. Call trackPlay() when the playback actually starts, i.e. when the first frame of the
// main content is rendered on the screen.
_mediaHeartbeat.trackPlay();
.......
.......
// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to and is able to
// skip an ad. For example, this could be tied to a "Skip Ad" button onClick handler.
// The application could have the viewer land in main content post ad.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip, null, null);
.......
.......
// 6. Call trackComplete() when the playback reaches the end, i.e., when the media
// completes and finishes playing.
_mediaHeartbeat.trackComplete();
........
........
// 7. Call trackSessionEnd() when the playback session is over. This method must be called
// even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();
........
........
이 시나리오를 보려면 다음 텍스트를 입력하십시오.
when the user clicks Play
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
length:MEDIA_LENGTH
streamType:ADBMediaHeartbeatStreamTypeVOD];
NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];
// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......
// Pre-roll
ADBMediaObject *adBreakInfo =
[ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
position:AD_BREAK_POSITION
startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
[ADBMediaHeartbeat createAdObjectWithName:AD_NAME
adId:AD_ID
position:AD_POSITION
length:AD_LENGTH];
// Context ad data
NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];
// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod
// starts to play. Note that since this is a pre-roll, you must track the
// ADBMediaHeartbeatEventAdBreakStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
mediaObject:adBreakObject
data:nil];
.......
.......
// 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's ad
// starts to play. Note that since this is a pre-roll, track the
// ADBMediaHeartbeatEventAdStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
mediaObject:adObject
data:adDictionary];
.......
.......
// 4. Call trackPlay when the playback actually starts, i.e., when the first
// frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......
// 5. Track the ADBMediaHeartbeatEventAdSkip event when the user intends to
// and is able to skip an ad. For example, this could be tied to a
// "skip ad" button onClick handler. The application could have the viewer
// land in main content post ad.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdSkip mediaObject:nil data:nil];
.......
.......
// 6. Call trackComplete when the playback reaches the end, i.e., when the media
// completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......
// 7. Call trackSessionEnd when the playback session is over. This method must
// be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......
JavaScript에서 이 시나리오를 보려면 다음 텍스트를 입력하십시오.
// Set up mediaObject
var mediaInfo =
MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD);
var mediaMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2,
CUSTOM_KEY_3 : CUSTOM_VAL_3
};
// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
// i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// Preroll
var adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
ADBREAK_POSITION,
ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
AD_ID,
AD_POSITION,
AD_LENGTH);
//context ad data
var adMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2
};
// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play.
// Since this is a preroll, you must track the MediaHeartbeat.Event.AdBreakStart event
// before calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);
.......
.......
// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play.
// Since this is a preroll, you must track the MediaHeartbeat.Event.AdStart event before
// calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);
.......
.......
// 4. Call trackPlay() when the playback actually starts, i.e., when the first frame of
// the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();
.......
.......
// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to (and can)
// skip the ad. For example, this could be tied to a "skip ad" button onClick handler.
// The application could have the viewer land in the main content post ad.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip);
.......
.......
// 6. Call trackComplete() when the playback reaches the end, i.e., playback completes
// and finishes playing.
this._mediaHeartbeat.trackComplete();
........
........
// 7. Call trackSessionEnd() when the playback session is over. This method must be called even
// if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();
........
........
