Riproduzione VOD con annunci saltati

Scenario

Questo scenario include la riproduzione di contenuti VOD con un annuncio saltato.

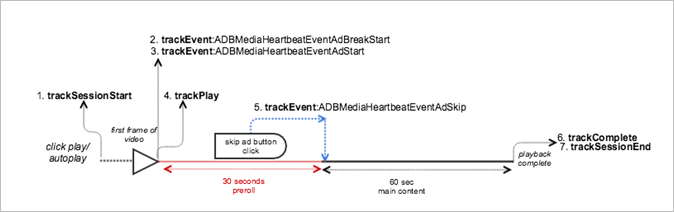

VOD con un annuncio pre-roll saltato

Questo scenario è uguale a quello di Riproduzione VOD con annunci pre-roll, con una differenza: l’applicazione consente all’utente di saltare l’annuncio, ad esempio facendo clic su un pulsante.

Parametri

I parametri sono identici ai parametri dello scenario Riproduzione VOD con annunci pre-roll, con una differenza: non vi sono chiamate di annuncio completato né di interruzione pubblicitaria completata.

Codice di esempio

Android

Per visualizzare questo scenario in Android, imposta il seguente codice:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Pre-roll
MediaObject adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                   ADBREAK_POSITION,
                                   ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
                              AD_ID,
                              AD_POSITION,
                              AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts to play.
//    Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdBreakStart"
//    event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts to play.
//    Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdStart" event
//    before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e. when the first frame of the
//    main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to and is able to
//    skip an ad.  For example, this could be tied to a "Skip Ad" button onClick handler.
//    The application could have the viewer land in main content post ad.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip, null, null);

.......
.......

// 6. Call trackComplete() when the playback reaches the end, i.e., when the media
//    completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 7. Call trackSessionEnd() when the playback session is over. This method must be called
//    even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

Per visualizzare questo scenario, immetti il testo seguente:

when the user clicks Play
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// Pre-roll
ADBMediaObject *adBreakInfo =
[ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
                   position:AD_BREAK_POSITION
                   startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
[ADBMediaHeartbeat createAdObjectWithName:AD_NAME
                   adId:AD_ID
                   position:AD_POSITION
                   length:AD_LENGTH];

// Context ad data
NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod
//    starts to play. Note that since this is a pre-roll, you must track the
//    ADBMediaHeartbeatEventAdBreakStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
               mediaObject:adBreakObject
               data:nil];
.......
.......

// 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's ad
//    starts to play. Note that since this is a pre-roll, track the
//    ADBMediaHeartbeatEventAdStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
               mediaObject:adObject
               data:adDictionary];
.......
.......

// 4. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 5. Track the ADBMediaHeartbeatEventAdSkip event when the user intends to
//    and is able to skip an ad. For example, this could be tied to a
//    "skip ad" button onClick handler. The application could have the viewer
//    land in main content post ad.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdSkip mediaObject:nil data:nil];
.......
.......

// 6. Call trackComplete when the playback reaches the end, i.e., when the media
//    completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 7. Call trackSessionEnd when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

Per visualizzare questo scenario in JavaScript, immetti il testo seguente:

// Set up mediaObject
var mediaInfo =
MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME,
                                 Configuration.MEDIA_ID,
                                 Configuration.MEDIA_LENGTH,
                                 MediaHeartbeat.StreamType.VOD);

var mediaMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2,
  CUSTOM_KEY_3 : CUSTOM_VAL_3
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Preroll
var adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                   ADBREAK_POSITION,
                                   ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
                              AD_ID,
                              AD_POSITION,
                              AD_LENGTH);

//context ad data
var adMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2
};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play.
//    Since this is a preroll, you must track the MediaHeartbeat.Event.AdBreakStart event
//    before calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play.
//    Since this is a preroll, you must track the MediaHeartbeat.Event.AdStart event before
//    calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first frame of
//    the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to (and can)
//    skip the ad. For example, this could be tied to a "skip ad" button onClick handler.
//    The application could have the viewer land in the main content post ad.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip);

.......
.......

// 6. Call trackComplete() when the playback reaches the end, i.e., playback completes
//    and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 7. Call trackSessionEnd() when the playback session is over. This method must be called even
//    if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........
