プリロール広告のある VOD 再生

このシナリオでは、メインコンテンツの前にプリロール広告が挿入されています。特に指定のない限り、ネットワーク呼び出しは、広告のない VOD 再生シナリオの呼び出しと同じです。ネットワーク呼び出しは同時に発生しますが、ペイロードは異なります。

トリガー ハートビートメソッド ネットワーク呼び出し メモ
ユーザーが再生をクリックする trackSessionStart Analytics Content Start、Heartbeat Content Start Measurement Library は、プリロール広告があることに気づかないので、これらのネットワーク呼び出しは、広告のない VOD 再生シナリオと同一です。
広告が開始されます。
  • trackEvent:AdBreakStart
  • trackEvent:AdStart
Analytics Ad Start、Heartbeat Ad Start
広告 #1 のフレームが再生されます。 trackPlay Heartbeat Ad Play メインコンテンツの前に広告コンテンツを再生し、ハートビートは、広告が開始する際に開始されます。
広告が再生されます。 Ad Heartbeats
広告 #2の再生が完了します。 trackEvent:trackAdComplete Heartbeat Ad Complete 広告の終わりに到達しました。
広告 #2 の最初のフレームが再生されます。 trackEvent:AdStart Analytics Ad Start、Heartbeat Ad Start
広告が再生されます。 Ad Heartbeats
広告 #2の再生が完了します。
  • trackEvent:trackAdComplete
  • trackEvent:AdBreakComplete
Heartbeat Ad Complete 広告の終わりとポッドの終わりに達しました。
コンテンツが再生されます。 Content Heartbeats このネットワーク呼び出しは、広告のない VOD 再生シナリオと同じです。
コンテンツが完了する trackComplete Heartbeat Content Complete このネットワーク呼び出しは、広告のない VOD 再生シナリオと同じです。
セッションが終了する trackSessionEnd SessionEnd

パラメーター

広告の再生が開始されると、Heartbeat Ad Start 呼び出しが送信されます。広告の開始が 10 秒のタイマーと同時に起こらない場合、Heartbeat Ad Start 呼び出しは、数秒間遅延され、呼び出しは次の 10 秒のインターバルに進みます。これが発生すると、Content Heartbeat 呼び出しは同じインターバルから出ます。この 2 つの呼び出しの違いは、イベントタイプとアセットタイプを調査することで区別できます。

Heartbeat Ad Start

パラメーター 値 メモ
s:event:type start
s:asset:type ad

広告は、Content Heartbeats と同じ基本モデルに従うので、Ad Play 呼び出しは、Content Play 呼び出しに似ています。

Heartbeat Ad Play 呼び出し

パラメーター 値 メモ
s:event:type play
s:asset:type ad

これらのパラメーターは Content Heartbeats 呼び出しに似ていますが、Ad Heartbeats 呼び出しは、いくつかの追加のパラメーターを含んでいます。

Ad Heartbeats

パラメーター 値 メモ
s:event:type play
s:asset:type ad
s:asset:ad_id <広告 ID>
s:asset:pod_id <広告ポッド ID>

Heartbeat Content Complete 呼び出しと同様、再生が完了した（再生ヘッドの終わりに達した）場合、Heartbeat Ad Complete 呼び出しが送信されます。この呼び出しは、他の Heartbeat Ad 呼び出しに似ていますが、いくつか特有のものが含まれます。

Heartbeat Ad Complete 呼び出し

パラメーター 値 メモ
s:event:type complete
s:asset:type ad

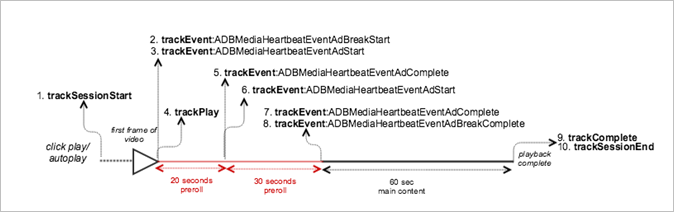

プリロール広告ブレークのサンプルコード

このシナリオでは、VOD は、プリロール広告、2 番目のプリロール広告で構成され、次にコンテンツが再生されます。

  • Android Android でこのシナリオを表示するには、以下のコードを設定します。

    // Set up  mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> videoMetadata = new HashMap<String, String>();
videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there's an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Pre-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
MediaObject adInfo =
  MediaHeartbeat.createAdObject(AD_NAME,
                                AD_ID,
                                AD_POSITION,
                                AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts
//    to play. Note that since this is a pre-roll, call must track the
//    "MediaHeartbeat.Event.AdBreakStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts
//    to play. Note that since this is a pre-roll, you must track the
//    "MediaHeartbeat.Event.AdStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first frame
//    of the ad video is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's second ad
//    starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 7. Track the MediaHeartbeat.Event.AdComplete event when the second ad reaches the
//    end, i.e., the second ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in the
//    pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// 9. Call trackComplete() when the playback reaches the end, i.e., when the video
//    completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 10. Call trackSessionEnd() when the playback session is over. This method must be
//     called even if the user does not watch the video to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

  • iOS - iOS でこのシナリオを表示するには、以下のコードを設定します。

    //  Set up mediaObject
ADBMediaObject *mediaObject =
  [ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                     length:MEDIA_LENGTH
                     streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *videoContextData = [[NSMutableDictionary alloc] init];
[videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData];
.......
.......

// Pre-roll
ADBMediaObject *adBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
                     position:AD_BREAK_POSITION
                     startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:AD_NAME
                     adId:AD_ID
                     position:AD_POSITION
                     length:AD_LENGTH];

// context ad data
NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod
//    starts to play. Note that since this is a pre-roll, you must track the
//    "ADBMediaHeartbeatEventAdBreakStart" event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's
//    ad starts to play. Note that since this is a pre-roll, you must track
//    the "ADBMediaHeartbeatEventAdStart" event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adObject
                 data:adDictionary];
.......
.......

// 4. Call trackPlay when the playback actually starts, i.e., when the
//    first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 5. Track the ADBMediaHeartbeatEventAdComplete event when the ad reaches
//    the end, i.e., when the video completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 6. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's
//    second ad starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 7. Track the ADBMediaHeartbeatEventAdComplete event when the second ad
//    reaches the end, i.e., it completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 8. Track the ADBMediaHeartbeatEventAdBreakComplete event when all the
//    ads in the pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 9. Call trackComplete when the playback reaches the end, i.e., when the
//    video completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 10. Call trackSessionEnd when the playback session is over. This method
//     must be called even if the user does not watch the video to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

  • JavaScript JavaScript でこのシナリオを表示するには、以下のテキストを入力します。

    // Set up mediaObject
var mediaInfo =
  MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME,
                                   Configuration.MEDIA_ID,
                                   Configuration.MEDIA_LENGTH,MediaHeartbeat.StreamType.VOD);
var videoMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2,
    CUSTOM_KEY_3 : CUSTOM_VAL_3
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Preroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH);

// Custom ad metadata
var adMetadata = {
    CUSTOM_AD_KEY_1 : CUSTOM_AD_VAL_1,
    CUSTOM_AD_KEY_2 : CUSTOM_AD_VAL_2
};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play.
//    Note that since this is a preroll, track the MediaHeartbeat.Event.AdBreakStart
//    event before you call trackPlay().
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play.
//    Note that since this is a preroll, track the MediaHeartbeat.Event.AdStart event before
//    you call trackPlay().
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., the first frame of the
      main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 5. Track event MediaHeartbeat.Event.AdComplete when the ad reaches the end,
//    i.e., when it completes and finishes playing.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's second
//    ad starts to play.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 7. Track the MediaHeartbeat.Event.AdComplete event when the second ad reaches
//    the end, i.e., when it completes and finishes playing.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads
//    in the pod finish playing.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// 9. Call trackComplete() when the playback reaches the end, i.e., when it
//    completes and finishes playing.
this._mediaHeartbeat.trackComplete();

// 10. Call trackSessionEnd() when the playback session is over. This method must
//     be called even if the user does not watch the video to completion.
this._mediaHeartbeat.trackSessionEnd();

.......
.......

複数の広告ブレークのサンプルコード

このシナリオでは、VOD コンテンツは、プリロール広告、コンテンツ、ミッドロール広告、コンテンツ、ポストロール広告を再生します。

  • Android Android でこのシナリオを表示するには、以下のコードを設定します。

    // Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> videoMetadata = new HashMap<String, String>();
videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//   i.e., there's an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Pre-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
MediaObject adInfo = MediaHeartbeat.createAdObject(AD_NAME,
                                                   AD_ID,
                                                   AD_POSITION,
                                                   AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod
//    starts to play. Note that since this is a pre-roll, you must track the
//    "MediaHeartbeat.Event.AdBreakStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad
//    starts to play. Note that since this is a pre-roll, you must track the
//    "MediaHeartbeat.Event.AdStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in
//;    the pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// Mid-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(mid-roll_BREAK_NAME,
                                     mid-roll_BREAK_POSITION,
                                     mid-roll_BREAK_START_TIME);
MediaObject adInfo =
  MediaHeartbeat.createAdObject(mid-roll_AD_NAME,
                                mid-roll_AD_ID,
                                mid-roll_AD_POSITION,
                                mid-roll_AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 7. Track the MediaHeartbeat.Event.AdBreakStart event when the mid-roll pod
//    starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdStart event when the mid-roll pod's ad
//    starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 9. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the adcompletes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads in the
//      mid-roll pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// Post-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(POSTROLL_BREAK_NAME,
                                     POSTROLL_BREAK_POSITION,
                                     POSTROLL_BREAK_START_TIME);
MediaObject adInfo =
  MediaHeartbeat.createAdObject(POSTROLL_AD_NAME,
                                POSTROLL_AD_ID,
                                POSTROLL_AD_POSITION,
                                POSTROLL_AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 11. Track the MediaHeartbeat.Event.AdBreakStart event when the post-roll pod
//     starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 12. Track the MediaHeartbeat.Event.AdStart event when the post-roll pod's
//     ad starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 13. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the
//     end, i.e., when the ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 14. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads in
//     the post-roll pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// 15. Call trackComplete() when the playback reaches the end, i.e., when the
//     video completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 16. Call trackSessionEnd() when the playback session is over. This method
//     must be called even if the user does not watch the video to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

  • iOS iOS でこのシナリオを表示するには、以下のコードを設定します。

    //  Set up mediaObject
ADBMediaObject *mediaObject =
  [ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                     length:MEDIA_LENGTH
                     streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *videoContextData =
  [[NSMutableDictionary alloc] init];
[videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData];
.......
.......

// Pre-roll
ADBMediaObject *adBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
                     position:AD_BREAK_POSITION
                     startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:AD_NAME
                     adId:AD_ID
                     position:AD_POSITION
                     length:AD_LENGTH];

// Context ad data
NSMutableDictionary *adDictionary =
  [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the
//    pre-roll pod starts to play. Note that since this is a pre-roll,
//    you must track the ADBMediaHeartbeatEventAdBreakStart event
//    before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                 mediaObject:adBreakObject
                 data:adDictionary];
.......
.......

// 3. Track the ADBMediaHeartbeatEventAdStart when the pre-roll
//    pod's ad starts to play. Note that since this is a pre-roll,
//    you must track the ADBMediaHeartbeatEventAdStart before you
//    call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                  mediaObject:adObject
                  data:adDictionary];
.......
.......

// 4. Call trackPlay when the playback actually starts, i.e., when
//    the first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 5. Track the ADBMediaHeartbeatEventAdComplete event when the ad
//    reaches the end, i.e., when it completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                  mediaObject:nil
                  data:nil];
.......
.......

// 6. Track the ADBMediaHeartbeatEventAdBreakComplete event when all
//    of the ads in the pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                  mediaObject:nil
                  data:nil];
.......
.......

// Mid-roll
ADBMediaObject *adBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:MIDROLL_BREAK_NAME
                     position:MIDROLL_BREAK_POSITION
                     startTime:MIDROLL_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:MIDROLL_AD_NAME
                     adId:MIDROLL_AD_ID position:MIDROLL_AD_POSITION
                     length:MIDROLL_AD_LENGTH];

// context ad data
NSMutableDictionary *midrollAdDictionary = [[NSMutableDictionary alloc] init];
[midrollAdDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[midrollAdDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 7. Track the ADBMediaHeartbeatEventAdBreakStart event when the mid-roll pod
//    starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                  mediaObject:adBreakObject
                  data:nil];
.......
.......

// 8. Track the ADBMediaHeartbeatEventAdStart event when the mid-roll pod's
//    ad starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adObject
                 data:midrollAdDictionary];
.......
.......

// 9. Track the ADBMediaHeartbeatEventAdComplete event when the ad reaches
//    the end, i.e., when it completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 10. Track the ADBMediaHeartbeatEventAdBreakComplete event when all the
//     ads in the mid-roll pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// Post-roll
ADBMediaObject *postrollBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:POSTROLL_BREAK_NAME
                     position:POSTROLL_BREAK_POSITION
                     startTime:POSTROLL_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:POSTROLL_AD_NAME
                     adId:POSTROLL_AD_ID
                     position:POSTROLL_AD_POSITION
                     length:POSTROLL_AD_LENGTH];

// Context ad data
NSMutableDictionary *postrollAdDictionary =
  [[NSMutableDictionary alloc] init];
[postrollAdDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[postrollAdDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 11. Track the ADBMediaHeartbeatEventAdBreakStart event when the
//     post-roll pod starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 12. Track the ADBMediaHeartbeatEventAdStart event when the
//     post-roll pod's ad starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adObject
                 data:postrollAdDictionary];
.......
.......

// 13. Track the ADBMediaHeartbeatEventAdComplete event when the
//     post-roll pod's ad finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 14. Track the ADBMediaHeartbeatEventAdBreakComplete event when
//     all the ads in the post-roll pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                 mediaObject:nil data:nil];
.......
.......

// 15. Call trackComplete when the playback reaches the end,
//     i.e., when the video completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 16. Call trackSessionEnd when the playback session is over. This method
//     must be called even if the user does not watch the video to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

  • JavaScript JavaScript でこのシナリオを表示するには、以下のテキストを入力します。

    // Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD
);

var videoMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2,
    CUSTOM_KEY_3 : CUSTOM_VAL_
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., when there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Preroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(AD_NAME,
                                AD_ID,
                                AD_POSITION,
                                AD_LENGTH);

// Custom ad metadata
var adMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod
//    starts to play. Note that since this is a preroll, you must track the
//    MediaHeartbeat.Event.AdBreakStart event before you call trackPlay().
this._trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad
//    starts to play. Note that since this is a preroll, you must track the
//    MediaHeartbeat.Event.AdStart event before you call trackPlay().
this._heartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the main content actually starts, i.e., when the
//    first frame of the video content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the ad completes and finishes playing.
this._heartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in
//    the pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Midroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(MIDROLL_BREAK_NAME,
                                     MIDROLL_BREAK_POSITION,
                                     MIDROLL_BREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(MIDROLL_AD_NAME,
                                MIDROLL_AD_ID,
                                MIDROLL_AD_POSITION,
                                MIDROLL_AD_LENGTH);

// Custom ad metadata
var adMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 7. Track the MediaHeartbeat.Event.AdBreakStart event when the
//    midroll pod starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdStart event when the midroll
//    pod's ad starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart,
                                adInfo,
                                adMetadata);

.......
.......

// 9. Track the MediaHeartbeat.Event.AdComplete event when the ad
//    reaches the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all of
//     the ads in the midroll pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD

);

var videoMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2,
    CUSTOM_KEY_3 : CUSTOM_VAL_3

};

// 1. Call trackSessionStart() when Play is clicked or if autoplay
//    is used, i.e., when there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Preroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(AD_NAME,
                                AD_ID,
                                AD_POSITION,
                                AD_LENGTH);

// Custom ad metadata
var adMetadata = {
   CUSTOM_KEY_1 : CUSTOM_VAL_1,
   CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod
//    starts to play. Note that since this is a preroll, you must track the
//    MediaHeartbeat.Event.AdBreakStart event before you call trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's
//    ad starts to play. Note that since this is a preroll, you must track
//    the MediaHeartbeat.Event.AdStart event before you call trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches
//    the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all
//    of the ads in the pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Mid-roll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(MIDROLL_BREAK_NAME,
                                     MIDROLL_BREAK_POSITION,
                                     MIDROLL_BREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(MIDROLL_AD_NAME,
                                MIDROLL_AD_ID,
                                MIDROLL_AD_POSITION,
                                MIDROLL_AD_LENGTH);

// Custom ad metadata
var adMetadata = {
   CUSTOM_KEY_1 : CUSTOM_VAL_1,
   CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 7. Track the MediaHeartbeat.Event.AdBreakStart event when the midroll
//    pod starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdStart event when the midroll pod's
//    ad starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 9. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches
//    the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all
//     of the ads in the midroll pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Postroll
var adBreakInfo = MediaHeartbeat.createAdBreakObject(POSTROLL_BREAK_NAME,
POSTROLL_BREAK_POSITION, POSTROLL_BREAK_START_TIME);
var adInfo = MediaHeartbeat.createAdObject(POSTROLL_AD_NAME, POSTROLL_AD_ID,
POSTROLL_AD_POSITION, POSTROLL_AD_LENGTH);

// Custom ad metadata
var adMetadata = {
   CUSTOM_KEY_1 : CUSTOM_VAL_1,
   CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 11. Track the MediaHeartbeat.Event.AdBreakStart event when the postroll
//     pod starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 12. Track the MediaHeartbeat.Event.AdStart event when the postroll pod's ad
//     starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 13. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches
//     the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 14. Track the MediaHeartbeat.Event.AdBreakComplete event when all of
//     the ads in the postroll pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// 15. Call trackComplete() when the playback reaches the end, i.e., when playback
//     completes and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 16. Call trackSessionEnd() when the playback session is over. This method must be called
//     even if the user does
not watch the video to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........

このページ
