Reproducción de VOD con almacenamiento en búfer

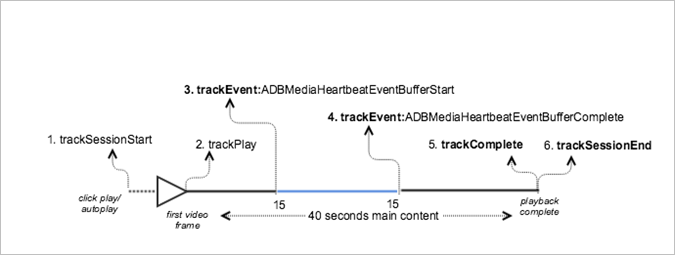

Escenario

En este escenario, se produce un almacenamiento en búfer cuando el contenido de VOD se reproduce.

Si no se indica lo contrario, las llamadas de red en este escenario son iguales a las llamadas que se hacen en el escenario de Reproducción de VOD sin anuncios.

Parámetros

Búfer de Heartbeat

Código de muestra

En esta situación, se almacena en búfer cuando el contenido de VOD se reproduce.

Android

Para ver este caso en Android, configure el siguiente código:

// Set up mediaObject

MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD

);

HashMap<String, String> videoMetadata = new HashMap<String, String>();
videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 3. Track the MediaHeartbeat.Event.BufferStart event when the video player
//    goes into the buffering state and begins to buffer content.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.BufferStart, null, null);

.......
.......

// 4. Track the MediaHeartbeat.Event.BufferComplete event when the video player
//    goes into the buffering state and begins to buffer content.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.BufferComplete, null, null);

.......
.......

// 5. Call trackComplete() when the playback reaches the end, i.e., when the
//    video completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 6. Call trackSessionEnd() when the playback session is over. This method must
//    be called even if the user does not watch the video to completion.
_mediaHeartbeat.trackSessionEnd();

........

iOS

Para ver este caso en iOS, configure el siguiente código:

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *videoContextData = [[NSMutableDictionary alloc] init];
[videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData];
.......
.......

// 2. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 3. Track the trackEvent:ADBMediaHeartbeatEventBufferStart event when the
//    video player goes in buffering state and begins to buffer content.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventBufferStart
               mediaObject:nil
               data:nil];
.......
.......

// 4. Track the trackEvent:ADBMediaHeartbeatEventBufferComplete event when
//    the video player goes in buffering state and begins to buffer content.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventBufferComplete
               mediaObject:nil
               data:nil];
.......
.......

// 5. Call trackComplete when the playback reaches the end, i.e., when the
//    video completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 6. Call trackSessionEnd when the playback session is over. This method must
//    be called even if the user does not watch the video to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

Para ver este caso, escriba el siguiente texto:

// Set up mediaObject

var mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD

);

var videoMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2,
  CUSTOM_KEY_3 : CUSTOM_VAL_3
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., when the
//    first frame of the ad video is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 3. Track event MediaHeartbeat.Event.BufferStart when the video player
//    goes into the buffering state and begins to buffer content.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.BufferStart);

.......
.......

// 4. Track the MediaHeartbeat.Event.BufferComplete event when the
//    video player goes into the buffering state and begins to buffer content.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.BufferComplete);

.......
.......

// 5. Call trackComplete() when the playback reaches the end, i.e.,
//    when playback completes and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 6. Call trackSessionEnd() when the playback session is over. This method must
//    be called even if the user does not watch the video to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........
