Create a Mailchimp Campaigns source connection using Platform UI

This tutorial provides steps for creating a Mailchimp source connector to ingest Mailchimp Campaigns data to Adobe Experience Platform using the user interface.

Getting started

This guide requires a working understanding of the following components of Adobe Experience Platform:

  • Sources: Platform allows data to be ingested from various sources while providing you with the ability to structure, label, and enhance incoming data using Platform services.
  • Sandboxes: Platform provides virtual sandboxes which partition a single Platform instance into separate virtual environments to help develop and evolve digital experience applications.

Gather required credentials

In order to bring your Mailchimp Campaigns data to Platform, you must first provide the appropriate authentication credentials that correspond with your Mailchimp account.

The Mailchimp Campaigns source supports both OAuth 2 Refresh Code and basic authentication, see the tables below for more information on these authentication types.

OAuth 2 Refresh Code

Credentials Description
Host The root URL used to connect to MailChimp API. The format for the root URL is https://{DC}.api.mailchimp.com, where {DC} represents the data center that corresponds to your account.
Authorization test URL The authorization test URL is used to validate credentials when connecting Mailchimp to Platform. If this is not provided, credentials are automatically checked during the source connection creation step instead.
Access Token The corresponding access token used to authenticate your source. This is required for OAuth-based authentication.

For more information on using OAuth 2 to authenticate your Mailchimp account to Platform, see this Mailchimp document on using OAuth 2.

Basic authentication

Credentials Description
Host The root URL used to connect to MailChimp API. The format for the root URL is https://{DC}.api.mailchimp.com, where {DC} represents the data center that corresponds to your account.
Username The username that corresponds with your MailChimp account. This is required for basic authentication.
Password The password that corresponds with your MailChimp account. This is required for basic authentication.

Connect your Mailchimp Campaigns account to Platform

In the Platform UI, select Sources from the left navigation bar to access the Sources workspace. The Catalog screen displays a variety of sources with which you can create an account.

You can select the appropriate category from the catalog on the left-hand side of your screen. Alternatively, you can find the specific source you wish to work with using the search option.

Under the Marketing automation category, select Mailchimp Campaign, and then select Add data.

catalog

The Connect Mailchimp Campaigns account page appears. On this page, you can select whether you are accessing an existing account, or opting to create a new account.

Existing account

To use an existing account, select the Mailchimp Campaigns account you want to create a new dataflow with, then select Next to proceed.

existing

New account

If you are creating a new account, select New account, and then provide a name and a description for your Mailchimp Campaigns source connection details.

new

Authenticate using OAuth 2

To use OAuth 2, select OAuth 2 Refresh Code, provide values for your host, authorization test URL, and access token and then select Connect to source. Allow for a few moments for your credentials to validate, and then select Next to proceed.

oauth

Authenticate using basic authentication

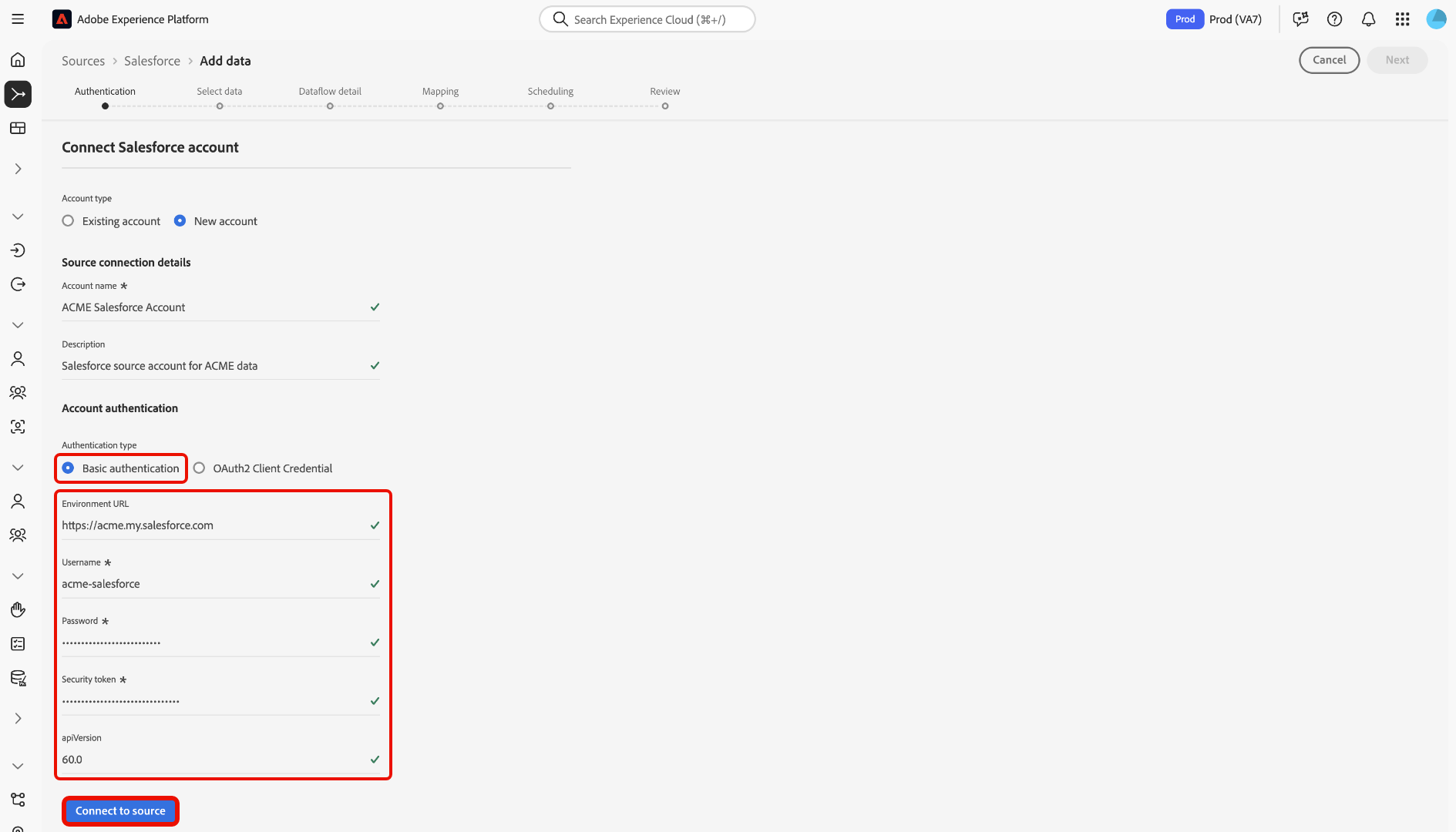

To use basic authentication, select Basic authentication, provide values for your host, username, and password, and then select Connect to source. Allow for a few moments for your credentials to validate, and then select Next to proceed.

basic

Select Mailchimp Campaigns data

Once your source is authenticated, you must then provide the campaignId that corresponds with your Mailchimp Campaigns account.

On the Select data page, enter your campaignId and then select Explore.

explore

The page updates into an interactive schema tree that allows you to explore and inspect the hierarchy of your data. Select Next to proceed.

select-data

Next steps

With your Mailchimp account authenticated and your Mailchimp Campaigns data selected, you can now start creating a dataflow to bring your data to Platform. For detailed steps on how to create a dataflow, see the documentation on creating a dataflow to bring marketing automation data to Platform.
