Analyzing attribution scores using Query Service

Each row in the data represents a conversion, in which information for related touchpoints are stored as an array of structs under the touchpointsDetail column.

Touchpoint information Column
Touchpoint name touchpointsDetail. touchpointName
Touchpoint channel touchpointsDetail.touchPoint.mediaChannel
Touchpoint Attribution AI algorithmic scores
  • touchpointsDetail.scores.algorithmicSourced
  • touchpointsDetail.scores.algorithmicInfluenced
  • Finding your data paths

    In the Adobe Experience Platform UI, select Datasets in the left navigation. The Datasets page appears. Next, select the Browse tab and find the output dataset for your Attribution AI scores.

    Accessing your instance

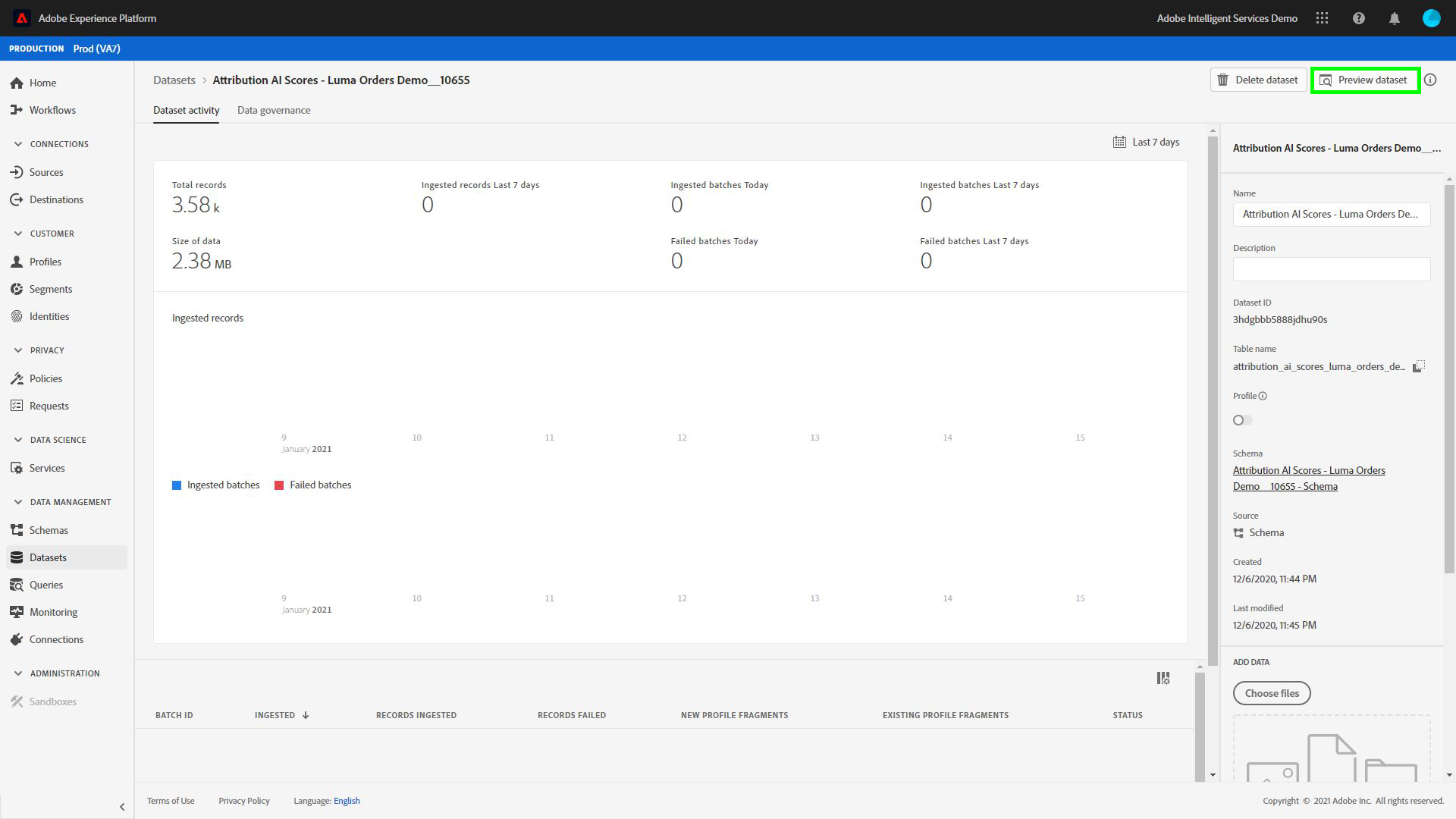

    Select your output dataset. The dataset activity page appears.

    dataset activity page

    Within the dataset activity page, select Preview dataset in the top-right corner to preview your data and make sure it was ingested as expected.

    preview dataset

    After previewing your data, select the schema in the right rail. A popover appears with the schema name and description. Select the schema name hyperlink to redirect to the scoring schema.

    select the schema

    Using the scoring schema, you can select or search for a value. Once selected, the Field properties side-rail opens allowing you to copy the path for use in creating queries.

    copy the path

    Access Query Service

    To access Query Service from within the Platform UI, start by selecting Queries in the left navigation, then select the Browse tab. A list of your previously saved queries is loaded.

    query service browse

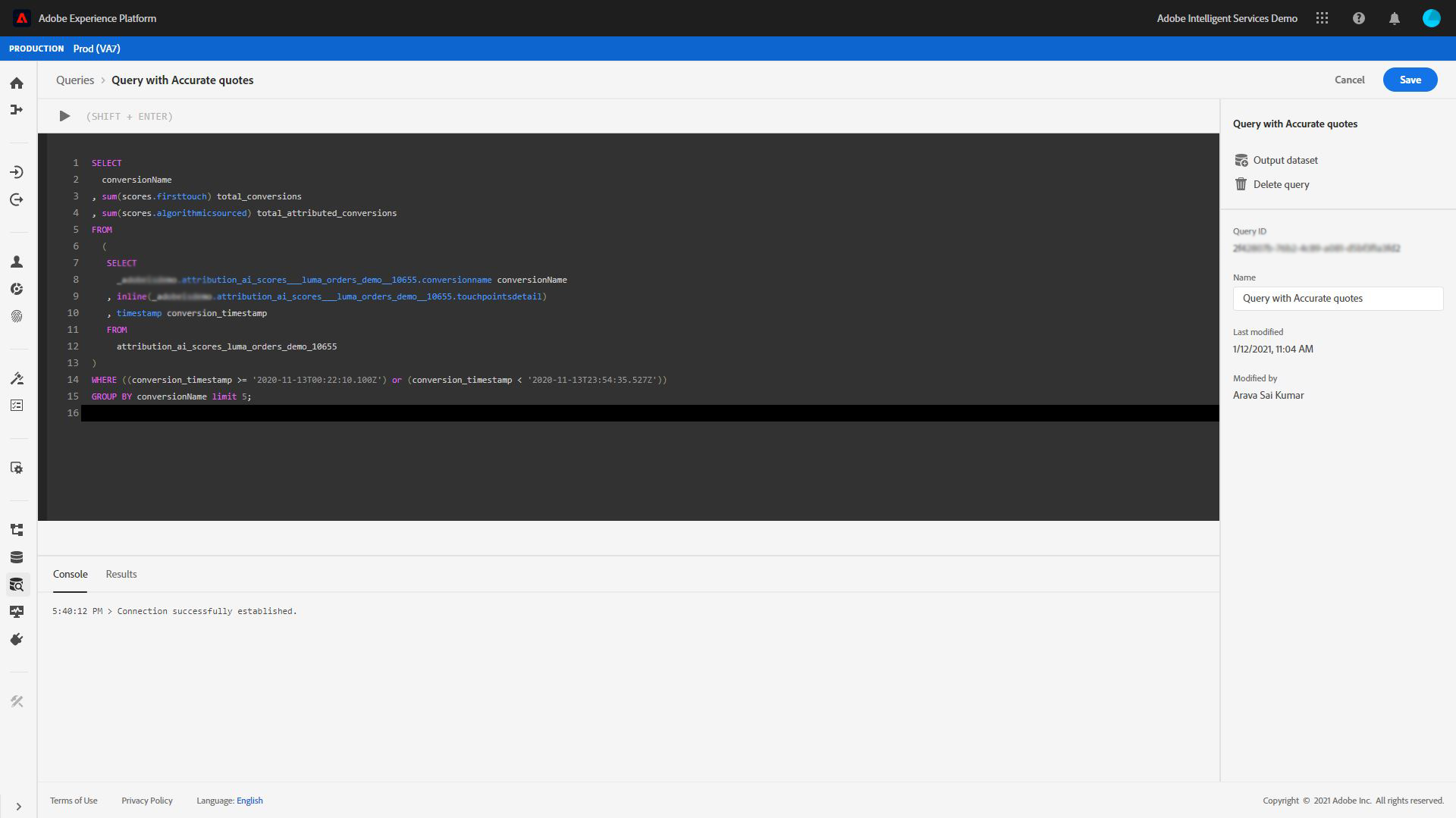

    Next, select Create query in the top-right corner. The Query Editor loads. Using the Query Editor you can begin to create queries using your scoring data.

    query editor

    For more information on the Query Editor, visit the Query Editor user guide.

    Query templates for attribution score analysis

    The queries below can be used as a template for different score analysis scenarios. You need to replace the _tenantId and your_score_output_dataset with the proper values found in your scoring output schema.

    NOTE

    Depending on how your data was ingested, the values used below such as timestamp might be in a different format.

    Validation examples

    Total number of conversions by conversion event (within in a conversion window)

        SELECT conversionName,
               SUM(scores.firstTouch) as total_conversions,
               SUM(scores.algorithmicSourced) as total_attributed_conversions
        FROM
            (SELECT
                    _tenantId.your_score_output_dataset.conversionName
                        as conversionName,
                    inline(_tenantId.your_score_output_dataset.touchpointsDetail),
                    timestamp as conversion_timestamp
             FROM
                    your_score_output_dataset
            )
        WHERE
            conversion_timestamp >= '2020-07-16'
          AND
            conversion_timestamp <  '2020-10-14'
        GROUP BY
            conversionName


    Total number of conversion-only events (within in a conversion window)

        SELECT
            _tenantId.your_score_output_dataset.conversionName as conversionName,
            COUNT(1) as convOnly_cnt
        FROM
            your_score_output_dataset
        WHERE
            _tenantId.your_score_output_dataset.touchpointsDetail.touchpointName[0] IS NULL AND
            timestamp >= '2020-07-16' AND
            timestamp <  '2020-10-14'
        GROUP BY
            conversionName


    Trend analysis example

    Number of conversions per day

        SELECT conversionName,
               DATE(conversion_timestamp) as conversion_date,
               SUM(scores.firstTouch) as convertion_cnt
        FROM
            (SELECT
                    _tenantId.your_score_output_dataset.conversionName as conversionName,
                    inline(_tenantId.your_score_output_dataset.touchpointsDetail),
                    timestamp as conversion_timestamp
             FROM
                    your_score_output_dataset
            )
        GROUP BY
            conversionName, DATE(conversion_timestamp)
        ORDER BY
            conversionName, DATE(conversion_timestamp)
        LIMIT 20


    Distribution analysis example

    Amount of touchpoints on conversion paths by defined type (within in a conversion window)

        SELECT conversionName,
               touchpointName,
               COUNT(1) as tp_count
        FROM
            (SELECT
                    _tenantId.your_score_output_dataset.conversionName as conversionName,
                    inline(_tenantId.your_score_output_dataset.touchpointsDetail),
                    timestamp as conversion_timestamp
             FROM
                    your_score_output_dataset
            )
        WHERE
            conversion_timestamp >= '2020-07-16' AND
            conversion_timestamp < '2020-10-14' AND
            touchpointName IS NOT NULL
        GROUP BY
            conversionName, touchpointName
        ORDER BY
            conversionName, tp_count DESC


    Insight generation examples

    Incremental units breakdown by touchpoint and conversion date (within in a conversion window)

        SELECT conversionName,
               touchpointName,
               DATE(conversion_timestamp) as conversion_date,
               SUM(scores.algorithmicSourced) as incremental_units
        FROM
            (SELECT
                    _tenantId.your_score_output_dataset.conversionName as conversionName,
                    inline(_tenantId.your_score_output_dataset.touchpointsDetail),
                    timestamp as conversion_timestamp
             FROM
                    your_score_output_dataset
            )
        WHERE
            conversion_timestamp >= '2020-07-16' AND
            conversion_timestamp < '2020-10-14'  AND
            touchpointName IS NOT NULL
        GROUP BY
            conversionName, touchpointName, DATE(conversion_timestamp)
        ORDER BY
            conversionName, touchpointName, DATE(conversion_timestamp)


    Incremental units breakdown by touchpoint and touchpoint date (within in a conversion window)

        SELECT conversionName,
               touchpointName,
               DATE(touchpoint.timestamp) as touchpoint_date,
               SUM(scores.algorithmicSourced) as incremental_units
        FROM
            (SELECT
                    _tenantId.your_score_output_dataset.conversionName as conversionName,
                    inline(_tenantId.your_score_output_dataset.touchpointsDetail),
                    timestamp as conversion_timestamp
             FROM
                    your_score_output_dataset
            )
        WHERE
            conversion_timestamp >= '2020-07-16' AND
            conversion_timestamp < '2020-10-14'  AND
            touchpointName IS NOT NULL
        GROUP BY
            conversionName, touchpointName, DATE(touchpoint.timestamp)
        ORDER BY
            conversionName, touchpointName, DATE(touchpoint.timestamp)
        LIMIT 20


    Aggregated scores for a certain type of touchpoint for all scoring models (within in a conversion window)

        SELECT
               conversionName,
               touchpointName,
               SUM(scores.algorithmicSourced) as total_incremental_units,
               SUM(scores.algorithmicInfluenced) as total_influenced_units,
               SUM(scores.uShape) as total_uShape_units,
               SUM(scores.decayUnits) as total_decay_units,
               SUM(scores.linear) as total_linear_units,
               SUM(scores.lastTouch) as total_lastTouch_units,
               SUM(scores.firstTouch) as total_firstTouch_units
        FROM
            (SELECT
                    _tenantId.your_score_output_dataset.conversionName as conversionName,
                    inline(_tenantId.your_score_output_dataset.touchpointsDetail),
                    timestamp as conversion_timestamp
             FROM
                    your_score_output_dataset
            )
        WHERE
            conversion_timestamp >= '2020-07-16' AND
            conversion_timestamp < '2020-10-14'  AND
            touchpointName = 'display'
        GROUP BY
            conversionName, touchpointName
        ORDER BY
            conversionName, touchpointName


    Advanced - path length analysis

    Get a path length distribution for each conversion event type:

        WITH agg_path AS (
              SELECT
                _tenantId.your_score_output_dataset.conversionName as conversionName,
                sum(size(_tenantId.your_score_output_dataset.touchpointsDetail)) as path_length
              FROM
                your_score_output_dataset
              WHERE
                _tenantId.your_score_output_dataset.touchpointsDetail.touchpointName[0] IS NOT NULL AND
                timestamp >= '2020-07-16' AND
                timestamp <  '2020-10-14'
              GROUP BY
                _tenantId.your_score_output_dataset.conversionName,
                eventMergeId
        )
        SELECT
            conversionName,
            path_length,
            count(1) as conversionPath_count
        FROM
            agg_path
        GROUP BY
            conversionName, path_length
        ORDER BY
            conversionName, path_length


    Advanced - distinct number of touchpoints on conversion paths analysis

    Get the distribution for the number of distinct touchpoints on a conversion path for each conversion event type:

        WITH agg_path AS (
          SELECT
            _tenantId.your_score_output_dataset.conversionName as conversionName,
            size(array_distinct(flatten(collect_list(_tenantId.your_score_output_dataset.touchpointsDetail.touchpointName)))) as num_dist_tp
          FROM
            your_score_output_dataset
          WHERE
            _tenantId.your_score_output_dataset.touchpointsDetail.touchpointName[0] IS NOT NULL AND
            timestamp >= '2020-07-16' AND
            timestamp <  '2020-10-14'
          GROUP BY
            _tenantId.your_score_output_dataset.conversionName,
            eventMergeId
        )
        SELECT
            conversionName,
            num_dist_tp,
            count(1) as conversionPath_count
        FROM
         agg_path
        GROUP BY
            conversionName, num_dist_tp
        ORDER BY
            conversionName, num_dist_tp


    Schema flatten and explosion example

    This query flattens the struct column into multiple singular columns and explode arrays into multiple rows. This helps with transforming attribution scores into a CSV format. The output of this query has one conversion and one of the touchpoints corresponding to that conversion in each row.

    TIP

    In this example, you need to replace {COLUMN_NAME} in addition to _tenantId and your_score_output_dataset. The COLUMN_NAME variable can take the values of optional pass through column names (reporting columns) that were added during the configuring of your Attribution AI instance. Please review your scoring output schema to find the {COLUMN_NAME} values needed to complete this query.

    SELECT
      segmentation,
      conversionName,
      scoreCreatedTime,
      aaid, _id, eventMergeId,
      conversion.eventType as conversion_eventType,
      conversion.quantity as conversion_quantity,
      conversion.eventSource as conversion_eventSource,
      conversion.priceTotal as conversion_priceTotal,
      conversion.timestamp as conversion_timestamp,
      conversion.geo as conversion_geo,
      conversion.receivedTimestamp as conversion_receivedTimestamp,
      conversion.dataSource as conversion_dataSource,
      conversion.productType as conversion_productType,
      conversion.passThrough.{COLUMN_NAME} as conversion_passThru_column,
      conversion.skuId as conversion_skuId,
      conversion.product as conversion_product,
      touchpointName,
      touchPoint.campaignGroup as tp_campaignGroup,
      touchPoint.mediaType as tp_mediaType,
      touchPoint.campaignTag as tp_campaignTag,
      touchPoint.timestamp as tp_timestamp,
      touchPoint.geo as tp_geo,
      touchPoint.receivedTimestamp as tp_receivedTimestamp,
      touchPoint.passThrough.{COLUMN_NAME} as tp_passThru_column,
      touchPoint.campaignName as tp_campaignName,
      touchPoint.mediaAction as tp_mediaAction,
      touchPoint.mediaChannel as tp_mediaChannel,
      touchPoint.eventid as tp_eventid,
      scores.*
    FROM (
      SELECT
            _tenantId.your_score_output_dataset.segmentation,
            _tenantId.your_score_output_dataset.conversionName,
            _tenantId.your_score_output_dataset.scoreCreatedTime,
            _tenantId.your_score_output_dataset.conversion,
            _id,
            eventMergeId,
            map_values(identityMap)[0][0].id as aaid,
            inline(_tenantId.your_score_output_dataset.touchpointsDetail)
      FROM
            your_score_output_dataset
    )
