使用Destination SDK配置基于文件的目标

上次更新： 2023-11-01

主题：
Destinations
查看有关此主题的更多信息

创建对象：
Developer

User

Admin

Leader

概述

本页介绍如何使用中的信息目标SDK中的配置选项和其他Destination SDK功能和API参考文档中的内容，以配置基于文件的目标. 步骤按以下顺序排列。

先决条件

在继续执行以下步骤之前，请阅读 Destination SDK快速入门页面，以了解有关获取使用Destination SDKAPI所需的Adobe I/O身份验证凭据和其他先决条件的信息。

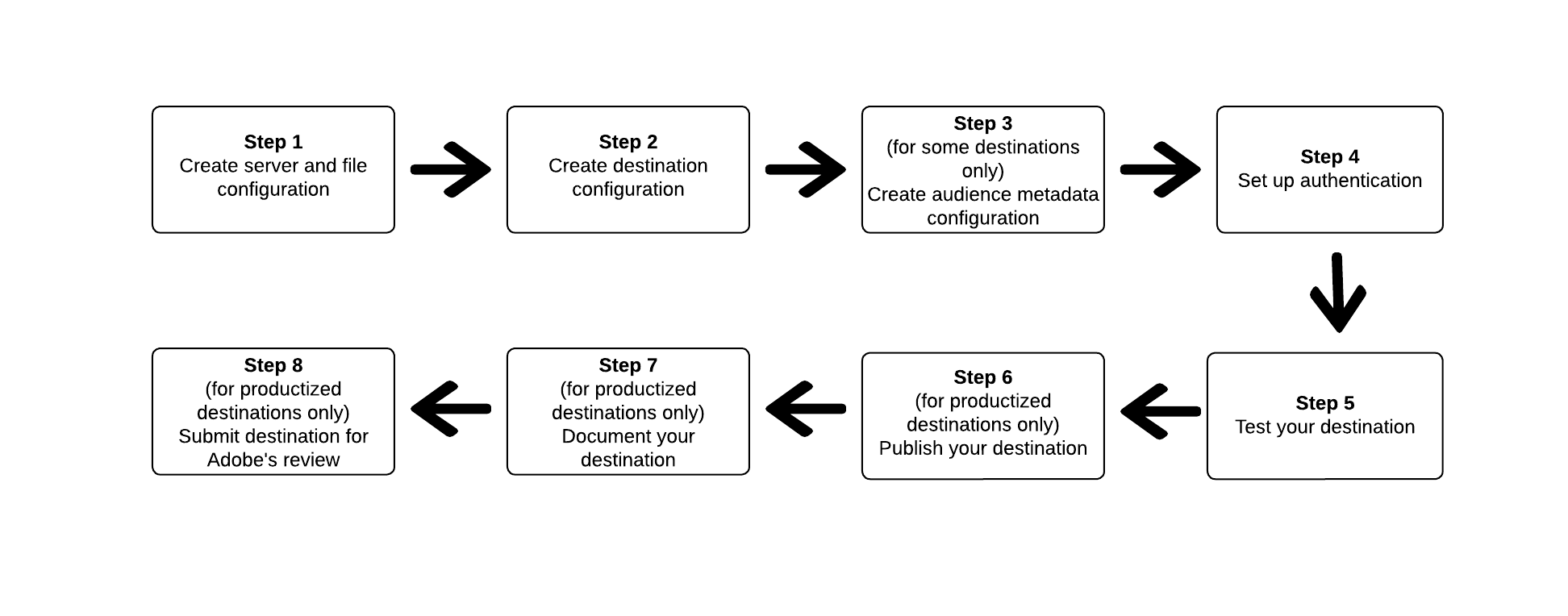

在Destination SDK中使用配置选项设置目标的步骤

说明使用Destination SDK端点的步骤

步骤1：创建服务器和文件配置

开始方式创建服务器和文件配置使用 /destinations-server 端点。

下面显示的是的示例配置 Amazon S3 目标。要配置其他类型的基于文件的目标，请参阅相应的服务器配置.

API格式

POST platform.adobe.io/data/core/activation/authoring/destination-servers

{
    "name": "S3 destination",
    "destinationServerType": "FILE_BASED_S3",
    "fileBasedS3Destination": {
        "bucketName": {
            "templatingStrategy": "PEBBLE_V1",
            "value": "{{customerData.bucketName}}"
        },
        "path": {
            "templatingStrategy": "PEBBLE_V1",
            "value": "{{customerData.path}}"
        }
    },
    "fileConfigurations": {
        "compression": {
            "templatingStrategy": "PEBBLE_V1",
            "value": "{{customerData.compression}}"
        },
        "fileType": {
            "templatingStrategy": "PEBBLE_V1",
            "value": "{{customerData.fileType}}"
        },
        "csvOptions": {
            "quote": {
                "templatingStrategy": "NONE",
                "value": "\""
            },
            "quoteAll": {
                "templatingStrategy": "NONE",
                "value": "false"
            },
            "escape": {
                "templatingStrategy": "NONE",
                "value": "\\"
            },
            "escapeQuotes": {
                "templatingStrategy": "NONE",
                "value": "true"
            },
            "header": {
                "templatingStrategy": "NONE",
                "value": "true"
            },
            "ignoreLeadingWhiteSpace": {
                "templatingStrategy": "NONE",
                "value": "true"
            },
            "ignoreTrailingWhiteSpace": {
                "templatingStrategy": "NONE",
                "value": "true"
            },
            "nullValue": {
                "templatingStrategy": "NONE",
                "value": ""
            },
            "dateFormat": {
                "templatingStrategy": "NONE",
                "value": "yyyy-MM-dd"
            },
            "timestampFormat": {
                "templatingStrategy": "NONE",
                "value": "yyyy-MM-dd'T':mm:ss[.SSS][XXX]"
            },
            "charToEscapeQuoteEscaping": {
                "templatingStrategy": "NONE",
                "value": "\\"
            },
            "emptyValue": {
                "templatingStrategy": "NONE",
                "value": ""
            }
        }
    }
}

步骤2：创建目标配置

下面显示了使用创建的目标配置示例。 /destinations API端点。

要在步骤1中将服务器和文件配置连接到此目标配置，请将服务器和模板配置的实例ID添加为 destinationServerId 此处。

API格式

POST platform.adobe.io/data/core/activation/authoring/destinations

{
    "name": "Amazon S3 destination",
    "description": "Amazon S3 destination is a fictional destination, used for this example.",
    "status": "Test",
    "customerAuthenticationConfigurations": [
        {
            "authType": "S3"
        }
    ],
    "customerEncryptionConfigurations": [],
    "customerDataFields": [
        {
            "name": "bucketName",
            "title": "Amazon S3 bucket name",
            "description": "Enter the Amazon S3 Bucket name that will host the exported files.",
            "type": "string",
            "isRequired": true,
            "pattern": "(?=^.{3,63}$)(?!^(\\d+\\.)+\\d+$)(^(([a-z0-9]|[a-z0-9][a-z0-9\\-]*[a-z0-9])\\.)*([a-z0-9]|[a-z0-9][a-z0-9\\-]*[a-z0-9])$)",
            "readOnly": false,
            "hidden": false
        },
        {
            "name": "path",
            "title": "Amazon S3 path",
            "description": "Enter Amazon S3 folder path",
            "type": "string",
            "isRequired": true,
            "pattern": "^[0-9a-zA-Z\\/\\!\\-_\\.\\*\\''\\(\\)]*((\\%SEGMENT_(NAME|ID)\\%)?\\/?)+$",
            "readOnly": false,
            "hidden": false
        },
        {
            "name": "compression",
            "title": "Select compression type",
            "description": "Select the file compression type used by the exported files.",
            "type": "string",
            "isRequired": true,
            "readOnly": false,
            "enum": [
                "GZIP",
                "NONE",
                "bzip2",
                "lz4",
                "snappy",
                "deflate"
            ]
        },
        {
            "name": "fileType",
            "title": "Select a file format",
            "description": "Select the file format to be used by the exported files.",
            "type": "string",
            "isRequired": true,
            "readOnly": false,
            "hidden": false,
            "enum": [
                "csv",
                "json",
                "parquet"
            ],
            "default": "csv"
        }
    ],
    "uiAttributes": {
        "documentationLink": "https://www.adobe.io/apis/experienceplatform.html",
        "category": "S3",
        "connectionType": "S3",
        "flowRunsSupported": true,
        "monitoringSupported": true,
        "frequency": "Batch"
    },
    "destinationDelivery": [
        {
            "deliveryMatchers": [
                {
                    "type": "SOURCE",
                    "value": [
                        "batch"
                    ]
                }
            ],
            "authenticationRule": "CUSTOMER_AUTHENTICATION",
            "destinationServerId": "eec25bde-4f56-4c02-a830-9aa9ec73ee9d"
        }
    ],
    "schemaConfig": {
        "profileRequired": true,
        "segmentRequired": true,
        "identityRequired": true
    },
    "batchConfig": {
        "allowMandatoryFieldSelection": true,
        "allowDedupeKeyFieldSelection": true,
        "defaultExportMode": "DAILY_FULL_EXPORT",
        "allowedExportMode": [
            "DAILY_FULL_EXPORT",
            "FIRST_FULL_THEN_INCREMENTAL"
        ],
        "allowedScheduleFrequency": [
            "DAILY",
            "EVERY_3_HOURS",
            "EVERY_6_HOURS",
            "EVERY_8_HOURS",
            "EVERY_12_HOURS",
            "ONCE"
        ],
        "defaultFrequency": "DAILY",
        "defaultStartTime": "00:00"
    },
    "backfillHistoricalProfileData": true
}

步骤3：创建受众元数据配置

对于某些目标，Destination SDK需要您将受众元数据配置配置为以编程方式创建、更新或删除目标中的受众。请参阅受众元数据管理有关何时需要设置此配置以及如何设置的信息。

如果使用受众元数据配置，则必须将其连接到在步骤2中创建的目标配置。将受众元数据配置的实例ID添加到目标配置中，如下所示 audienceTemplateId.

{
    "name": "Amazon S3 destination",
    "description": "Amazon S3 destination is a fictional destination, used for this example.",
    "status": "Test",
    "customerAuthenticationConfigurations": [
        {
            "authType": "S3"
        }
    ],
    "customerEncryptionConfigurations": [],
    "customerDataFields": [
        {
            "name": "bucketName",
            "title": "Amazon S3 bucket name",
            "description": "Enter the Amazon S3 Bucket name that will host the exported files.",
            "type": "string",
            "isRequired": true,
            "pattern": "(?=^.{3,63}$)(?!^(\\d+\\.)+\\d+$)(^(([a-z0-9]|[a-z0-9][a-z0-9\\-]*[a-z0-9])\\.)*([a-z0-9]|[a-z0-9][a-z0-9\\-]*[a-z0-9])$)",
            "readOnly": false,
            "hidden": false
        },
        {
            "name": "path",
            "title": "Amazon S3 path",
            "description": "Enter Amazon S3 folder path",
            "type": "string",
            "isRequired": true,
            "pattern": "^[0-9a-zA-Z\\/\\!\\-_\\.\\*\\''\\(\\)]*((\\%SEGMENT_(NAME|ID)\\%)?\\/?)+$",
            "readOnly": false,
            "hidden": false
        },
        {
            "name": "compression",
            "title": "Select compression type",
            "description": "Select the file compression type used by the exported files.",
            "type": "string",
            "isRequired": true,
            "readOnly": false,
            "enum": [
                "GZIP",
                "NONE",
                "bzip2",
                "lz4",
                "snappy",
                "deflate"
            ]
        },
        {
            "name": "fileType",
            "title": "Select a file format",
            "description": "Select the file format to be used by the exported files.",
            "type": "string",
            "isRequired": true,
            "readOnly": false,
            "hidden": false,
            "enum": [
                "csv",
                "json",
                "parquet"
            ],
            "default": "csv"
        }
    ],
    "uiAttributes": {
        "documentationLink": "https://www.adobe.io/apis/experienceplatform.html",
        "category": "S3",
        "connectionType": "S3",
        "flowRunsSupported": true,
        "monitoringSupported": true,
        "frequency": "Batch"
    },
    "destinationDelivery": [
        {
            "deliveryMatchers": [
                {
                    "type": "SOURCE",
                    "value": [
                        "batch"
                    ]
                }
            ],
            "authenticationRule": "CUSTOMER_AUTHENTICATION",
            "destinationServerId": "eec25bde-4f56-4c02-a830-9aa9ec73ee9d"
        }
    ],
    "audienceMetadataConfig":{
    "mapExperiencePlatformSegmentName":false,
    "mapExperiencePlatformSegmentId":false,
    "mapUserInput":false,
    "audienceTemplateId":"cbf90a70-96b4-437b-86be-522fbdaabe9c"
    },
    "schemaConfig": {
        "profileRequired": true,
        "segmentRequired": true,
        "identityRequired": true
    },
    "batchConfig": {
        "allowMandatoryFieldSelection": true,
        "allowDedupeKeyFieldSelection": true,
        "defaultExportMode": "DAILY_FULL_EXPORT",
        "allowedExportMode": [
            "DAILY_FULL_EXPORT",
            "FIRST_FULL_THEN_INCREMENTAL"
        ],
        "allowedScheduleFrequency": [
            "DAILY",
            "EVERY_3_HOURS",
            "EVERY_6_HOURS",
            "EVERY_8_HOURS",
            "EVERY_12_HOURS",
            "ONCE"
        ],
        "defaultFrequency": "DAILY",
        "defaultStartTime": "00:00"
    },
    "backfillHistoricalProfileData": true
}

步骤4：设置身份验证

取决于您是否指定 "authenticationRule": "CUSTOMER_AUTHENTICATION" 或 "authenticationRule": "PLATFORM_AUTHENTICATION" 在上面的目标配置中，您可以使用来设置目标的身份验证 /destination 或 /credentials 端点。

如果您选择 "authenticationRule": "CUSTOMER_AUTHENTICATION" 在目标配置中，请参阅以下部分，了解Destination SDK支持的基于文件的目标身份验证类型：
如果您选择 "authenticationRule": "PLATFORM_AUTHENTICATION"，请参阅凭据配置API文档.

步骤5：测试您的目标

使用前面步骤中的配置端点设置目标后，您可以使用目标测试工具测试Adobe Experience Platform与您的目标之间的集成。

在测试目标的过程中，您必须使用Experience PlatformUI创建区段，并将区段激活到目标。有关如何在Experience Platform中创建受众的说明，请参阅以下两个资源：

步骤6：发布目标

注意

如果您正在创建供自己使用的专用目标，并且不想将其发布到目标目录以供其他客户使用，则不需要执行此步骤。

配置和测试目标后，使用目标发布API 将您的配置提交给Adobe进行审核。

步骤7：记录您的目标

注意

如果您正在创建供自己使用的专用目标，并且不想将其发布到目标目录以供其他客户使用，则不需要执行此步骤。

如果您是独立软件供应商(ISV)或系统集成商(SI)，请创建产品化集成，使用自助式文档流程在中为您的目标创建产品文档页面 Experience Platform目标目录.

步骤8：提交目标以供Adobe审核

注意

如果您正在创建供自己使用的专用目标，并且不想将其发布到目标目录以供其他客户使用，则不需要执行此步骤。

最后，在Experience Platform目录中发布目标并对所有Experience Platform客户可见之前，您需要正式提交目标以供Adobe审查。查找有关如何执行操作的完整信息提交供审查在Destination SDK中创作的产品化目的地.
