Channel Level Activation channel-level-activation-single-event-playback

Last update: Tue Apr 16 2024 00:00:00 GMT+0000 (Coordinated Universal Time)

CREATED FOR:

  • Intermediate
  • Admin
  • Developer

This page describes channel level activation for the assets used in Channels.

The following topics are covered in this section:

  • Overview

  • Activation Window

  • Using Channel Level Activation as a Single Event Playback

  • Handling Recurrence for Assets in a Channel

    • DayParting
    • WeekParting
    • MonthParting
    • Combination of Partings

  • Using Channel Level Activation as a Single Event Playback

Overview overview

Channel Level Activation allows the channels to switch after a particular set schedule. The single event channel replaces the main channel after a set schedule and plays for a particular time, until the main channel plays its content again.

The following example provides a solution by focusing on the following key terms:

  • a main sequence channel for the global sequence
  • a single event channel that runs only once at a set time
  • a set schedule and priority for the single playback event that occurs inside the main sequence channel

Activation Window using-channel-level-activation

The following section explains the creation of a single event playback inside a channel for an AEM Screens project.

Prerequisites prerequisites

Before you start implementing this functionality, make sure you have the following prerequisites ready to start implementing channel level activation:

  • Create an AEM Screens project, in this example, Channel Level Activation

  • Create a channel as MainAdChannel under Channels folder

  • Create another channel as TargetedSinglePlay under Channels folder

  • Add relevant assets to both the channels

The following image shows the Channel Level Activation project with MainAdChannel and TargetedSinglePlay channels in Channels folder.

screen_shot_2018-11-27at104500am

NOTE
For additional information on how to create a project and how to create a sequence channel, see the following resources:

Implementation implementation

Implementing Channel Level Activation in an AEM Screens project involves three major tasks:

  1. Setting up Project taxonomy including Channels, Locations, and Displays
  2. Assigning Channels to Display
  3. Setting up a Schedule and Priority

Follow the steps below to implement the functionality:

  1. Create a Location

    Navigate to your Locations folder in your AEM Screens project and create a location as Region.

    screen_shot_2018-11-27at112112am

    note note
    NOTE
    To learn how to create a location, see Creating and Managing Locations.

  2. Create Display under Location

    1. Navigate to Channel Level Activation > Locations > Region.
    2. Click Region and click + Create from the action bar.
    3. Click Display from the wizard and create a display titled as RegionDisplay.

    screen_shot_2018-11-27at112216am

  3. Assign Channels to Display

    For MainAdChannel:

    1. Navigate to Channel Level Activation > Locations > Region > RegionDisplay and click Assign Channel from the action bar.
    2. Channel Assignment dialog box opens.
    3. Click Reference Channel by path.
    4. Click the Channel Path as Channel Level Activation > Channels > MainAdChannel.
    5. The Channel Role is populated as mainadchannel.
    6. Click the Priority as 1.
    7. Click the Supported Events as Initial Load and Idle Screen.
    8. Click Save.

    screen_shot_2018-11-27at124626pm

    note note
    NOTE
    You can also assign channel from the display dashboard by navigating to Channel Level Activation > Locations > Region > RegionDisplay and selecting Dashboard from the action bar. Click + Assign Channel from the ASSIGNED CHANNELS & SCHEDULES panel.

    Similarly, assign channel TargetedSinglePlay for display**:

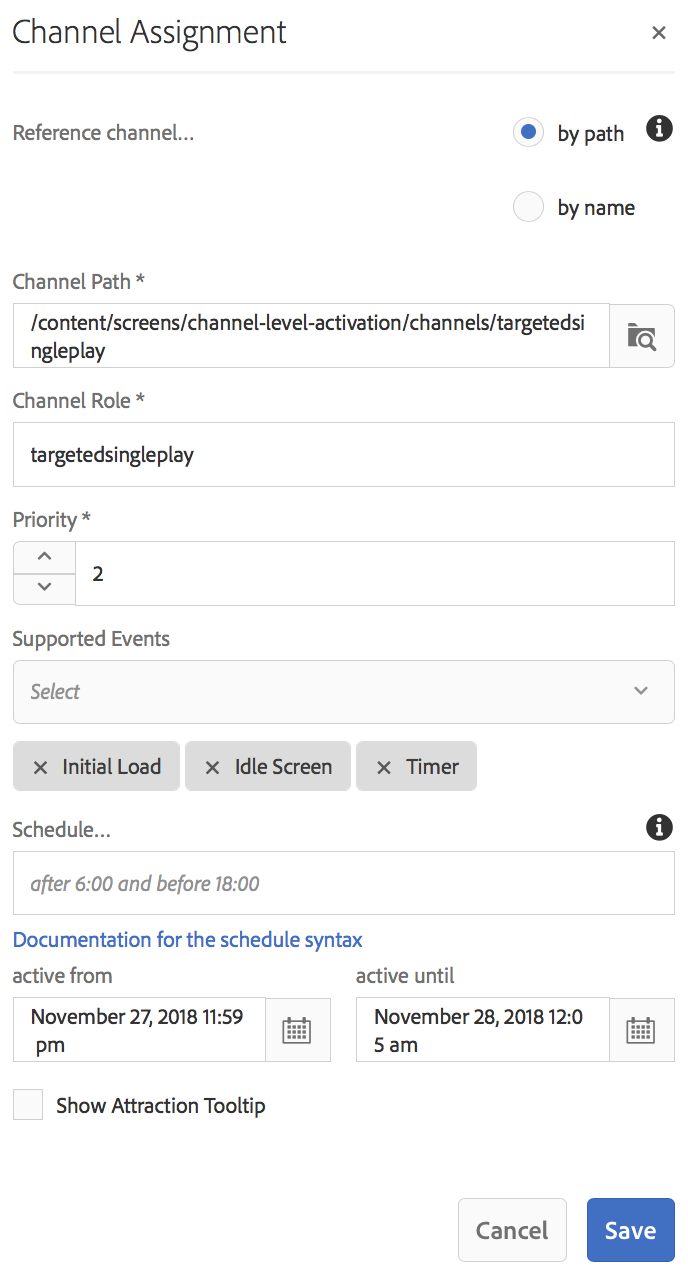

    1. Navigate to Channel Level Activation > Locations > Region > RegionDisplay and click Assign Channel from the action bar.
    2. Channel Assignment dialog box opens.
    3. Click Reference Channel by path.
    4. Click the Channel Path as Channel Level Activation* > Channels > TargetedSinglePlay.
    5. The Channel Role is populated as targetedsingleplay.
    6. Set the Priority as 2.
    7. Click the Supported Events as Initial Load, Idle Screen, and Timer, as shown in the figure below.
    8. Choose the date in active from as November 27, 2018 11:59 P.M. and in active until as November 28, 2018 12:05 A.M.
    9. Click Save.
    note caution
    CAUTION
    Set the priority for TargetedSinglePlay channel higher than the MainAdSegment channel.

    screen_shot_2018-11-27at31206pm

    note note
    NOTE
    To choose the same day, click the next day, then manually edit the date to the same day but for a later time. Doing so restricts the user from selecting a past date. See the following example:

    new1

Viewing the Results viewing-the-results

When you have the setup for channels and display complete, launch the AEM Screens player to view the content.

The player displays the content of MainAdChannel and exactly at 11:59 P.M. (as set in the schedule), the TargetedSinglePlay channel displays its content until 12:05 A.M. and then the MainAdChannel resumes playing its content again.

NOTE
To learn about AEM Screen Player, see the following resources:
AEM Screens Player downloads
Working with AEM Screens Player

Handling Recurrence for Assets in a Channel handling-recurrence-in-assets

You can schedule assets in a channel to recur at certain intervals on daily, weekly, or monthly basis too as per your requirement.

Suppose you want to display contents of a channel only on Fridays from 1:00 P.M. until 10:00 P.M… You can use the Activation tab to set the desired recurring interval for your asset.

Day Parting day-parting

  1. Click the channel, then click Dashboard from the action bar.

  2. After entering the start date/time and end/date time from the Channel Assignment dialog box, you can use an expression or a natural text version to specify your recurrence schedule.

    note note
    NOTE
    You can skip or include the Active from and Active Until fields and add the expression to the Schedules field, as per your requirement.

  3. Enter the expression into the Schedule and your asset displays for the particular interval of day and time.

Example Expressions for Day Parting example-one

The following table summarizes few example expressions that you can add to the schedule while assigning channel to a display.

Expression
Interpretation
before 8:00 A.M.
the asset in the channel plays before 8:00 A.M. everyday
after 2:00 P.M.
the asset in the channel plays after 2:00 P.M. everyday
after 12:15 and before 12:45
the asset in the channel plays after 12:15 P.M. everyday for 30 minutes
before 12:15 also after 12:45
the asset in the channel plays before 12:15 P.M. everyday and then also after 12:45 P.M.
Mon,Tue,Wed, or Mon-Wed
the asset plays in the asset in the channel from Monday until Wednesday
on the first day of January after 2:00 P.M. also on the second day of January also on the third day of January before 3:00 A.M.
the asset in the channel starts playing after 2:00 P.M. on January 1, continues playing for the whole day on January 2 all the way until 3:00 A.M. on January 3
on the 1-2 days of January after 2:00 P.M. also on the 2-3 days of January before 3:00 A.M.
the asset in the channel starts player after 2:00 P.M. on January 1, continues playing until 3:00 A.M. on January 2, then it starts again on January 2 at 2:00 P.M. and continues playing until 3:00 A.M. on January 3
NOTE
You can also use military time notation (14:00) instead of A.M./P.M. (2:00 P.M.).

WeekParting week-parting

  1. Click the channel, then click Dashboard from the action bar.

  2. After entering the start date/time and end/date time from the Channel Assignment dialog box, you can use an expression or a natural text version to specify your recurrence schedule.

    note note
    NOTE
    You can skip or include the Active from and Active Until fields and add the expression to the Schedules field, as per your requirement.

  3. Enter the expression into the Schedule and your asset displays for the particular interval of day and time.

Example Expressions for WeekParting example-two

The following table summarizes few example expressions that you can add to the schedule while assigning channel to a display.

Expression
Interpretation
Mon,Tue,Wed, or Mon-Wed
the asset plays in the asset in the channel from Monday until Wednesday
before 8:00 A.M.
the asset in the channel plays before 8:00 A.M. everyday
after 2:00 P.M.
the asset in the channel plays after 2:00 P.M. everyday
after 12:15 and before 12:45
the asset in the channel plays after 12:15 P.M. everyday for 30 minutes
before 12:15 also after 12:45
the channel plays before 12:15 P.M. everyday and then also after 12:45 P.M.
NOTE
You can also use military time notation (14:00) instead of A.M./P.M. (2:00 P.M.).

MonthParting month-parting

  1. Click the channel, then click Dashboard from the action bar.

  2. After entering the start date/time and end/date time from the Channel Assignment dialog box, you can use an expression or a natural text version to specify your recurrence schedule.

    note note
    NOTE
    You can skip or include the Active from and Active Until fields and add the expression to the Schedules field, as per your requirement.

  3. Enter the expression into the Schedule and your asset displays for the particular interval of day and time.

Example Expressions for MonthParting example-three

The following table summarizes few example expressions that you can add to the schedule while assigning channel to a display.

Expression
Interpretation
of February,May,August,November
the asset plays in the channel in February, May, August, November
NOTE
When defining days of the week and months, you can use both the short-hand and full-name notations, such as, Mon/Monday and Jan/January.
NOTE
You can also use military time notation (14:00) instead of A.M./P.M. (2:00 P.M.).

Combination of Partings combined-parting

  1. Click the channel, then click Dashboard from the action bar.

  2. After entering the start date/time and end/date time from the Channel Assignment dialog box, you can use an expression or a natural text version to specify your recurrence schedule.

    note note
    NOTE
    You can skip or include the Active from and Active Until fields and add the expression to the Schedules field, as per your requirement.

  3. Enter the expression into the Schedule and your asset displays for the particular interval of day and time.

Example Expressions for Combination of Partings example-four

The following table summarizes few example expressions that you can add to the schedule while assigning channel to a display.

Expression
Interpretation
after 6:00 and before 18:00 on Mon, Wed of Jan-Mar
the asset plays in the channel between 6am and 6pm on Mondays and Wednesdays from January to end of March
on the first day of January after 2:00 P.M. also on the second day of January also on the third day of January before 3:00 A.M.
the asset in the channel starts playing after 2:00 P.M. on January 1, continues playing for the whole day on January 2 all the way until 3:00 A.M. on January 3
on the 1-2 days of January after 2:00 P.M. also on the 2-3 days of January before 3:00 A.M.
the asset in the channel starts player after 2:00 P.M. on January 1, continues playing until 3:00 A.M. on January 2, then it starts again on January 2 at 2:00 P.M. and continues playing until 3:00 A.M. on January 3
NOTE
When defining days of the week and months, you can both use the short-hand and full-name notations, such as, Mon/Monday and Jan/January. Also, you can also use military time notation (14:00) instead of A.M./P.M. (2:00 P.M.).
