Dynamic video support on Brand Portal

Preview and play videos adaptively on Brand Portal with Dynamic Media support. Also download the dynamic renditions from the portal and shared links.
Brand Portal users can:

• Preview videos in Asset Details page, Card View, and link share preview page.
• Play video encodes on Asset Details page.
• View dynamic renditions in Renditions tab on Asset Details page.
• Download video encodes and folders containing videos.

To preview, play, and download videos, Brand Portal exposes the following two configurations to administrators:

• Dynamic Media Hybrid configuration
  If Experience Manager Author instance is running on dynamic media Hybrid mode.
• Dynamic Media Scene7 configuration
  If Experience Manager Author instance is running on dynamic media-Scene7 mode.
  Set either of these configurations based on the configurations you set in your Experience Manager Author instance with which Brand Portal tenant is replicated.

How are dynamic videos played?

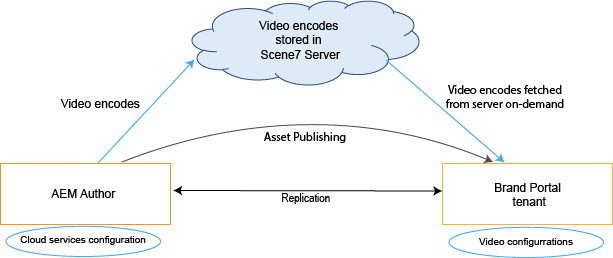

If Dynamic Media configurations (Hybrid or Scene7 configurations) are set up on Brand Portal, the dynamic renditions are fetched from Scene7 server. Video encodes are, therefore, previewed and played without delay and distortion in quality.

As video encodes are not stored in Brand Portal repository and are fetched from Scene7 server, ensure that the Dynamic Media configurations on Adobe Experience Manager Author Instance and Brand Portal are the same.

Prerequisites

To work with dynamic videos on Brand Portal, make sure to:

• Start up Experience Manager Author on Dynamic Media mode
  Start-up the Experience Manager Author instance (with which Brand Portal is configured) either in Dynamic Media - Scene7 mode or in Dynamic Media - Hybrid mode or
• Configure Dynamic Media Cloud Services on Experience Manager Author
  Based on the Dynamic Media mode (Scene7 mode or Hybrid mode) Experience Manager Author is running on, set either Dynamic Media Cloud Services (Scene7 mode) or Dynamic Media Cloud Services (Hybrid mode) on Experience Manager Author from Tools | Cloud Services | Dynamic Media.
• Configure Dynamic Media on Brand Portal
  Based on the Dynamic Media cloud configurations on Experience Manager Author, configure Dynamic Media settings or Scene7 settings from Brand Portal administrative tools.
  Make sure that separate Brand Portal tenants are used for Experience Manager Author instances that are configured in Dynamic Media - Scene7 mode and Dynamic Media - Hybrid mode. Especially if you use functionalities of Dynamic Media S7 and Dynamic Media Hybrid.
• Publish folders with video encodes applied to Brand Portal
  Apply video encodings and publish the folder containing rich media assets from Experience Manager Author instance to Brand Portal.
• Allowlist Egress IPs in SPS if secure preview enabled
  If using Dynamic Media-Scene7 (with secure preview enabled for a company), then it is advised that Scene7 company administrator allowlist the public egress IPs for respective regions using SPS (Scene7 Publishing System) flash UI.
  The Egress IPs are as follows:

To allowlist either of these egress IPs, see prepare your account for secure testing service.

Best Practices

To ensure that your dynamic video assets are successfully previewed, played, and downloaded from Brand Portal (and shared links), follow these practices:

Separate tenants for Dynamic Media - Scene7 and Dynamic Media - Hybrid modes

If you use both Dynamic Media - Scene7 mode and Dynamic Media - Hybrid mode features, use different Brand Portal tenants for Experience Manager Author instances configured with Dynamic Media - Scene7 and Dynamic Media - Hybrid modes.

Same configuration details at Experience Manager Author instance and Brand Portal

Ensure that the configuration details are the same in Brand Portal and Experience Manager Cloud Configuration. The same configuration details include the following:

• Title
• Registration ID
• Video Service URL in Dynamic Media - Hybrid mode
• Title
• Credentials (Email and Password)
• Region
• Company in Dynamic Media - Scene7 mode

Allowlist public egress IPs for Dynamic Media Scene7 mode

If Dynamic Media Scene7–having secure preview enabled–is used to serve video assets to Brand Portal, then Scene7 establishes a dedicated image server for staging environments or internal applications. Any request to this server checks the origin IP address. If the incoming request is not within the approved list of IP addresses, a failure response is returned.
The Scene7 Company Administrator, therefore, configures an approved list of IP addresses for their company’s Secure Testing environment, through SPS (Scene7 Publishing System) flash UI. Make sure that the egress IP for your respective region (from the following) is added to that approved list.
To allowlist either of these egress IPs, see prepare your account for secure testing service.
The egress IPs are as follows:

Configure Dynamic Media (Hybrid) settings

If Experience Manager Author instance is running on dynamic media hybrid mode, then use Video tile from administrative tools panel to configure Dynamic Media gateway settings.

To set up Dynamic Media configurations on Brand Portal tenants:

1. Select the Experience Manager logo so you can access administrative tools from the toolbar at the top, in Brand Portal.

2. From the administrative tools panel, select the Video tile.



   Edit Dynamic Media Configuration page opens.



3. Specify Registration ID and Video Service URL (DM-Gateway URL). Make sure that these details are the same as those details in Tools > Cloud Services in your Experience Manager Author instance.

4. Select Save to save the configuration.

Configure Dynamic Media Scene7 settings

If Experience Manager Author instance is running on Dynamic Media- Scene7 mode, then use Dynamic Media Configuration tile from administrative tools panel to configure the Scene7 server settings.

To set up Dynamic Media Scene7 configurations on Brand Portal tenants:

1. Select the Experience Manager logo so you can access administrative tools from the toolbar at the top, in Brand Portal.

2. From the administrative tools panel, select the Dynamic Media Configuration tile.



   Edit Dynamic Media Configuration page opens.



3. Provide:

   • Title
   • Credentials (Email ID and Password) to access the Scene7 server
   • Region

   Make sure that these values are the same as those values found in your Experience Manager Author instance.

4. Select Connect to Dynamic Media.

5. Provide the Company name, and Save the configuration.
