Work with Selectors

Last update: 2021-08-10
  • Created for:
  • User
    Admin

When working with an Interactive Image, Interactive Video, or Carousel Banner, you select assets and you select sites and products for hotspots and image maps to link to. When working with Image Sets, Spin Sets, and Multimedia Sets, you also select assets with the Asset Selector.

This topic covers how to use the Product, Site, and Asset selectors, including the ability to browse, filter, sort within the selectors.

You access the selectors while creating carousel sets, adding hotspots and image maps, creating interactive videos and images.

For example, in this Carousel Banner, you use the Product selector if you are linking a hotspot or image map to a Quickview page. Use the Site selector if you are linking a hotspot or image map to a Hyperlink; use the Asset selector when you are creating a slide.

chlimage_1-520

When you select (rather than manually enter) where hotspots or image maps go to, you are using the selector. The Site selector only works if you are an Experience Manager Sites customer. The product selector also requires Experience Manager Commerce.

Use Product Selector

Use the Product selector to choose a product when you want a hotspot or image map to provide a Quickview to a specific product in your product catalog.

  1. Navigate to the Carousel Set, Interactive Image, or Interactive Video, and select the Actions tab (only available if you have defined a hotspot or image map).

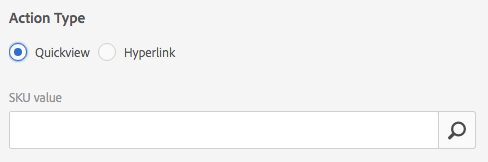

    The Product selector is in the Action Type area.

    chlimage_1-521

  2. Select the Product Selector icon (magnifying glass) and navigate to a product in the catalog.

    chlimage_1-522

    Filter by keyword or tag by tapping Filter and entering keywords, or selecting tags, or both.

    chlimage_1-523

    Change where Experience Manager browses for product data by tapping Browse and navigating to another folder.

    chlimage_1-524

    Select Sort by to change whether Experience Manager sorts by newest to oldest or oldest to newest.

    chlimage_1-525

    Select View as to change how you view products – either List View or Card View.

    chlimage_1-526

  3. After the product is selected, the field populates with the product thumbnail and name.

    chlimage_1-527

  4. When in Preview mode, you can select the hotspot or image map, and see what the Quickview looks like.

    chlimage_1-528

Use Site Selector

Use the site selector to choose a webpage when you want a hotspot or image map to link to a webpage that is managed within Experience Manager Sites.

  1. Navigate to the Carousel Set, Interactive Image, or Interactive Video, and select the Actions tab (only available if you have defined a hotspot or image map).

    The Site Selector is in the Action Type area.

    chlimage_1-529

  2. Select the Site Selector icon (folder with magnifying glass) and navigate to a page in your Experience Manager Sites that you want to link the hotspot or image map to.

    chlimage_1-530

  3. After the site is selected, the field populates with the path.

    chlimage_1-531

  4. When in Preview mode if you select the hotspot or image map, you navigate to the Experience Manager site page you specified.

Use Asset Selector

Use this selector to choose images for use in a Carousel Banner, an Interactive Video, Image Sets, Mixed Media Sets, and Spin Sets. In interactive Video, the asset selector is available when you select Select Assets in the Content tab. In Carousel Sets, the asset selector is available when you create a slide. In Image Sets, Mixed Media Sets, and Spin Sets, the asset selector is available when you create an Image Set, Mixed Media Set, or Spin Set, respectively.

See also Asset Picker for more information.

  1. Navigate to the Carousel Set and create a slide. Or, navigate to the Interactive Video, go to the Content tab, and select assets. Or, create a Mixed Media Set, Image Set, or Spin Set.

  2. Select the Asset Selector icon (folder with magnifying glass) and navigate to an asset.

    chlimage_1-532

    Filter by keyword or tag by tapping Filter and entering keywords, or adding criteria, or both.

    chlimage_1-533

    Change where Experience Manager browses for assets by navigating to another folder in the Path field.

    Select Collection to only search for assets within collections.

    chlimage_1-534

    Select View as to change how you view products - either List View, Column View, or Card View.

    chlimage_1-535

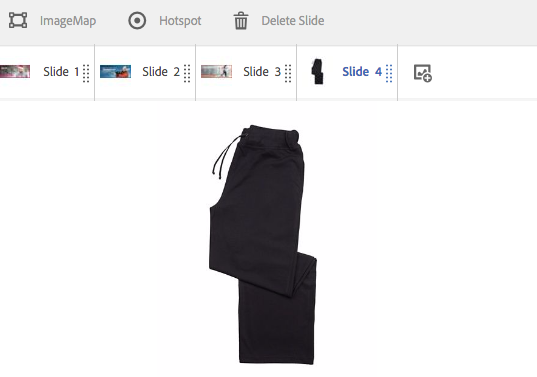

  3. Select the asset by tapping the check mark. The asset is displayed.

    chlimage_1-536
