QueryBuilderのRESTインターフェイスを使用するか、QueryBuilder APIを使用してOSGiサービスを作成し、カスタムレポートを作成できます。
カスタムレポートを追加する前に、次のテンプレート手順を実行します。
カスタムレポートで使用するデータは、プロセスレポートで使用できる必要があります。 データを確実に使用できるようにするには、cronジョブをスケジュールするか、プロセスレポートUIの同期オプションを使用します。
URLリクエスト(目的のクエリをカプセル化)は、適切なクエリ結果オブジェクトを返す必要があります。 クエリを作成するには、QueryBuilderのRESTインターフェイスを使用して、QueryBuilder APIを使用してOSGiサービスを作成します。 動的なクエリまたは静的な画像を作成できます。
結果を表示するカスタムユーザーインターフェイスを作成します。 スタンドアロンのユーザーインターフェイスを作成するか、既存のプロセスレポートUIに結果を統合することができます。
CRX QueryBuilder RESTインターフェイスは、Java APIとREST APIを通じてアセット共有クエリビルダーの機能を公開します。 次の手順を実行する前に、CRX QueryBuilder RESTインターフェイスを使用する方法を学びます。
URLを参照https://[server]:[port]/lc/bin/querybuilder.json
プロセスレポートストレージのノード構造とノードプロパティに基づいてクエリを作成します。
オプションのパラメーターを指定して、オフセット、制限、ヒットおよびプロパティを指定できます。 静的レポートの引数をハードコードして、動的レポートのUIからパラメーターを取得できます。
すべてのプロセス名を取得するには、次のクエリを使用します。
https://[Server]:[Port]/lc/bin/querybuilder.json?exact=false&p.hits=selective&p.properties=pmProcessTitle&path=%2fcontent%2freporting%2fpm&property=pmNodeType&property.operation=equals&property.value=ProcessType&type=sling%3aFolder
各クエリで、pathパラメーターはcrxストレージーの場所を指し、文字はURL標準に従ってエスケープされます。
クエリビルダーAPIを使用してサービスを作成する前提条件は、CQ OSGIバンドルの作成およびデプロイ、およびクエリビルダーAPIの使用です。
適切な注釈を持つOSGiサービスを作成します。 QueryBuilderにアクセスするには、次を使用します。
@Reference(referenceInterface = QueryBuilder.class)
private QueryBuilder queryBuilder;
述語グループを作成します。 述語グループを作成するコードは次のとおりです。
PredicateGroup predicateGroup = new PredicateGroup();
predicateGroup.setAllRequired(true);
新しく追加作成されたpredicateGroupに述語を割り当てます。 いくつかの有効な述語構成は、JcrBoolPropertyPredicateEvaluator、JcrPropertyPredicateEvaluator、RangePropertyEvaluator、DateRangePredicatePredicateEvatorです7/>、および TypePredicateEvaluatorです。
静的レポートでは述部をハードコードしますが、動的レポートでは、リクエストから述部を取得します。
プロセスのすべてのインスタンスを取得するサンプルコードを以下に示します。
Predicate predicate;
//Add the path Constraint
predicate = new Predicate(PathPredicateEvaluator.PATH);
predicate.set(PathPredicateEvaluator.PATH, "/content/reporting/pm"); // should point to the crx path being used to store data
predicate.set(PathPredicateEvaluator.EXACT, "false");
predicateGroup.add(predicate);
//type nt:unstructured
predicate = new Predicate(TypePredicateEvaluator.TYPE);
predicate.set(TypePredicateEvaluator.TYPE, "nt:unstructured");
predicateGroup.add(predicate);
//NodeType: Process Instance
predicate = new Predicate(JcrPropertyPredicateEvaluator.PROPERTY);
predicate.set(JcrPropertyPredicateEvaluator.PROPERTY, "pmNodeType");
predicate.set(JcrPropertyPredicateEvaluator.OPERATION, JcrPropertyPredicateEvaluator.OP_EQUALS);
predicate.set(JcrPropertyPredicateEvaluator.VALUE, "ProcessInstance");
predicateGroup.add(predicate);
//processName
predicate = new Predicate(JcrPropertyPredicateEvaluator.PROPERTY);
predicate.set(JcrPropertyPredicateEvaluator.PROPERTY, "pmProcessName");
predicate.set(JcrPropertyPredicateEvaluator.OPERATION, JcrPropertyPredicateEvaluator.OP_EQUALS);
predicate.set(JcrPropertyPredicateEvaluator.VALUE, processName); //processName variable stores the name of the process whose instances need to be searched
predicateGroup.add(predicate);
predicateGroupを使用してクエリを定義します。
Query query = queryBuilder.createQuery(predicateGroup, session);
クエリの結果を取得します。
query.setStart(offset); // hardcode or fetch from request
if(hits == -1) // hardcode or fetch from request
hits = 0;
query.setHitsPerPage(hits);
SearchResult searchResult = query.getResult();
結果を繰り返し処理し、結果を目的の形式に変換します。 結果をCSV形式で送信するコードは次のとおりです。
Iterator<Node> iter = searchResult.getNodes();
while(iter.hasNext()) {
Node node = iter.next();
row = new StringBuilder();
for (String property : includeProperties) { // the properties of the node which needs to be returned, or one can return all the properties too.
try {
row.append(node.getProperties(property).nextProperty().getString() + COMMA_SEPARATOR);
} catch (NoSuchElementException e) {
//Adding separator for no value
row.append(COMMA_SEPARATOR);
} catch (RepositoryException e) {
e.printStackTrace();
}
}
row.deleteCharAt(row.lastIndexOf(COMMA_SEPARATOR));
row.append(NEW_LINE);
out.write(row.toString().getBytes());
org.apache.felix maven-bundle-plugin
を使用して、サーブレット用のOSGiバンドルを作成します。
バンドルをCRXサーバーにデプロイします。
次のサービスの例では、毎月、四半期、年の終わりに、RUNNINGおよびCOMPLETE状態のプロセスのインスタンスをカウントします。
package custom.reporting.service;
import java.text.DateFormatSymbols;
import java.util.Calendar;
import java.util.HashMap;
import java.util.Iterator;
import java.util.LinkedHashMap;
import java.util.Map;
import java.util.SortedSet;
import java.util.TreeSet;
import javax.jcr.Node;
import javax.jcr.Session;
import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.Service;
import com.day.cq.search.Predicate;
import com.day.cq.search.PredicateGroup;
import com.day.cq.search.Query;
import com.day.cq.search.QueryBuilder;
import com.day.cq.search.eval.JcrPropertyPredicateEvaluator;
import com.day.cq.search.eval.PathPredicateEvaluator;
import com.day.cq.search.eval.TypePredicateEvaluator;
import com.day.cq.search.result.SearchResult;
@Component(metatype = true, immediate = true, label = "PeriodicProcessVolume", description = "Service for supporting cutom reports pluggable to Process Reporting.")
@Service(value = PeriodicProcessVolume.class)
public class PeriodicProcessVolume {
private static String[] monthNameList = new DateFormatSymbols().getMonths();
private static String[] quaterNameList = { "I", "II", "III", "IV" };
private final Map<Integer, Map<Integer, Long[]>> monthly = new HashMap<Integer, Map<Integer, Long[]>>();
private final Map<Integer, Map<Integer, Long[]>> quaterly = new HashMap<Integer, Map<Integer, Long[]>>();
private final Map<Integer, Long[]> yearly = new HashMap<Integer, Long[]>();
@Reference(referenceInterface = QueryBuilder.class)
private QueryBuilder queryBuilder;
private void addConstraints(PredicateGroup predicateGroup, String processName) {
Predicate predicate;
//Add the path Constraint
predicate = new Predicate(PathPredicateEvaluator.PATH);
predicate.set(PathPredicateEvaluator.PATH, "/content/reporting/pm");
predicate.set(PathPredicateEvaluator.EXACT, "false");
predicateGroup.add(predicate);
//type nt:unstructured
predicate = new Predicate(TypePredicateEvaluator.TYPE);
predicate.set(TypePredicateEvaluator.TYPE, "nt:unstructured");
predicateGroup.add(predicate);
//NodeType: Process Instance
predicate = new Predicate(JcrPropertyPredicateEvaluator.PROPERTY);
predicate.set(JcrPropertyPredicateEvaluator.PROPERTY, "pmNodeType");
predicate.set(JcrPropertyPredicateEvaluator.OPERATION, JcrPropertyPredicateEvaluator.OP_EQUALS);
predicate.set(JcrPropertyPredicateEvaluator.VALUE, "ProcessInstance");
predicateGroup.add(predicate);
//processName
if (processName != null) {
predicate = new Predicate(JcrPropertyPredicateEvaluator.PROPERTY);
predicate.set(JcrPropertyPredicateEvaluator.PROPERTY, "pmProcessName");
predicate.set(JcrPropertyPredicateEvaluator.OPERATION, JcrPropertyPredicateEvaluator.OP_EQUALS);
predicate.set(JcrPropertyPredicateEvaluator.VALUE, processName);
predicateGroup.add(predicate);
}
}
private Long[] setFrequency(Long[] frequency, int index) {
if (frequency == null) {
frequency = new Long[2];
frequency[0] = 0L;
frequency[1] = 0L;
}
frequency[index] = frequency[index] + 1L;
return frequency;
}
public void populateValues(Session session, String processName) {
PredicateGroup predicateGroup = new PredicateGroup();
predicateGroup.setAllRequired(true);
try {
addConstraints(predicateGroup, processName);
long batchSize = 10000L;
long start = 0l;
while (true) {
Query query = queryBuilder.createQuery(predicateGroup, session);
query.setStart(start);
query.setHitsPerPage(batchSize);
SearchResult searchResult = query.getResult();
Iterator<Node> itr = searchResult.getNodes();
long length = 0;
while (itr.hasNext()) {
length++;
Node n = itr.next();
Calendar calender = n.getProperty("pmCreateTime").getDate();
String status = n.getProperty("pmStatus").getString();
int index = 0;
if ("COMPLETE".equals(status)) {
index = 1;
} else if ("RUNNING".equals(status)) {
index = 0;
} else {
continue;
}
int month = calender.get(Calendar.MONTH);
int year = calender.get(Calendar.YEAR);
int quater;
if (month < 3) {
quater = 1;
} else if (month < 6) {
quater = 2;
} else if (month < 9) {
quater = 3;
} else {
quater = 4;
}
Long frequency[];
Map<Integer, Long[]> yearMonthMap = this.monthly.get(year);
if (yearMonthMap == null) {
yearMonthMap = new HashMap<Integer, Long[]>();
}
frequency = yearMonthMap.get(month);
frequency = setFrequency(frequency, index);
yearMonthMap.put(month, frequency);
this.monthly.put(year, yearMonthMap);
Map<Integer, Long[]> yearQuaterMap = this.quaterly.get(year);
if (yearQuaterMap == null) {
yearQuaterMap = new HashMap<Integer, Long[]>();
}
frequency = yearQuaterMap.get(quater);
frequency = setFrequency(frequency, index);
yearQuaterMap.put(quater, frequency);
this.quaterly.put(year, yearQuaterMap);
frequency = this.yearly.get(year);
frequency = setFrequency(frequency, index);
this.yearly.put(year, frequency);
}
if (length < batchSize) {
break;
} else {
start = start + batchSize;
}
}
} catch (Exception e) {
e.printStackTrace();
}
}
public Map<String, Long[]> getMonthly() {
Map<String, Long[]> result = new LinkedHashMap<String, Long[]>();
SortedSet<Integer> years = new TreeSet<Integer>(monthly.keySet());
for (Integer year : years) {
Map<Integer, Long[]> yearMonthMap = monthly.get(year);
SortedSet<Integer> months = new TreeSet<Integer>(yearMonthMap.keySet());
for (Integer month : months) {
String str = monthNameList[month] + " " + year;
result.put(str, yearMonthMap.get(month));
}
}
return result;
}
public Map<String, Long[]> getQuaterly() {
Map<String, Long[]> result = new LinkedHashMap<String, Long[]>();
SortedSet<Integer> years = new TreeSet<Integer>(quaterly.keySet());
for (Integer year : years) {
Map<Integer, Long[]> quaterMonthMap = quaterly.get(year);
SortedSet<Integer> quaters = new TreeSet<Integer>(quaterMonthMap.keySet());
for (Integer quater : quaters) {
String str = quaterNameList[quater - 1] + " " + year;
result.put(str, quaterMonthMap.get(quater));
}
}
return result;
}
public Map<Integer, Long[]> getYearly() {
return yearly;
}
}
サービスの上に構築するサンプルpom.xml
ファイルは次のとおりです。
<project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<!-- ====================================================================== -->
<!-- P R O J E C T D E S C R I P T I O N -->
<!-- ====================================================================== -->
<groupId>com.custom</groupId>
<artifactId>sample-report-core</artifactId>
<packaging>bundle</packaging>
<name>PR Sample Report</name>
<description>Bundle providing support for a custom report pluggable to process reporting.</description>
<version>1</version>
<!-- ====================================================================== -->
<!-- B U I L D D E F I N I T I O N -->
<!-- ====================================================================== -->
<build>
<plugins>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<version>2.3.7</version>
<extensions>true</extensions>
<configuration>
<instructions>
<Bundle-Category>sample-report</Bundle-Category>
<Export-Package>
custom.reporting.service.*;
</Export-Package>
</instructions>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-scr-plugin</artifactId>
<version>1.11.0</version>
<executions>
<execution>
<id>generate-scr-scrdescriptor</id>
<goals>
<goal>scr</goal>
</goals>
<configuration>
<!-- Private service properties for all services. -->
<properties>
<service.vendor>Sample Report</service.vendor>
</properties>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
<!-- ====================================================================== -->
<!-- D E P E N D E N C I E S -->
<!-- ====================================================================== -->
<dependencies>
<dependency>
<groupId>com.day.cq</groupId>
<artifactId>cq-search</artifactId>
<version>5.6.4</version>
</dependency>
<dependency>
<groupId>javax.jcr</groupId>
<artifactId>jcr</artifactId>
<version>2.0</version>
</dependency>
<dependency>
<groupId>org.apache.felix</groupId>
<artifactId>org.apache.felix.scr.annotations</artifactId>
<version>1.9.0</version>
</dependency>
</dependencies>
</project>
結果を表示するための別のUIを作成するための前提条件は、Sling Basics、CRXノードの作成、適切なアクセス権限です。
/apps
ノードでCRXノードを作成し、適切なアクセス権限を付与します。 (PERM_PROCESS_USER_USER)
/content
ノードでレンダラーを定義します。
手順1で作成したノード追加に対するJSPまたはHTMLファイル。 CSSファイルを追加することもできます。
JSPファイルとCSSファイルを含むサンプルノード
querybuilder REST APIまたはサービスに対するAJAX呼び出しを開始する追加javascriptコード。 また、適切な引数を追加します。
結果追加を解析および表示するための、Ajax呼び出しに対する適切な成功ハンドラー。 結果を複数の形式(json/csv/ユーザー定義)で解析し、表形式や他の形式で表示できます。
(オプション)Ajax呼び出しに対追加する適切なエラーハンドラ。
OSGi ServiceとQueryBuilder APIの両方を使用するJSPコードのサンプルは次のとおりです。
<%@taglib prefix="sling" uri="https://sling.apache.org/taglibs/sling/1.0"%>
<%request.setAttribute("silentAuthor", new Boolean(true));%>
<%@include file="/libs/foundation/global.jsp"%>
<%@ page import="java.util.Map,
java.util.Set,
com.adobe.idp.dsc.registry.service.ServiceRegistry,
javax.jcr.Session,
org.apache.sling.api.resource.ResourceResolver,
custom.reporting.service.PeriodicProcessVolume"%>
<%
response.setContentType("text/html");
response.setCharacterEncoding("utf-8");
%><!DOCTYPE HTML>
<html>
<head>
<meta charset="UTF-8">
<link rel="stylesheet" href="/lc/apps/sample-report-process-reporting/custom-reports/periodicProcessVolume/style.css">
<title>REPORT Monthly / Qaterly / Yearly</title>
<script type="text/javascript">
<%
slingResponse.setCharacterEncoding("utf-8");
ResourceResolver resolver = slingRequest.getResourceResolver();
String processName = slingRequest.getParameter("processName");
Session session = resolver.adaptTo(Session.class);
custom.reporting.service.PeriodicProcessVolume periodicProcessVolume = sling.getService(custom.reporting.service.PeriodicProcessVolume.class);
periodicProcessVolume.populateValues(session, processName);
if (processName == null) {
processName = "All";
}
%>
var lineSeprator = "<td>----------------</td>";
var tableEnder = "<tr>" + lineSeprator + lineSeprator + lineSeprator + "</tr>";
var tableColHeader = "<td>Running</td>";
tableColHeader += "<td>Complete</td></tr>";
tableColHeader += tableEnder;
var monthly = "<table><tr><td>Month</td>";
monthly += tableColHeader;
<%
Map<String, Long[]> monthlyMap = periodicProcessVolume.getMonthly();
Set<String> monthKeys = monthlyMap.keySet();
for (String key: monthKeys) {
Long[] frequencies = monthlyMap.get(key);
%>
monthly += "<tr><td> <%= key %> </td>";
monthly += "<td> <%= frequencies[0] %> </td>";
monthly += "<td> <%= frequencies[1] %> </td></tr>";
<%
}
%>
monthly += tableEnder;
var quaterly = "<table><tr><td>Quater</td>";
quaterly += tableColHeader;
<%
Map<String, Long[]> quaterMap = periodicProcessVolume.getQuaterly();
Set<String> quaterKeys = quaterMap.keySet();
for (String key: quaterKeys) {
Long[] frequencies = quaterMap.get(key);
%>
quaterly += "<tr><td> <%= key %> </td>";
quaterly += "<td> <%= frequencies[0] %> </td>";
quaterly += "<td> <%= frequencies[1] %> </td></tr>";
<%
}
%>
quaterly += tableEnder;
var yearly = "<table><tr><td>Year</td>";
yearly += tableColHeader;
<%
Map<Integer, Long[]> yearMap = periodicProcessVolume.getYearly();
Set<Integer> yearKeys = yearMap.keySet();
for (Integer key: yearKeys) {
Long[] frequencies = yearMap.get(key);
%>
yearly += "<tr><td> <%= key %> </td>";
yearly += "<td> <%= frequencies[0] %> </td>";
yearly += "<td> <%= frequencies[1] %> </td></tr>";
<%
}
%>
yearly += tableEnder;
function reloadFrame(value) {
if (value === '-1') {
window.location = "/lc/content/process-reporting-runtime/custom-reports/periodicProcessVolume.html";
} else {
window.location = "/lc/content/process-reporting-runtime/custom-reports/periodicProcessVolume.html?processName=" + value;
}
}
function populateTable(selection) {
if (selection === 0) {
document.getElementById('tableHeading').innerHTML = 'Monthly';
document.getElementById('volumeTable').innerHTML = monthly;
} else if (selection === 1) {
document.getElementById('tableHeading').innerHTML = 'Quaterly';
document.getElementById('volumeTable').innerHTML = quaterly;
} else {
document.getElementById('tableHeading').innerHTML = 'Yearly';
document.getElementById('volumeTable').innerHTML = yearly;
}
}
function fetchProcesses() {
var xmlhttp = new XMLHttpRequest(),
request = '';
xmlhttp.onreadystatechange = function() {
if (xmlhttp.readyState === 4 && xmlhttp.status === 200) {
var responseText,
response,
items,
hits = [],
responseSize = 0,
processName,
selectedIndex = 0,
comboBox;
responseText = xmlhttp.responseText;
if (responseText !== undefined && responseText !== null) {
response = JSON.parse(responseText);
responseSize = response.results;
hits = response.hits;
}
items = "<option value='-1'>All</option>";
for(var i = 0; i < responseSize; i++) {
processName = hits[i].pmProcessTitle;
if (processName === '<%= processName %>') {
selectedIndex = i + 1;
}
items += "<option value='" + processName + "'>" + processName + "</option>"
}
comboBox = document.getElementById('processSelection');
comboBox.innerHTML = items;
comboBox.selectedIndex = selectedIndex;
}
};
request = "/lc/bin/querybuilder.json?";
request += "exact=false&";
request += "p.hits=selective&";
request += "p.properties=pmProcessTitle&";
request += "path=%2fcontent%2freporting%2fpm&";
request += "property=pmNodeType&";
request += "property.operation=equals&";
request += "property.value=ProcessType&";
request += "type=sling%3aFolder";
xmlhttp.open("POST", request, true);
xmlhttp.setRequestHeader("Content-type","application/json");
xmlhttp.send();
}
</script>
</head>
<body onLoad="fetchProcesses();populateTable(0);">
Process:
<select id="processSelection" onchange="reloadFrame(this.value);"></select>
    Period Interval:
<select name="periodSelection" onchange="populateTable(this.selectedIndex);">
<option value="1">Monthly</option>
<option value="2">Quaterly</option>
<option value="3">Yearly</option>
</select>
<br> <br> <br> <br>
<div class="inline"> Process:   <b><%= processName %></b>     Period:   </div> <b> <div id="tableHeading" class="inline"> </div> </b>
<br><br>
<div id="volumeTable"> </div>
</body>
</html>
結果を表示するための別のUIを作成するための前提条件は、Sling Basics、CRXノードの作成、適切なアクセス権限です。
別のUIの作成の節の説明に従って、個別のUIを作成します。
すべてのプラグ可能なレポートに対して、/content/process-reporting-runtime/custom-reports
ノードに子nt:unstructured
ノードを作成します。

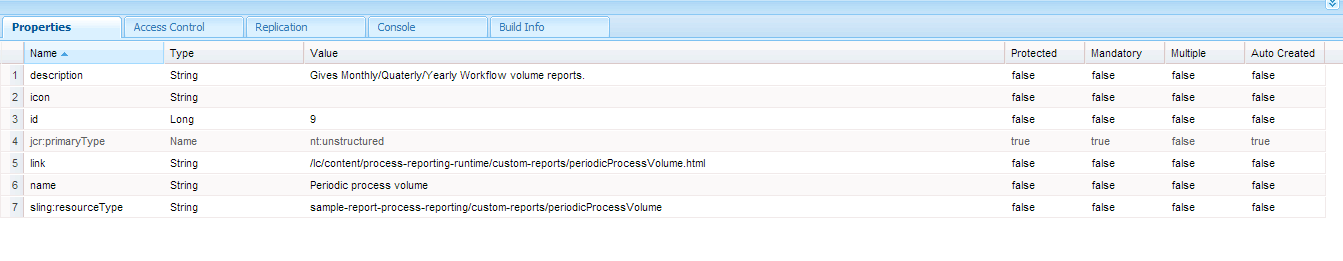

ノードのプロパティ
レポートUIがプロセスレポートUIに統合されています。 UIを統合すると、更新されたUIは次の画像のようになります。

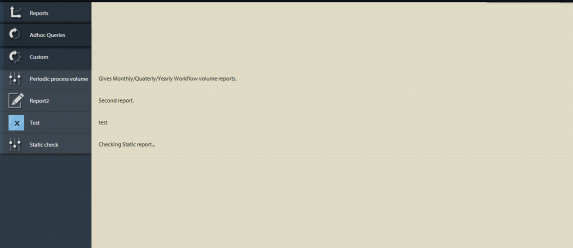

新しく追加されたカスタムレポートのユーザーインターフェイス
カスタムレポートの結果画面
sample-report-pkg-1.zip
パッケージを読み込んで、この記事で説明されているカスタムレポートとUIをProcess Management UIに統合します。
