Event processing event-processing
In the context of transactional messaging, an event is generated by an external information system and is sent to Adobe Campaign via the PushEvent and PushEvents methods. These methods are described in this section.
This event contains data linked to the event, such as:
- its type: order confirmation, account creation on a website, etc.,
- the email address or phone number,
- any other information to enrich and personalize the transactional message before delivery: customer contact information, language of the message, email format, etc.

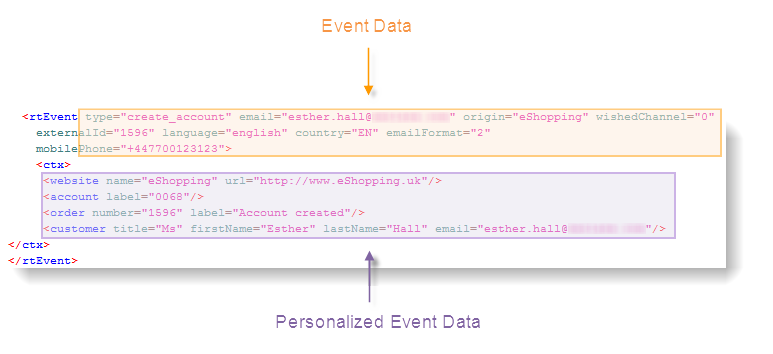

Example of event data:
To process transactional messaging events, the following steps are applied on the execution instance(s):
- Event collection
- Event transfer to a message template
- Event enrichment with personalization data
- Delivery execution
- Recycling of events whose linked delivery failed (via an Adobe Campaign workflow)
Once all the steps are achieved, each targeted recipient receives a personalized message.
Collect events event-collection
Events generated by the information system can be collected using two modes:
-
Calls to SOAP methods let you push events in Adobe Campaign: the PushEvent method lets you send one event at a time, the PushEvents method lets you send several events at once. Learn more.
-
Creating a workflow lets you recover events by importing files or via an SQL gateway, with the Federated Data Access module.

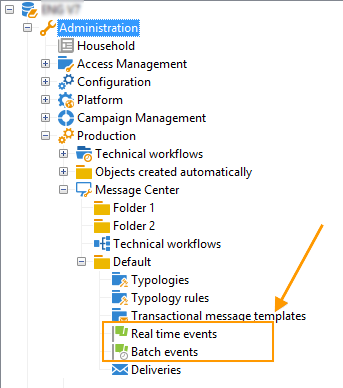

Once they are collected, events are broken down by technical workflows between real-time and batch queues of the execution instance(s), while waiting to be linked to a message template.
Transfer an event to a template event-to-template
Once the message template is published on the execution instance(s), two templates are automatically generated: one to be linked to a real-time event, and one to be linked to a batch event.
The routing step consists in linking an event to the appropriate message template, based on:
-
The event type specified in the properties of the event itself:
-
The event type specified in the message template properties:
By default, routing relies on the following information:
- The event type
- The channel to be used (by default: email)
- The most recent delivery template, based on the publication date
Check event status event-statuses
All processed events are grouped into a single view, in the Event history folder or the Explorer. They can be categorized by event type or by status.
Possible statuses are:
-
Pending
- A pending event can be event which has just been collected and which has not yet been processed. The Number of errors column shows the value 0. The email template has not yet been linked.
- A pending event can also be an event processed but whose confirmation is erroneous. The Number of errors column shows a value that is not 0. To know when this event will be processed again, consult the Process requested on column.
-
Pending delivery
The event was processed and the delivery template is linked. The email is pending delivery and the classic delivery process is applied. For more information, you can open the delivery. -
Sent, Ignored and Delivery error
These delivery statuses are recovered via the updateEventsStatus workflow. For more information, you can open the relevant delivery. -
Event not covered
The transactional messaging routing phase failed. For example, Adobe Campaign did not find the email which acts as a template for the event. -
Event expired
The maximum number of send tries was reached. The event is considered null.
Recycle events event-recycling
If the delivery of a message on a specific channel fails, Adobe Campaign can resend the message using a different channel. For instance, if a delivery on the SMS channel fails, the message is resent using the email channel.
To do this, you need to configure a workflow which recreates all events with the Delivery error status, and assigns a different channel to them.
