The Scheduler activity allows you to schedule when a workflow or an activity is started.
The Scheduler activity should be considered as a scheduled start. The activity positioning rules within the chart are the same as for the Start activity. This activity must not have an inbound transition.
When building your workflow, only use one Scheduler activity per branch and remember to set a time zone. This allows you to start your workflow at a specific time zone, otherwise the workflow will run in the time zone defined in the workflow properties (see Building a workflow).
The Repetition frequency of the activity cannot be less than 10 minutes. It means that a workflow cannot be automatically executed more than once every 10 minutes.
Drag and drop a Scheduler activity into your workflow.
Select the activity, then open it using the button from the quick actions that appear.
Specify the Execution frequency:
Define the execution details according to the frequency selected. The detail fields may vary depending on the frequency used (time, repetition frequency, specified days, etc.).
The Repetition frequency field allows you to space out the times when the workflow is triggered. For example, if you select a daily execution period and the repetition frequency is set at 2 (days), the workflow will be triggered every two days. It cannot be less than 10 minutes. If the repetition frequency is set at 0 (also the default value), this option is not taken into account and the workflow will run according to the execution frequency specified.
Specify when the execution will expire:
Check the schedule of the next ten executions of your workflow by clicking Preview next executions.
In the Execution options tab, set up the time zone for your scheduler in the Time zone field.
Confirm the configuration of your activity and save your workflow.

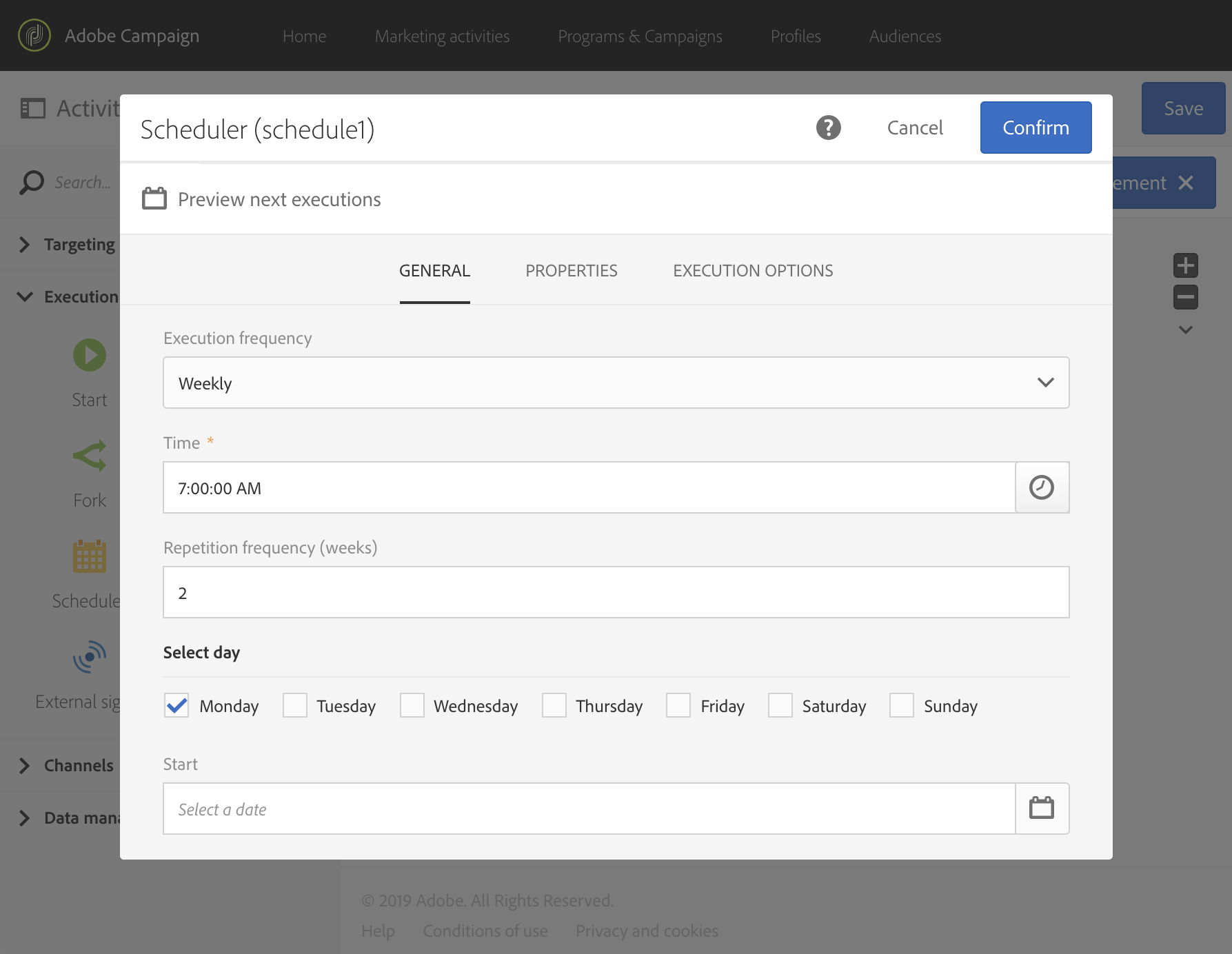

In the following example, the activity is configured so that it will start the workflow on a weekly basis, every other Monday at 7am, for an undetermined duration.
