The icon opens the workflow log and task menu.
The workflow history is saved for the duration specified in the workflow execution options (refer to Workflow properties). During this duration, all the messages are therefore saved, even after a restart. If you do not want to save the messages from a previous execution, you have to purge the history by clicking the button.

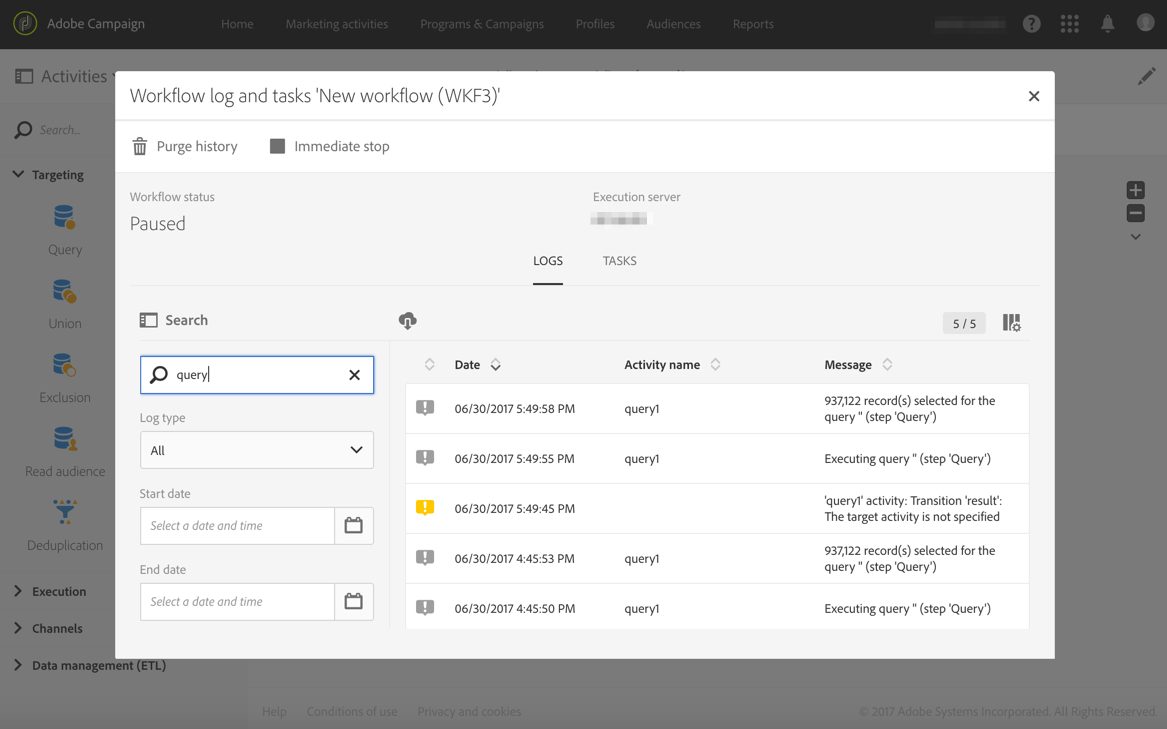

The Log tab contains the execution history of all the activities or any selected activities. It indexes the operations carried out and execution errors by chronological order.

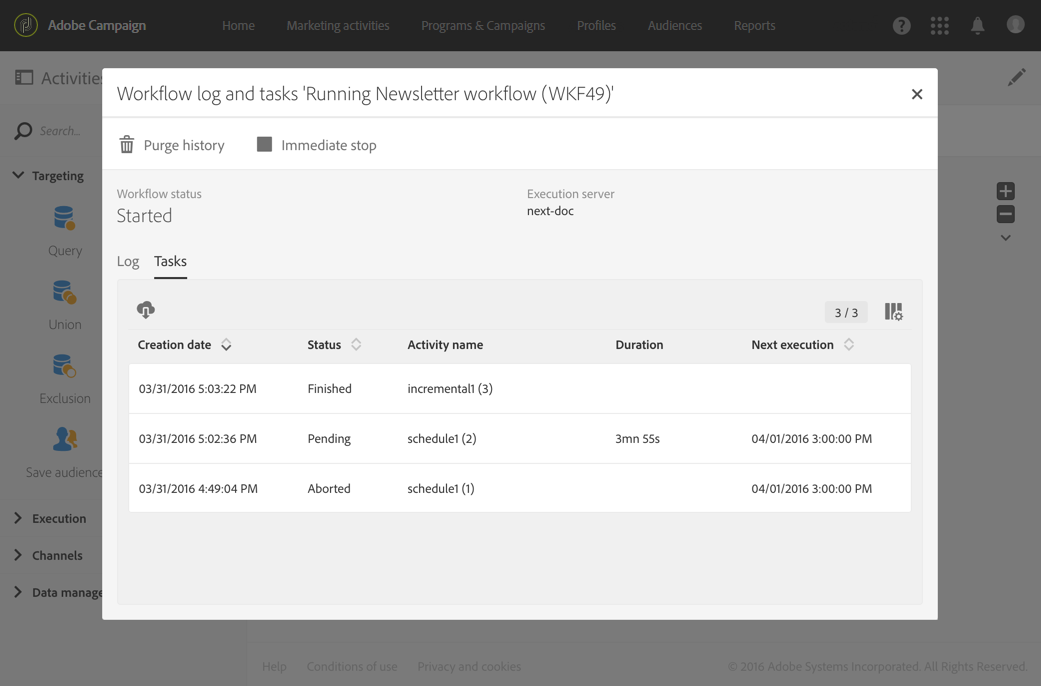

The Tasks tab details the execution sequencing of the activities. Click a task to get more information.
In these two lists:
When an error occurs, the workflow is paused and the activity that was being executed when the error was encountered flashes red.
The workflow status turns red and the error is recorded in the log.
You can configure the workflow so that it does not pause and continues executing without any errors. To do this, go to the workflow properties via the button and, in the Execution section, select the Ignore option in the In case of error field.
In this case, the erroneous task is aborted. This mode is particularly suited to workflows designed to re-attempt the operation later (periodic actions).
You can apply this configuration individually for each activity. To do this, select an activity and open it using the quick action . Then select the error management mode in the Execution options tab. See Activity execution options.

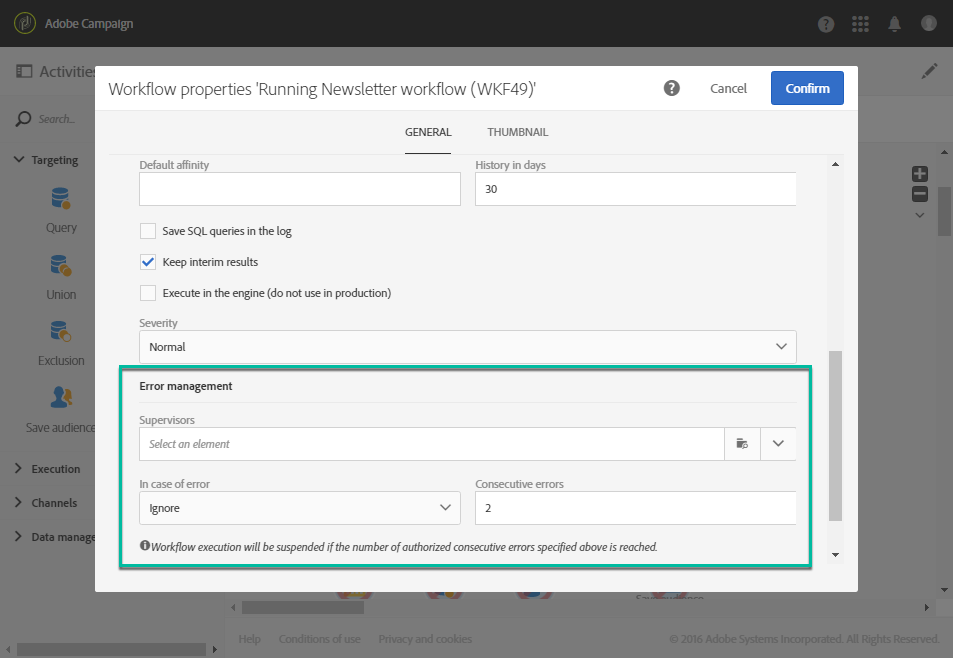

In the workflow’s properties, additional options related to error management are available.
Possible options are:
Supervisors: allows you to define the group of people to notify (email and in-app notification) if the workflow encounters an error. If no group is defined, nobody will be notified. For more on Adobe Campaign notifications, refer to Adobe Campaign notifications.
In case of error: allows you to specify the action to be carried out should the activity encounter an error. There are two options available for this:
Consecutive errors : allows you to define a number of consecutive errors that are authorized before the workflow execution is automatically suspended.
If the number specified is 0, or as long as the number specified is not reached, activities that encounter errors are ignored. The other workflow branches are executed normally.
If the number specified is reached, the whole of the workflow is suspended and becomes Erroneous. If supervisors have been defined, they are automatically notified by an email. See Adobe Campaign notifications.
