實施推播追蹤

關於推播追蹤

若要確保已完全開發推播通知,您必須確定追蹤部分已正確實作,因為並非每個推播通知都已啟用追蹤。 為啟用此功能,開發人員需要識別哪些傳送已啟用追蹤,Adobe Campaign Standard會傳送名為_acsDeliveryTracking的旗標,其中​on​或​off​有兩個值。 應用程式開發人員只應在變數設為​on​的傳送時傳送追蹤請求。

重要

此變數不適用於21.1發行前設定的傳送,或使用自訂範本的傳送。

推播追蹤分為三種類型:

  • 推播印象 -當推播通知已傳送至裝置且位於通知中心,但完全未觸及時。這被視為一種印象。 在大多數情況下,印象數應與傳送的數字相同,如果與傳送的數字不相同。 它確保設備收到消息並將該資訊轉發回伺服器。

  • 推播點按 -當推播通知已傳送至裝置且使用者已點按裝置時。使用者要麼想要檢視通知(此通知會接著移至「推播開啟追蹤」),要麼就要關閉通知。

  • 推播開啟 -當推播通知已傳送至裝置,且使用者已按一下通知,導致應用程式開啟時。這類似於推播點按,但是當通知關閉時,不會觸發推播開啟。

若要實作Campaign Standard追蹤,行動應用程式必須包含Mobile SDK。 這些SDK可在AdobeMobile Services上取得。 如需關於此項目的詳細資訊,請參閱此頁面

若要傳送追蹤資訊,有三個變數需要傳送。 兩個是從Campaign Standard接收的資料的一部分,一個操作變數指示其是​印象按一下​或​開啟

變數
broadlogId 資料的_mId
deliveryId _dId來自資料
動作 1代表開啟,2代表點按,7代表印象

Android的實施

如何實作推播曝光追蹤

若是印象追蹤,在呼叫​trackAction()​函式時,您必須傳送值"7"以執行動作。

對於在21.1版本之前建立的傳送或具有自訂範本的傳送,請參閱此章節

@Override
public void onMessageReceived(RemoteMessage remoteMessage) {
....{Handle push messages}....
  if (data.size() > 0) {
    String deliveryId = data.get("_dId");
    String messageId = data.get("_mId");
    String acsDeliveryTracking = data.get("_acsDeliveryTracking");

    /*
    This is to handle deliveries created before 21.1 release or deliveries with custom template
    where acsDeliveryTracking is not available.
    */
    if( acsDeliveryTracking == null ) {
        acsDeliveryTracking = "on";
    }

    HashMap<String, String> contextData = new HashMap<>();
    if (deliveryId != null && messageId != null && acsDeliveryTracking.equals("on")) {
                contextData.put("deliveryId", deliveryId);
                contextData.put("broadlogId", messageId);
                contextData.put("action", "7");
                MobileCore.trackAction("tracking", contextData);
    }
  }
}

如何實作點按追蹤

若是點按追蹤,您必須在呼叫​trackAction()​函式時傳送值"2"以執行動作。

若要追蹤點按,需要處理兩種情況:

  • 使用者會看到通知,但會將其清除。
  • 使用者會看到通知,並按一下通知,將其轉換為開啟的追蹤。

若要處理此問題,您必須使用兩種方式:一個用於按一下通知,另一個用於關閉通知。

對於在21.1版本之前建立的傳送或具有自訂範本的傳送,請參閱此章節

MyFirebaseMessagingService.java

private void sendNotification(Map<String, String> data) {
    Intent openIntent = new Intent(this, CollectPIIActivity.class);
    Intent dismissIntent = new Intent(this, NotificationDismissedReceiver.class);
    openIntent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);

    //put the data map into the intent to track clickthroughs
    Bundle pushData = new Bundle();
    Set<String> keySet = data.keySet();
    for (String key : keySet) {
        pushData.putString(key, data.get(key));
    }
    openIntent.putExtras(pushData);
    dissmissIntent.putExtras(pushData);


    PendingIntent pendingIntent = PendingIntent.getActivity(this, 0, openIntent,
        PendingIntent.FLAG_UPDATE_CURRENT);
    PendingIntent onDismissPendingIntent = PendingIntent.getBroadcast(this.getApplicationContext(), 0, dismissIntent, 0);

    //<BUILD NOTIFICATION using notification builder>
    //Add both Intents to the notification
    notificationBuilder.setContentIntent(pendingIntent);
    notificationBuilder.setDeleteIntent(onDismissPendingIntent);
}

為了讓​BroadcastReceiver​運作,您需要將它註冊至​AndroidManifest.xml

<manifest>
    <application>
        <receiver android:name=".NotificationDismissedReceiver">
        </receiver>
    </application>
</manifest>

NotificationDismessedReceiver.java

public class NotificationDismissedReceiver extends BroadcastReceiver {
    private static final String TAG = NotificationDismissedReceiver.class.getSimpleName();
    @Override
    public void onReceive(Context context, Intent intent) {
        Bundle data = intent.getExtras();
        String deliveryId = data.getString("_dId");
        String messageId = data.getString("_mId");
        String acsDeliveryTracking = data.get("_acsDeliveryTracking");

        /*
        This is to handle deliveries created before 21.1 release or deliveries with custom template
        where acsDeliveryTracking is not available.
        */
        if( acsDeliveryTracking == null ) {
            acsDeliveryTracking = "on";
        }

        HashMap<String, Object> contextData = new HashMap<>();

        //We only send the click tracking since the user dismissed the notification
        if (deliveryId != null && messageId != null && acsDeliveryTracking.equals("on")) {
            contextData.put("deliveryId", deliveryId);
            contextData.put("broadlogId", messageId);
            contextData.put("action", "2");
            MobileCore.trackAction("tracking", contextData);
        }
    }
}

如何實作開放追蹤

您需要傳送「1」和「2」,因為使用者必須按一下通知才能開啟應用程式。 如果應用程式未透過推播通知啟動/開啟,則不會發生追蹤事件。

若要追蹤開啟,您必須建立「方式」。 目的物件可讓Android OS在執行特定動作時呼叫您的方法。 在此情況下,按一下通知以開啟應用程式。

此程式碼是以點按印象追蹤的實施為基礎。 設定​Intent​後,您現在需要將追蹤資訊傳回Adobe Campaign Standard。 在這種情況下,您必須將​Open Intent​設為在應用程式中開啟至某個檢視,這會呼叫onResume方法,並在​Intent Object​中提供通知資料。

對於在21.1版本之前建立的傳送或具有自訂範本的傳送,請參閱此章節

@Override
protected void onResume() {
    super.onResume();
    handleTracking();
}


private void handleTracking() {
    //Check to see if this view was opened based on a notification
    Intent intent = getIntent();
    Bundle data = intent.getExtras();

    if (data != null) {
        //This was opened based on the notification, you need to get the tracking that was passed on.
        String deliveryId = data.getString("_dId");
        String messageId = data.getString("_mId");
        String acsDeliveryTracking = data.get("_acsDeliveryTracking");
        /*
        This is to handle deliveries created before 21.1 release or deliveries with custom template
        where acsDeliveryTracking is not available.
        */
        if( acsDeliveryTracking == null) {
            acsDeliveryTracking = "on";
        }

        HashMap<String, String> contextData = new HashMap<>();

        if (deliveryId != null && messageId != null && acsDeliveryTracking.equals("on")) {
            contextData.put("deliveryId", deliveryId);
            contextData.put("broadlogId", messageId);

            //Send Click Tracking since the user did click on the notification
            contextData.put("action", "2");
            MobileCore.trackAction("tracking", contextData);

            //Send Open Tracking since the user opened the app
            contextData.put("action", "1");
            MobileCore.trackAction("tracking", contextData);
        }
    }
}

iOS的實作

如何實作推播曝光追蹤

若是印象追蹤,在呼叫​trackAction()​函式時,您必須傳送值"7"以執行動作。

若要瞭解iOS通知的運作方式,應用程式的三種狀態必須詳細說明:

  • 前景:當應用程式目前處於作用中且目前在畫面上(在前景中)時。
  • 背景:當is應用程式未在螢幕上,但程式未關閉時。當您按兩下「首頁」按鈕時,通常會展示背景中的所有應用程式。
  • 關閉/關閉:應用程式的程式已經中斷。

如果應用程式關閉,Apple會在應用程式重新啟動之前呼叫該應用程式。 這表示您將無法得知iOS上的通知何時收到。

為了在應用程式處於背景時仍能進行​Impression​追蹤,我們需要傳送​Content-Available​讓應用程式知道必須進行追蹤。

注意

iOS曝光追蹤不準確,因此不應被視為可靠。

對於在21.1版本之前建立的傳送或具有自訂範本的傳送,請參閱此章節

下列程式碼以背景應用程式為目標:

// In didReceiveRemoteNotification event handler in AppDelegate.m

//In order to handle push notification when only in background with content-available: 1
func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable : Any], fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Void) {

        //Check if the app is not in the foreground right now
        if(UIApplication.shared.applicationState != .active) {
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
               ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"7"])
            }
        }
        completionHandler(UIBackgroundFetchResult.noData)
    }

下列程式碼針對前景應用程式:

// This will get called when the app is in the foreground

func userNotificationCenter(_ center: UNUserNotificationCenter, willPresent notification: UNNotification, withCompletionHandler completionHandler: @escaping (UNNotificationPresentationOptions) -> Void) {


        let userInfo = notification.request.content.userInfo
        let deliveryId = userInfo["_dId"] as? String
        let broadlogId = userInfo["_mId"] as? String
        let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
        /*
        This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
        */
        if( acsDeliveryTracking == nil ) {
            acsDeliveryTracking = "on";
        }
        if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
             ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"7"])
        }
        completionHandler([.alert,.sound])
    }

如何實作點按追蹤

若是點按追蹤,您必須在呼叫​trackAction()​函式時傳送值"2"以執行動作。
對於在21.1版本之前建立的傳送或具有自訂範本的傳送,請參閱此章節

// AppDelegate.swift
...
import os.log
import UserNotifications
...

func registerForPushNotifications() {
        let center = UNUserNotificationCenter.current()
        center.delegate = notificationDelegate
        //Here we are creating a new Category that allows us to handle Dismiss Actions
        let defaultCategory = UNNotificationCategory(identifier: "DEFAULT", actions: [], intentIdentifiers: [], options: .customDismissAction)
        //Add it to our array of Category, in this case we only have one
        center.setNotificationCategories([defaultCategory])
        center.requestAuthorization(options: [.alert, .sound, .badge]) {
            (granted, error) in
            os_log("Permission granted: %{public}@", type:. debug, granted.description)
            if error != nil {
                return
            }
            if granted {
                os_log("Notifications allowed", type: .debug)
            }
            else {
                os_log("Notifications denied", type: .debug)
            }

            // 2. Attempt registration for remote notifications on the main thread
            DispatchQueue.main.async {
                UIApplication.shared.registerForRemoteNotifications()
            }
        }
    }

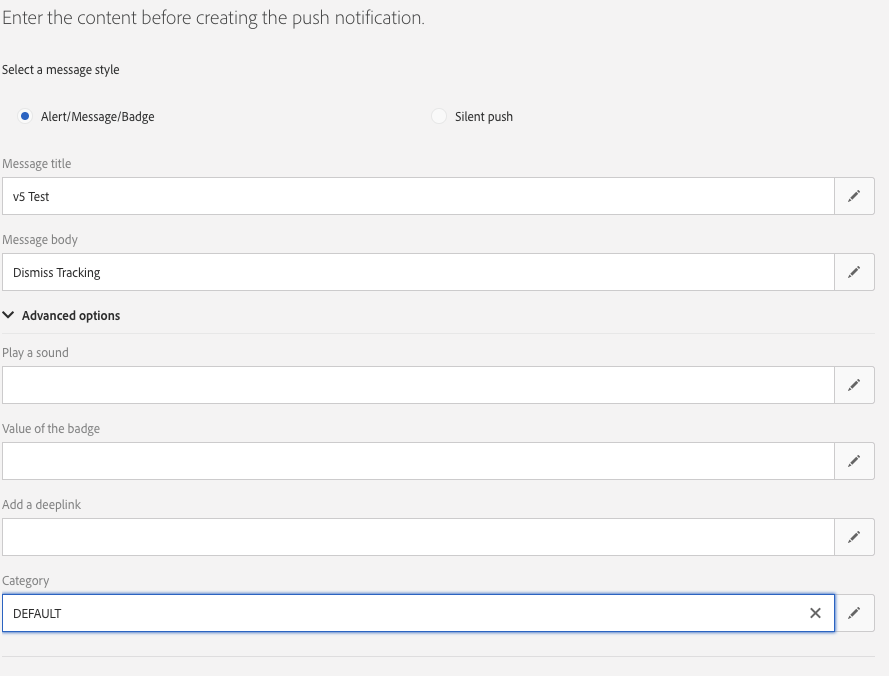

現在,當您傳送推播通知時,需要新增類別。 在本例中,我們稱之為「DEFAULT」。

然後,若要處理​Dismiss​並傳送追蹤資訊,您需要新增下列項目:

func userNotificationCenter(_ center: UNUserNotificationCenter, didReceive response: UNNotificationResponse, withCompletionHandler completionHandler: @escaping () -> Void) {
        let userInfo = response.notification.request.content.userInfo
        switch response.actionIdentifier {
        case UNNotificationDismissActionIdentifier:
            print("Dismiss Action")
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"2"])
            }
        default:
            ////MORE CODE
        }
        completionHandler()
    }

如何實作開放追蹤

您需要傳送「1」和「2」,因為使用者必須按一下通知才能開啟應用程式。 如果應用程式未透過推播通知啟動/開啟,則不會發生追蹤事件。

對於在21.1版本之前建立的傳送或具有自訂範本的傳送,請參閱此章節

import Foundation
import UserNotifications
import UserNotificationsUI

class NotificationDelegate: NSObject, UNUserNotificationCenterDelegate {

    // Called when user clicks the push notification or also called from willPresent()
    func userNotificationCenter(_ center: UNUserNotificationCenter, didReceive response: UNNotificationResponse, withCompletionHandler completionHandler: @escaping () -> Void) {

        let userInfo = response.notification.request.content.userInfo
        os_log("App push data %{public}@, in userNotificationCenter:didReceive()", type: .debug, userInfo)
        switch response.actionIdentifier {
        case UNNotificationDismissActionIdentifier:
            //This is to handle the Dismiss Action
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"2"])
            }
        default:
            //This is to handle the tracking when the app opens
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"2"])
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"1"])
            }
        }
        completionHandler()
    }
}
