本文档仅适用于iOS设备。

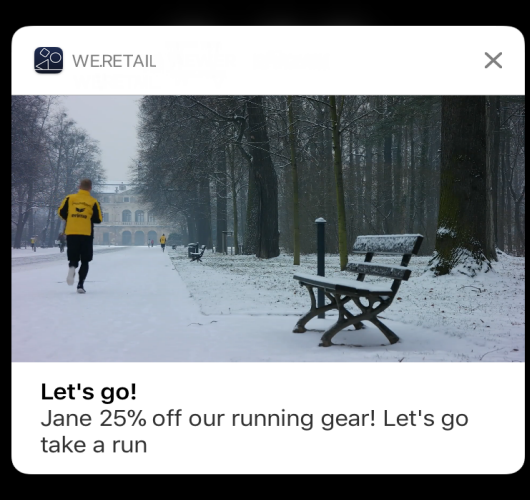

在本文档中,了解如何通过Adobe Campaign Standard iOS推送通知显示图像。
Experience PlatformSDK支持推送通知。
接收推送通知的移动设备应用程序必须由管理员在Adobe Campaign界面中进行配置。
通过配置Adobe Campaign和AdobeMobile Services,您将能够将移动应用程序的数据用于营销活动。 有关详细信息,请参见此 页面。
要通过Experience CloudSDK应用程序发送推送通知,必须在Adobe Experience Platform Launch中设置移动应用程序,并在Adobe Campaign中进行配置。 有关详细信息,请参见此 页面。
要优化推送通知消息,可在设计推送通知消息时通过 Adobe Campaign 访问一组高级选项。
创建推送通知. 有关详细信息,请参见此 页面。

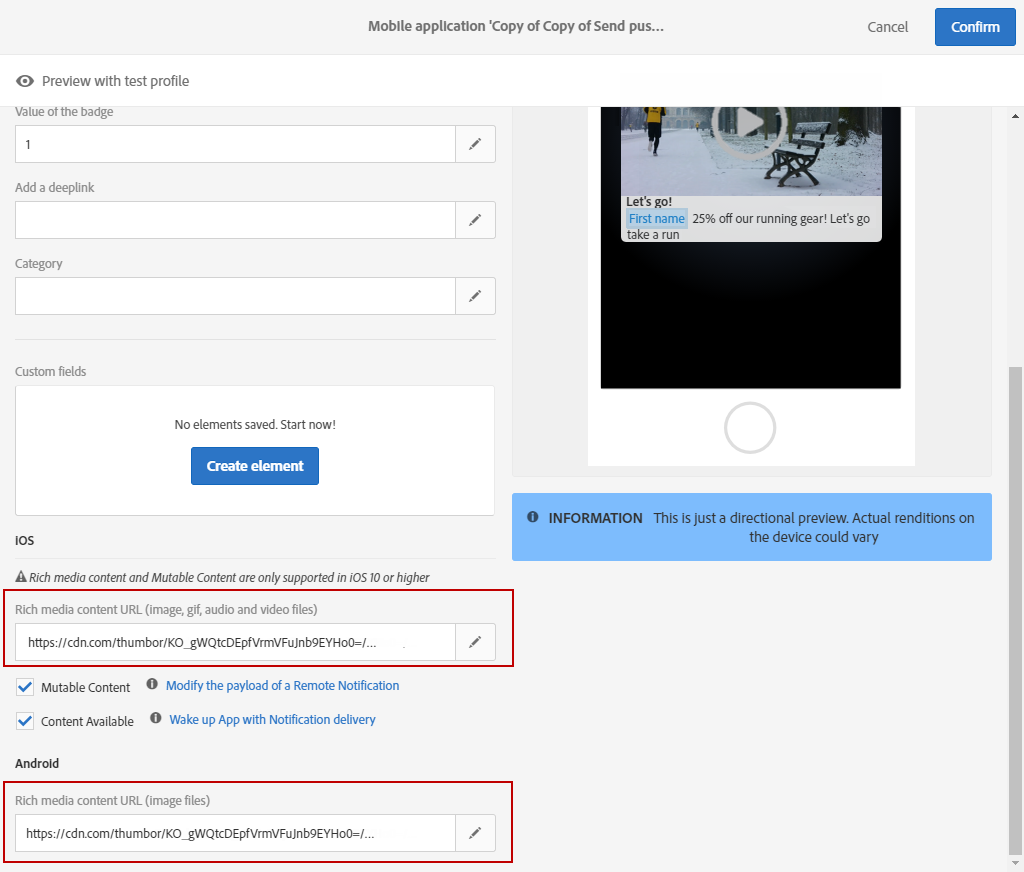

从推送通知内容页面,访问 Advanced options 中。
在 Rich media content URL 字段。
对于 iOS 10 或更高版本,可插入图像、GIF 动图、音频和视频文件。
预览并保存推送通知。
在Adobe Campaign中自定义推送通知后,您必须配置移动应用程序以在设备上显示图像。
如果您的应用程序位于Objective-C中,请参阅以下内容 文档.
如果您的应用程序位于 Swift,请执行以下步骤:
打开 Xcode 项目。
在 Xcode 项目,选择 File > New > Target.

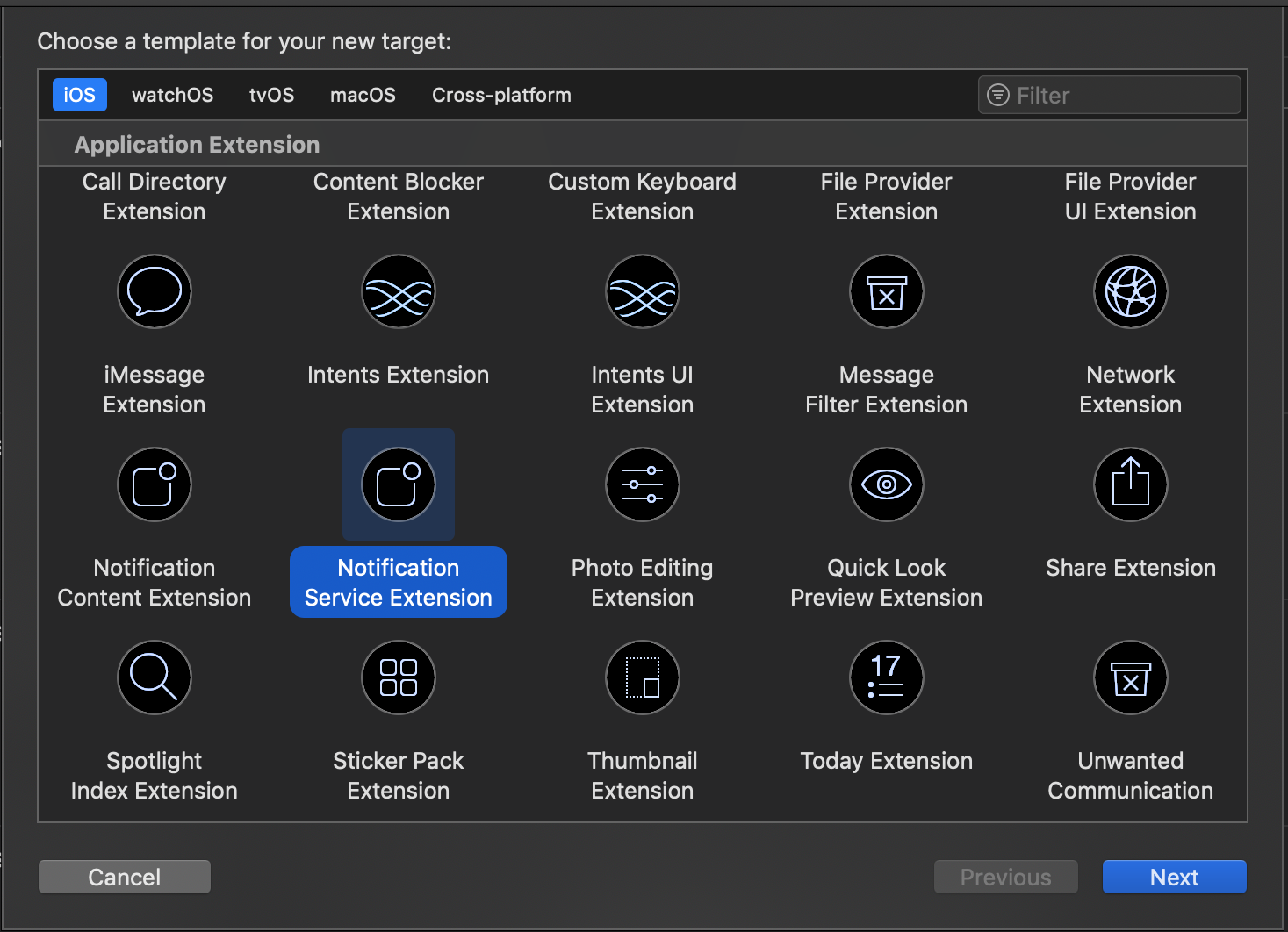

选择 Notification Service Extension。
检查 NotificationService.swift 文件类。
编辑此类并将默认内容替换为以下内容。
这允许应用程序使用图像URL处理传入参数,解析该参数,将其复制到本地,然后从推送通知中显示该参数。
import UserNotifications
class NotificationService: UNNotificationServiceExtension {
var contentHandler: ((UNNotificationContent) -> Void)?
var bestAttemptContent: UNMutableNotificationContent?
override func didReceive(_ request: UNNotificationRequest, withContentHandler contentHandler: @escaping (UNNotificationContent) -> Void) {
self.contentHandler = contentHandler
bestAttemptContent = (request.content.mutableCopy() as? UNMutableNotificationContent)
if let bestAttemptContent = bestAttemptContent {
var urlString:String? = nil
if let urlImageString = request.content.userInfo["media-attachment-url"] as? String {
urlString = urlImageString
}
if urlString != nil, let fileUrl = URL(string: urlString!) {
print("fileUrl: \(fileUrl)")
// Download the attachment
URLSession.shared.downloadTask(with: fileUrl) { (location, response, error) in
if let location = location {
// Move temporary file to remove .tmp extension
if (error == nil) {
let tmpDirectory = NSTemporaryDirectory()
let tmpFile = "file://".appending(tmpDirectory).appending(fileUrl.lastPathComponent)
let tmpUrl = URL(string: tmpFile)!
try! FileManager.default.moveItem(at: location, to: tmpUrl)
// Add the attachment to the notification content
if let attachment = try? UNNotificationAttachment(identifier: fileUrl.lastPathComponent, url: tmpUrl) {
bestAttemptContent.attachments = [attachment]
}
}
if(error != nil) {
print("Failed to download attachment: \(error.debugDescription)")
}
}
// Serve the notification content
contentHandler(bestAttemptContent)
}.resume()
}
}
}
override func serviceExtensionTimeWillExpire() {
// Called just before the extension will be terminated by the system.
// Use this as an opportunity to deliver your "best attempt" at modified content, otherwise the original push payload will be used.
if let contentHandler = contentHandler, let bestAttemptContent = bestAttemptContent {
contentHandler(bestAttemptContent)
}
}
}
移动设备在发送通知时应会收到以下负载。
图像URL已映射为键的media-attachment-url。 这是您必须从应用程序代码角度处理的键/值对,才能下载和显示图像。
userInfo: [AnyHashable("media-attachment-url"): https://pbs.twimg.com/profile_images/876737835314950144/zPTs9b7o.jpg, AnyHashable("_dId"): 1de3ef93, AnyHashable("_mId"): h280a5, AnyHashable("aps"): {
alert = {
body = "Message Body here";
title = "This a push from Campaign";
};
badge = 1;
"mutable-content" = 1;
}]
您现在可以测试构建应用程序以及在上面步骤2中创建的投放。 有关准备和发送推送通知的更多信息,请参阅此 页面.
