Adobe Campaign lets you import data into the database from one or more files in text, CSV, TAB, or XML format. These files are associated with a table (main or linked), and each field of the source file(s) is associated with a field of the database.
You can import data without mapping it with the database data using the Import a list function. The data can then be used exclusively in workflows via the Read list object. For more on this, refer to this page.
The import wizard lets you configure an import, define its options (such as data transformation), and launch execution. It is a series of screens whose content depends on the type of import (simple or multiple) and the operator’s rights.
The import wizard displays after creating a new import job (see Creating import and export jobs.
If you use an IIS Web server, a configuration may be necessary to authorize uploading large files (>28 MB). For more information, refer to this section.
In the source file, each line coincides with a record. The data in records is separated by delimiters (space, tab, character, etc.). This means that data is retrieved in the form of columns, and each column is associated with a field of the database.
When launching the import wizard, you first have to select a template. As an example, to configure the import of recipients who received a newsletter, follow the steps below:
Select the Profiles and Targets > Job > Generic imports and exports folder.
Click New and then click Import to create the import template.
Click the arrow to the right of the Import template field to select your template, or click Select link to browse the tree.
The native template is New text import. This template must not be modified, but you can duplicate it to configure a new template depending on your requirements. By default, import templates are saved in the Profiles and targets > Templates > Job templates node.
Enter a name for this import in the Label field. You can add a description.
Select the import type in the appropriate field. There are two possible types of import: Simple import to import only one file, and Multiple import to import several files in a single execution.
For a multiple import, select Multiple import from the Import type drop-down list in the first screen of the import wizard.
Specify the fields you want to import by clicking Add.
Each time a file is added, the screen of the File to import wizard is displayed. See section Step 2 - Source file selection and follow the steps in the wizard to define the import options as for a simple import.
Multiple imports should only address specific needs and are not recommended.
The Advanced parameters link lets you access the following options:
Stop execution if there are too many rejects
This option is selected by default. You can deselect it if you want to continue executing the import irrespective of the number of rejects. By default, execution is stopped if the first 100 lines are rejected.
Select this option to track the execution of the import for each line.
Start the job in a detached process
This option is selected by default. It lets you detach the execution of the import so that it will not affect other jobs in progress on the database.
Do not update enumerations
Select this option to avoid enriching the list of enumerated values in the database. See Managing enumerations.
You can define variables associated with the job that will be accessible in the query editors and calculated fields. To create a variable, click Add and use the variable editor.
The Variables tab is for Workflow-type programming use only, and should be configured by expert users only.
The source file can be in text format (txt, csv, tab, fixed columns) or xml.
By default, Upload file on the server is selected. Click the folder to the right of the Local file field to browse the local disk and select the file to import. You can deselect this option to enter the access path and the name of the file to import if it is on the server.
When the file has been specified, you can view its data in the lower section of the window by clicking Auto-detect format. This preview displays the first 200 lines of the source file.
Use the options offered above this view to configure the import. The parameters defined via these options are transferred into the preview. The following options are available:
The Click here to change the file format… option lets you format the data of the source file, and in particular to specify the column separator and the type of data for each field. This configuration is performed via the following window:
This step lets you describe how the values of the file fields should be read. For example, in the case of a date, the Date or Date + Time data can be associated with a format (dd/mm/yyyy, mm/dd/yy, etc.). If the input data does not match the expected format, rejects will occur during import.
You can view the result of the configuration in the preview zone in the lower part of the window.
Click OK to save the formatting, then click Next to display the next step.
You must then select the destination schema and map the data of each column onto fields in the database.
The Destination schema field lets you select the schema in which the data will be imported. This information is mandatory. Click the Select link icon to select one of the existing schemas. Click Edit link to display the content of the selected table.
The central table shows all the fields defined in the source file. Select the fields to be imported in order to associate a destination file with them. These fields can be mapped manually or automatically.
To map a field manually, click the checkbox to select the source field, and click the second column to activate the cell corresponding to the selected field. Next, click the Edit expression icon to display all the fields of the current table. Select the destination field and click OK to validate the mapping.
To associate the source fields and destination fields automatically, click the Guess the destination fields icon to the right of the list of fields. The proposed fields can be modified if required.
The result of this operation must always be validated before you proceed to the next step.

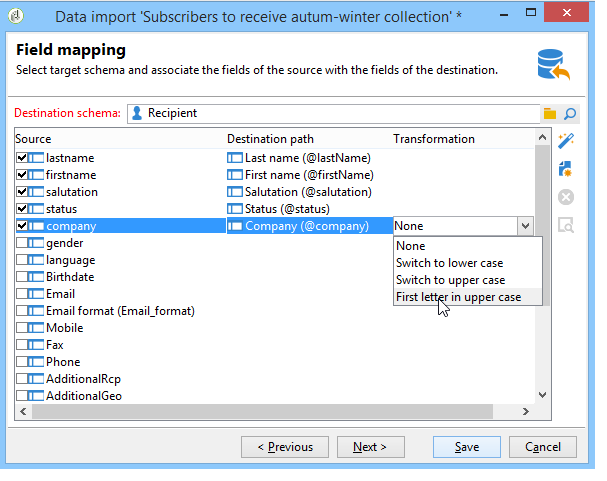

You can apply a transformation to the imported fields. To do this, click in the cell of the Transformation column that relates to the field concerned, and select the transformation to be applied.
The transformation is applied at the time of the import. If constraints on the destination field have been defined, however (in the above example, on the @lastname field), these constraints take priority.
You can add calculated fields using the appropriate icon, located to the right of the central table. Calculated fields let you perform complex transformations, add virtual columns, or merge the data of several columns. Refer to the following sections for details of the various possibilities.
Calculated fields are new columns added to the source file and calculated from other columns. Calculated fields can then be associated with fields of the Adobe Campaign database. Reconciliation operations, however, are not possible on calculated fields.
There are four types of calculated fields:
Fixed string: the value of the calculated field is the same for all the lines of the source file. Lets you set the value of a field of the records inserted or updated. For example, you can set a marker to “yes” for all imported records.

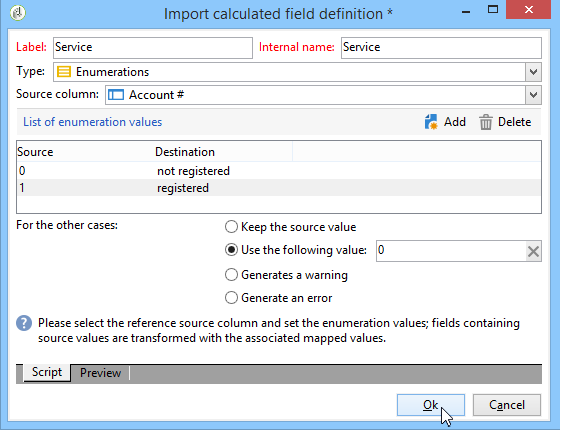

Enumeration: the value of the field is attributed according to a value contained in the source file. The editor lets you specify the source column and enter the list of enumeration values, as in the following example:
The Preview tab lets you view the result of the defined configuration. Here, the Subscription column has been added. The value is calculated from the Status field.
The reconciliation step of the import wizard lets you define the mode of reconciling the data from the file with the existing data in the database, and to set the priority rules between the file data and the database data. The configuration window looks like this:
The central section of the screen contains a tree with the fields and the tables of the Adobe Campaign database to which the data will be imported.
Special options are available for each node (table or field). When you click the node concerned in the list, its parameters and a brief description appear below. The behavior defined for each element is displayed in the corresponding Behavior column.
For each table concerned by the import, you must define the type of operation. The following operations are available for the main element of the database:
The following options are available for each field in the table concerned by the import:
The definition of a reconciliation key is always mandatory, except in the case of insertion without deduplication.
At least one reconciliation key must be filled in to manage deduplication.
A reconciliation key is a set of fields used to identify a record. For example, to import recipients, the reconciliation key can be the account number, the “e-mail” field, or the “Last name, First name, Company” fields, etc.
In this case, to find out if a line of a file matches an existing recipient in the database, the import engine compares the values of the file with those of the database for all fields of the key. When fields are specific to a record, a fine comparison between the source and destination data can be performed, guaranteeing the integrity of data after import. A second reconciliation key can be filled in for the same table; it is used for the lines whose first key is empty.
Avoid choosing a field which might be modified during import; if this occurs, the engine could create additional records.
For a recipient import, the identifier of the selected folder is implicitly added to the key.
Reconciliation is therefore performed on this folder only (unless no folder is selected).
A ‘double’ is an item that exists two or more times in the file to be imported.
A ‘duplicate’ is an item that exists both in the file to be imported and in the database.
The Management of doubles field lets you configure the deduplication of data. Deduplication concerns records that appear several times in the source file (or source files in the event of a multiple-file import), i.e. lines for which the fields of the reconciliation key are identical.
Deduplication is performed in memory only. The size of an import with deduplication is therefore limited. The limit depends on several parameters (capacity of the application server, activity, number of fields in the key, etc.). The maximum size for a deduplication is of the order of 1,000,000 lines.
Deduplication concerns a record that is present both in the source file and the database. It concerns operations with update only (i.e. Update and insertion or Update). The Duplicate management option lets you update or ignore the record if it is in both the source file and the database. The Update or insert based on origin option belongs to the optional module and cannot be used in a standard context.
The options Reject and Ignore operate as presented above.

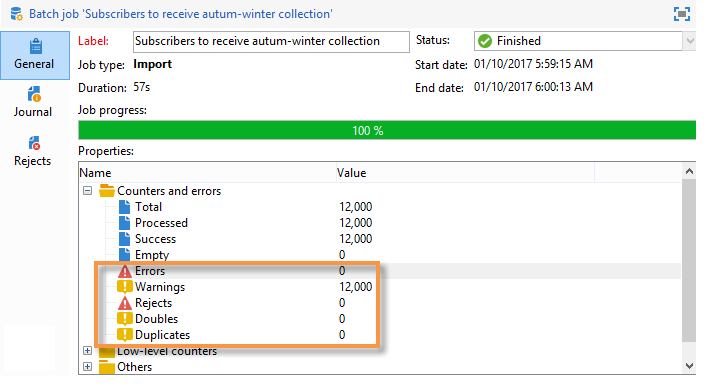

Most data transfer operations generate various types of errors (incoherent line format, invalid e-mail address, etc.). All errors and all warnings generated by the import engine are stored and linked to the import instance.

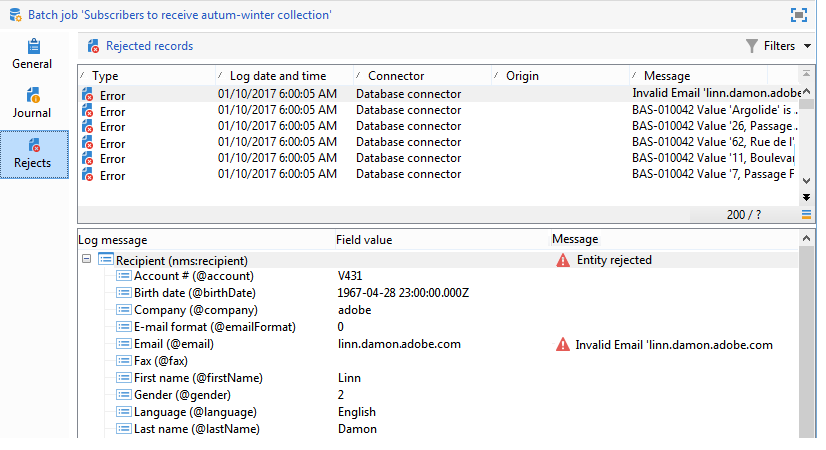

Details of these rejects can be viewed via the Rejects tab.
There are two types of rejects (the type is displayed in the Connector column):

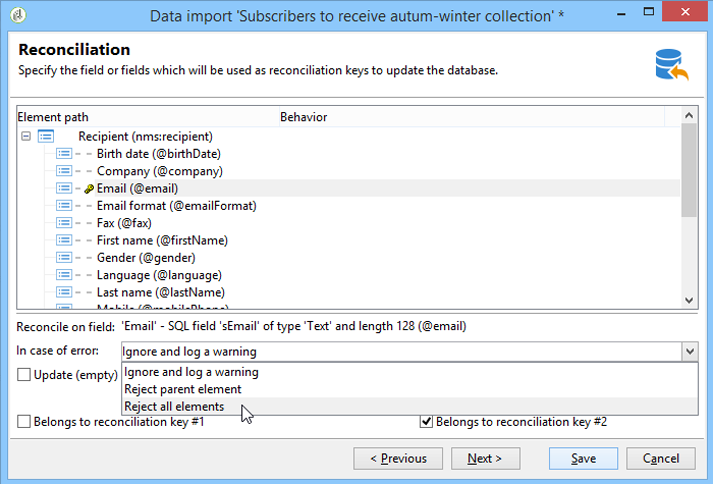

In the data reconciliation page, you can define the desired error management type field by field and table by table.
Ignore and log a warning: all of the fields are imported into the database except the one that generated an error.
Reject parent element: the entire line of the record is rejected, not only the field that caused an error.
Reject all elements: the import stops and all elements of the record are rejected.
The tree in the rejection screen of an import instance indicates which fields were rejected and where the errors occurred.

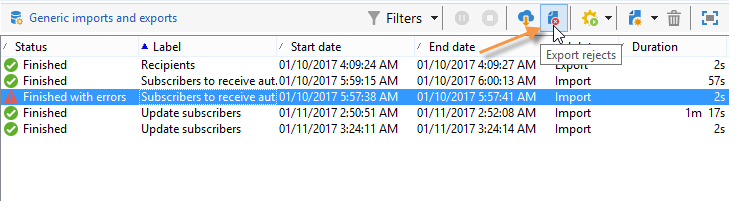

You can generate a file containing these records via the Export rejects icon:

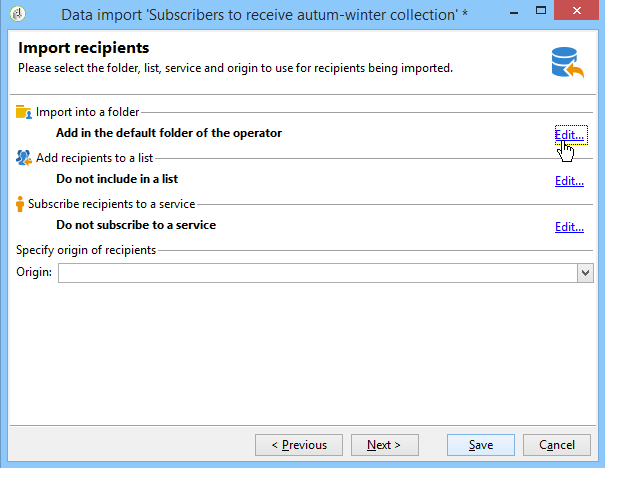

The next step of the import wizard lets you select or create the folder in which data will be imported, automatically map imported recipients with a (new or existing) list, and subscribe recipients to a service.
This step appears when importing recipients only and when using the default Adobe Campaign recipients table (nms:recipient).
Click the Edit links to select the folder, the list, or the service to which you want to associate or subscribe the recipients.
Importing into a folder

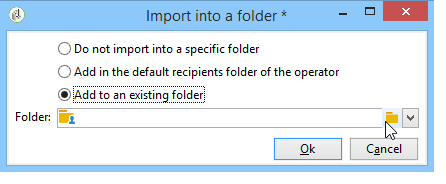

The Edit… link of the Import into a folder section lets you select or create the folder into which the recipients will be imported. By default, if no partition is defined, the data is imported into the operator’s default folder.
The default folder for an operator is the first folder for which the operator has write access. See Folder access management.

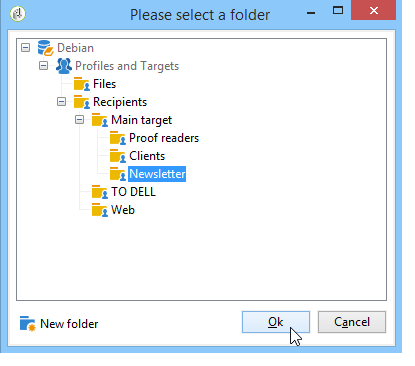

To select the import folder, click the arrow to the right of the Folder field and select the folder concerned. You can also use the Select link icon to display the tree in a new window or create a new folder.
To create a new folder, select the node from which you want to add a folder, and right-click. Select Create a new ‘Recipients’ folder.
The folder is added below the current node. Enter the name of the new folder, hit Enter to confirm, and then click OK.
Associating with a list

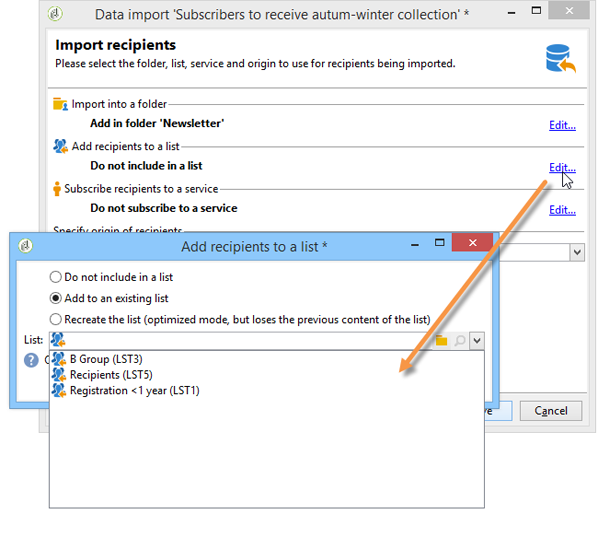

The Edit… link in the Add recipients to a list section lets you select or create a list into which the recipients will be imported.

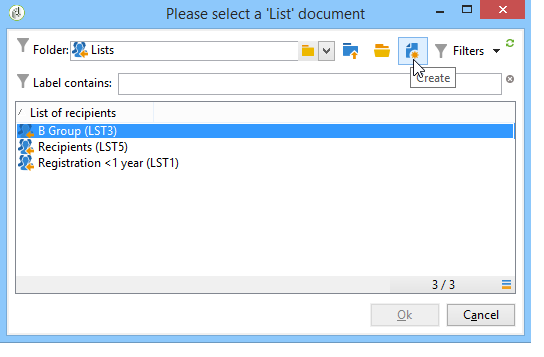

You can create a new list for these recipients by clicking Select link, then Create. The creation and management of lists are presented in Creating and managing lists.
You can decide to add the recipients to those already present in a list, or to recreate the list with the new recipients. In this case, if the list already contained recipients, they will be deleted and replaced by the imported recipients.
Subscribing to a service

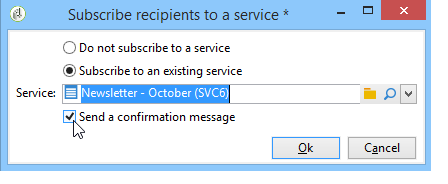

To subscribe all imported recipients to an information service, click the Edit… link of the Subscribe recipients to a service section in order to select or create the information service which the recipients will be subscribed to. You can select the Send a confirmation message option: The content of this message is defined in the delivery template associated with the subscription service.
You can create a new service for these recipients by clicking Select link and then the Create icon. The management of information services is presented in this section.
Use the Origin field to add information about the origin of recipients to their profiles. This information is particularly useful within the framework of a multiple import.
Click Next to validate this step and display the following step.
The last step of the wizard lets you launch data import. To do this, click the Start button.
You can then monitor the execution of the import job (see Monitoring jobs execution.
