開發頁首及頁尾

頁首及頁尾 {align="center"}

頁首及頁尾在 Edge Delivery Services (EDS) 中扮演獨特的角色,因為其與 HTML <header><footer> 元素綁定在一起。與一般頁面內容不同,頁首和頁尾皆單獨管理並且可以個別更新,而無需清除整個頁面快取。雖然其在程式碼專案的 blocks/headerblocks/footer 之下以區塊的形式實施,但作者可以透過包含任意區塊組合的專用 AEM 頁面編輯其內容。

頁首區塊

頁首區塊 {align="center"}

頁首是與 Edge Delivery Services HTML <header> 元素綁定的特殊區塊。
<header> 元素傳遞時為空,並透過 XHR (AJAX) 填入到單獨的 AEM 頁面。
這樣便能在頁面內容之外單獨管理頁首,並且無需清除所有頁面的快取即可進行更新。

頁首區塊負責要求包含頁首內容的 AEM 頁面片段,並在 <header> 元素中進行轉譯。

[/blocks/header/header.js]{class="badge neutral" title="下方程式碼範例的檔案名稱。"}

import { getMetadata } from '../../scripts/aem.js';
import { loadFragment } from '../fragment/fragment.js';

...

export default async function decorate(block) {
  // load nav as fragment

  // Get the path to the AEM page fragment that defines the header content from the <meta name="nav"> tag. This is set via the site's Metadata file.
  const navMeta = getMetadata('nav');

  // If the navMeta is not defined, use the default path `/nav`.
  const navPath = navMeta ? new URL(navMeta, window.location).pathname : '/nav';

  // Make an XHR (AJAX) call to request the AEM page fragment and serialize it to a HTML DOM tree.
  const fragment = await loadFragment(navPath);

  // Add the content from the fragment HTML to the block and decorate it as needed
  ...
}

loadFragment() 函數發出 XHR (AJAX) 要求至 ${navPath}.plain.html,傳回 AEM 頁面 HTML 的 EDS HTML 轉譯,該轉譯存在於頁面的 <main> 標記中,處理其內容及其可能包含的任何區塊,並傳回更新的 DOM 樹。

製作頁首頁面

在開發頁首區塊之前,首先在通用編輯器中製作其內容,作為開發的依據。

頁首內容位於名為 nav 的專屬 AEM 頁面中。

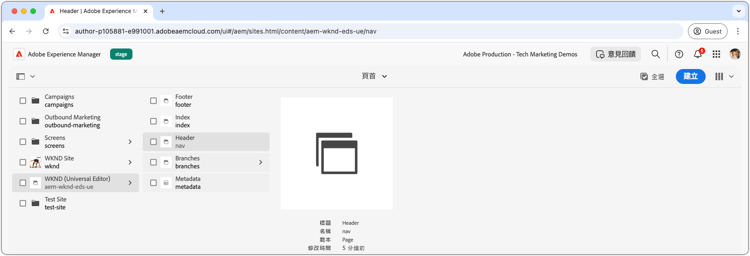

預設頁首頁面 {align="center"}

若要製作頁首:

  1. 開啟通用編輯器中的 nav 頁面

  2. 用包含 WKND 標誌的​ 影像區塊 ​取代預設按鈕

  3. 更新​ 文字區塊 ​內的導覽功能表,方法如下:

    • 新增您想要的導覽連結
    • 在需要的地方建立子導覽項目
    • 設定所有連結現在指向首頁 (/)

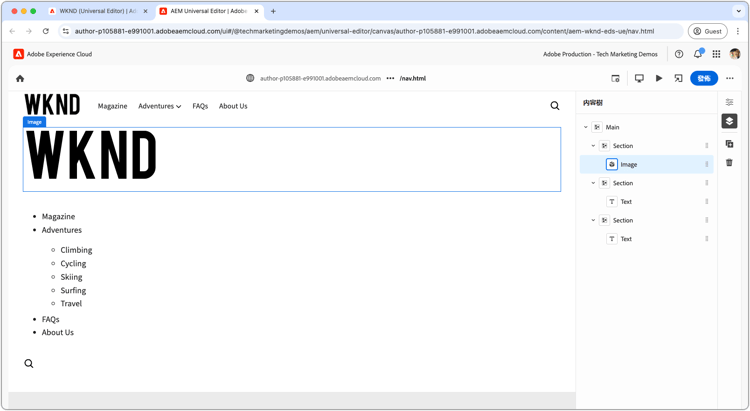

在通用編輯器中製作頁首區塊 {align="center"}

發佈至預覽

由於頁首頁面更新,將頁面發佈至預覽

由於頁首內容位於其自己的頁面上 (nav 頁面),您必須專門發佈該頁面,方能讓頁首變更生效。發佈其他使用該頁首的頁面,不會更新 Edge Delivery Services 上的頁首內容。

區塊 HTML

若要開始進行區塊開發,首先請檢閱 Edge Delivery Services 預覽版所公開的 DOM 結構。DOM 透過 JavaScript 增強,並使用 CSS 設定樣式,為建置和自訂區塊打下基礎。

由於頁首以片段形式載入,因此我們需要檢查 XHR 要求在注入 DOM 之後所傳回的 HTML,並透過 loadFragment() 進行修飾。這項程序可以透過檢查瀏覽器開發工具中的 DOM 來完成。

要進行修飾的 DOM

以下為使用所提供之 header.js 載入並注入 DOM 之後的頁首頁面 HTML:

code language-html
<header class="header-wrapper">
  <div class="header block" data-block-name="header" data-block-status="loaded">
    <div class="nav-wrapper">
      <nav id="nav" aria-expanded="true">
        <div class="nav-hamburger">
          <button type="button" aria-controls="nav" aria-label="Close navigation">
            <span class="nav-hamburger-icon"></span>
          </button>
        </div>
        <div class="section nav-brand" data-section-status="loaded" style="">
          <div class="default-content-wrapper">
            <p class="">
              <a href="#" title="Button" class="">Button</a>
            </p>
          </div>
        </div>
        <div class="section nav-sections" data-section-status="loaded" style="">
          <div class="default-content-wrapper">
            <ul>
              <li aria-expanded="false">Examples</li>
              <li aria-expanded="false">Getting Started</li>
              <li aria-expanded="false">Documentation</li>
            </ul>
          </div>
        </div>
        <div class="section nav-tools" data-section-status="loaded" style="">
          <div class="default-content-wrapper">
            <p>
              <span class="icon icon-search">
                <img data-icon-name="search" src="/icons/search.svg" alt="" loading="lazy">
              </span>
            </p>
          </div>
        </div>
      </nav>
    </div>
  </div>
</header>
如何找到 DOM

尋找並檢查網頁瀏覽器開發人員工具中的頁面 <header> 元素。

頁首 DOM {align="center"}

區塊 JavaScript

來自 AEM 樣板專案 XWalk 專案範本/blocks/header/header.js 檔案,提供用於導覽的 JavaScript,包括下拉式選單和回應式行動視圖。

雖然 header.js 指令碼通常會經過大量自訂以符合網站的設計,但保留 decorate() 中最初的文字行相當重要,可用於擷取和處理頁首頁面片段。

[/blocks/header/header.js]{class="badge neutral" title="下方程式碼範例的檔案名稱。"}

export default async function decorate(block) {
  // load nav as fragment
  const navMeta = getMetadata('nav');
  const navPath = navMeta ? new URL(navMeta, window.location).pathname : '/nav';
  const fragment = await loadFragment(navPath);
  ...

其餘程式碼可以進行修改,以符合您專案的需求。

根據頁首要求,可以調整或移除樣板專案程式碼。在本教學課程中,我們會使用所提供的程式碼,並在第一張製作好的影像周圍加入超連結,將其連結至網站首頁,以增強其功能。

範本的程式碼會處理頁首頁面片段,假設其由三個區段組成且順序如下:

  1. 品牌區段 - 包含標誌並使用 .nav-brand 類別進行樣式設定。
  2. 區段區段 - 定義網站的主選單,並使用 .nav-sections 進行樣式設定。
  3. 工具區段 - 包括搜尋、登入/登出和設定檔等元素,使用 .nav-tools 進行樣式設定。

為了對標誌影像加入連至首頁的超連結,我們按以下方式更新區塊 JavaScript:

更新後的 JavaScript

更新後的程式碼將標誌影像與連接至網站首頁的連結 (/) 包裝在一起,如下所示:

[/blocks/header/header.js]{class="badge neutral" title="下方程式碼範例的檔案名稱。"}

code language-javascript
export default async function decorate(block) {

  ...
  const navBrand = nav.querySelector('.nav-brand');

  // WKND: Turn the picture (image) into a linked site logo
  const logo = navBrand.querySelector('picture');

  if (logo) {
    // Replace the first section's contents with the authored image wrapped with a link to '/'
    navBrand.innerHTML = `<a href="/" aria-label="Home" title="Home" class="home">${logo.outerHTML}</a>`;
    // Make sure the logo is not lazy loaded as it's above the fold and can affect page load speed
    navBrand.querySelector('img').settAttribute('loading', 'eager');
  }

  const navSections = nav.querySelector('.nav-sections');
  if (navSections) {
    // WKND: Remove Edge Delivery Services button containers and buttons from the nav sections links
    navSections.querySelectorAll('.button-container, .button').forEach((button) => {
      button.classList = '';
    });

    ...
  }
  ...
}
原始 JavaScript

以下是從範本產生的原始 header.js

[/blocks/header/header.js]{class="badge neutral" title="下方程式碼範例的檔案名稱。"}

code language-javascript
export default async function decorate(block) {
  ...
  const navBrand = nav.querySelector('.nav-brand');
  const brandLink = navBrand.querySelector('.button');
  if (brandLink) {
    brandLink.className = '';
    brandLink.closest('.button-container').className = '';
  }

  const navSections = nav.querySelector('.nav-sections');
  if (navSections) {
    navSections.querySelectorAll(':scope .default-content-wrapper > ul > li').forEach((navSection) => {
      if (navSection.querySelector('ul')) navSection.classList.add('nav-drop');
      navSection.addEventListener('click', () => {
        if (isDesktop.matches) {
          const expanded = navSection.getAttribute('aria-expanded') === 'true';
          toggleAllNavSections(navSections);
          navSection.setAttribute('aria-expanded', expanded ? 'false' : 'true');
        }
      });
    });
  }
  ...
}

區塊 CSS

更新 /blocks/header/header.css,根據 WKND 的品牌設定其樣式。

我們會在 header.css 的底部新增自訂 CSS,讓教學課程變更較容易查看和理解。雖然這些樣式可以直接整合至範本的 CSS 規則中,但將這些樣式分開有助於說明所修改的內容。

由於我們是在原始規則集之後新增新規則,因此我們會使用 header .header.block nav CSS 選取器將其包裝,以確保其優先性高於範本規則。

[/blocks/header/header.css]{class="badge neutral" title="下方程式碼範例的檔案名稱。"}

/* /blocks/header/header.css */

... Existing CSS generated by the template ...

/* Add the following CSS to the end of the header.css */

/**
* WKND customizations to the header
*
* These overrides can be incorporated into the provided CSS,
* however they are included discretely in thus tutorial for clarity and ease of addition.
*
* Because these are added discretely
* - They are added to the bottom to override previous styles.
* - They are wrapped in a header .header.block nav selector to ensure they have more specificity than the provided CSS.
*
**/

header .header.block nav {
  /* Set the height of the logo image.
     Chrome natively sets the width based on the images aspect ratio */
  .nav-brand img {
    height: calc(var(--nav-height) * .75);
    width: auto;
    margin-top: 5px;
  }

  .nav-sections {
    /* Update menu items display properties */
    a {
      text-transform: uppercase;
      background-color: transparent;
      color: var(--text-color);
      font-weight: 500;
      font-size: var(--body-font-size-s);

      &:hover {
        background-color: auto;
      }
    }

    /* Adjust some spacing and positioning of the dropdown nav */
    .nav-drop {
      &::after {
        transform: translateY(-50%) rotate(135deg);
      }

      &[aria-expanded='true']::after {
        transform: translateY(50%) rotate(-45deg);
      }

      & > ul {
        top: 2rem;
        left: -1rem;
       }
    }
  }

開發預覽

隨著 CSS 和 JavaScript 的開發,AEM CLI 的本機開發環境會即時重新載入變更,因而可以快速輕鬆地將程式碼對區塊的影響以視覺化圖形呈現。將游標停留在 CTA 上,檢查並確認 Teaser 的影像會放大和縮小顯示。

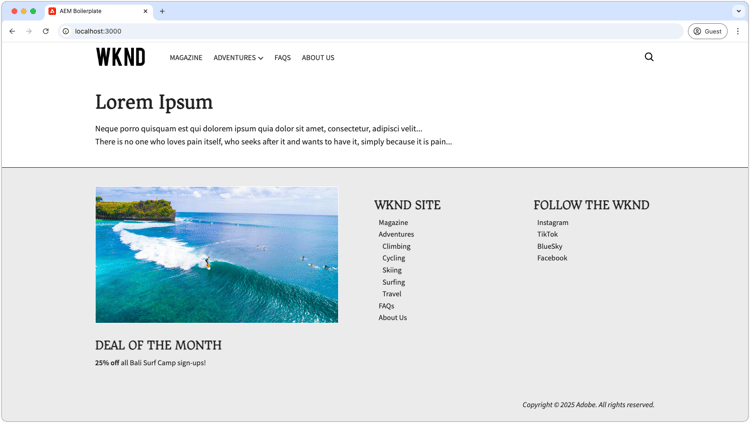

使用 CSS 和 JS 進行頁首的本機開發預覽 {align="center"}

對程式碼進行 lint 檢查

務必針對您的程式碼變更經常進行 lint 檢查,保持程式碼整潔且一致。定期進行 lint 檢查有助於及早發現問題,進而減少整體開發時間。請記住,在解決所有 linting 問題以前,您不能將開發工作合併到 main 分支內!

# ~/Code/aem-wknd-eds-ue

$ npm run lint

在通用編輯器中預覽

若要在 AEM 通用編輯器中檢視變更,請將其新增、提交並推送至通用編輯器所使用的 Git 存放庫分支。這樣做可以確保區塊實施不會破壞製作體驗。

# ~/Code/aem-wknd-eds-ue

$ git add .
$ git commit -m "CSS and JavaScript implementation for Header block"
# JSON files are compiled automatically and added to the commit via a Husky pre-commit hook
$ git push origin header-and-footer

現在,使用 ?ref=header-and-footer 查詢參數時可以在通用編輯器中看到變更。

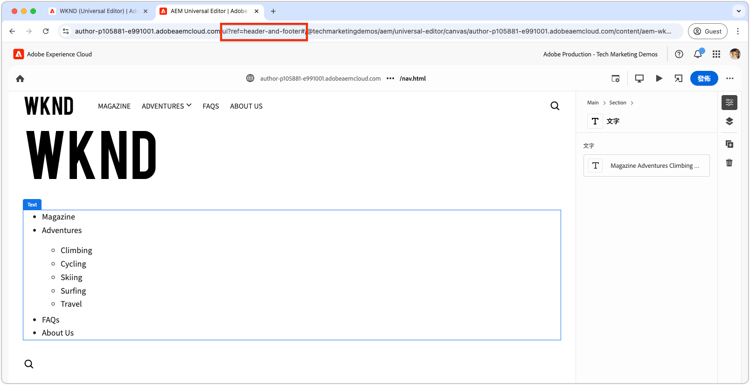

通用編輯器中的頁首 {align="center"}

頁尾

與頁首一樣,頁尾內容也是在專用的 AEM 頁面上製作,在本案例中是頁尾頁面 (footer)。頁尾遵循相同的模式,以片段的形式載入,並使用 CSS 和 JavaScript 進行修飾。

頁尾

頁尾應採用三欄式版面,包含:

  • 左側欄顯示促銷活動資訊 (影像和文字)
  • 中間欄含有導覽連結
  • 右側欄內含社交媒體連結
  • 底部有一列橫跨所有三欄,內含版權資訊

頁尾預覽 {align="center"}

頁尾內容

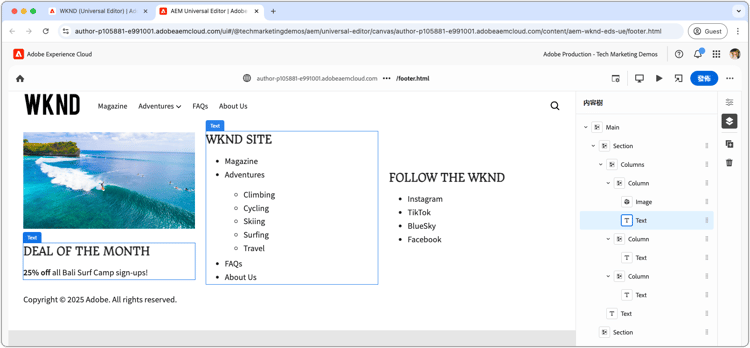

使用頁尾頁面中的欄區塊來建立三欄式的效果。

table 0-row-3 1-row-3 2-row-3
欄目 1 欄目 2 欄目 3
影像 標題 3 標題 3
文字 連結清單 連結清單

頁首 DOM {align="center"}

頁尾程式碼

下方的 CSS 採用三欄式版面、一致的間距,以及印刷樣式來設定頁尾區塊的樣式。頁尾實施僅使用範本所提供的 JavaScript。

[/blocks/footer/footer.css]{class="badge neutral" title="下方程式碼範例的檔案名稱。"}

code language-css
/* /blocks/footer/footer.css */

footer {
  background-color: var(--light-color);

  .block.footer {
    border-top: solid 1px var(--dark-color);
    font-size: var(--body-font-size-s);

    a {
      all: unset;

      &:hover {
        text-decoration: underline;
        cursor: pointer;
      }
    }

    img {
      width: 100%;
      height: 100%;
      object-fit: cover;
      border: solid 1px white;
    }

    p {
      margin: 0;
    }

    ul {
      list-style: none;
      padding: 0;
      margin: 0;

      li {
        padding-left: .5rem;
      }
    }

    & > div {
      margin: auto;
      max-width: 1200px;
    }

    .columns > div {
      gap: 5rem;
      align-items: flex-start;

      & > div:first-child {
        flex: 2;
      }
    }

    .default-content-wrapper {
      padding-top: 2rem;
      margin-top: 2rem;
      font-style: italic;
      text-align: right;
    }
  }
}

@media (width >= 900px) {
  footer .block.footer > div {
    padding: 40px 32px 24px;
  }
}

恭喜!

現在您已經了解如何在 Edge Delivery Services 和通用編輯器中管理與開發頁首及頁尾。您已經了解關於頁首和頁尾的以下內容:

  • 與主要內容分開並在專屬的 AEM 頁面上製作
  • 以片段形式非同步載入,可以獨立更新
  • 使用 JavaScript 和 CSS 進行修飾,建立回應式導覽體驗
  • 與通用編輯器緊密整合,輕鬆管理內容

此模式提供了一項彈性且可維護的方法,用於實施全站導覽元件。

若要了解更多最佳實務和進階技術,請查看通用編輯器文件
