開發Asset Compute中繼資料背景工作
自訂Asset Compute背景工作可產生XMP (XML)資料,這些資料會傳回AEM並儲存為資產上的中繼資料。
常見使用案例包含:
- 與協力廠商系統(例如PIM (產品資訊管理系統))的整合,其中必須擷取其他中繼資料並儲存在資產上
- 與Adobe服務(例如內容和Commerce AI)整合,使用其他機器學習屬性來增強資產中繼資料
- 從資產的二進位檔取得資產的相關中繼資料,並將其儲存為AEM as a Cloud Service中的資產中繼資料
您將要執行的動作
在本教學課程中,我們將建立Asset Compute中繼資料背景工作,它會衍生影像資產中最常使用的顏色,並將顏色名稱寫入回AEM中的資產中繼資料。 雖然背景工作程式本身至關重要,但本教學課程將利用此背景工作程式來探索如何使用Asset Compute背景工作程式將中繼資料回寫至AEM as a Cloud Service中的資產。
Asset Compute中繼資料背景工作引動處理的邏輯流程
Asset Compute中繼資料背景工作程式的引動方式與產生背景工作程式的二進位轉譯的引動方式幾乎相同,主要差異在於傳回型別是XMP (XML)轉譯,其值也會寫入資產的中繼資料。
Asset Compute背景工作在renditionCallback(...)
函式中實作Asset Compute SDK背景工作API合約,其概念為:
- 輸入: AEM資產的原始二進位檔及處理設定檔引數
- 輸出: XMP (XML)轉譯持續儲存至AEM資產作為轉譯,以及資產的中繼資料
- AEM作者服務會叫用Asset Compute中繼資料背景工作,提供資產的 (1a) 原始二進位檔,以及 (1b) 處理設定檔中定義的任何引數。
- Asset Compute SDK會根據資產的二進位 (1a) 和任何處理設定檔引數 (1b),協調執行自訂Asset Compute中繼資料背景工作程式的
renditionCallback(...)
函式,以衍生XMP (XML)轉譯。 - Asset Compute Worker會將XMP (XML)表示儲存至
rendition.path
。 - 寫入至
rendition.path
的XMP (XML)資料會透過Asset Compute SDK傳輸至AEM Author Service,並將它公開為 (4a) 文字轉譯,而 (4b) 會儲存至資產的中繼資料節點。
設定manifest.yml manifest
所有Asset Compute背景工作程式都必須在manifest.yml中註冊。
開啟專案的manifest.yml
,並新增設定新背景工作的背景工作專案,在此例中為metadata-colors
。
記住.yml
有空白字元限制。
packages:
__APP_PACKAGE__:
license: Apache-2.0
actions:
worker:
function: actions/worker/index.js
web: 'yes'
runtime: 'nodejs:12'
limits:
timeout: 60000 # in ms
memorySize: 512 # in MB
concurrency: 10
annotations:
require-adobe-auth: true
metadata-colors:
function: actions/metadata-colors/index.js
web: 'yes'
runtime: 'nodejs:12'
limits:
memorySize: 512 # in MB
function
指向在下一個步驟中建立的背景工作實作。 以語意為背景工作者命名(例如,actions/worker/index.js
可能更適合命名為actions/rendition-circle/index.js
),因為這些名稱會顯示在背景工作者的URL中,而且也會決定背景工作者的測試套件資料夾名稱。
limits
與require-adobe-auth
是分別設定給每個背景工作程式。 在這個Worker中,512 MB
的記憶體配置給程式碼檢查(可能)大型二進位影像資料。 其他limits
已移除以使用預設值。
開發中繼資料背景工作 metadata-worker
在Asset Compute專案中建立新的中繼資料背景工作JavaScript檔案,路徑為定義新背景工作,路徑為/actions/metadata-colors/index.js
安裝npm模組
安裝此Asset Compute背景工作程式中使用的額外npm模組(@adobe/asset-compute-xmp、get-image-colors和color-namer)。
$ npm install @adobe/asset-compute-xmp
$ npm install get-image-colors
$ npm install color-namer
中繼資料背景工作代碼
此背景工作程式看起來與產生轉譯背景工作程式非常類似,主要差異在於它會將XMP (XML)資料寫入rendition.path
以儲存回AEM。
"use strict";
const { worker, SourceCorruptError } = require("@adobe/asset-compute-sdk");
const fs = require("fs").promises;
// Require the @adobe/asset-compute-xmp module to create XMP
const { serializeXmp } = require("@adobe/asset-compute-xmp");
// Require supporting npm modules to derive image colors from image data
const getColors = require("get-image-colors");
// Require supporting npm modules to convert image colors to color names
const namer = require("color-namer");
exports.main = worker(async (source, rendition, params) => {
// Perform any necessary source (input) checks
const stats = await fs.stat(source.path);
if (stats.size === 0) {
// Throw appropriate errors whenever an erring condition is met
throw new SourceCorruptError("source file is empty");
}
const MAX_COLORS = 10;
const DEFAULT_COLORS_FAMILY = 'basic';
// Read the color family parameter to use to derive the color names
let colorsFamily = rendition.instructions.colorsFamily || DEFAULT_COLORS_FAMILY;
if (['basic', 'hex', 'html', 'ntc', 'pantone', 'roygbiv'].indexOf(colorsFamily) === -1) {
colorsFamily = DEFAULT_COLORS_FAMILY;
}
// Use the `get-image-colors` module to derive the most common colors from the image
let colors = await getColors(source.path, { options: MAX_COLORS });
// Convert the color Chroma objects to their closest names
let colorNames = colors.map((color) => getColorName(colorsFamily, color));
// Serialize the data to XMP metadata
// These properties are written to the [dam:Asset]/jcr:content/metadata resource
// This stores
// - The list of color names is stored in a JCR property named `wknd:colors`
// - The colors family used to derive the color names is stored in a JCR property named `wknd:colorsFamily`
const xmp = serializeXmp({
// Use a Set to de-duplicate color names
"wknd:colors": [...new Set(colorNames)],
"wknd:colorsFamily": colorsFamily
}, {
// Define any property namespaces used in the above property/value definition
// These namespaces are automatically registered in AEM if they do not yet exist
namespaces: {
wknd: "https://wknd.site/assets/1.0/",
},
}
);
// Save the XMP metadata to be written back to the asset's metadata node
await fs.writeFile(rendition.path, xmp, "utf-8");
});
/**
* Helper function that derives the closest color name for the color, based on the colors family
*
* @param {*} colorsFamily the colors name family to use
* @param {*} color the color to convert to a name
*/
function getColorName(colorsFamily, color) {
if ('hex' === colorsFamily) { return color; }
let names = namer(color.rgb())[colorsFamily];
if (names.length >= 1) { return names[0].name; }
}
在本機執行中繼資料背景工作 development-tool
背景工作程式碼完成後,可使用本機Asset Compute開發工具執行。
由於我們的Asset Compute專案包含兩個背景工作(先前的circle轉譯和此metadata-colors
背景工作),Asset Compute開發工具的設定檔定義會列出兩個背景工作的執行設定檔。 第二個設定檔定義指向新的metadata-colors
背景工作。
-
從Asset Compute專案的根目錄
-
執行
aio app run
以啟動Asset Compute開發工具 -
在 選取檔案…… 下拉式清單中,挑選要處理的範例影像
-
在指向
metadata-colors
背景工作程式的第二個設定檔定義設定中,當此背景工作程式產生XMP (XML)轉譯時請更新"name": "rendition.xml"
。 選擇性地新增colorsFamily
引數(支援的值basic
、hex
、html
、ntc
、pantone
、roygbiv
)。code language-json { "renditions": [ { "worker": "...", "name": "rendition.xml", "colorsFamily": "pantone" } ] }
-
點選 執行,然後等待產生XML轉譯
- 由於兩個背景工作都列在設定檔定義中,因此兩個轉譯都會產生。 可選擇性地刪除指向circle轉譯背景工作的上層設定檔定義,以避免從開發工具執行它。
-
轉譯 區段會預覽產生的轉譯。 點選
rendition.xml
以下載它,然後以VS Code (或您最愛的XML/文字編輯器)開啟它以進行檢閱。
測試背景工作 test
中繼資料背景工作可以使用與二進位轉譯相同的Asset Compute測試架構進行測試。 唯一的差異是測試案例中的rendition.xxx
檔案必須是預期的XMP (XML)轉譯。
-
在Asset Compute專案中建立下列結構:
code language-none /test/asset-compute/metadata-colors/success-pantone/ file.jpg params.json rendition.xml
-
使用範例檔案作為測試案例的
。 -
將下列JSON新增至
params.json
。code language-none { "fmt": "xml", "colorsFamily": "pantone" }
請注意,需要
"fmt": "xml"
才能指示測試套件產生.xml
文字型轉譯。 -
在
rendition.xml
檔案中提供預期的XML。 這可透過以下方式取得:- 透過開發工具執行測試輸入檔案並儲存(已驗證的) XML轉譯。
code language-none <?xml version="1.0" encoding="UTF-8"?><rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" xmlns:wknd="https://wknd.site/assets/1.0/"><rdf:Description><wknd:colors><rdf:Seq><rdf:li>Silver</rdf:li><rdf:li>Black</rdf:li><rdf:li>Outer Space</rdf:li></rdf:Seq></wknd:colors><wknd:colorsFamily>pantone</wknd:colorsFamily></rdf:Description></rdf:RDF>
-
從Asset Compute專案的根目錄執行
aio app test
以執行所有測試套裝。
將背景工作部署至Adobe I/O Runtime deploy
若要從AEM Assets叫用這個新的中繼資料工作程式,必須使用命令將其部署到Adobe I/O Runtime:
$ aio app deploy
請注意,這將部署專案中的所有背景工作。 檢閱未刪節的部署指示,瞭解如何部署至中繼和生產工作區。
與AEM處理設定檔整合 processing-profile
透過建立新的或修改現有的自訂處理設定檔服務從AEM叫用背景工作,以叫用這個已部署的背景工作。
-
以 AEM as a Cloud Service管理員 身分登入AEM作者服務
-
導覽至 工具> Assets >處理設定檔
-
建立 新的處理設定檔,或 編輯 現有的處理設定檔
-
點選 自訂 標籤,然後點選 新增
-
定義新服務
-
建立中繼資料轉譯:切換為使用中
-
端點:
https://...adobeioruntime.net/api/v1/web/wkndAemAssetCompute-0.0.1/metadata-colors
- 這是在部署期間或使用命令
aio app get-url
取得的背景工作程式的URL。 根據AEM as a Cloud Service環境,確保URL指向正確的工作區。
- 這是在部署期間或使用命令
-
服務引數
-
點選 新增引數
- 索引鍵:
colorFamily
- 值:
pantone
- 支援的值:
basic
、hex
、html
、ntc
、pantone
、roygbiv
- 支援的值:
- 索引鍵:
-
-
Mime型別
- 包含:
image/jpeg
、image/png
、image/gif
、image/svg
- 這是第三方npm模組唯一支援的MIME型別,用來衍生顏色。
- 排除:
Leave blank
- 包含:
-
-
點選右上方的 儲存
-
將處理設定檔套用至AEM Assets資料夾(如果尚未套用)
更新中繼資料結構 metadata-schema
若要檢閱色彩中繼資料,請將影像中繼資料結構描述上的兩個新欄位,對應到背景工作填入的新中繼資料屬性。
-
在AEM作者服務中,導覽至 工具> Assets >中繼資料結構
-
導覽至 預設值,選取並編輯 影像,並新增唯讀表單欄位以公開產生的色彩中繼資料
-
新增 單行文字
- 欄位標籤:
Colors Family
- 對應到屬性:
./jcr:content/metadata/wknd:colorsFamily
- 規則>欄位>停用編輯:已核取
- 欄位標籤:
-
新增 多值文字
- 欄位標籤:
Colors
- 對應到屬性:
./jcr:content/metadata/wknd:colors
- 欄位標籤:
-
點選右上方的 儲存

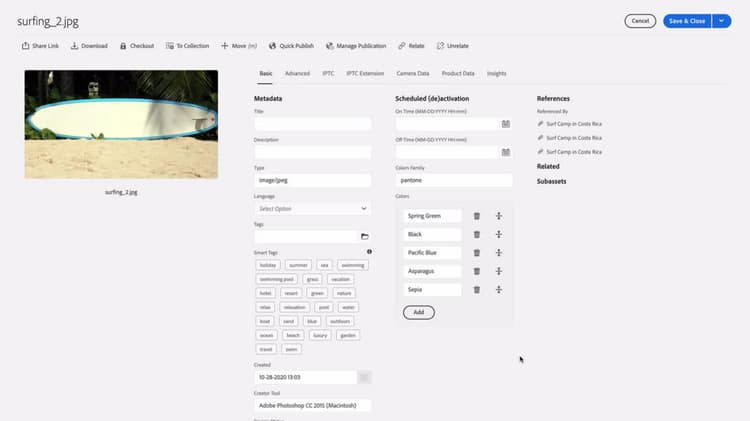

正在處理資產
將色彩中繼資料寫入資產的中繼資料後,在[dam:Asset]/jcr:content/metadata
資源上,此中繼資料會建立索引,以透過搜尋使用這些字詞提高資產探索能力,而且如果在該資產上叫用 DAM中繼資料回寫 工作流程,甚至可以將這些字詞回寫至資產的二進位檔。
AEM Assets中的中繼資料轉譯
Asset Compute中繼資料背景工作產生的實際XMP檔案也會儲存為資產上的獨立轉譯。 系統通常不會使用此檔案,而是會使用套用至資產中繼資料節點的值,但背景工作的原始XML輸出可在AEM中使用。
Github上的metadata-colors背景工作代碼
Github上的最終metadata-colors/index.js
位於:
Github上的最終test/asset-compute/metadata-colors
測試套件位於:
