使用OAuth網頁應用程式驗證叫用OpenAPI型AEM API
瞭解如何透過使用OAuth網頁應用程式的自訂網頁應用程式中的使用者型驗證,在AEM as a Cloud Service上叫用OpenAPI型AEM API。
OAuth網頁應用程式驗證適用於具有前端和 後端 元件,且需要 代表使用者 存取AEM API的網頁應用程式。 它會使用OAuth 2.0 authorization_code 授權型別來代表使用者取得存取權杖以存取AEM API。 如需詳細資訊,請參閱 OAuth伺服器對伺服器與Web應用程式與單頁應用程式認證之間的差異。
學習內容 what-you-learn
在本教學課程中,您將學習如何:
-
設定Adobe Developer Console (ADC)專案,以使用 OAuth Web App 驗證存取Assets Author API。
-
在自訂網頁應用程式中實作OAuth網頁應用程式驗證流程。
- IMS使用者驗證和應用程式授權。
- 使用者特定的存取權杖擷取。
- 使用使用者特定的存取權杖存取OpenAPI型AEM API。
開始之前,請務必檢閱下列內容:
範例Web應用程式:WKND-PIM概觀和功能流程
讓我們瞭解範例Web應用程式、WKND產品資訊管理(PIM)及其功能流程。
WKND PIM應用程式是範例Web應用程式,用來管理儲存在AEM as a Cloud Service中的產品屬性及其資產中繼資料。 此範例示範網頁應用程式如何與Adobe API緊密整合,以提供有效率、以使用者為中心的工作流程。
Adobe Developer Console (ADC)專案已設定為使用OAuth Web App驗證存取Assets Author API。 它為WKND-PIM網頁應用程式提供必要的 client_id 和 client_secret,以起始 authorization_code 授權流程。

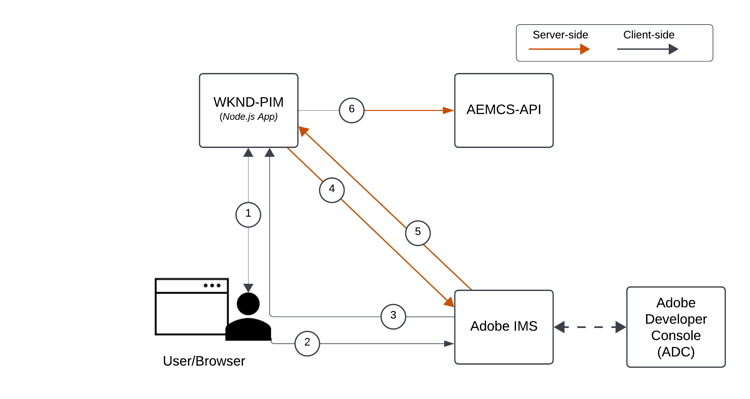

下圖說明WKND-PIM網頁應用程式 取得使用者特定存取權杖以與Assets Author API 互動的功能流程。
- 網頁應用程式會將使用者重新導向至Adobe Identity Management系統(IMS)進行驗證,以啟動程式。
- 除了重新導向外,網頁應用程式也會將必要的 client_id 和 redirect_uri 傳遞至IMS。
- IMS會驗證使用者,並將他們以 authorization_code 傳回指定的 redirect_uri。
- 網頁應用程式使用其 client_id 和 client_secret,將 authorization_code 與IMS交換使用者特定的存取權杖。
- 成功驗證後,IMS會發行使用者特定的 存取權杖。
- 網頁應用程式安全地使用 存取權杖 與Assets Author API互動,讓使用者能夠擷取或更新產品資產中繼資料。
WKND-PIM網頁應用程式是使用Node.js和Express開發。 Express可做為伺服器,安全地管理私人機密和使用者特定的存取權杖。
其他網頁棧疊(Java、Python、.NET架構等)可用來建立整合了Adobe API的網頁應用程式,其使用的方法請見本教學課程中的說明。
如何使用本教學課程 how-to-use-this-tutorial
您可以檢閱網頁應用程式金鑰程式碼片段區段,瞭解WKND-PIM網頁應用程式中使用的OAuth網頁應用程式驗證流程和API呼叫程式碼片段。 或直接進入設定並執行網頁應用程式區段,在本機電腦上設定並執行WKND-PIM網頁應用程式,以瞭解OAuth網頁應用程式驗證流程和API呼叫。
檢閱網頁應用程式金鑰程式碼片段 review-web-app-key-code-snippets
讓我們檢閱WKND-PIM網頁應用程式中使用的關鍵程式碼片段,以瞭解OAuth網頁應用程式驗證流程和API呼叫。
下載WKND-PIM網頁應用程式程式碼
-
下載WKND-PIM網頁應用程式 zip檔案並解壓縮。
-
導覽至解壓縮的資料夾,並在您最愛的程式碼編輯器中開啟
.env.example
檔案。 檢閱必要的設定引數。code language-plaintext ######################################################################## # Adobe IMS, Adobe Developer Console (ADC), and AEM Assets Information ######################################################################## # Adobe IMS OAuth endpoints ADOBE_IMS_AUTHORIZATION_ENDPOINT=https://ims-na1.adobelogin.com/ims/authorize/v2 ADOBE_IMS_TOKEN_ENDPOINT=https://ims-na1.adobelogin.com/ims/token/v3 ADOBE_IMS_USERINFO_ENDPOINT=https://ims-na1.adobelogin.com/ims/userinfo/v2 # Adobe Developer Console (ADC) Project's OAuth Web App credential ADC_CLIENT_ID=<ADC Project OAuth Web App credential ClientID> ADC_CLIENT_SECRET=<ADC Project OAuth Web App credential Client Secret> ADC_SCOPES=<ADC Project OAuth Web App credential credential Scopes> # AEM Assets Information AEM_ASSET_HOSTNAME=<AEM Assets Hostname, e.g., https://author-p63947-e1502138.adobeaemcloud.com/> AEM_ASSET_IDS=< AEM Asset IDs Comma Seperated, e.g., urn:aaid:aem:9f20a8ce-934a-4560-8720-250e529fbb17,urn:aaid:aem:6e0123cd-8a67-4d1f-b721-1b3da987d831> ################################################ # Web App Information ################################################ # The port number on which this server (web app) will run PORT = 3000 # The URL to which the user will be redirected after the OAuth flow is complete REDIRECT_URI=https://localhost:3001/callback # The Express (express-session) uses this secret to encrypt and verify the authenticity of that cookie EXPRESS_SESSION_SECRET=<Express Session Secret>
您需要以Adobe Developer Console (ADC)專案和AEM as a Cloud Service Assets例項中的實際值取代預留位置。
IMS使用者驗證和應用程式授權
讓我們檢閱起始IMS使用者驗證和應用程式授權的程式碼。 若要檢閱或更新資產中繼資料,使用者必須對Adobe IMS進行驗證,並授權WKND-PIM網頁應用程式代表他們存取Assets Author API。
在第一次登入嘗試時,使用者必須提供同意,允許WKND-PIM網頁應用程式代表他們存取Assets Author API。
-
routes/update-product-attributes.js
檔案會驗證使用者的快速工作階段是否有存取權杖。 如果沒有,則會將使用者重新導向至/auth
路由。code language-javascript ... // The update-product-attributes route, shows the product attributes form with tabs router.get("/update-product-attributes", async (req, res) => { // Check if the user is authenticated, if not redirect to the auth route if (!req.session.accessToken) { return res.redirect("/auth"); } ... });
-
在
routes/adobe-ims-auth.js
檔案中,/auth
路由會起始IMS使用者驗證和應用程式授權流程。 請注意 client_id、redirect_uri 和 response_type 引數已傳遞至Adobe IMS授權端點。code language-javascript ... // Route to initiate Adobe IMS user authentication router.get("/auth", (req, res) => { // Redirect user to Adobe IMS authorization endpoint try { // Constructing the authorization URL const params = new URLSearchParams({ client_id: adobeADCConfig.clientId, redirect_uri: redirectUri, response_type: "code", }); // Append scopes if defined in configuration if (adobeADCConfig?.scopes) params.append("scope", adobeADCConfig.scopes); // Redirect user to Adobe IMS authorization URL const imsAuthorizationUrl = `${ adobeIMSConfig.authorizationEndpoint }?${params.toString()}`; res.redirect(imsAuthorizationUrl); } catch (error) { console.error("Error initiating Adobe IMS authentication:", error); res.status(500).send("Unable to initiate authentication"); } }); ...
如果未針對Adobe IMS驗證使用者,則會顯示Adobe ID登入頁面並要求使用者進行驗證。
若已驗證,系統會將使用者重新導向回具有 authorization_code 之WKND-PIM網頁應用程式的指定 redirect_uri。
存取權杖擷取
WKND-PIM Web應用程式使用ADC專案的OAuth Web App認證的 client_id 和 client_secret,將 authorization_code 與Adobe IMS安全地交換使用者特定的存取權杖。
在routes/adobe-ims-auth.js
檔案中,/callback
路由會將 authorization_code 與Adobe IMS交換使用者特定的存取權杖。
...
// Callback route to exchange authorization code for access token
router.get("/callback", async (req, res) => {
// Extracting authorization code from the query parameters
const authorizationCode = req.query.code;
if (!authorizationCode) {
return res.status(400).send("Missing authorization code");
}
// Exchange authorization code for access token
try {
// Fetch access token from Adobe IMS token endpoint
const response = await fetch(adobeIMSConfig.tokenEndpoint, {
method: "POST",
headers: {
"Content-Type": "application/x-www-form-urlencoded",
Authorization: `Basic ${Buffer.from(
`${adobeADCConfig.clientId}:${adobeADCConfig.clientSecret}`
).toString("base64")}`,
},
body: new URLSearchParams({
code: authorizationCode,
grant_type: "authorization_code",
}),
});
if (!response.ok) {
console.error("Failed to fetch access token:", response.statusText);
return res.status(500).send("Failed to fetch access token");
}
const data = await response.json();
if (!data.access_token) {
console.error("Access token missing in the response:", data);
return res.status(500).send("Invalid response from token endpoint");
}
// For debugging purposes
console.log("Access token:", data.access_token);
// Store the access token in the session
req.session.accessToken = data.access_token;
// Redirect user to update product attributes
res.redirect("/update-product-attributes");
} catch (error) {
console.error("Error exchanging authorization code:", error);
res.status(500).send("Error during token exchange");
}
});
存取Token會儲存在快速工作階段中,以供後續要求使用Assets Author API。
使用存取權杖存取OpenAPI型AEM API
WKND-PIM網頁應用程式會安全地使用使用者特定的存取權杖來與Assets Author API互動,讓使用者能夠擷取或更新產品資產中繼資料。
在routes/invoke-aem-apis.js
檔案中,/api/getAEMAssetMetadata
和/api/updateAEMAssetMetadata
路由使用存取權杖叫用Assets作者API。
...
// API Route: Get AEM Asset Metadata
router.get("/api/getAEMAssetMetadata", async (req, res) => {
const assetId = req.query.assetId;
const bucketName = getBucketName(aemAssetsConfig.hostname);
if (!assetId || !bucketName) {
return res.status(400).json({ error: "Missing AEM Information" });
}
// Get the access token from the session
const accessToken = req.session.accessToken;
if (!accessToken) {
return res.status(401).json({ error: "Not Authenticated with Adobe IMS" });
}
try {
const assetMetadata = await invokeGetAssetMetadataAPI(
bucketName,
assetId,
accessToken
);
const filteredMetadata = getFilteredMetadata(JSON.parse(assetMetadata));
res.status(200).json(filteredMetadata);
} catch (error) {
console.error("Error getting asset metadata:", error.message);
res.status(500).json({ error: `Internal Server Error: ${error.message}` });
}
});
// Helper function to invoke the AEM API to get asset metadata
async function invokeGetAssetMetadataAPI(bucketName, assetId, accessToken) {
const apiUrl = `https://${bucketName}.adobeaemcloud.com/adobe/assets/${assetId}/metadata`;
// For debugging purposes
console.log("API URL:", apiUrl);
console.log("Access Token:", accessToken);
console.log("API Key:", adobeADCConfig.clientId);
try {
const response = await fetch(apiUrl, {
method: "GET",
headers: {
"If-None-Match": "string",
"X-Adobe-Accept-Experimental": "1",
Authorization: `Bearer ${accessToken}`,
"X-Api-Key": adobeADCConfig.clientId,
},
});
console.log("Response Status:", response.status);
if (!response.ok) {
throw new Error(`AEM API Error: ${response.statusText}`);
}
return await response.text();
} catch (error) {
throw new Error(`Failed to fetch asset metadata: ${error.message}`);
}
}
// Helper function to filter the metadata properties like pim: and dc:
function getFilteredMetadata(data) {
if (!data || !data.assetMetadata) {
throw new Error("Invalid metadata structure received from API");
}
const properties = data.assetMetadata;
return Object.keys(properties).reduce((filtered, key) => {
if (
key.startsWith("pim:") ||
key === "dc:title" ||
key === "dc:description"
) {
filtered[key] = properties[key];
}
return filtered;
}, {});
}
// API Route: Update AEM Asset Metadata
router.post("/api/updateAEMAssetMetadata", async (req, res) => {
const { assetId, metadata } = req.body;
if (!assetId || !metadata || typeof metadata !== "object") {
return res.status(400).json({ error: "Invalid or Missing Metadata" });
}
const bucketName = getBucketName(aemAssetsConfig.hostname);
if (!bucketName) {
return res.status(400).json({ error: "Missing AEM Information" });
}
const accessToken = req.session.accessToken;
if (!accessToken) {
return res.status(401).json({ error: "Not Authenticated with Adobe IMS" });
}
try {
const updatedMetadata = await invokePatchAssetMetadataAPI(
bucketName,
assetId,
metadata,
accessToken
);
res.status(200).json(updatedMetadata);
} catch (error) {
console.error("Error updating asset metadata:", error.message);
res.status(500).json({ error: `Internal Server Error: ${error.message}` });
}
});
// Helper function to invoke the AEM API to update asset metadata
async function invokePatchAssetMetadataAPI(
bucketName,
assetId,
metadata,
accessToken
) {
const apiUrl = `https://${bucketName}.adobeaemcloud.com/adobe/assets/${assetId}/metadata`;
const headers = {
"Content-Type": "application/json-patch+json",
"If-Match": "*",
"X-Adobe-Accept-Experimental": "1",
Authorization: `Bearer ${accessToken}`,
"X-Api-Key": adobeADCConfig.clientId,
};
try {
const response = await fetch(apiUrl, {
method: "PATCH",
headers,
body: JSON.stringify(getTransformedMetadata(metadata)),
});
if (!response.ok) {
throw new Error(`AEM API Error: ${response.statusText}`);
}
return await response.json();
} catch (error) {
throw new Error(`Failed to update asset metadata: ${error.message}`);
}
}
// Helper function to transform metadata into JSON Patch format, e.g. [{ op: "add", path: "dc:title", value: "New Title" }]
function getTransformedMetadata(metadata) {
return Object.keys(metadata).map((key) => ({
op: "add",
path: `/${key}`,
value: metadata[key],
}));
}
OpenAPI型AEM API呼叫是從伺服器端(Express中介程式)發出,而非直接從使用者端(瀏覽器)發出,以確儲存取權杖受到安全管理,不會公開給使用者端。
重新整理存取權杖
若要在存取Token過期之前重新整理,您可以實作重新整理Token流程。 不過,為了簡化教學課程,WKND-PIM網頁應用程式不會實作重新整理權杖流程。
設定並執行網頁應用程式
讓我們在您的本機電腦上設定並執行WKND-PIM網頁應用程式,以瞭解OAuth網頁應用程式驗證流程和API呼叫。
先決條件
若要完成本教學課程,您需要:
-
更新的AEM as a Cloud Service環境,其中包含:
- AEM版本
2024.10.18459.20241031T210302Z
或更新版本。 - 新樣式的產品設定檔(如果環境是在2024年11月之前建立的)
如需詳細資訊,請參閱設定OpenAPI型AEM API文章。
- AEM版本
-
必須在其上部署範例WKND Sites專案。
-
在本機電腦上安裝Node.js,以執行範例NodeJS應用程式。
-
在本機電腦上安裝local-ssl-proxy,以使用自我簽署憑證建立本機SSL HTTP Proxy。
開發步驟
高階開發步驟為:
-
設定ADC專案
- 新增Assets Author API
- 設定OAuth Web App認證
-
設定AEM執行個體以啟用ADC專案通訊
-
在AEM中,建立並套用資產中繼資料結構
-
設定並執行WKND-PIM網頁應用程式
-
驗證端對端流程
設定ADC專案
設定ADC專案步驟是設定OpenAPI型AEM API中的 重複。 您需重複新增Assets Author API,並將其驗證方法設定為OAuth網頁應用程式。
-
從Adobe Developer Console,開啟所需的專案。
-
若要新增AEM API,請按一下 新增API 按鈕。
-
在 新增API 對話方塊中,依 Experience Cloud 篩選,並選取 AEM Assets作者API 卡片,然後按一下 下一步。
note tip TIP 如果所需的 AEM API卡 已停用,且_為什麼此卡已停用?_資訊顯示 需要授權 訊息,其中一個原因可能是您尚未更新AEM as a Cloud Service環境,如需詳細資訊,請參閱更新AEM as a Cloud Service環境。 -

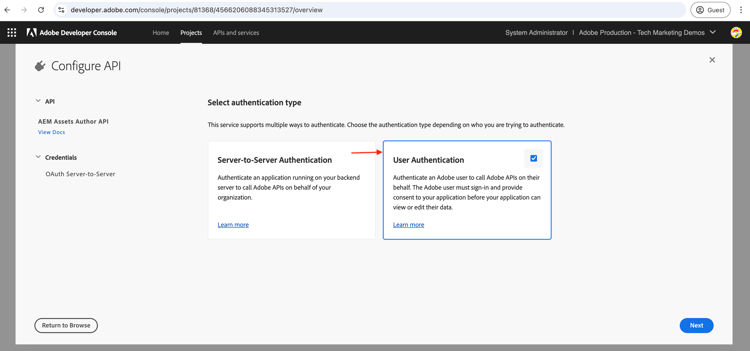

接著,在 設定API 對話方塊中,選取 使用者驗證 驗證選項,然後按一下 下一步。
-

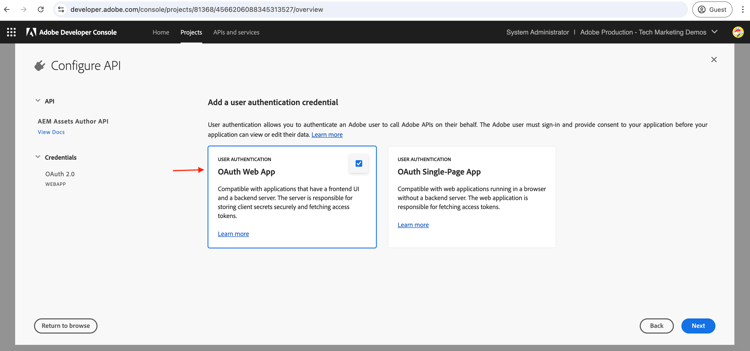

在下一個 設定API 對話方塊中,選取 OAuth網頁應用程式 驗證選項,然後按一下 下一步。
-

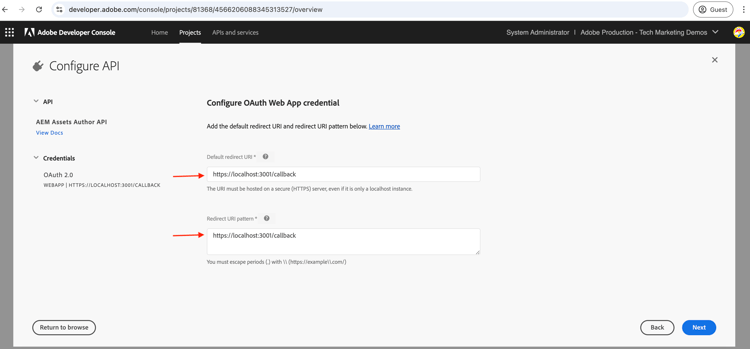

在 設定OAuth網頁應用程式 對話方塊中,輸入下列詳細資料,然後按一下 下一步。
- 預設重新導向URI:
https://localhost:3001/callback
- 重新導向URI模式:
https://localhost:3001/callback
- 預設重新導向URI:
-

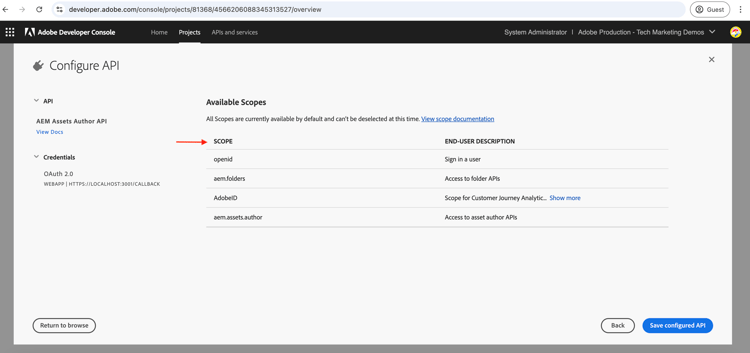

檢閱可用的範圍,然後按一下 儲存設定的API。
-
檢閱AEM API和驗證設定。
設定AEM執行個體以啟用ADC專案通訊
遵循設定OpenAPI型AEM API文章中的指示,設定AEM執行個體以啟用ADC專案通訊。
建立和套用資產中繼資料結構

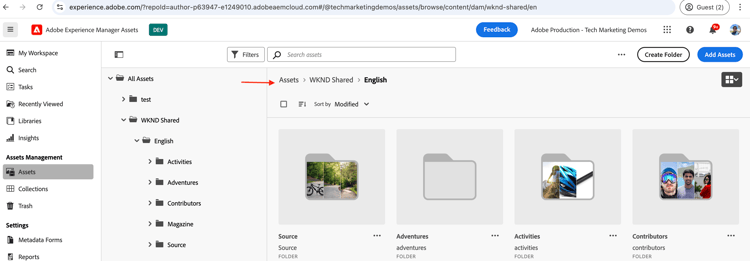

依預設,WKND Sites專案沒有顯示產品屬性所需的資產中繼資料結構。 讓我們建立資產中繼資料結構,並將其套用至AEM例項中的資產資料夾。
接下來,讓我們建立PIM屬性特定的中繼資料結構描述,並將其套用至 PIM 資料夾。
-
從左側邊欄瀏覽至 設定 > 中繼資料Forms 選項,然後按一下 建立 按鈕。
-

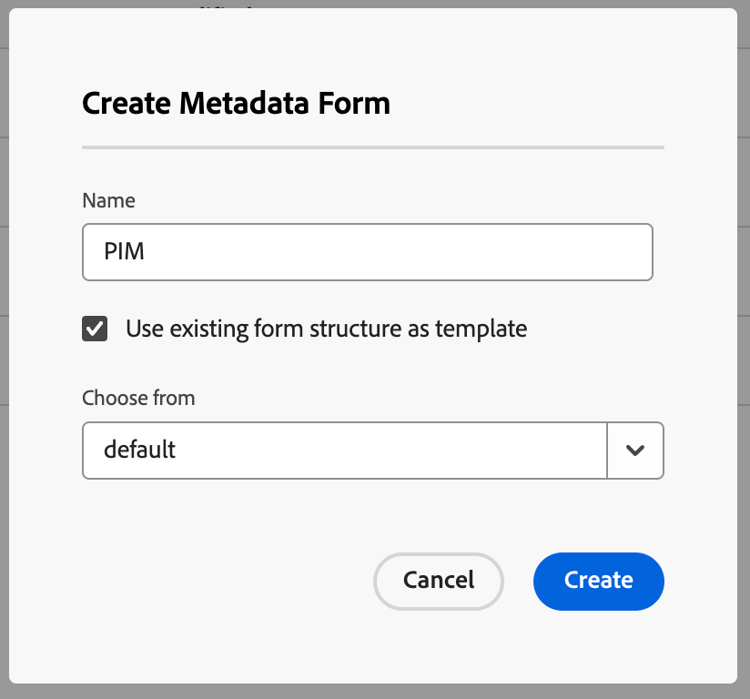

在 建立中繼資料表單 對話方塊中,輸入下列詳細資料,然後按一下 建立。
- 名稱:
PIM
- 使用現有的表單結構作為範本:
Check
- 選擇來源:
default
- 名稱:
-
按一下 + 圖示以新增新的 PIM 索引標籤,並新增 單行文字 元件。 中繼資料屬性名稱的開頭應該是
pim:
首碼。table 0-row-3 1-row-3 2-row-3 3-row-3 4-row-3 5-row-3 6-row-3 標籤 預留位置 中繼資料屬性 SKU 輸入SKU ID pim:sku
產品型別 例如,揹包、帳篷、夾克 pim:productType
產品類別 例如:野營、健行、登山 pim:productCategory
製造商 輸入製造商名稱 pim:manufacturer
模型 輸入模型名稱 pim:model
品牌名稱 輸入品牌名稱 pim:brandName
-
按一下 儲存 和 關閉 以儲存中繼資料表單。
-

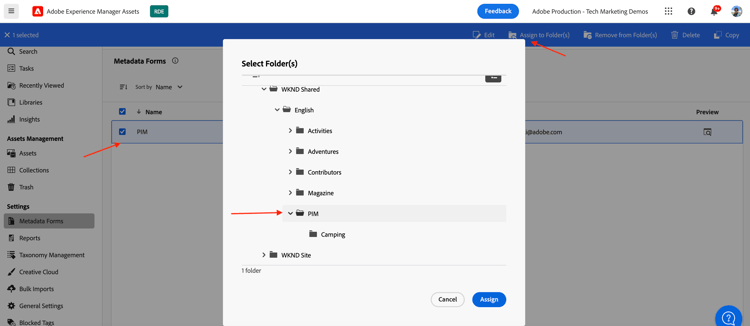

最後,將 PIM 中繼資料結構描述套用至 PIM 資料夾。
透過上述步驟,PIM 資料夾中的資產已準備好儲存產品屬性中繼資料。
設定並執行WKND-PIM網頁應用程式
-
下載WKND-PIM網頁應用程式 zip檔案並解壓縮。
-
導覽至擷取的資料夾,並將
.env.example
檔案複製到.env
。 -

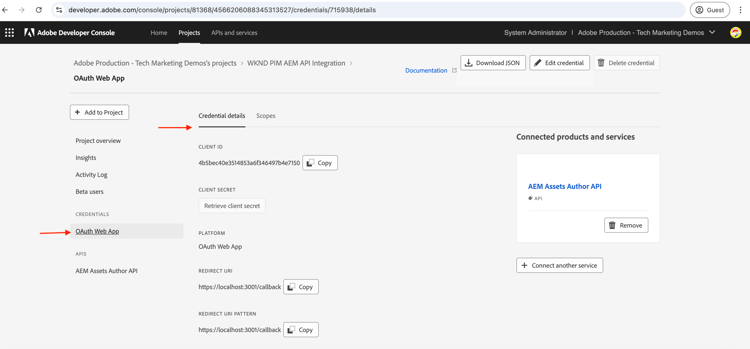

使用Adobe Developer Console (ADC)專案和AEM as a Cloud Service Assets執行個體中必要的設定引數更新
.env
檔案。code language-plaintext ######################################################################## # Adobe IMS, Adobe Developer Console (ADC), and AEM Assets Information ######################################################################## # Adobe IMS OAuth endpoints ADOBE_IMS_AUTHORIZATION_ENDPOINT=https://ims-na1.adobelogin.com/ims/authorize/v2 ADOBE_IMS_TOKEN_ENDPOINT=https://ims-na1.adobelogin.com/ims/token/v3 ADOBE_IMS_USERINFO_ENDPOINT=https://ims-na1.adobelogin.com/ims/userinfo/v2 # Adobe Developer Console (ADC) Project OAuth Web App credential ADC_CLIENT_ID=e1adsfsd59384320bbe4f9298f00b7ab ADC_CLIENT_SECRET=p8e-Mdfgfdsg43RHugVRTEOyWlmEU5m ADC_SCOPES=AdobeID,openid,aem.folders,aem.assets.author # AEM Assets Information AEM_ASSET_HOSTNAME=https://author-p3947-e1542138.adobeaemcloud.com/ AEM_ASSET_IDS=urn:aaid:aem:aa689a9f-04da-4fbb-b460-74a5b6a69090,urn:aaid:aem:e4fdb6f6-1007-4e84-9726-a9522931786a ################################################ # Web App Information ################################################ # The port number on which this server (web app) will run PORT = 3000 # The URL to which the user will be redirected after the OAuth flow is complete REDIRECT_URI=http://localhost:3000/auth/callback # The Express (express-session) uses this secret to encrypt and verify the authenticity of that cookie # For demonstration purposes, this is a simple secret. In production, you should use a strong secret EXPRESS_SESSION_SECRET=1234554321
AEM_ASSET_IDS

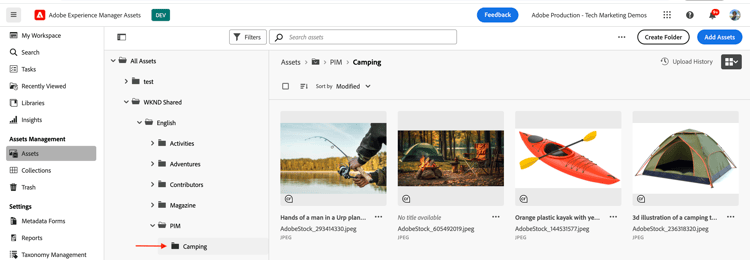

是 Camping 資料夾中已上傳影像的jcr:uuid
屬性值。 如需詳細資訊,請參閱此區段。 -
開啟終端機,並導覽至擷取的資料夾。 使用下列命令安裝必要的相依性。
code language-bash $ npm install
-
使用以下命令啟動WKND-PIM網頁應用程式。
code language-bash $ npm start
-
使用以下命令執行本機SSL HTTP Proxy。
code language-bash $ local-ssl-proxy --source 3001 --target 3000 --cert ./ssl/server.crt --key ./ssl/server.key
本機SSL HTTP Proxy使用方式為:IMS要求重新導向URI為HTTPS。
驗證端對端流程
-

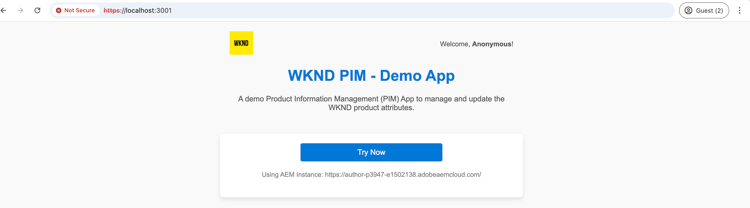

開啟瀏覽器並導覽至
https://localhost:3001
以存取WKND-PIM網頁應用程式。 接受自我簽署憑證警告。 -
按一下 立即試用 以檢閱和更新產品屬性中繼資料。 它會起始IMS使用者驗證和應用程式授權流程。
-

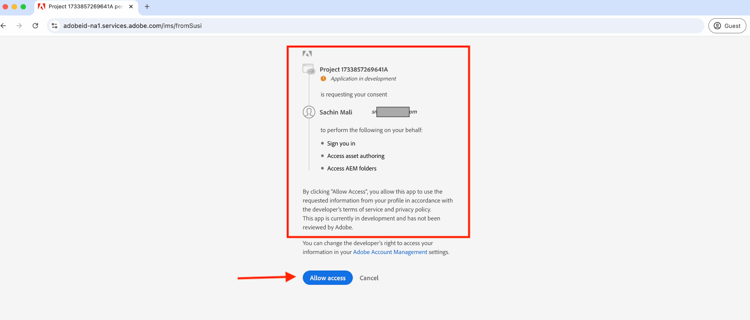

使用您的Adobe ID憑證登入,並提供同意,以允許WKND-PIM網頁應用程式代表您存取Assets Author API。
-
從
https://localhost:3001/update-product-attributes

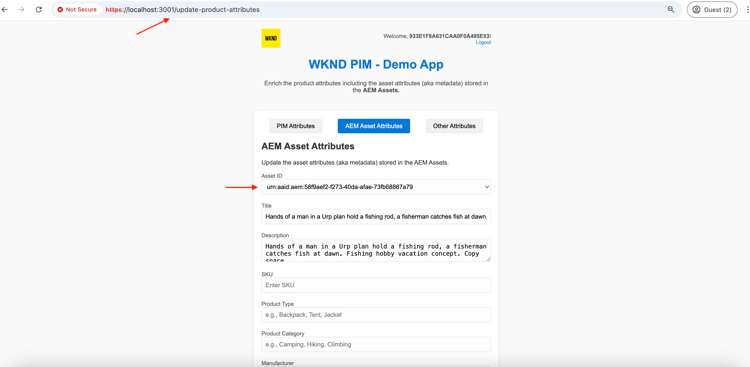

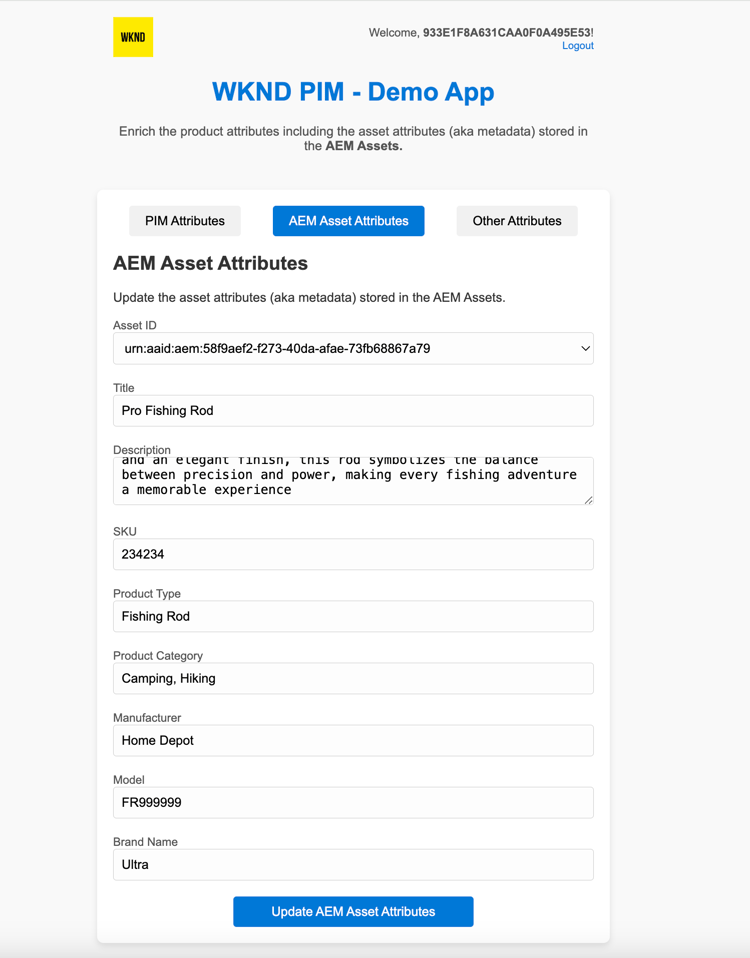

路由/頁面,按一下 AEM資產屬性 索引標籤。 從 資產ID 下拉式清單中,選取資產ID以檢視資產中繼資料。 -
更新資產中繼資料,然後按一下 更新AEM資產屬性 以更新資產中繼資料。
檢閱應用程式程式碼
讓我們檢閱WKND-PIM網頁應用程式的高階程式碼結構和主要入口點。 此應用程式是使用Node.js + Express開發。
-
app.js
是應用程式的主要進入點。 它會初始化Express應用程式、設定工作階段及掛載路由。 -
public
資料夾包含CSS、JavaScript和影像等靜態資產。script.js
檔案包含使用者端JavaScript程式碼,可與Express/api/getAEMAssetMetadata
和/api/updateAEMAssetMetadata
路由互動。 -
routes
資料夾包含快速路由:index.js
:轉譯首頁的主要路由。update-product-attributes.js
:呈現具有索引標籤的產品屬性表單的路由,也會驗證存取權杖的快速工作階段。adobe-ims-auth.js
:起始Adobe IMS使用者驗證和應用程式授權流程的路由。invoke-aem-apis.js
:使用使用者特定的存取權杖叫用OpenAPI型AEM API的路由。
-
views
資料夾包含轉譯HTML頁面的EJS範本。 -
utils
資料夾包含公用程式函式。 -
ssl
資料夾包含執行本機SSL HTTP Proxy的自簽憑證和金鑰檔案。
您可以使用Java、Python或.NET等其他伺服器端技術,開發現有的網頁應用程式或將其與Adobe API整合。
摘要
在本教學課程中,您已瞭解如何使用OAuth網頁應用程式驗證,從自訂網頁應用程式叫用AEM as a Cloud Service上的OpenAPI型AEM API。 您已檢閱WKND-PIM網頁應用程式中使用的關鍵程式碼片段,以瞭解OAuth網頁應用程式驗證流程。
您可以使用本教學課程作為參考,將OpenAPI型AEM API與您的自訂網頁應用程式整合,以提供有效率、以使用者為中心的工作流程。
