使用OAuth單頁應用程式叫用OpenAPI型AEM API
瞭解如何使用 OAuth單頁應用程式驗證,在AEM as a Cloud Service上叫用OpenAPI型AEM API。 它遵循OAuth 2.0 PKCE (程式碼交換的Proof Key)流程,用於單頁應用程式(SPA)中的使用者型驗證。
OAuth單頁應用程式驗證非常適合在瀏覽器中執行的JavaScript型應用程式。 無論他們缺乏後端伺服器,還是需要擷取存取權杖以代表使用者與AEM API互動。
PKCE流程延伸OAuth 2.0 authorization_code 授權型別,藉由防止授權代碼攔截來增強安全性。 如需詳細資訊,請參閱OAuth伺服器對伺服器與Web應用程式與單頁應用程式認證之間的差異區段。
學習內容 what-you-learn
在本教學課程中,您將學習如何:
-
設定Adobe Developer Console (ADC)專案,以使用 OAuth Single Page App 驗證或通常稱為 OAuth 2.0 PKCE流程 來存取OpenAPI型AEM API。
-
在自訂SPA中實作OAuth單頁應用程式驗證流程。
- IMS使用者驗證和應用程式授權。
- 使用OAuth 2.0 PKCE流程存取權杖擷取。
- 使用存取權杖以叫用以OpenAPI為基礎的AEM API。
開始之前,請務必檢閱下列內容:
WKND SPA概觀和功能流程 wknd-spa-overview-and-functional-flow
讓我們來探索什麼是WKND SPA、其建置方式及其運作方式。
WKND SPA是 React型單頁應用程式,示範如何安全地取得使用者特定的存取權杖,並直接從使用者端與AEM API互動。 它會透過Adobe IMS實作OAuth 2.0 PKCE驗證流程,並與兩個關鍵AEM API整合:
- 網站API:用於存取內容片段模型
- Assets API:用於管理DAM資料夾
Adobe Developer Console (ADC)專案已設定為啟用OAuth單頁應用程式驗證,提供必要的 client_id 以起始OAuth 2.0 PKCE流程。

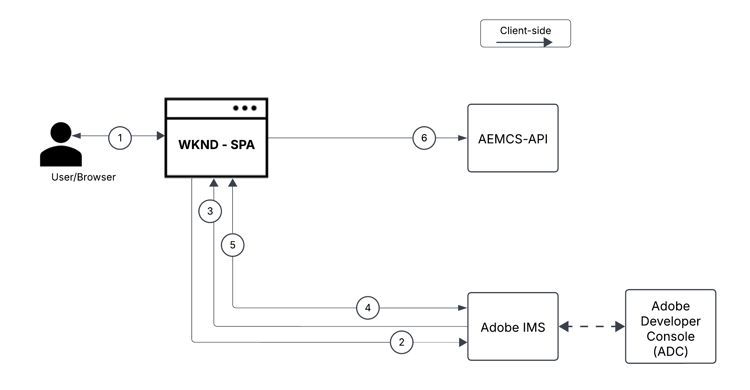

下圖說明WKND SPA 取得使用者特定存取權杖以叫用OpenAPI型AEM API 的功能流程:
- SPA透過透過透過授權請求將使用者導向到Adobe Identity Management系統(IMS)來啟動驗證流程。
- 作為授權要求的一部分,SPA會依照OAuth 2.0 PKCE流程,將 client_id、redirect_uri 和 code_challenge 傳送至IMS。 SPA產生隨機 code_verifier,使用SHA-256進行雜湊處理,Base64會編碼結果以建立 code_challenge。
- IMS會驗證使用者,並在成功驗證後發出 authorization_code,這會透過 redirect_uri 傳回SPA。
- SPA會傳送POST要求至IMS權杖端點,以交換 存取權杖 的 authorization_code。 它在驗證先前傳送的 code_challenge 的要求中包含 code_verifier。 這可確保授權請求(步驟2)和權杖請求(步驟4)都與相同的驗證流程相關聯,以防止攔截攻擊。
- IMS驗證 code_verifier 並傳回使用者特定的 存取權杖。
- SPA在對AEM發出的API要求中包含 存取權杖,以驗證及擷取使用者特定內容。
WKND SPA是以React為基礎的應用程式,它使用React內容進行驗證狀態管理,React路由器進行導覽。
其他SPA架構(例如Angular、Vue或vanilla JavaScript)可用來建立與Adobe API整合的SPA,使用本教學課程中說明的方法。
如何使用本教學課程 how-to-use-this-tutorial
您可以透過兩種方式處理本教學課程:
- 檢閱SPA金鑰程式碼片段:瞭解OAuth Single Page App驗證流程,並探索WKND SPA中的金鑰API呼叫實作。
- 設定並執行SPA:依照逐步指示,在本機電腦上設定並執行WKND SPA。
選擇最符合您需求的路徑!
檢閱SPA重要程式碼片段 review-spa-key-code-snippets
讓我們深入探討WKND SPA的主要程式碼片段,示範如何:
-
使用OAuth單頁應用程式驗證流程取得使用者特定存取權杖。
-
直接從使用者端叫用以OpenAPI為基礎的AEM API。
這些片段可協助您瞭解SPA內的驗證程式和API互動。
下載SPA程式碼 download-the-spa-code
-
下載WKND SPA和AEM API — 示範應用程式 zip檔案並解壓縮。
-
導覽至解壓縮的資料夾,並在您最愛的程式碼編輯器中開啟
.env.example
檔案。 檢閱必要的設定引數。code language-plaintext ######################################################################## # Adobe IMS, Adobe Developer Console (ADC), and AEM as a Cloud Service Information ######################################################################## # Adobe IMS OAuth endpoints REACT_APP_ADOBE_IMS_AUTHORIZATION_ENDPOINT=https://ims-na1.adobelogin.com/ims/authorize/v2 REACT_APP_ADOBE_IMS_TOKEN_ENDPOINT=https://ims-na1.adobelogin.com/ims/token/v3 # Adobe Developer Console (ADC) Project's OAuth Single-Page App credential REACT_APP_ADC_CLIENT_ID=<ADC Project OAuth Single-Page App credential ClientID> REACT_APP_ADC_SCOPES=<ADC Project OAuth Single-Page App credential Scopes> # AEM Assets Information REACT_APP_AEM_ASSET_HOSTNAME=<AEMCS Hostname, e.g., https://author-p63947-e1502138.adobeaemcloud.com/> ################################################ # Single Page Application Information ################################################ # Enable HTTPS for local development HTTPS=true PORT=3001 # SSL Certificate and Key for local development SSL_CRT_FILE=./ssl/server.crt SSL_KEY_FILE=./ssl/server.key # The URL to which the user will be redirected after the OAuth flow is complete REACT_APP_REDIRECT_URI=https://localhost:3000/callback
您需要以Adobe Developer Console (ADC)專案和AEM as a Cloud Service Assets例項中的實際值取代預留位置。
IMS使用者驗證和SPA授權 ims-user-authentication-and-spa-authorization
讓我們探索處理IMS使用者驗證和SPA授權的程式碼。 若要擷取內容片段模型和DAM資料夾,使用者必須透過Adobe IMS驗證,並授予WKND SPA許可權以代表他們存取AEM API。

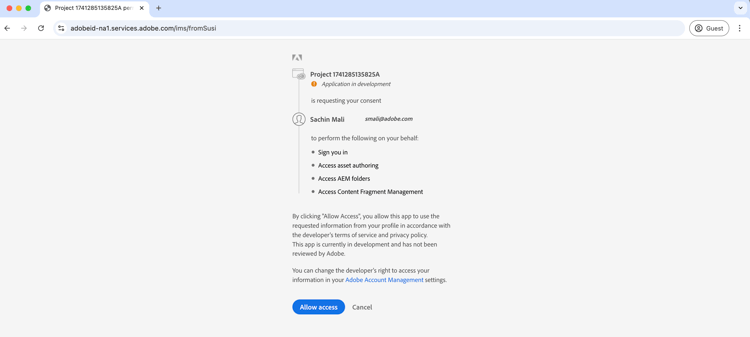

在初始登入期間,系統會提示使用者提供同意,允許WKND SPA安全地存取所需的資源。
-
在
src/context/IMSAuthContext.js
檔案中,login
函式會啟動IMS使用者驗證和應用程式授權流程。 它會產生隨機code_verifier
和code_challenge
,以安全地交換code
做為存取權杖。code_verifier
儲存在本機存放區以供稍後使用。 如先前所述,SPA不會儲存或使用client_secret
,它會即時產生一個,並分兩個步驟使用:authorize
和token
要求。code language-javascript ... const login = async () => { try { const codeVerifier = generateCodeVerifier(); const codeChallenge = generateCodeChallenge(codeVerifier); localStorage.setItem(STORAGE_KEYS.CODE_VERIFIER, codeVerifier); const params = new URLSearchParams( getAuthParams(AUTH_METHODS.S256, codeChallenge, codeVerifier) ); window.location.href = `${ APP_CONFIG.adobe.ims.authorizationEndpoint //https://ims-na1.adobelogin.com/ims/authorize/v2 }?${params.toString()}`; } catch (error) { console.error("Login initialization failed:", error); throw error; } }; ... // Generate a random code verifier export function generateCodeVerifier() { const array = new Uint8Array(32); window.crypto.getRandomValues(array); const wordArray = CryptoJS.lib.WordArray.create(array); return base64URLEncode(wordArray); } // Generate code challenge using SHA-256 export function generateCodeChallenge(codeVerifier) { const hash = CryptoJS.SHA256(codeVerifier); return base64URLEncode(hash); } // Get authorization URL parameters const getAuthParams = useCallback((method, codeChallenge, codeVerifier) => { const baseParams = { client_id: APP_CONFIG.adobe.adc.clientId, // ADC Project OAuth Single-Page App credential ClientID scope: APP_CONFIG.adobe.adc.scopes, // ADC Project OAuth Single-Page App credential Scopes response_type: "code", redirect_uri: APP_CONFIG.adobe.spa.redirectUri, // SPA redirect URI https://localhost:3000/callback code_challenge_method: method, // S256 or plain }; return { ...baseParams, code_challenge: method === AUTH_METHODS.S256 ? codeChallenge : codeVerifier, }; }, []); ...
如果未針對Adobe IMS驗證使用者,則會顯示Adobe ID登入頁面並要求使用者進行驗證。
如果已驗證,系統會將使用者重新導向回具有 authorization_code 的WKND SPA之指定 redirect_uri。
使用OAuth 2.0 PKCE流程擷取存取權杖 access-token-retrieval-using-oauth-20-pkce-flow
WKND SPA使用 client_id 和 code_verifier,安全地與Adobe IMS交換 authorization_code 以取得使用者特定的存取權杖。
-
在
src/context/IMSAuthContext.js
檔案中,exchangeCodeForToken
函式會將 authorization_code 交換為使用者特定的存取權杖。code language-javascript ... // Handle the callback from the Adobe IMS authorization endpoint const handleCallback = async (code) => { if (authState.isProcessingCallback) return; try { updateAuthState({ isProcessingCallback: true }); const data = await exchangeCodeForToken(code); if (data.access_token) { handleStorageToken(data.access_token); localStorage.removeItem(STORAGE_KEYS.CODE_VERIFIER); } } catch (error) { console.error("Error exchanging code for token:", error); throw error; } finally { updateAuthState({ isProcessingCallback: false }); } }; ... // Exchange the authorization code for an access token const exchangeCodeForToken = useCallback(async (code) => { const codeVerifier = localStorage.getItem(STORAGE_KEYS.CODE_VERIFIER); if (!codeVerifier) { throw new Error("No code verifier found"); } //https://ims-na1.adobelogin.com/ims/token/v3 const response = await fetch(APP_CONFIG.adobe.ims.tokenEndpoint, { method: "POST", headers: { "Content-Type": "application/x-www-form-urlencoded" }, body: new URLSearchParams({ grant_type: "authorization_code", client_id: APP_CONFIG.adobe.adc.clientId, // ADC Project OAuth Single-Page App credential ClientID code_verifier: codeVerifier, // Code verifier generated during login code, // Authorization code received from the IMS redirect_uri: `${window.location.origin}/callback`, }), }); if (!response.ok) { throw new Error("Token request failed"); } return response.json(); }, []); const handleStorageToken = useCallback( (token) => { if (token) { localStorage.setItem(STORAGE_KEYS.ACCESS_TOKEN, token); updateAuthState({ isLoggedIn: true, accessToken: token }); } }, [updateAuthState] ); ...
存取Token會儲存在瀏覽器的本機儲存空間中,並用於後續對AEM API發出的API呼叫。
使用存取權杖存取OpenAPI型AEM API accessing-openapi-based-aem-apis-using-the-access-token
WKND SPA使用使用者特定的存取權杖來叫用內容片段模型和DAM資料夾API端點。
在src/components/InvokeAemApis.js
檔案中,fetchContentFragmentModels
函式示範如何使用存取權杖從使用者端叫用OpenAPI型AEM API。
...
// Fetch Content Fragment Models
const fetchContentFragmentModels = useCallback(async () => {
try {
updateState({ isLoading: true, error: null });
const data = await makeApiRequest({
endpoint: `${API_PATHS.CF_MODELS}?cursor=0&limit=10&projection=summary`,
});
updateState({ cfModels: data.items });
} catch (err) {
updateState({ error: err.message });
console.error("Error fetching CF models:", err);
} finally {
updateState({ isLoading: false });
}
}, [makeApiRequest, updateState]);
// Common API request helper
const makeApiRequest = useCallback(
async ({ endpoint, method = "GET", passAPIKey = false, body = null }) => {
// Get the access token from the local storage
const token = localStorage.getItem("adobe_ims_access_token");
if (!token) {
throw new Error("No access token available. Please login again.");
}
const headers = {
Authorization: `Bearer ${token}`,
"Content-Type": "application/json",
...(passAPIKey && { "x-api-key": APP_CONFIG.adobe.adc.clientId }),
};
const response = await fetch(
`${APP_CONFIG.adobe.aem.hostname}${endpoint}`,
{
method,
headers,
...(body && { body: JSON.stringify(body) }),
}
);
if (!response.ok) {
throw new Error(`API request failed: ${response.statusText}`);
}
return method === "DELETE" ? null : response.json();
},
[]
);
...
設定和執行SPA setup-and-run-the-spa
讓我們在本機電腦上設定並執行WKND SPA,瞭解OAuth單頁應用程式驗證流程和API呼叫。
先決條件 prerequisites
若要完成本教學課程,您需要:
-
更新的AEM as a Cloud Service環境,其中包含:
- AEM版本
2024.10.18459.20241031T210302Z
或更新版本。 - 新樣式的產品設定檔(如果環境是在2024年11月之前建立的)
如需詳細資訊,請參閱設定OpenAPI型AEM API文章。
- AEM版本
-
必須在其上部署範例WKND Sites專案。
-
在本機電腦上安裝Node.js,以執行範例NodeJS應用程式。
開發步驟 development-steps
高階開發步驟為:
-
設定ADC專案
- 新增Assets和Sites API。
- 設定OAuth單頁應用程式認證。
-
設定AEM執行個體
- 啟用ADC專案通訊的方式
- 允許SPA透過設定CORS來存取AEM API。
-
在本機電腦上設定並執行WKND SPA
-
驗證端對端流程
設定ADC專案 configure-adc-project
設定ADC專案步驟是 設定OpenAPI型AEM API 中的重複。 請重複新增Assets、Sites API,並將其驗證方法設定為OAuth單頁應用程式。
-
從Adobe Developer Console,開啟所需的專案。
-

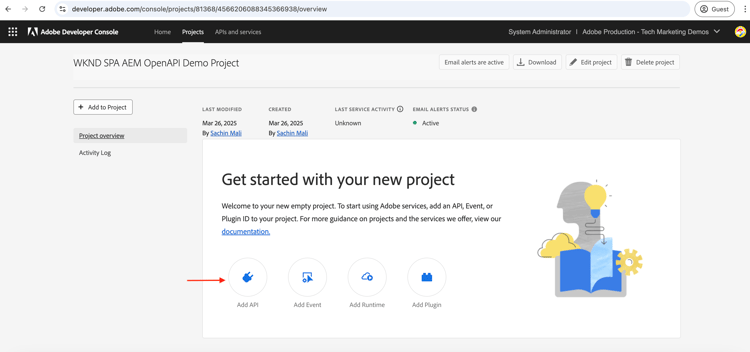

若要新增AEM API,請按一下 新增API 按鈕。
-

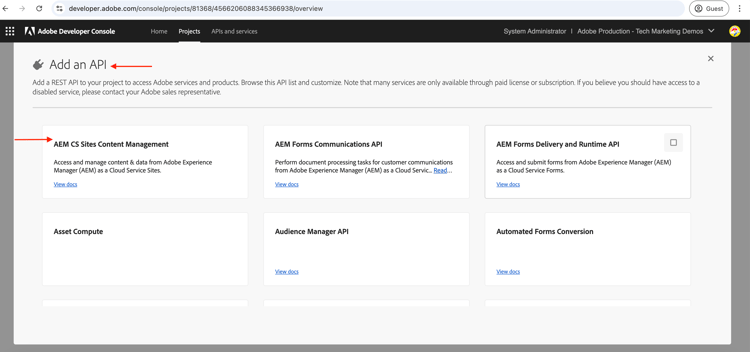

在 新增API 對話方塊中,依 Experience Cloud 篩選,並選取 AEM CS Sites內容管理 卡片,然後按一下 下一步。
note tip TIP 如果所需的 AEM API卡 已停用,且_為什麼此卡已停用?_資訊顯示 需要授權 訊息,其中一個原因可能是您尚未更新AEM as a Cloud Service環境,如需詳細資訊,請參閱更新AEM as a Cloud Service環境。 -

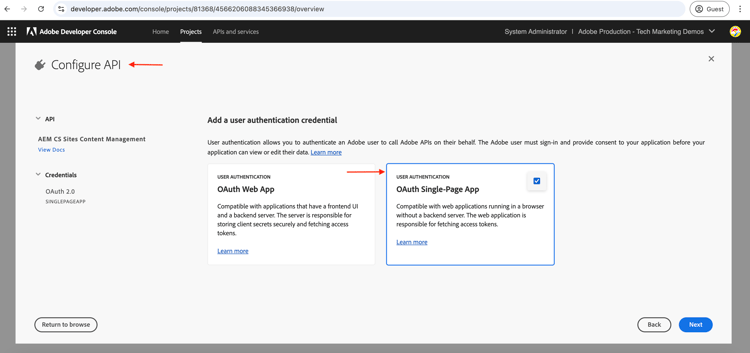

接著,在 設定API 對話方塊中,選取 使用者驗證 驗證選項,然後按一下 下一步。
-
在下一個 設定API 對話方塊中,選取 OAuth單頁應用程式 驗證選項並按一下 下一步。
-

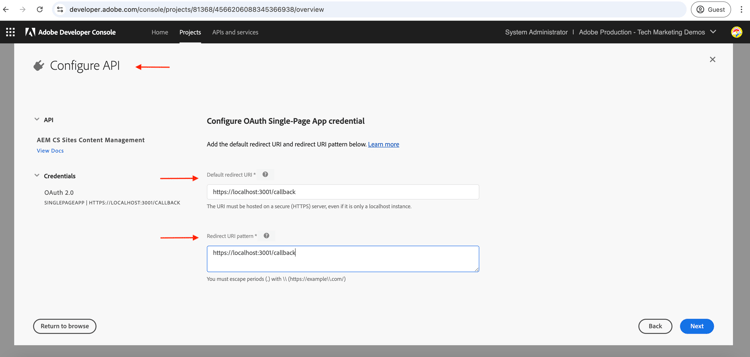

在 設定OAuth單頁應用程式 對話方塊中,輸入下列詳細資料,然後按一下 下一步。
- 預設重新導向URI:
https://localhost:3001/callback
- 重新導向URI模式:
https://localhost:3001/callback
- 預設重新導向URI:
-

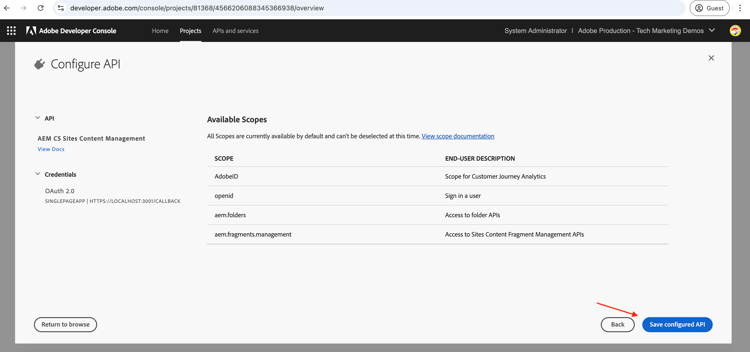

檢閱可用的範圍,然後按一下 儲存設定的API。
-
重複上述步驟以新增 AEM Assets Author API。
-

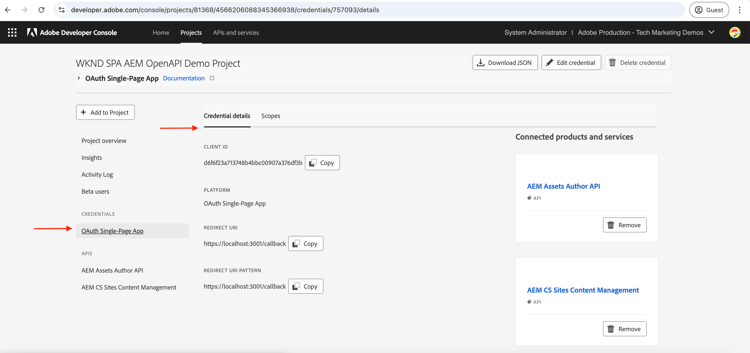

檢閱AEM API和驗證設定。
設定AEM執行個體以啟用ADC專案通訊 configure-aem-instance-to-enable-adc-project-communication
遵循設定OpenAPI型AEM API文章中的指示,設定AEM執行個體以啟用ADC專案通訊。
AEM CORS設定 aem-cors-configuration
AEM as a Cloud Service的跨原始資源共用(CORS)協助非AEM Web屬性對AEM API進行瀏覽器型使用者端呼叫。
-

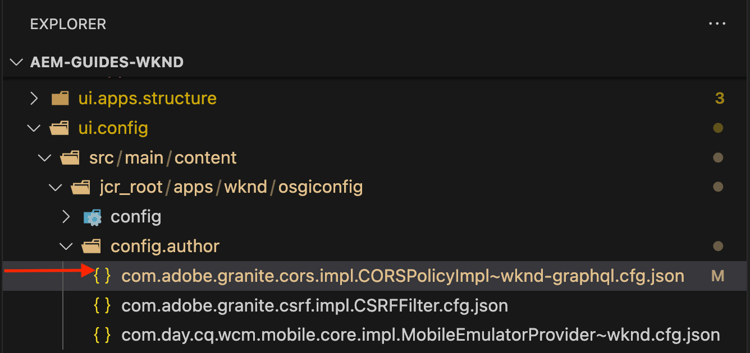

在AEM專案中,從
com.adobe.granite.cors.impl.CORSPolicyImpl~wknd-graphql.cfg.json
資料夾中找到或建立/ui.config/src/main/content/jcr_root/apps/wknd/osgiconfig/config.author/
檔案。 -
將下列設定新增至檔案。
code language-json { "alloworigin":[ "" ], "alloworiginregexp":[ "https://localhost:.*", "http://localhost:.*" ], "allowedpaths": [ "/adobe/sites/.*", "/graphql/execute.json.*", "/content/_cq_graphql/wknd-shared/endpoint.json", "/content/experience-fragments/.*" ], "supportedheaders": [ "Origin", "Accept", "X-Requested-With", "Content-Type", "Access-Control-Request-Method", "Access-Control-Request-Headers", "Authorization" ], "supportedmethods":[ "GET", "HEAD", "POST" ], "maxage:Integer": 1800, "supportscredentials": true, "exposedheaders":[ "" ] }
-
提交設定變更並將變更推送到Cloud Manager管道所連線的遠端Git存放庫。
-
在Cloud Manager中使用FullStack管道來部署上述變更。
設定並執行SPA configure-and-run-the-spa
-
下載WKND SPA和AEM API — 示範應用程式 zip檔案並解壓縮。
-
導覽至擷取的資料夾,並將
.env.example
檔案複製到.env
。 -
使用Adobe Developer Console (ADC)專案和AEM as a Cloud Service環境中的必要設定引數更新
.env
檔案。 例如:code language-plaintext ######################################################################## # Adobe IMS, Adobe Developer Console (ADC), and AEM as a Cloud Service Information ######################################################################## # Adobe IMS OAuth endpoints REACT_APP_ADOBE_IMS_AUTHORIZATION_ENDPOINT=https://ims-na1.adobelogin.com/ims/authorize/v2 REACT_APP_ADOBE_IMS_TOKEN_ENDPOINT=https://ims-na1.adobelogin.com/ims/token/v3 REACT_APP_ADOBE_IMS_USERINFO_ENDPOINT=https://ims-na1.adobelogin.com/ims/userinfo/v2 # Adobe Developer Console (ADC) Project's OAuth Single-Page App credential REACT_APP_ADC_CLIENT_ID=ddsfs455a4a440c48c7474687c96945d REACT_APP_ADC_SCOPES=AdobeID,openid,aem.folders,aem.assets.author,aem.fragments.management # AEM Assets Information REACT_APP_AEM_ASSET_HOSTNAME=https://author-p69647-e1453424.adobeaemcloud.com/ ################################################ # Single Page Application Information ################################################ # Enable HTTPS for local development HTTPS=true PORT=3001 # SSL Certificate and Key for local development SSL_CRT_FILE=./ssl/server.crt SSL_KEY_FILE=./ssl/server.key # The URL to which the user will be redirected after the OAuth flow is complete REACT_APP_REDIRECT_URI=https://localhost:3000/callback
-
開啟終端機,並導覽至擷取的資料夾。 安裝必要的相依性,並使用以下命令啟動WKND SPA。
code language-bash $ npm install $ npm start
驗證端對端流程 verify-the-end-to-end-flow
-

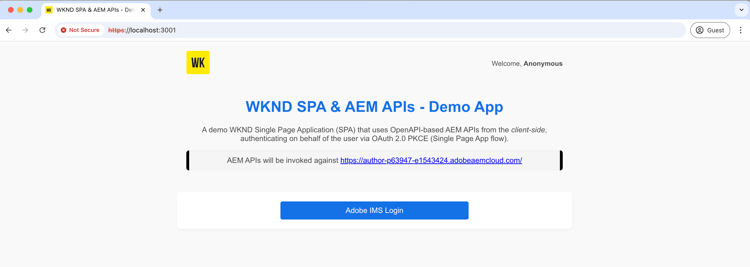

開啟瀏覽器並導覽至
https://localhost:3001
以存取WKND SPA。 接受自我簽署憑證警告。 -
按一下 Adobe IMS登入 按鈕,以起始OAuth單頁應用程式驗證流程。
-
依據Adobe IMS進行驗證並提供同意,以允許WKND SPA代表您存取資源。
-

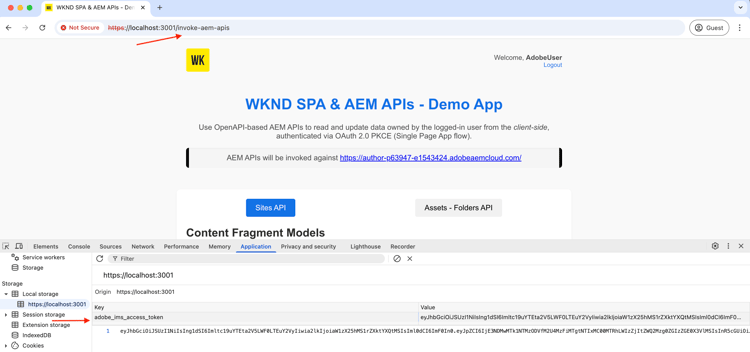

成功驗證後,您會重新導向回WKND SPA的
/invoke-aem-apis
路由,且存取權杖會儲存在瀏覽器的本機儲存空間中。 -
從
https://localhost:3001/invoke-aem-apis

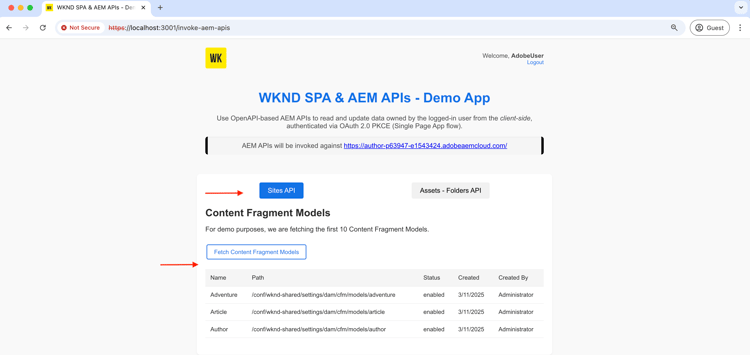

路由,按一下 擷取內容片段模型 按鈕以叫用內容片段模型API。 SPA會顯示內容片段模式清單。 -

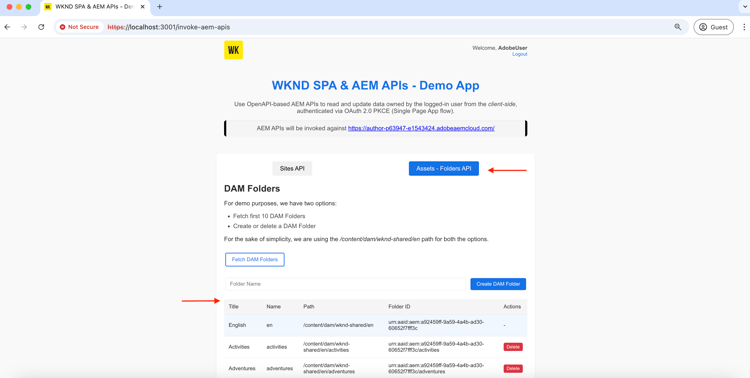

同樣地,在 Assets — 資料夾API 索引標籤中,您可以列出、建立和刪除DAM資料夾。
-

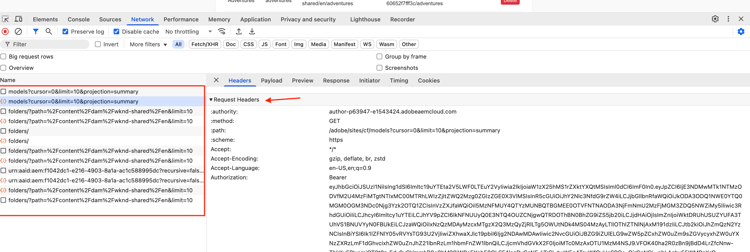

在瀏覽器的開發人員工具中,您可以檢查網路要求和回應,以瞭解API呼叫。
檢閱SPA程式碼 review-the-spa-code
讓我們檢閱高階程式碼結構和WKND SPA的主要入口點。 SPA是使用React架構所建置,並使用React Context API進行驗證和狀態管理。
-
src/App.js
檔案是WKND SPA的主要進入點。 應用程式元件會包裝整個應用程式並初始化IMSAuthProvider
內容。 -
src/context/IMSAuthContext.js
會建立Adobe IMSAuthContext以提供子元件的驗證狀態。 它包含login、logout和handleCallback函式,用以起始OAuth單頁應用程式驗證流程。 -
src/components
資料夾包含各種元件,用於示範AEM API的API呼叫。InvokeAemApis.js
元件示範如何使用存取權杖來叫用AEM API。 -
src/config/config.js
檔案從.env
檔案載入環境變數,並將其匯出以用於應用程式。 -
src/utils/auth.js
檔案包含公用程式函式,可產生OAuth 2.0 PKCE流程的程式碼驗證器和程式碼挑戰。 -
ssl
資料夾包含執行本機SSL HTTP Proxy的自簽憑證和金鑰檔案。
您可以使用本教學課程中說明的方法,開發或整合現有SPA與Adobe API。
摘要 summary
在本教學課程中,您已瞭解如何透過OAuth 2.0 PKCE流程,使用來自單頁應用程式(SPA)的使用者型驗證,在AEM as a Cloud Service上叫用OpenAPI型AEM API。
