具有连续跟踪的实时主内容 live-main-content-with-sequential-tracking
场景 scenario
在此方案中，有一个实时资源，在加入实时流后 40 秒内不播放任何广告。
此方案与不含广告的 VOD 播放方案相同，但是部分内容会被清除，并且会从主内容的一个点到另一个点完成搜寻。
触发器
心跳方法
网络调用
注释
播放内容的第一帧。
trackPlay
心跳内容播放
当章节内容在主内容之前播放时，心跳在章节开始时开始。
Session1 结束（Episode1 结束）
trackComplete / trackSessionEnd
心跳内容结束
“结束”是指第 1 集的 session1 已完全观看结束。在开始下一集的会话之前，必须结束此会话。
Episode2 开始（Session2 开始）
trackSessionStart
Analytics 内容开始，心跳内容开始
这是因为用户观看了第 1 集并继续观看另一剧集
媒体的第 1 帧
trackPlay
心跳内容播放
此方法将触发计时器，从这一刻开始，只要继续播放，就会每 10 秒发送一次心跳。
内容播放
内容心跳
会话结束（Episode2 结束）
trackComplete / trackSessionEnd
心跳内容结束
“结束”是指第 2 集的 session2 已完全观看结束。在开始下一集的会话之前，必须结束此会话。
参数 parameters
心跳内容开始
参数
值
注释
s:sc:rsid<您的 Adobe 报表包 ID>
s:sc:tracking_serve<您的 Analytics 跟踪服务器 URL>
s:user:mids:user:mid应当匹配 Adobe Analytics 内容开始调用中的中间值
s:event:type"start"s:asset:type"main"s:asset:media_id<您的媒体名称>
s:stream:typelives:meta:*可选
对媒体设置的自定义元数据
心跳内容播放 heartbeat-content-play
这应当看起来与心跳内容开始调用几乎完全相似，但关键的区别在于“stype”参数。所有参数仍应位于此处。
参数
值
注释
s:event:type"play"s:asset:type"main"内容心跳 content-heartbeats
在媒体播放期间，有一个计时器将会每 10 秒发送一次主内容的一个或多个心跳，每 1 秒发送一次广告的一个或多个心跳。这些心跳将包含有关播放、广告、缓冲和许多其他内容的信息。每个心跳的确切内容不在本文档涵盖的范围之内，验证的关键内容是在持续播放期间始终触发心跳。
在内容心跳中，查找一些特定的内容：
参数
值
注释
s:event:type"play"l:event:playhead<播放头位置> 例如，50、60、70
这应该反映播放头的当前位置。
心跳内容结束 heartbeat-content-complete
当任何给定剧集的播放结束时（播放头跨越剧集边界），将发送“心跳内容结束”调用。此调用看起来类似于其他心跳调用，但包含几个特定的参数：
参数
值
注释
s:event:type"complete"s:asset:type"main"示例代码 sample-code
Android

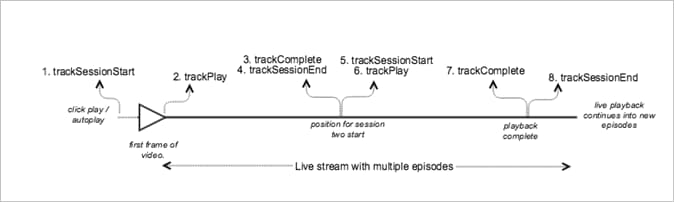

以下是预期的 API 调用顺序：
// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.LIVE
);
HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_VAL_1, CUSTOM_KEY_1);
mediaMetadata.put(CUSTOM_VAL_2, CUSTOM_KEY_2);
// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
// i.e., when there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// 2. Call trackPlay() when the playback actually starts, i.e., when the first
// frame of main content is rendered on the screen.
_mediaHeartbeat.trackPlay();
.......
.......
// 3. Call trackComplete() when the playback reaches the end of session,
// i.e., when the media completes and finishes playing 1st episode/session.
_mediaHeartbeat.trackComplete();
........
........
// 4. Call trackSessionEnd() to end session 1
_mediaHeartbeat.trackSessionEnd();
........
........
// Start tracking session 2 /episode 2 of the same live stream.
// There is no need to reinstantiate a mediaHeartbeat instance for tracking sesison 2.
// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.LIVE
);
HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_VAL_1, CUSTOM_KEY_1);
mediaMetadata.put(CUSTOM_VAL_2, CUSTOM_KEY_2);
// 5. Call trackSessionStart() when the playhead reaches a point that denotes the
// start of session 2
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// 6. Call trackPlay() to start tracking session 2 playback
_mediaHeartbeat.trackPlay();
.......
.......
// 7. Call trackComplete() when the playback reaches the end of session 2,
// i.e., the media completes and finishes playing.
_mediaHeartbeat.trackComplete();
........
........
// 8. Call trackSessionEnd() to end session 2
_mediaHeartbeat.trackSessionEnd();
........
........
// Continue similarly tracking further sessions in the live stream if required
iOS
以下是预期的 API 调用顺序：
// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
length:MEDIA_LENGTH
streamType:ADBMediaHeartbeatStreamTypeLIVE];
NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];
// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
......
......
// 2. Call trackPlay when the playback actually starts, i.e., when the first
// frame of main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......
// 3. Call trackComplete when the playback reaches the end of session,
// i.e., when the media completes and finishes playing the first
// episode/session.
[_mediaHeartbeat trackComplete];
.......
.......
// 4. Call trackSessionEnd to end session 1
[_mediaHeartbeat trackSessionEnd];
........
........
// Start tracking session 2 / episode 2 of the same live stream, No need to
// reinstantiate mediaHeartbeat instance for tracking sesison 2.
// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
length:MEDIA_LENGTH
streamType:ADBMediaHeartbeatStreamTypeLIVE];
NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];
// 5. Call trackSessionStart when the playhead reaches a point that denotes
// start of session 2
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
......
......
// 6. Call trackPlay to start tracking session 2 playback
[_mediaHeartbeat trackPlay];
.......
.......
// 7. Call trackComplete when the playback reaches the end of session 2,
// i.e., when the media completes and finishes playing.
[_mediaHeartbeat trackComplete];
........
........
// 8. Call trackSessionEnd to end the session 2
[_mediaHeartbeat trackSessionEnd];
........
........
// Continue tracking further sessions in live stream similarly if required
JavaScript
以下是预期的 API 调用顺序：
// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD
);
var mediaMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2,
CUSTOM_KEY_3 : CUSTOM_VAL_3
};
// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
// i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// 2. Call trackPlay() when the playback actually starts, i.e., when the
// first frame of media is rendered on the screen.
this._mediaHeartbeat.trackPlay();
.......
.......
// 3. Call trackComplete() when the playback reaches the end of a session,
// i.e., whn playback completes and finishes playing the 1st episode/session.
this._mediaHeartbeat.trackComplete();
........
........
// 4. Call trackSessionEnd() to end session 1
this._mediaHeartbeat.trackSessionEnd();
........
........
// Start tracking session 2/episode 2 of the same live stream. There is no need
// to reinstantiate a mediaHeartbeat instance for tracking sesison 2.
// Set up mediaObject
var mediaInfo2 = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.LIVE
);
var mediaMetadata2 = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2,
CUSTOM_KEY_3 : CUSTOM_VAL_3
};
// 5. Call trackSessionStart() when the playhead reaches a point that denotes
// the start of session 2
this._mediaHeartbeat.trackSessionStart(mediaInfo2, mediaMetadata2);
......
......
// 6. Call trackPlay() to start tracking session 2 playback
this._mediaHeartbeat.trackPlay();
.......
.......
// 7. Call trackComplete() when the playback reaches the end of session 2,
// i.e., playback completes and finishes playing.
this._mediaHeartbeat.trackComplete();
........
........
// 8. Call trackSessionEnd() to end session 2
this._mediaHeartbeat.trackSessionEnd();
........
........
// Continue tracking further sessions in live stream similarly if required
