使用片段生成pdf文档 developing-with-output-and-forms-services-in-aem-forms

在本文中,我们将使用输出服务来生成使用xdp片段的pdf文件。 主xdp和片段驻留在crx存储库中。 模拟AEM中的文件系统文件夹结构很重要。 例如,如果您在xdp的片段文件夹中使用片段,则必须在AEM中的基文件夹下创建一个名为​ fragments ​的文件夹。 基本文件夹将包含您的基本xdp模板。 例如,如果文件系统中具有以下结构

  • c:\xdptemplates — 这将包含您的基本xdp模板
  • c:\xdptemplates\fragments — 此文件夹将包含片段,主模板将引用如下所示的片段
    fragment-xdp
  • 文件夹xdpdocuments将在​ 片段 ​文件夹中包含您的基本模板和片段

您可以使用表单和文档UI创建所需的结构

以下是示例使用2个片段的文件夹结构
表单文档

  • 输出服务 — 通常,此服务用于将xml数据与xdp模板或pdf合并,以生成拼合的pdf。 有关详细信息,请参阅输出服务的javadoc。 在此示例中,我们使用驻留在crx存储库中的片段。

以下代码用于在PDF文件中包含片段

System.out.println("I am in using fragments POST.jsp");
// contentRootURI is the base folder. All fragments are relative to this folder
String contentRootURI = request.getParameter("contentRootURI");
String xdpName = request.getParameter("xdpName");
javax.servlet.http.Part xmlDataPart = request.getPart("xmlDataFile");
System.out.println("Got xml file");
String filePath = request.getParameter("saveLocation");
java.io.InputStream xmlIS = xmlDataPart.getInputStream();
com.adobe.aemfd.docmanager.Document xmlDocument = new com.adobe.aemfd.docmanager.Document(xmlIS);
com.adobe.fd.output.api.OutputService outputService = sling.getService(com.adobe.fd.output.api.OutputService.class);

if (outputService == null) {
  System.out.println("The output service is  null.....");
} else {
  System.out.println("The output service is  not null.....");

}
com.adobe.fd.output.api.PDFOutputOptions pdfOptions = new com.adobe.fd.output.api.PDFOutputOptions();
pdfOptions.setAcrobatVersion(com.adobe.fd.output.api.AcrobatVersion.Acrobat_11);

pdfOptions.setContentRoot(contentRootURI);

com.adobe.aemfd.docmanager.Document generatedDocument = outputService.generatePDFOutput(xdpName, xmlDocument, pdfOptions);
generatedDocument.copyToFile(new java.io.File(filePath));
out.println("Document genreated and saved to " + filePath);

在系统上测试示例包

安装包后,必须在Adobe Granite CSRF筛选器中允许列表以下URL。

  1. 请按照以下所述步骤列入允许列表上述路径。
  2. 登录到configMgr
  3. 搜索Adobe Granite CSRF筛选器
  4. 在排除的部分中添加以下路径并保存
  5. /content/AemFormsSamples/usingfragments

可通过多种方法来测试示例代码。 最快、最轻松的是使用Postman应用程序。 Postman允许您向服务器发出POST请求。 在您的系统上安装Postman应用程序。
启动应用程序并输入以下URL以测试导出数据API

确保从下拉列表中选择“POST”
http://localhost:4502/content/AemFormsSamples/usingfragments.html
确保将“Authorization”指定为“Basic Auth”。 指定AEM服务器用户名和密码

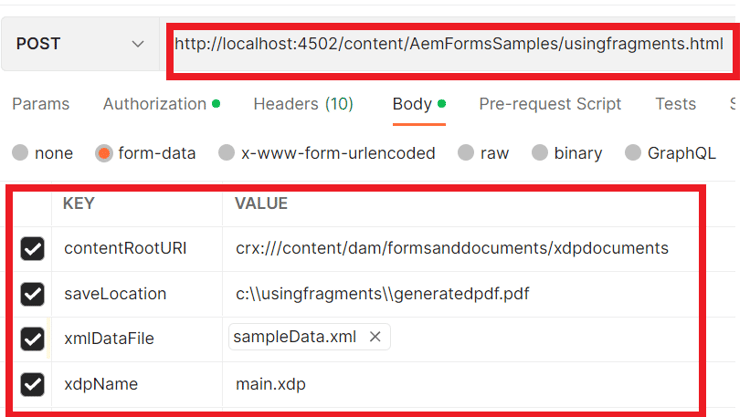

导航到“正文”选项卡,并指定请求参数,如下图所示
导出
然后单击Send按钮

您可以导入此Postman集合以测试API
