如何启用CDN缓存

最近更新: 2025年5月5日
  • 适用对象:
  • Experience Manager as a Cloud Service
  • 主题:
  • CDN 缓存

创建对象:

  • 初学者
  • 管理员
  • 开发人员

了解如何在AEM as a Cloud Service的CDN中启用HTTP响应缓存。 响应的缓存由Cache-Control、Surrogate-Control或Expires HTTP响应缓存标头控制。

这些缓存标头通常在使用mod_headers的AEM Dispatcher vhost配置中进行设置,但也可以在AEM Publish本身中运行的自定义Java™代码中进行设置。

默认缓存行为

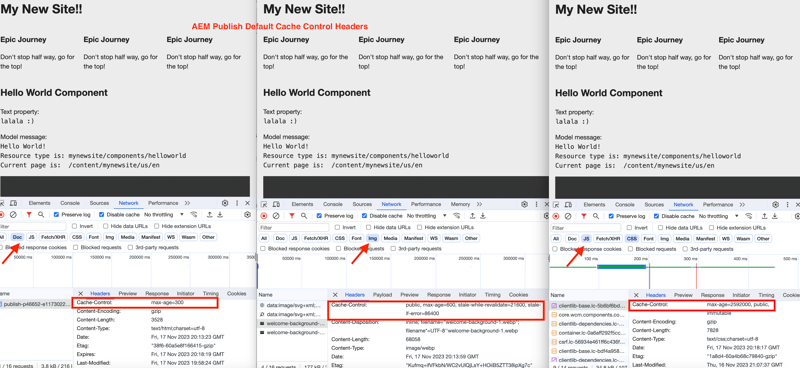

当自定义配置不存在时,将使用默认值。 在以下屏幕截图中,您可以看到在部署基于mynewsite的AEM项目原型的AEM项目时,AEM Publish和Author的默认缓存行为。

默认缓存行为

查看AEM Publish — 默认缓存生命周期和AEM Author — 默认缓存生命周期以了解更多信息。

总之,AEM as a Cloud Service在AEM Publish中缓存了大部分内容类型(HTML、JSON、JS、CSS和Assets),在AEM Author中缓存了少数几种内容类型(JS、CSS)。

启用缓存

要更改默认缓存行为,您可以通过两种方式更新缓存标头。

  1. Dispatcher vhost配置: ​仅可用于AEM发布。
  2. 自定义Java™代码: ​可用于AEM发布和创作。

让我们回顾一下这些选项。

Dispatcher vhost配置

此选项是启用缓存的推荐方法,但它仅适用于AEM Publish。 要更新缓存标头,请使用Apache HTTP Server的vhost文件中的mod_headers模块和<LocationMatch>指令。 一般语法如下:

<LocationMatch "$URL$ || $URL_REGEX$">
    # Removes the response header of this name, if it exists. If there are multiple headers of the same name, all will be removed.
    Header unset Cache-Control
    Header unset Surrogate-Control
    Header unset Expires

    # Instructs the web browser and CDN to cache the response for 'max-age' value (XXX) seconds. The 'stale-while-revalidate' and 'stale-if-error' attributes controls the stale state treatment at CDN layer.
    Header set Cache-Control "max-age=XXX,stale-while-revalidate=XXX,stale-if-error=XXX"

    # Instructs the CDN to cache the response for 'max-age' value (XXX) seconds. The 'stale-while-revalidate' and 'stale-if-error' attributes controls the stale state treatment at CDN layer.
    Header set Surrogate-Control "max-age=XXX,stale-while-revalidate=XXX,stale-if-error=XXX"

    # Instructs the web browser and CDN to cache the response until the specified date and time.
    Header set Expires "Sun, 31 Dec 2023 23:59:59 GMT"
</LocationMatch>

下面总结了每个​ 标头 ​的用途以及适用于标头的​ 属性。

Web浏览器CDN描述
Cache-Control✔✔此标头可控制Web浏览器和CDN缓存的生命周期。
Surrogate-Control✘✔此标头控制CDN缓存的生命周期。
过期✔✔此标头可控制Web浏览器和CDN缓存的生命周期。
  • max-age:此属性控制响应内容的TTL或“生存时间”(以秒为单位)。
  • stale-while-revalidate:当收到的请求在指定时间段内(以秒为单位)时,此属性控制CDN层响应内容的​ 过时状态 ​处理。 过时状态 ​是TTL过期之后和重新验证响应之前的时间段。
  • stale-if-error:当源服务器不可用且收到的请求在指定的时间段内(以秒为单位)时,此属性控制CDN层响应内容的​ 过时状态 ​处理。

有关详细信息,请查看失效和重新验证的详细信息。

示例

要将​ HTML内容类型 ​的Web浏览器和CDN缓存生命周期增加到​ 10分钟,而不进行过时的状态处理,请执行以下步骤:

  1. 在AEM项目中,从dispatcher/src/conf.d/available_vhosts目录中找到所需的vhsot文件。

  2. 按如下方式更新vhost (例如wknd.vhost)文件:

    <LocationMatch "^/content/.*\.(html)$">
        # Removes the response header if present
        Header unset Cache-Control

        # Instructs the web browser and CDN to cache the response for max-age value (600) seconds.
        Header set Cache-Control "max-age=600"
    </LocationMatch>


    dispatcher/src/conf.d/enabled_vhosts目录中的vhost文件是dispatcher/src/conf.d/available_vhosts目录中文件的​ 符号链接,因此请确保创建符号链接(如果不存在)。

  3. 使用Cloud Manager - Web层配置管道或RDE命令,将vhost更改部署到所需的AEM as a Cloud Service环境。

但是,要使Web浏览器和CDN缓存的生命周期值不同,可以使用上例中的Surrogate-Control标头。 同样,要在特定的日期和时间使缓存过期,您可以使用Expires标头。 此外,使用stale-while-revalidate和stale-if-error属性,您可以控制响应内容的过时状态处理。 AEM WKND项目具有引用过时状态处理 CDN缓存配置。

同样,您还可以更新其他内容类型(JSON、JS、CSS和Assets)的缓存标头。

自定义Java™代码

此选项对AEM Publish和Author均可用。 但是,不建议在AEM Author中启用缓存并保留默认缓存行为。

要更新缓存标头,请使用自定义Java™代码(Sling servlet、Sling servlet过滤器)中的HttpServletResponse对象。 一般语法如下:

// Instructs the web browser and CDN to cache the response for 'max-age' value (XXX) seconds. The 'stale-while-revalidate' and 'stale-if-error' attributes controls the stale state treatment at CDN layer.
response.setHeader("Cache-Control", "max-age=XXX,stale-while-revalidate=XXX,stale-if-error=XXX");

// Instructs the CDN to cache the response for 'max-age' value (XXX) seconds. The 'stale-while-revalidate' and 'stale-if-error' attributes controls the stale state treatment at CDN layer.
response.setHeader("Surrogate-Control", "max-age=XXX,stale-while-revalidate=XXX,stale-if-error=XXX");

// Instructs the web browser and CDN to cache the response until the specified date and time.
response.setHeader("Expires", "Sun, 31 Dec 2023 23:59:59 GMT");
