用于PIM集成的AEM Assets事件

IMPORTANT
本教程使用实验性AEM as a Cloud Service API。 要访问这些API,您必须接受预发行软件协议,并由Adobe工程团队为您的环境手动启用这些API。 请求访问,请联系Adobe支持部门。

了解如何将AEM Assets与第三方系统(如产品信息管理(PIM)或产品线管理(PLM)系统)集成,以使用本机AEM IO事件​ 更新资源元数据。 在收到AEM Assets事件后,可以根据业务需求在AEM、PIM或两个系统中更新资源元数据。 但是,此示例演示了如何在AEM中更新资源元数据。

要在AEM Adobe I/O Runtime之外运行资源元数据更新 ​代码,使用的是无服务器平台。

事件处理流程如下所示:

用于PIM集成的 AEM Assets事件

  1. 当资产上传完成并且所有资产处理活动都完成时,AEM创作服务会触发​ 资产处理已完成 ​事件。 等待处理完成可确保已完成任何开箱即用的处理,例如元数据提取。
  2. 该事件已发送到Adobe I/O事件服务。
  3. Adobe I/O事件服务将事件传递到Adobe I/O Runtime操作进行处理。
  4. Adobe I/O Runtime操作调用PIM系统的API以检索其他元数据,如SKU、供应商信息或其他详细信息。
  5. 然后,在AEM Assets中使用Assets创作API更新从PIM检索到的其他元数据。

先决条件

要完成本教程,您需要:

开发步骤

高级开发步骤包括:

  1. 在Adobe Developer Console (ADC)中创建项目
  2. 初始化项目以进行本地开发
  3. 在ADC中配置项目
  4. 配置AEM Author服务以启用ADC项目通信
  5. 开发可协调元数据检索和更新的运行时操作
  6. 将资源上传到AEM Author服务,并验证元数据是否已更新

有关步骤1-2的详细信息,请参阅Adobe I/O Runtime操作和AEM事件示例,有关步骤3-6,请参阅以下部分。

在Adobe Developer Console (ADC)中配置项目

要接收AEM Assets事件并执行上一步中创建的Adobe I/O Runtime操作,请在ADC中配置项目。

  • 在ADC中,导航到项目。 选择Stage工作区,这是部署运行时操作的地方。

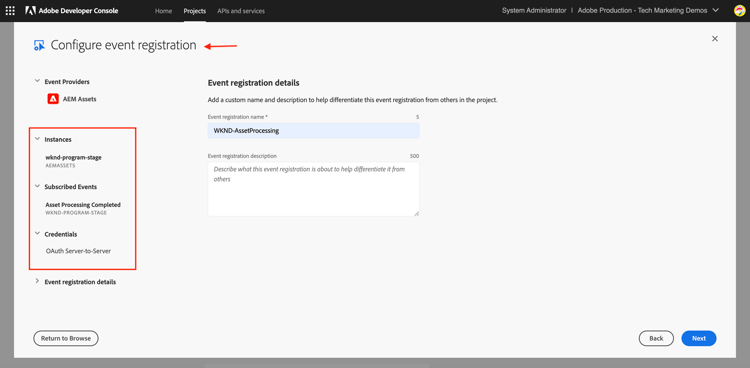

  • 单击​ 添加服务 ​按钮并选择​ 事件 ​选项。 在​ 添加事件 ​对话框中,选择​ Experience Cloud > AEM Assets,然后单击​ 下一步。 按照其他配置步骤,选择AEMCS实例、已完成资产处理 ​事件、OAuth服务器到服务器身份验证类型以及其他详细信息。

    AEM Assets活动 — 添加活动

  • 最后,在​ 如何接收事件 ​步骤中,展开​ 运行时操作 ​选项并选择在上一步中创建的​ 通用 ​操作。 单击​ 保存配置的事件

    AEM Assets事件 — 接收事件

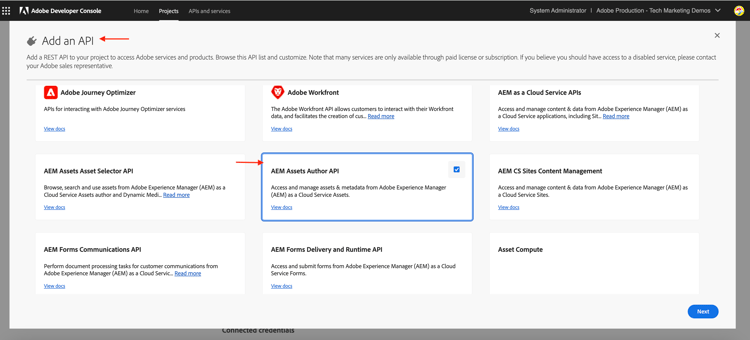

  • 同样,单击​ 添加服务 ​按钮并选择​ API ​选项。 在​ 添加API ​模式中,选择​ Experience Cloud > AEM as a Cloud Service API,然后单击​ 下一步

    添加AEM as a Cloud Service API — 配置项目

  • 然后,为身份验证类型选择​ OAuth服务器到服务器,然后单击​ 下一步

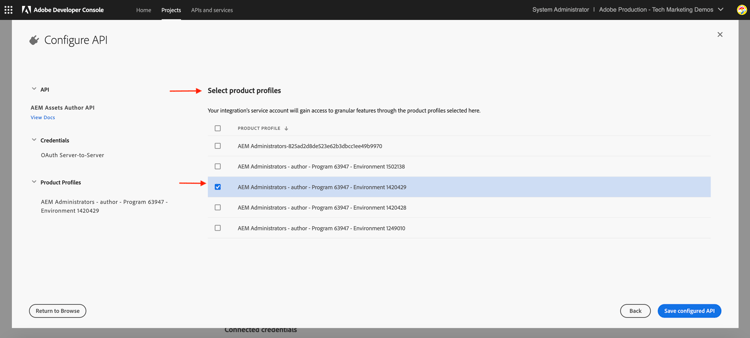

  • 然后选择​ AEM Administrators-XXX ​产品配置文件,然后单击​ 保存配置的API。 要更新相关资源,所选产品配置文件必须与从中生成事件的AEM Assets环境关联,并且必须有足够权限在那里更新资源。

    添加AEM as a Cloud Service API — 配置项目

配置AEM Author服务以启用ADC项目通信

要从上述ADC项目更新AEM中的资产元数据,请使用ADC项目的客户端ID配置AEM Author服务。 客户端ID ​已使用AdobeCloud Manager UI添加为环境变量。

  • 登录到AdobeCloud Manager,选择​ 程序 > 环境 > 省略号 > 查看详细信息 > 配置 ​选项卡。

    AdobeCloud Manager — 环境配置

  • 然后​ 添加配置 ​按钮并输入变量详细信息

    table 0-row-4 1-row-4
    名称 AEM服务 类型
    Adobe提供的客户端ID <COPY_FROM_ADC_PROJECT_CREDENTIALS> 创作 变量

    AdobeCloud Manager — 环境配置

  • 单击​ 添加 ​和​ 保存 ​配置。

开发运行时操作

要执行元数据检索和更新,请先更新src/dx-excshell-1/actions/generic文件夹中自动创建的​ 通用 ​操作代码。

有关完整代码,请参阅附加的WKND-Assets-PIM-Integration.zip文件,以下部分突出显示关键文件。

  • src/dx-excshell-1/actions/generic/mockPIMCommunicator.js文件模拟PIM API调用以检索其他元数据,如SKU和供应商名称。 此文件用于演示目的。 在端到端流程正常工作后,请将此函数替换为对实际PIM系统的调用,以检索资产的元数据。

    code language-javascript
    /**
     * Mock PIM API to get the product data such as SKU, Supplier, etc.
     *
     * In a real-world scenario, this function would call the PIM API to get the product data.
     * For this example, we are returning mock data.
     *
     * @param {string} assetId - The assetId to get the product data.
     */
    module.exports = {
        async getPIMData(assetId) {
            if (!assetId) {
            throw new Error('Invalid assetId');
            }
            // Mock response data for demo purposes
            const data = {
            SKUID: 'MockSKU 123',
            SupplierName: 'mock-supplier',
            // ... other product data
            };
            return data;
        },
    };

  • src/dx-excshell-1/actions/generic/aemCommunicator.js文件使用Assets创作API更新AEM中的资源元数据。

    code language-javascript
    const fetch = require('node-fetch');

    ...

    /**
    *  Get IMS Access Token using Client Credentials Flow
    *
    * @param {*} clientId - IMS Client ID from ADC project's OAuth Server-to-Server Integration
    * @param {*} clientSecret - IMS Client Secret from ADC project's OAuth Server-to-Server Integration
    * @param {*} scopes - IMS Meta Scopes from ADC project's OAuth Server-to-Server Integration as comma separated strings
    * @returns {string} - Returns the IMS Access Token
    */
    async function getIMSAccessToken(clientId, clientSecret, scopes) {
      const adobeIMSV3TokenEndpointURL = 'https://ims-na1.adobelogin.com/ims/token/v3';

      const options = {
        method: 'POST',
        headers: {
          'Content-Type': 'application/x-www-form-urlencoded',
        },
        body: `grant_type=client_credentials&client_id=${clientId}&client_secret=${clientSecret}&scope=${scopes}`,
      };

      const response = await fetch(adobeIMSV3TokenEndpointURL, options);
      const responseJSON = await response.json();

      return responseJSON.access_token;
    }

    async function updateAEMAssetMetadata(metadataDetails, aemAssetEvent, params) {
      ...
      // Transform the metadata details to JSON Patch format,
      // see https://developer.adobe.com/experience-cloud/experience-manager-apis/api/experimental/assets/author/#operation/patchAssetMetadata
      const transformedMetadata = Object.keys(metadataDetails).map((key) => ({
        op: 'add',
        path: `wknd-${key.toLowerCase()}`,
        value: metadataDetails[key],
      }));

      ...

      // Get ADC project's OAuth Server-to-Server Integration credentials
      const clientId = params.ADC_CECREDENTIALS_CLIENTID;
      const clientSecret = params.ADC_CECREDENTIALS_CLIENTSECRET;
      const scopes = params.ADC_CECREDENTIALS_METASCOPES;

      // Get IMS Access Token using Client Credentials Flow
      const access_token = await getIMSAccessToken(clientId, clientSecret, scopes);

      // Call AEM Author service to update the metadata using Assets Author API
      // See https://developer.adobe.com/experience-cloud/experience-manager-apis/api/experimental/assets/author/
      const res = await fetch(`${aemAuthorHost}/adobe/assets/${assetId}/metadata`, {
        method: 'PATCH',
        headers: {
          'Content-Type': 'application/json-patch+json',
          'If-Match': '*',
          'X-Adobe-Accept-Experimental': '1',
          'X-Api-Key': 'aem-assets-management-api', // temporary value
          Authorization: `Bearer ${access_token}`,
        },
        body: JSON.stringify(transformedMetadata),
      });

      ...
    }

    module.exports = { updateAEMAssetMetadata };


    .env文件存储ADC项目的OAuth服务器到服务器凭据详细信息,并使用ext.config.yaml文件将这些凭据作为参数传递给操作。 有关管理密钥和操作参数,请参阅App Builder配置文件

  • src/dx-excshell-1/actions/model文件夹包含aemAssetEvent.jserrors.js个文件,操作使用这些文件分别分析收到的事件和处理错误。

  • src/dx-excshell-1/actions/generic/index.js文件使用前面提到的模块来编排元数据检索和更新。

    code language-javascript
    ...

    let responseMsg;
    // handle the challenge probe request, they are sent by I/O to verify the action is valid
    if (params.challenge) {
      logger.info('Challenge probe request detected');
      responseMsg = JSON.stringify({ challenge: params.challenge });
    } else {
      logger.info('AEM Asset Event request received');

      // create AEM Asset Event object from request parameters
      const aemAssetEvent = new AEMAssetEvent(params);

      // Call mock PIM API to get the product data such as SKU, Supplier, etc.
      const mockPIMData = await mockPIMAPI.getPIMData(
        aemAssetEvent.getAssetName(),
      );
      logger.info('Mock PIM API response', mockPIMData);

      // Update PIM received data in AEM as Asset metadata
      const aemUpdateStatus = await updateAEMAssetMetadata(
        mockPIMData,
        aemAssetEvent,
        params,
      );
      logger.info('AEM Asset metadata update status', aemUpdateStatus);

      if (aemUpdateStatus) {
        // create response message
        responseMsg = JSON.stringify({
          message:
            'AEM Asset Event processed successfully, updated the asset metadata with PIM data.',
          assetdata: {
            assetName: aemAssetEvent.getAssetName(),
            assetPath: aemAssetEvent.getAssetPath(),
            assetId: aemAssetEvent.getAssetId(),
            aemHost: aemAssetEvent.getAEMHost(),
            pimdata: mockPIMData,
          },
        });
      }

      // response object
      const response = {
        statusCode: 200,
        body: responseMsg,
      };

      // Return the response to the caller
      return response;

      ...
    }


使用以下命令将更新的操作部署到Adobe I/O Runtime:

$ aio app deploy

资产上传和元数据验证

要验证AEM Assets与PIM集成,请执行以下步骤:

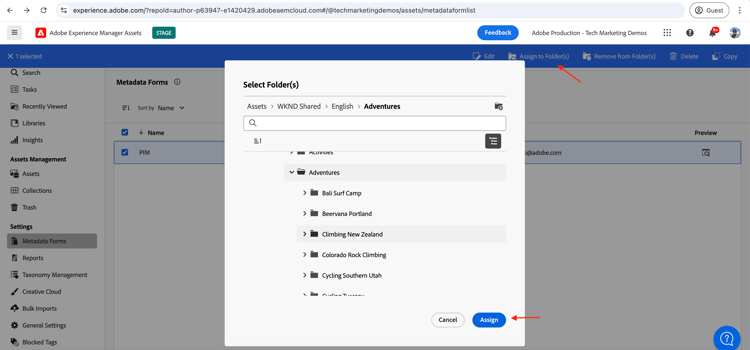

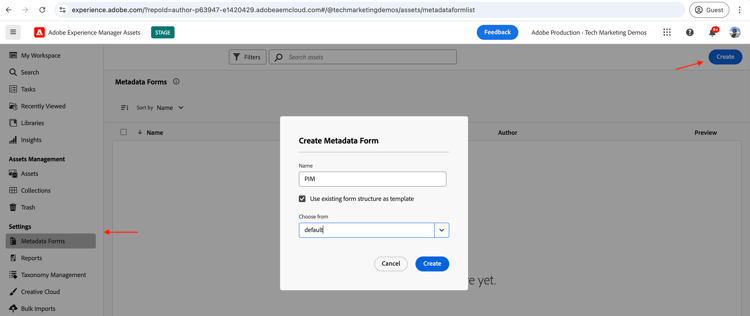

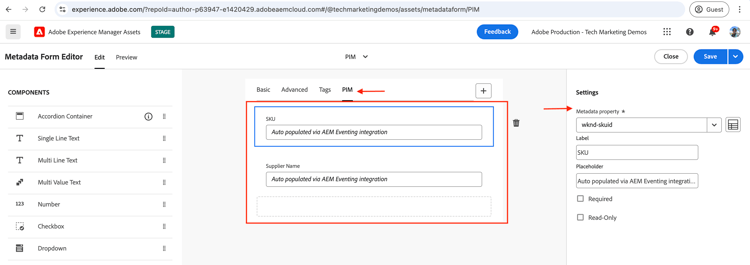

  • 要查看模拟PIM提供的元数据(如SKU和供应商名称),请在AEM Assets中创建元数据架构,请参阅显示SKU和供应商名称元数据属性的元数据架构

  • 在AEM创作服务中上传资源并验证元数据更新。

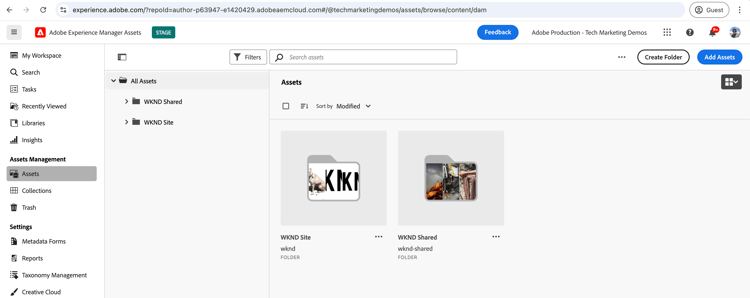

    AEM Assets元数据更新

概念和关键要点

企业通常需要在AEM和其他系统(如PIM)之间同步资源元数据。 使用AEM事件可以实现此类要求。

  • 资源元数据检索代码在AEM外部执行,避免了AEM Author服务上的负载,因此事件驱动的架构可以独立扩展。
  • 新引入的Assets创作API用于更新AEM中的资源元数据。
  • API身份验证使用OAuth服务器到服务器(也称为客户端凭据流),请参阅OAuth服务器到服务器凭据实施指南
  • 与Adobe I/O Runtime操作不同,其他Webhook或Amazon EventBridge可用于接收AEM Assets事件并处理元数据更新。
  • 通过AEM Eventing开展的资产事件使企业能够自动化和简化关键流程,从而提高内容生态系统之间的效率和一致性。
