구성 요소 기본 사항 component-basics

이 챕터에서는 간단한 HelloWorld 예제를 통해 Adobe Experience Manager(AEM) 사이트 구성 요소의 기본 기술을 살펴보겠습니다. 기존 구성 요소에 작성, HTL, Sling 모델, 클라이언트측 라이브러리 등의 주제를 다루며 사소한 수정 사항을 적용합니다.

사전 요구 사항 prerequisites

로컬 개발 환경을 설정하는 데 필요한 도구와 지침을 검토합니다.

비디오에서 사용된 IDE는 Visual Studio CodeVSCode AEM Sync 플러그인입니다.

목표 objective

  1. HTML을 동적으로 렌더링할 때 HTL 템플릿과 Sling 모델이 담당하는 역할을 알아봅니다.
  2. 대화 상자가 콘텐츠 작성을 용이하게 하는 데 어떻게 사용되는지 알아봅니다.
  3. CSS와 JavaScript를 포함하여 구성 요소를 지원하는 클라이언트측 라이브러리의 기본 사항을 알아봅니다.

빌드 결과물 what-build

이 챕터에서는 간단한 HelloWorld 구성 요소에 여러 가지 수정 사항을 적용합니다. HelloWorld 구성 요소를 업데이트하는 동안 AEM 구성 요소 개발의 주요 영역을 알아봅니다.

챕터 스타터 프로젝트 starter-project

이 챕터는 AEM Project Archetype에 의해 생성된 일반 프로젝트를 기반으로 합니다. 아래의 비디오를 시청하고 시작을 위한 필수 조건을 검토하시기 바랍니다.

NOTE
이전 챕터를 성공적으로 완료했다면 프로젝트를 재사용하고 스타터 프로젝트를 체크아웃하는 단계를 건너뛸 수 있습니다.

새 명령줄 터미널을 열고 다음 작업을 수행합니다.

  1. 빈 디렉터리에서 aem-guides-wknd 저장소를 복제합니다.

    code language-shell
    $ git clone git@github.com:adobe/aem-guides-wknd.git --branch tutorial/component-basics-start --single-branch

    note note
    NOTE
    또는 이전 챕터에서 생성된 프로젝트인 프로젝트설정을 계속 사용할 수 있습니다.
  2. aem-guides-wknd 폴더로 이동합니다.

    code language-shell
    $ cd aem-guides-wknd

  3. 다음 명령을 사용하여 프로젝트를 빌드하고 AEM의 로컬 인스턴스에 배포합니다.

    code language-shell
    $ mvn clean install -PautoInstallSinglePackage

    note note
    NOTE
    AEM 6.5 또는 6.4를 사용하는 경우 classic 프로필을 모든 Maven 명령에 추가합니다.
    code language-shell
    $ mvn clean install -PautoInstallSinglePackage -Pclassic

  4. 로컬 개발 환경을 설정하기 위한 지침에 따라 프로젝트를 원하는 IDE로 가져옵니다.

구성 요소 작성 component-authoring

구성 요소는 웹 페이지의 작은 모듈식 빌딩 블록으로 생각할 수 있습니다. 구성 요소를 재사용하려면 구성 요소가 구성 가능해야 합니다. 이는 작성자 대화 상자를 통해 수행됩니다. 다음으로 간단한 구성 요소를 작성하고 대화 상자의 값이 AEM에 어떻게 저장되는지 살펴보겠습니다.

위의 비디오에서 수행된 주요 단계는 아래와 같습니다.

  1. WKND > US > en 아래에서 구성 요소 기본 사항 ​이라는 페이지를 생성합니다.
  2. 새로 만든 페이지에 Hello World 구성 요소 ​를 추가합니다.
  3. 구성 요소의 대화 상자를 열고 텍스트를 입력합니다. 변경 사항을 저장하면 페이지에 표시되는 메시지를 확인할 수 있습니다.
  4. 개발자 모드로 전환하여 CRXDE-Lite에서 콘텐츠 경로를 보고 구성 요소 인스턴스의 속성을 검사합니다.
  5. CRXDE-Lite를 사용하여 /apps/wknd/components/content/helloworldcq:dialoghelloworld.html 스크립트를 확인합니다.

HTL(HTML 템플릿 언어) 및 대화 상자 htl-dialogs

HTML 템플릿 언어 또는 HTL ​은 AEM 구성 요소에서 콘텐츠를 렌더링하는 데 사용되는 가벼운 서버측 템플릿 언어입니다.

대화 상자 ​는 구성 요소에 대해 가능한 구성을 정의합니다.

다음으로 HelloWorld HTL 스크립트를 업데이트하여 텍스트 메시지 앞에 추가 인사말을 표시해 보겠습니다.

위의 비디오에서 수행된 주요 단계는 아래와 같습니다.

  1. IDE로 전환하고 프로젝트를 ui.apps 모듈로 엽니다.

  2. helloworld.html 파일을 열고 HTML 마크업을 업데이트합니다.

  3. VSCode AEM Sync와 같은 IDE 도구를 사용하여 파일 변경 사항을 로컬 AEM 인스턴스와 동기화합니다.

  4. 브라우저로 돌아가서 구성 요소 렌더링이 변경되었는지 확인합니다.

  5. 다음 위치에서 HelloWorld 구성 요소에 대한 대화 상자를 정의하는 .content.xml 파일을 엽니다.

    code language-plain
    <code>/aem-guides-wknd/ui.apps/src/main/content/jcr_root/apps/wknd/components/helloworld/_cq_dialog/.content.xml

  6. 속성 이름이 ./title제목 ​이라는 추가 텍스트 필드를 추가하도록 대화 상자를 업데이트합니다.

    code language-xml
    <?xml version="1.0" encoding="UTF-8"?>
    <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
        jcr:primaryType="nt:unstructured"
        jcr:title="Properties"
        sling:resourceType="cq/gui/components/authoring/dialog">
        <content
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
            <items jcr:primaryType="nt:unstructured">
                <column
                    jcr:primaryType="nt:unstructured"
                    sling:resourceType="granite/ui/components/coral/foundation/container">
                    <items jcr:primaryType="nt:unstructured">
                        <title
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                            fieldLabel="Title"
                            name="./title"/>
                        <text
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                            fieldLabel="Text"
                            name="./text"/>
                    </items>
                </column>
            </items>
        </content>
    </jcr:root>

  7. 아래 경로에서 HelloWorld 구성 요소 렌더링을 담당하는 주요 HTL 스크립트를 나타내는 helloworld.html 파일을 다시 엽니다.

    code language-plain
        <code>/aem-guides-wknd.ui.apps/src/main/content/jcr_root/apps/wknd/components/helloworld/helloworld.html

  8. 인사말 텍스트 필드의 값을 H1 태그의 일부로 렌더링하도록 helloworld.html을 업데이트합니다.

    code language-html
    <div class="cmp-helloworld" data-cmp-is="helloworld">
        <h1 class="cmp-helloworld__title">${properties.title}</h1>
        ...
    </div>

  9. 개발자 플러그인이나 Maven 기술을 사용하여 AEM의 로컬 인스턴스에 변경 사항을 배포합니다.

Sling 모델 sling-models

Sling 모델은 JCR에서 Java™ 변수로 데이터를 매핑하는 것을 용이하게 하는 주석 기반 Java™ 'POJO'(Plain Old Java™ 오브젝트)입니다. 이 모델은 AEM 컨텍스트에서 개발할 때 몇 가지 다른 편리한 기능도 제공합니다.

다음으로 JCR에 저장된 값을 페이지에 출력하기 전에 비즈니스 로직을 적용하기 위해 HelloWorldModel Sling 모델을 업데이트해 보겠습니다.

  1. HelloWorldModel.java 구성 요소와 함께 사용되는 Sling 모델인 HelloWorld 파일을 엽니다.

    code language-plain
    <code>/aem-guides-wknd.core/src/main/java/com/adobe/aem/guides/wknd/core/models/HelloWorldModel.java

  2. 다음의 Import 문을 추가합니다.

    code language-java
    import org.apache.commons.lang3.StringUtils;
    import org.apache.sling.models.annotations.DefaultInjectionStrategy;

  3. DefaultInjectionStrategy를 사용하도록 @Model 주석을 업데이트합니다.

    code language-java
    @Model(adaptables = Resource.class,
       defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
       public class HelloWorldModel {
       ...

  4. 다음 줄을 HelloWorldModel 클래스에 추가하여 구성 요소의 JCR 속성인 titletext의 값을 Java™ 변수에 매핑합니다.

    code language-java
    ...
    @Model(adaptables = Resource.class,
    defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
    public class HelloWorldModel {

        ...

        @ValueMapValue
        private String title;

        @ValueMapValue
        private String text;

        @PostConstruct
        protected void init() {
            ...

  5. getTitle() 메서드를 title이라는 속성의 값을 반환하는 HelloWorldModel 클래스에 추가합니다. 이 메서드는 '여기에 기본값!'이라는 문자열 값을 반환하기 위한 추가 논리를 추가합니다. title 속성이 null이거나 blank인 경우:

    code language-java
    /***
    *
    * @return the value of title, if null or blank returns "Default Value here!"
    */
    public String getTitle() {
        return StringUtils.isNotBlank(title) ? title : "Default Value here!";
    }

  6. getText() 메서드를 text이라는 속성의 값을 반환하는 HelloWorldModel 클래스에 추가합니다. 이 메서드는 문자열을 모두 대문자로 변환합니다.

    code language-java
        /***
        *
        * @return All caps variation of the text value
        */
    public String getText() {
        return StringUtils.isNotBlank(this.text) ? this.text.toUpperCase() : null;
    }

  7. core 모듈에서 번들을 빌드하고 배포합니다.

    code language-shell
    $ cd core
    $ mvn clean install -PautoInstallBundle

    note note
    NOTE
    AEM 6.4/6.5의 경우 mvn clean install -PautoInstallBundle -Pclassic을 사용합니다.
  8. HelloWorld 모델의 새로 만든 메서드를 사용하도록 aem-guides-wknd.ui.apps/src/main/content/jcr_root/apps/wknd/components/content/helloworld/helloworld.html에서 helloworld.html 파일을 업데이트합니다.

    HelloWorld 모델은 HTL 지침 data-sly-use.model="com.adobe.aem.guides.wknd.core.models.HelloWorldModel"을 통해 이 구성 요소 인스턴스에 대해 인스턴스화되어 인스턴스를 model 변수에 저장합니다.

    이제 HelloWorld 모델 인스턴스는 HTL에서 HelloWord를 사용하여 model 변수를 통해 사용할 수 있습니다. 이러한 메서드 호출은 ${model.getTitle()}${model.title}로 축약된 경우와 같이 축약된 메서드 구문을 사용할 수 있습니다.

    마찬가지로, 모든 HTL 스크립트는 Sling 모델 오브젝트와 동일한 구문을 사용하여 액세스할 수 있는 전역 오브젝트로 주입됩니다.

    code language-html
    <div class="cmp-helloworld" data-cmp-is="helloworld"
        data-sly-use.model="com.adobe.aem.guides.wknd.core.models.HelloWorldModel">
        <h1 class="cmp-helloworld__title">${model.title}</h1>
        <div class="cmp-helloworld__item" data-sly-test="${properties.text}">
            <p class="cmp-helloworld__item-label">Text property:</p>
            <pre class="cmp-helloworld__item-output" data-cmp-hook-helloworld="property">${properties.text}</pre>
        </div>
        <div class="cmp-helloworld__item" data-sly-test="${model.text}">
            <p class="cmp-helloworld__item-label">Sling Model getText() property:</p>
            <pre class="cmp-helloworld__item-output" data-cmp-hook-helloworld="property">${model.text}</pre>
        </div>
    </div>

  9. Eclipse 개발자 플러그인이나 Maven 기술을 사용하여 AEM의 로컬 인스턴스에 변경 사항을 배포합니다.

클라이언트측 라이브러리 client-side-libraries

클라이언트측 라이브러리인 clientlibs는 AEM Sites 구현에 필요한 CSS 및 JavaScript 파일을 구성하고 관리하는 메커니즘을 제공합니다. 클라이언트측 라이브러리는 AEM 페이지에 CSS와 JavaScript를 포함하는 표준적인 방법입니다.

ui.frontend 모듈은 빌드 프로세스에 통합되어 있으며 결합이 해제된 Webpack 프로젝트입니다. 이를 통해 Sass, LESS, TypeScript와 같은 인기 프론트엔드 라이브러리를 사용할 수 있습니다. ui.frontend 모듈은 클라이언트측 라이브러리 챕터에서 더 자세히 살펴보겠습니다.

다음으로 HelloWorld 구성 요소에 대한 CSS 스타일을 업데이트합니다.

위의 비디오에서 수행된 주요 단계는 아래와 같습니다.

  1. 터미널 창을 열고 ui.frontend 디렉터리로 이동합니다.

  2. ui.frontend 디렉터리에서 npm install npm-run-all --save-dev 명령을 실행하여 npm-run-all 노드 모듈을 설치합니다. 이 단계는 Archetype 39에서 생성된 AEM 프로젝트에 필요 ​하며 향후 Archetype 버전에서는 필수가 아닙니다.

  3. 다음으로 npm run watch 명령을 실행합니다.

    code language-shell
    $ npm run watch

  4. IDE로 전환하고 프로젝트를 ui.frontend 모듈로 엽니다.

  5. ui.frontend/src/main/webpack/components/_helloworld.scss 파일을 엽니다.

  6. 파일을 업데이트하여 빨간색 제목을 표시합니다.

    code language-scss
    .cmp-helloworld {}
    .cmp-helloworld__title {
        color: red;
    }

  7. 터미널에서 ui.frontend 모듈이 AEM의 로컬 인스턴스로 변경 사항을 컴파일 및 동기화하고 있음을 의미하는 활동을 확인할 수 있습니다.

    code language-shell
    Entrypoint site 214 KiB = clientlib-site/site.css 8.45 KiB clientlib-site/site.js 206 KiB
    2022-02-22 17:28:51: webpack 5.69.1 compiled successfully in 119 ms
    change:dist/index.html
    + jcr_root/apps/wknd/clientlibs/clientlib-site/css/site.css
    + jcr_root/apps/wknd/clientlibs/clientlib-site/css
    + jcr_root/apps/wknd/clientlibs/clientlib-site/js/site.js
    + jcr_root/apps/wknd/clientlibs/clientlib-site/js
    + jcr_root/apps/wknd/clientlibs/clientlib-site
    + jcr_root/apps/wknd/clientlibs/clientlib-dependencies/css.txt
    + jcr_root/apps/wknd/clientlibs/clientlib-dependencies/js.txt
    + jcr_root/apps/wknd/clientlibs/clientlib-dependencies

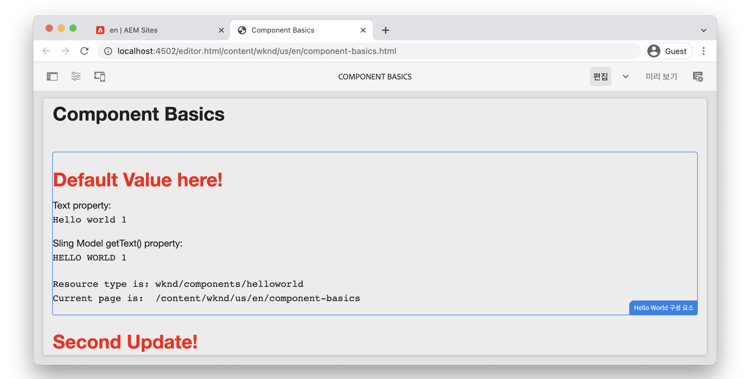

  8. 브라우저로 돌아와서 제목 색상이 변경되었는지 확인합니다.

    구성 요소 기본 사항 업데이트

축하합니다! congratulations

축하합니다! Adobe Experience Manager에서 구성 요소 개발의 기본을 학습했습니다.

다음 단계 next-steps

다음 챕터인 페이지 및 템플릿에서 Adobe Experience Manager 페이지 및 템플릿을 알아봅니다. 핵심 구성 요소가 어떻게 프로젝트에 대한 프록시로 기능하는지 이해하고 편집 가능한 템플릿의 고급 정책 구성을 학습하여 잘 구성된 문서 페이지 템플릿을 빌드합니다.

완성된 코드를 GitHub에서 확인하거나 로컬로 tutorial/component-basics-solution Git 분기에서 코드를 검토 및 배포할 수 있습니다.
