개인 인증서가 있는 내부 API 호출

개인 또는 자체 서명된 인증서를 사용하여 AEM에서 웹 API로 HTTPS 호출을 수행하는 방법에 대해 알아봅니다.

기본적으로 자체 서명된 인증서를 사용하는 웹 API에 HTTPS 연결을 만들려고 하면 연결이 다음 오류와 함께 실패합니다.

PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

이 문제는 일반적으로 API의 SSL 인증서가 공인된 인증 기관(CA)에서 발급되지 않아 Java™ 애플리케이션이 SSL/TLS 인증서를 검증하지 못하는 경우 발생합니다.

Apache HttpClientAEM의 글로벌 TrustStore ​를 사용하여 개인 또는 자체 서명 인증서가 있는 API를 성공적으로 호출하는 방법을 알아보겠습니다.

HttpClient를 사용한 전형적인 API 호출 코드

다음 코드는 웹 API에 HTTPS 연결을 만듭니다.

...
String API_ENDPOINT = "https://example.com";

// Create HttpClientBuilder
HttpClientBuilder httpClientBuilder = HttpClientBuilder.create();

// Create HttpClient
CloseableHttpClient httpClient = httpClientBuilder.build();

// Invoke API
CloseableHttpResponse closeableHttpResponse = httpClient.execute(new HttpGet(API_ENDPOINT));

// Code that reads response code and body from the 'closeableHttpResponse' object
...

이 코드는 Apache HttpComponentHttpClient 라이브러리 클래스와 그 메서드를 사용합니다.

HttpClient 및 AEM TrustStore 자료 로드

개인 또는 자체 서명된 인증서 ​가 있는 API 엔드포인트를 호출하려면 HttpClientSSLContextBuilder에 AEM의 TrustStore를 로드해야 하며, 이를 통해 연결을 설정해야 합니다.

아래의 단계를 수행하십시오.

  1. AEM 작성자 인스턴스 ​에 관리자 ​로 로그인합니다.

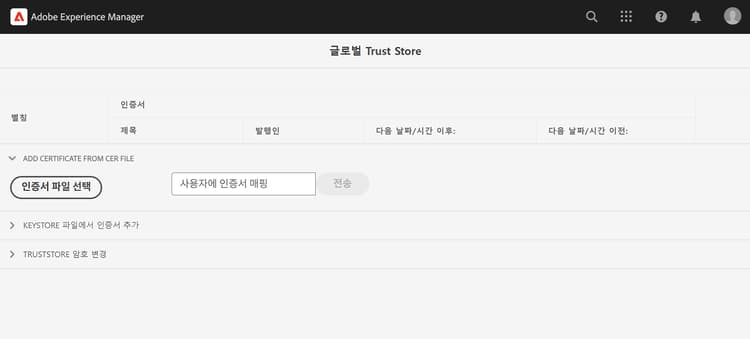

  2. AEM 작성자 인스턴스 > 도구 > 보안 > Trust Store ​로 이동한 다음 글로벌 Trust Store ​를 엽니다. 처음 액세스하는 경우 글로벌 Trust Store에 대한 암호를 설정합니다.

    글로벌 Trust Store

  3. 개인 인증서를 가져오려면 인증서 파일 선택 버튼을 클릭한 다음 .cer 확장자를 가진 원하는 인증서 파일을 선택합니다. 제출 버튼을 클릭하여 인증서를 가져옵니다.

  4. 아래와 같이 Java™ 코드를 업데이트합니다. @Reference를 사용하여 AEM의 KeyStoreService를 가져오려면 호출하는 코드는 OSGi 구성 요소/서비스이거나, Sling 모델이어야 합니다(이 경우 @OsgiService가 사용됨).

    code language-java
    ...

    // Get AEM's KeyStoreService reference
    @Reference
    private com.adobe.granite.keystore.KeyStoreService keyStoreService;

    ...

    // Get AEM TrustStore using KeyStoreService
    KeyStore aemTrustStore = getAEMTrustStore(keyStoreService, resourceResolver);

    if (aemTrustStore != null) {

        // Create SSL Context
        SSLContextBuilder sslbuilder = new SSLContextBuilder();

        // Load AEM TrustStore material into above SSL Context
        sslbuilder.loadTrustMaterial(aemTrustStore, null);

        // Create SSL Connection Socket using above SSL Context
        SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(
                sslbuilder.build(), NoopHostnameVerifier.INSTANCE);

        // Create HttpClientBuilder
        HttpClientBuilder httpClientBuilder = HttpClientBuilder.create();
        httpClientBuilder.setSSLSocketFactory(sslsf);

        // Create HttpClient
        CloseableHttpClient httpClient = httpClientBuilder.build();

        // Invoke API
        closeableHttpResponse = httpClient.execute(new HttpGet(API_ENDPOINT));

        // Code that reads response code and body from the 'closeableHttpResponse' object
        ...
    }

    /**
     *
     * Returns the global AEM TrustStore
     *
     * @param keyStoreService OOTB OSGi service that makes AEM based KeyStore
     *                         operations easy.
     * @param resourceResolver
     * @return
     */
    private KeyStore getAEMTrustStore(KeyStoreService keyStoreService, ResourceResolver resourceResolver) {

        // get AEM TrustStore from the KeyStoreService and ResourceResolver
        KeyStore aemTrustStore = keyStoreService.getTrustStore(resourceResolver);

        return aemTrustStore;
    }

    ...

    • OOTB com.adobe.granite.keystore.KeyStoreService OSGi 서비스를 OSGi 구성 요소에 삽입합니다.
    • KeyStoreServiceResourceResolver를 사용하여 글로벌 AEM TrustStore를 가져옵니다. 이 작업은 getAEMTrustStore(...) 메서드에서 수행됩니다.
    • SSLContextBuilder 오브젝트를 만듭니다(Java™ API 세부 정보 참조).
    • loadTrustMaterial(KeyStore truststore,TrustStrategy trustStrategy) 메서드를 사용하여 글로벌 AEM TrustStore를 SSLContextBuilder로 로드합니다.
    • 위 메서드에서 TrustStrategy에 대해 null을 전달하면 AEM이 신뢰하는 인증서만 API 실행 중에 통과하도록 보장됩니다.
CAUTION
언급된 접근 방식을 사용하여 유효한 CA 발급 인증서를 사용한 API 호출을 실행하면 실패합니다. 이 방법을 따르면 AEM이 신뢰하는 인증서를 사용한 API 호출만 성공할 수 있습니다.
유효한 CA 발급 인증서의 API 호출을 실행하기 위해 표준 방식을 사용하십시오. 즉, 개인 인증서와 관련된 API만 이전에 언급한 방법을 사용하여 실행해야 합니다.

JVM 키 저장소 변경 방지

개인 인증서를 사용하여 내부 API를 효과적으로 호출하는 기존 방식에는 JVM 키 저장소를 수정하는 것이 포함됩니다. 이는 Java™ keytool 명령을 사용하여 개인 인증서를 가져옴으로써 구현됩니다.

그러나 이 방법은 보안 모범 사례에 부합하지 않으며, AEM은 글로벌 Trust StoreKeyStoreService를 활용하여 더 나은 옵션을 제공합니다.

솔루션 패키지

비디오에서 데모한 Node.js 프로젝트 샘플은 여기에서 다운로드할 수 있습니다.

AEM 서블릿 코드는 WKND Sites 프로젝트의 tutorial/web-api-invocation 분기에서 확인할 수 있습니다. 여기를 참조하십시오.
