조각을 사용하여 PDF 문서 생성
- 적용 대상:
- Experience Manager 6.4
- Experience Manager 6.5
작성 대상:
- 중간
- 개발자
이 문서에서는 출력 서비스를 사용하여 xdp 조각을 사용하여 pdf 파일을 생성합니다. 기본 xdp와 조각은 crx 저장소에 있습니다. AEM에서 파일 시스템 폴더 구조를 모방하는 것이 중요합니다. 예를 들어 xdp의 조각 폴더에서 조각을 사용 중인 경우 AEM의 기본 폴더 아래에 조각 이라는 폴더를 만들어야 합니다. 기본 폴더에는 기본 xdp 템플릿이 포함됩니다. 예를 들어 파일 시스템에 다음 구조가 있는 경우
- c:\xdptemplates - 여기에 기본 xdp 템플릿이 포함됩니다.
- c:\xdptemplates\fragments - 이 폴더에는 조각이 포함되며 기본 템플릿은 아래와 같이 조각을 참조합니다.
- 폴더 xdpdocuments에는 기본 템플릿과 조각 폴더의 조각이 포함됩니다.
양식 및 문서 ui를 사용하여 필요한 구조를 만들 수 있습니다.
다음은 2개의 조각을 사용하는 샘플 xdp의 폴더 구조입니다
- 출력 서비스 - 일반적으로 이 서비스는 xml 데이터를 xdp 템플릿 또는 pdf와 병합하여 병합된 pdf를 생성하는 데 사용됩니다. 자세한 내용은 출력 서비스에 대한 javadoc을(를) 참조하십시오. 이 샘플에서는 crx 저장소에 있는 조각을 사용하고 있습니다.
다음 코드는 PDF 파일에 조각을 포함하는 데 사용되었습니다
System.out.println("I am in using fragments POST.jsp");
// contentRootURI is the base folder. All fragments are relative to this folder
String contentRootURI = request.getParameter("contentRootURI");
String xdpName = request.getParameter("xdpName");
javax.servlet.http.Part xmlDataPart = request.getPart("xmlDataFile");
System.out.println("Got xml file");
String filePath = request.getParameter("saveLocation");
java.io.InputStream xmlIS = xmlDataPart.getInputStream();
com.adobe.aemfd.docmanager.Document xmlDocument = new com.adobe.aemfd.docmanager.Document(xmlIS);
com.adobe.fd.output.api.OutputService outputService = sling.getService(com.adobe.fd.output.api.OutputService.class);
if (outputService == null) {
System.out.println("The output service is null.....");
} else {
System.out.println("The output service is not null.....");
}
com.adobe.fd.output.api.PDFOutputOptions pdfOptions = new com.adobe.fd.output.api.PDFOutputOptions();
pdfOptions.setAcrobatVersion(com.adobe.fd.output.api.AcrobatVersion.Acrobat_11);
pdfOptions.setContentRoot(contentRootURI);
com.adobe.aemfd.docmanager.Document generatedDocument = outputService.generatePDFOutput(xdpName, xmlDocument, pdfOptions);
generatedDocument.copyToFile(new java.io.File(filePath));
out.println("Document genreated and saved to " + filePath);
시스템에서 샘플 패키지를 테스트하려면
패키지를 설치하면 Adobe Granite CSRF 필터에 다음 URL이 허용 목록 됩니다.
- 허용 목록에 추가하다 위에서 언급 한 경로에 아래의 단계를 따르십시오.
- configMgr에 로그인
- Adobe Granite CSRF 필터 검색
- 제외된 섹션에 다음 경로를 추가하고 저장합니다
- /content/AemFormsSamples/usingfragments
샘플 코드를 테스트하는 방법에는 여러 가지가 있습니다. 가장 빠르고 쉬운 방법은 Postman 앱을 사용하는 것입니다. Postman을 사용하면 서버에 POST 요청을 수행할 수 있습니다. 시스템에 Postman 앱을 설치합니다.
앱을 실행하고 다음 URL을 입력하여 데이터 내보내기 API를 테스트합니다
드롭다운 목록에서 "POST"를 선택했는지 확인합니다.
http://localhost:4502/content/AemFormsSamples/usingfragments.html
"인증"을 "기본 인증"으로 지정해야 합니다. AEM 서버 사용자 이름 및 암호 지정

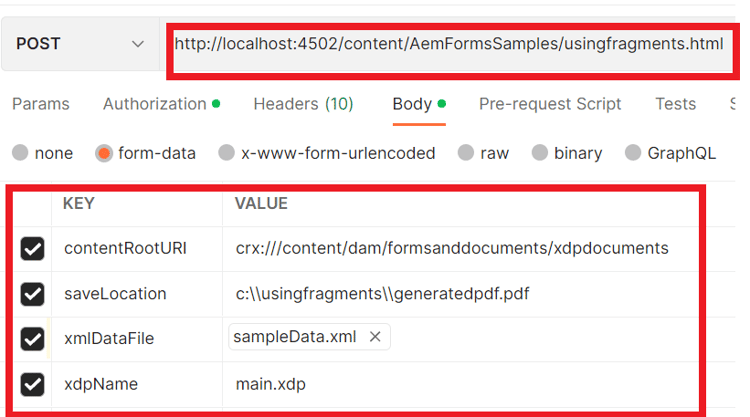

"본문" 탭으로 이동하여 아래 이미지에 표시된 대로 요청 매개 변수를 지정합니다
그런 다음 전송 단추를 클릭합니다.
