다음 Deploy 탭

이 탭은 문제 및 배포 문제의 원인을 신속하게 격리하기 위한 것입니다.

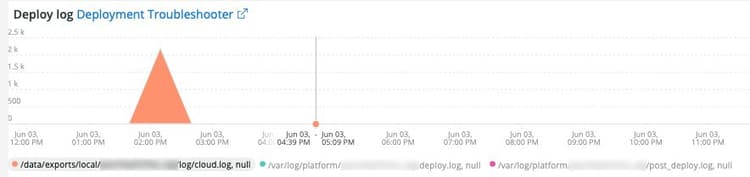

Deploy log Deployment Troubleshooter

로그 배포 문제 해결사 배포

다음 Deploy log Deployment Troubleshooter frame은 선택한 기간 동안 발생한 배포 로그 이벤트 수를 보여 줍니다. 배포 활동을 한 눈에 보고 횟수별로 배포의 복잡성을 결정하는 것이 목적입니다. 메시지가 기록될수록 일반적으로 배포는 더 복잡해집니다.

Deploy State

배포 상태

다음 Deploy State 프레임은 선택한 기간 동안 발생한 배포 이벤트를 보여 줍니다. 이 프레임의 파서가 다음과 같은 특정 신호를 찾고 있습니다.

  • '%NOTICE: Starting generate command%') (으)로start_gen'
  • '%git apply /app/vendor/magento/ece-tools/patches%') (으)로apply_patches'
  • '%Set flag: .static_content_deploy%') (으)로SCD'
  • '%NOTICE: Generate command completed%') (으)로gen_compl'
  • '%NOTICE: Starting deploy.%') (으)로start_deploy'
  • '%NOTICE: Deployment completed%') (으)로deploy_compl'
  • '%NOTICE: Starting post-deploy.%') (으)로start_pdeploy'
  • '%NOTICE: Post-deploy is complete%') (으)로pdeploy'
  • '%deploy-complete%') (으)로cl_deploy_compl'

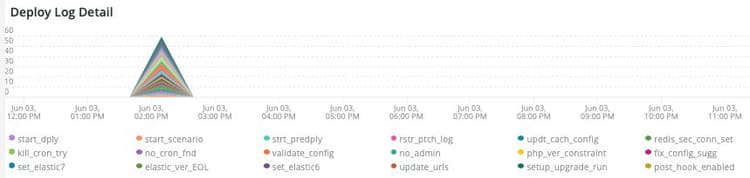

Deploy Log Detail

배포 로그 세부 정보

다음 Deploy Log Detail 프레임은 선택한 기간 동안 발생한 배포 로그 메시지 요약 세부 정보를 보여 줍니다. 배포 로그에서 다음 문자열에 대한 프레임을 구문 분석하고 있습니다.

  • '%NOTICE: Starting deploy.%') (으)로start_dply'
  • '%INFO: Starting scenario(s): scenario/deploy.xml%') (으)로start_scenario'
  • '%NOTICE: Starting pre-deploy%') (으)로strt_predply'
  • '%INFO: Restoring patch log file%') (으)로rstr_ptch_log'
  • '%INFO: Updating cache configuration.%') (으)로updt_cach_config'
  • '%INFO: Set Redis slave connection%') (으)로redis_sec_conn_set'
  • '%INFO: Static content deployment was performed during build hook, cleaning old content%') (으)로scd_build_hk'
  • '%INFO: Clearing pub/static%') (으)로clr_pub_static'
  • '%NFO: Clearing redis cache:%') (으)로clr_redis_cach'
  • '%INFO: Clearing var/cache directory%') (으)로clr_var_cach'
  • '%NOTICE: Enabling Maintenance mode%') (으)로enable_maint_mode'
  • '%INFO: Disable cron%') (으)로disable_cron'
  • '%INFO: Trying to kill running cron jobs and consumers processes%') (으)로kill_cron_try'
  • '%INFO: Running Adobe Commerce cron and consumers processes were not found.%') (으)로no_cron_fnd'
  • '%NOTICE: Validating configuration%') (으)로validate_config'
  • '%The following admin data is required to create an admin user during initial installation%') (으)로no_admin'
  • '%recommended PHP version satisfying the constraint%') (으)로php_ver_constraint'
  • '%WARNING: Fix configuration with given suggestions:%') (으)로fix_config_sugg'
  • '%WARNING: [2003] The directory nesting level value for error reporting has not been configured.%') (으)로nest_err_reporting'
  • '%NOTICE: End of validation%') (으)로end_validation'
  • '%NOTICE: Starting update.%') (으)로start_update'
  • '%INFO: Updating env.php.%') (으)로update_php_env'
  • '%INFO: Updating env.php DB connection configuration.%') (으)로update_php_env_db'
  • '%INFO: Updating env.php AMQP configuration%') (으)로update_php_env_amqp'
  • '%INFO: Set search engine to: elasticsearch7%') (으)로set_elastic7'
  • '%elasticsearch 6.5.4 has passed EOL%') (으)로elastic_ver_EOL'
  • '%INFO: Set search engine to: elasticsearch6%') (으)로set_elastic6'
  • '%INFO: Updating secure and unsecure URLs%') (으)로update_urls'
  • '%INFO: Running setup upgrade.%') (으)로setup_upgrade_run'
  • '%INFO: Post-deploy hook enabled. Cron enabling, cache cleaning, and pre-warming operations are postponed%') (으)로post_hook_enabled'
  • '%NOTICE: Maintenance mode is disabled.%') (으)로maint_mode_disabled'
  • '%INFO: Scenario(s) finished%') (으)로scenario_finished'
  • '%WARNING: Command maintenance:enable finished with an error. Creating a maintenance flag file%') (으)로enable_maintenance_fail'
  • '%MySQL server has gone away%') (으)로MySQL_has_gone_away'

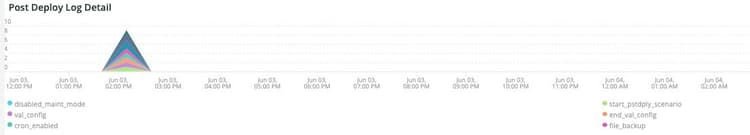

Post Deploy Log Detail

배포 후 로그 세부 정보

다음 Post Deploy Log Detail 프레임은 선택한 기간 동안 발생한 배포 후 로그 세부 정보를 보여 줍니다. 이 프레임은 다음 문자열이 포함된 특정 로그 메시지에 중점을 둡니다.

  • '%Disabled maintenance mode%') (으)로disabled_maint_mode'
  • '%INFO: Starting scenario(s): scenario/post-deploy.xml%') (으)로start_pstdply_scenario'
  • '%NOTICE: Validating configuration%') (으)로val_config'
  • '%NOTICE: End of validation%') (으)로end_val_config'
  • '%INFO: Enable cron%') (으)로cron_enabled'
  • '%INFO: Create backup of important files.%') (으)로file_backup'
  • '%INFO: Successfully created backup%') (으)로file_backup_success'
  • '%INFO: Starting page warming up%') (으)로pg_warmup_start'
  • '%INFO: Warmed up page:%') (으)로warmed_up_pg'
  • '%ERROR: Warming up failed:%') (으)로warm_up_pg_err'
  • '%INFO: Scenario(s) finished%') (으)로scenario_finished'

Cloud Log Detail

클라우드 로그 세부 사항

다음 Cloud Log Detail 프레임은 선택한 기간 동안 발생한 클라우드 로그 세부 정보를 보여 줍니다. 다음 문자열은 구문 분석되어 아래의 'AS' 레이블로 반환됩니다.

  • '%DEBUG: /bin/bash -c "set -o pipefail; php ./bin/magento setup:upgrade%') (으)로start_update'
  • '%Schema creation/updates:%') (으)로schema_updates'
  • '%Nothing to import.%') (으)로mod_import_finish'
  • '%NOTICE: End of update.%') (으)로update_finished'
  • '%DEBUG: Running step: deploy-static-content%') (으)로scd_run'
  • '%NOTICE: Skipping static content deploy. SCD on demand is enabled.%') (으)로scd_ondemand'
  • '%INFO: Clearing%') (으)로clr_dirs'
  • '%DEBUG: Step "deploy-static-content" finished%') (으)로scd_finished'
  • '%NOTICE: Skipping static content compression. SCD on demand is enabled.%') (으)로scd_compression_run'
  • '%INFO: Clearing var/cache directory%') (으)로clr_var_cach'
  • '%DEBUG: Step "compress-static-content" finished%') (으)로scd_compression_finished'
  • '%DEBUG: Running step: deploy-complete%') (으)로deploy_finished'
  • '%INFO: Post-deploy hook enabled. Cron enabling, cache cleaning, and pre-warming operations are postponed to post-deploy stage.%') (으)로Post_deploy_hook_enabled'
  • '%NOTICE: Maintenance mode is disabled.%') (으)로maint_mode_disabled'
  • '%INFO: Scenario(s) finished%') (으)로scenario_finished'
  • '%post-deploy.xml%') (으)로post_deploy_start'
  • '%NOTICE: Validating configuration%') (으)로validate_config'
  • '%WARNING: [2003] The directory nesting level value for error reporting has not been configured.%') (으)로nest_err_reporting'
  • '%NOTICE: End of validation%') (으)로end_validation'
  • '%INFO: Enable cron%') (으)로enable_cron'
  • '%INFO: Create backup of important files%') (으)로create_backup'
  • '%DEBUG: Step "backup" finished%') (으)로backup_finished'
  • '%INFO: Starting page warming up%') (으)로warmup_start'
  • '%ERROR: Warming up failed:%') (으)로warm_up_fail'
  • '%DEBUG: Step "warm-up" finished%') (으)로warmup_finished'
  • '%DEBUG: Step "time-to-first-byte" finished%') (으)로ttfb_finished'
  • '%INFO: Scenario(s) finished%') (으)로post_deploy_finished'
  • '%DEBUG: Running step: pre-build%') (으)로run_pre-build'
  • '%DEBUG: Flag .static_content_deploy has already been deleted%') (으)로scd_flag_del'
  • '%DEBUG: Step "pre-build" finished%') (으)로pre-build_completed'
  • '%NOTICE: Applying patches%') (으)로apply_patches'
  • '%has been applied%') (으)로patches_applied'
  • '%DEBUG: Step "apply-patches" finished%') (으)로apply_patches_complete'
  • '%Deploy using quick strategy%') (으)로quick_strategy_deploy'
  • '%NOTICE: Running DI compilation%') (으)로di_compliation_start'
  • '%NOTICE: End of running DI compilation%') (으)로di_compliation_finished'
  • '%NOTICE: Generating fresh static content%') (으)로gen_frsh_static_content'
  • '%magento setup:static-content:deploy%') (으)로scd_executing'
  • '%NOTICE: End of generating fresh static content%') (으)로gen_frsh_static_cont_finished'
  • '%INFO: Starting scenario(s): scenario/build/transfer.xml%') (으)로start_transferxml'
  • '%INFO: Trying to kill running cron jobs%') (으)로kill_crons'
  • '%INFO: Clearing redis cache:%') (으)로clear_redis_cache'
  • '%INFO: Checking if db exists and has tables%') (으)로db_check'
  • '%WARNING: [2010] Elasticsearch service is installed at infrastructure layer, but is not used as a search engine.%) 을(를) (으)로es_not_used'
  • '%NOTICE: Starting update.%') (으)로starting_update'
  • '%INFO: Set search engine to: mysql%') (으)로mysql_search'
  • '%SQLSTATE[HY000] [2006] MySQL server has gone away%') (으)로mysql_gone'

Count of modules imported during deploy

배포 중 가져온 모듈 수

다음 Count of modules imported during deploy frame은 선택한 기간 동안 배포하는 동안 가져온 모듈의 수를 보여줍니다.

Deployed module list

배포된 모듈 목록

다음 Deployed module list 프레임은 선택한 기간에 걸쳐 배포된 모듈을 보여 줍니다.
