AEM Screens コンポーネントの拡張
以下のチュートリアルでは、標準搭載の AEM Screens コンポーネントを拡張する際の手順とベストプラクティスについて説明します。画像コンポーネントが拡張されて、オーサリング可能なテキストオーバーレイが追加されます。
概要 overview
このチュートリアルは、AEM Screens を初めて使用する開発者を対象としています。このチュートリアルでは、Screens 画像コンポーネントを拡張して、ポスターコンポーネントを作成します。タイトル、説明、ロゴを画像の上にオーバーレイして、シーケンスチャネル内に魅力的なエクスペリエンスを作成します。

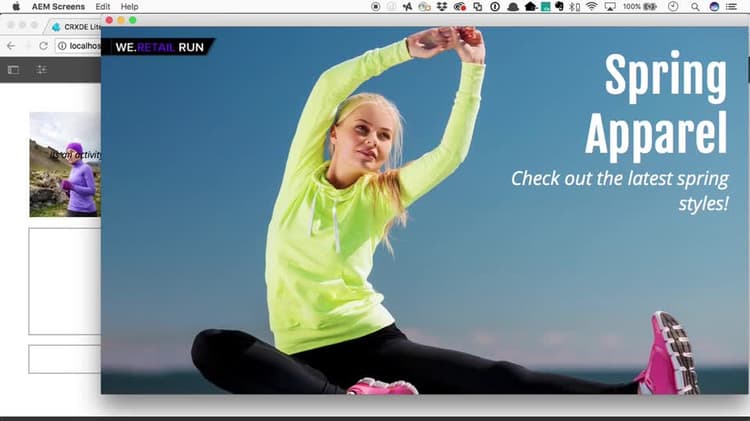

Custom Poster
コンポーネントは、画像コンポーネントを拡張して作成します。
前提条件 prerequisites
このチュートリアルを完了するには、以下が必要になります。
- AEM 6.5 および最新の Screens 機能パック
- AEM Screens Player
- ローカル開発環境
CRXDE-Lite を使用して、チュートリアルの手順とスクリーンショットを実行します。Eclipse IDE または IntelliJ IDE を使用しても、このチュートリアルを完了できます。AEM での開発に IDE を使用する方法について詳しくは、こちらを参照してください。
プロジェクトのセットアップ project-setup
Screens プロジェクトのソースコードは、通常、マルチモジュールの Maven プロジェクトとして管理されます。このチュートリアルを効率よく進めるために、AEM プロジェクトアーキタイプ 13 を使用してプロジェクトを事前に生成してあります。Maven AEM プロジェクトアーキタイプを使用したプロジェクトの作成について詳しくは、こちらを参照してください。
- CRX パッケージマネージャー(
http://localhost:4502/crx/packmgr/index.jsp)r:
)を使用して、次のパッケージをダウンロードしてインストールします。
ファイルを入手
(オプション) Eclipse などの IDE を使用して作業する場合は、以下のソースパッケージをダウンロードします。次の Maven コマンドを使用して、プロジェクトをローカルの AEM インスタンスにデプロイします。
mvn -PautoInstallPackage clean install
SRC Start Screens We.Retail
Run Project
-
CRX パッケージマネージャー(
http://localhost:4502/crx/packmgr/index.jsp
)で、次の 2 つのパッケージがインストールされていることを確認します。screens-weretail-run.ui.content-0.0.1-SNAPSHOT.zip
screens-weretail-run.ui.apps-0.0.1-SNAPSHOT.zip
CRX パッケージマネージャーを使用してインストールされた AEM Screens
We.Retail Run Ui.Apps
およびUi.Content
パッケージ
ポスターコンポーネントの作成 poster-cmp
ポスターコンポーネントは、標準の AEM Screens 画像コンポーネントを拡張します。 Sling の sling:resourceSuperType
メカニズムを使用すると、画像コンポーネントのコア機能をコピーして貼り付けなくても継承できるようになります。Sling のリクエスト処理の基本について詳しくは、こちらを参照してください。
ポスターコンポーネントは、プレビュー/実稼動モードではフルスクリーンでレンダリングされます。編集モードでは、シーケンスチャネルのオーサリングを容易に行えるように、コンポーネントをフルスクリーン以外でレンダリングすることが重要です。
-
CRXDE-Lite
http://localhost:4502/crx/de/index.jsp
(または任意の IDE)で、/apps/weretail-run/components/content
の下にposter
という名前のcq:Component
を作成します。poster
コンポーネントに次のプロパティを追加します。code language-xml <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="https://sling.apache.org/jcr/sling/1.0" xmlns:cq="https://www.day.com/jcr/cq/1.0" xmlns:jcr="https://www.jcp.org/jcr/1.0" jcr:primaryType="cq:Component" jcr:title="Poster" sling:resourceSuperType="screens/core/components/content/image" componentGroup="We.Retail Run - Content"/>
/apps/weretail-run/components/content/poster のプロパティ
sling:resourceSuperType
プロパティをscreens/core/components/content/image
に設定すると、ポスターコンポーネントは画像コンポーネントのすべての機能を事実上継承します。機能を上書きおよび拡張するために、screens/core/components/content/image
の下にある同等のノードおよびファイルをposter
コンポーネントの下に追加することができます。 -
/libs/screens/core/components/content/image
の下にあるcq:editConfig
ノードをコピーします。/apps/weretail-run/components/content/poster
コンポーネントの下にcq:editConfig
をペーストします。cq:editConfig/cq:dropTargets/image/parameters
ノードで、sling:resourceType
プロパティをweretail-run/components/content/poster
と等しくなるように更新します。cq:editConfig
の XML 表現は次のようになります。code language-xml <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="https://sling.apache.org/jcr/sling/1.0" xmlns:cq="https://www.day.com/jcr/cq/1.0" xmlns:jcr="https://www.jcp.org/jcr/1.0" xmlns:nt="https://www.jcp.org/jcr/nt/1.0" jcr:primaryType="cq:EditConfig"> <cq:dropTargets jcr:primaryType="nt:unstructured"> <image jcr:primaryType="cq:DropTargetConfig" accept="[image/.*]" groups="[media]" propertyName="./fileReference"> <parameters jcr:primaryType="nt:unstructured" sling:resourceType="weretail-run/components/content/poster" imageCrop="" imageMap="" imageRotate=""/> </image> </cq:dropTargets> </jcr:root>
-
WCM 基盤コンポーネントの
ダイアログをコピーして、poster
コンポーネントに使用します。既存のダイアログを出発点にして、それに変更を加えるのが最も簡単です。
- ダイアログのコピー元:
/libs/wcm/foundation/components/image/cq:dialog
- ダイアログの貼り付け先のパス:
/apps/weretail-run/components/content/poster
ダイアログを
/libs/wcm/foundation/components/image/cq:dialog
から/apps/weretail-run/components/content/poster
にコピーしましたWCM の
基盤コンポーネントは、AEM Screensimage
コンポーネントのスーパータイプになります。したがって、poster
コンポーネントは両者から機能を継承します。ポスターコンポーネントのダイアログは、Screens ダイアログと基盤ダイアログの組み合わせで構成されます。Sling Resource Merger の機能を使用して、スーパータイプコンポーネントから継承した無関係なダイアログフィールドやタブを非表示にします。 - ダイアログのコピー元:
-
/apps/weretail-run/components/content/poster
の下のcq:dialog
を更新して、XML で表現された以下の変更を反映します。code language-xml <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="https://sling.apache.org/jcr/sling/1.0" xmlns:cq="https://www.day.com/jcr/cq/1.0" xmlns:jcr="https://www.jcp.org/jcr/1.0" xmlns:nt="https://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" jcr:title="Poster" sling:resourceType="cq/gui/components/authoring/dialog"> <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/tabs" type="nav"/> <items jcr:primaryType="nt:unstructured"> <image jcr:primaryType="nt:unstructured" jcr:title="Elements" sling:resourceType="granite/ui/components/foundation/section"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns" margin="{Boolean}false"/> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <items jcr:primaryType="nt:unstructured" sling:hideChildren="[linkURL,size]"> <file jcr:primaryType="nt:unstructured" sling:resourceType="cq/gui/components/authoring/dialog/fileupload" autoStart="{Boolean}false" class="cq-droptarget" fieldLabel="Image asset" fileNameParameter="./fileName" fileReferenceParameter="./fileReference" mimeTypes="[image]" multiple="{Boolean}false" name="./file" title="Upload Image Asset" uploadUrl="${suffix.path}" useHTML5="{Boolean}true"/> <title jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/textfield" fieldLabel="Title" name="./jcr:title"/> <description jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/textarea" fieldLabel="Description" name="./jcr:description"/> <position jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/form/click" fieldLabel="Text Position" name="./textPosition"> <items jcr:primaryType="nt:unstructured"> <left jcr:primaryType="nt:unstructured" text="Left" value="left"/> <center jcr:primaryType="nt:unstructured" text="Center" value="center"/> <right jcr:primaryType="nt:unstructured" text="Right" value="right"/> </items> </position> <color jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/form/click" fieldLabel="Text Color" name="./textColor"> <items jcr:primaryType="nt:unstructured"> <light jcr:primaryType="nt:unstructured" text="Light" value="light"/> <dark jcr:primaryType="nt:unstructured" text="Dark" value="dark"/> </items> </color> </items> </column> </items> </image> <accessibility jcr:primaryType="nt:unstructured" sling:hideResource="{Boolean}true"/> </items> </content> </jcr:root>
items
ノードでプロパティsling:hideChildren
="[linkURL,size]
" を使用して、linkURL フィールドと size フィールドがダイアログで非表示になるようにします。これらのノードをポスターダイアログから削除するだけでは不十分です。「アクセシビリティ」タブのプロパティsling:hideResource="{Boolean}true"
は、タブ全体を非表示にするために使用されます。ダイアログボックスに、テキストの位置とテキストの色という 2 つのクリックフィールドが追加され、作成者がタイトルと説明のテキストの位置と色を制御できるようになります。
ポスター - 最終的なダイアログ構造
この段階で、
poster
コンポーネントのインスタンスをWe.Retail
実行プロジェクトの アイドルチャネルl ページ(http://localhost:4502/editor.html/content/screens/we-retail-run/channels/idle-channel.edit.html
)に追加できます。ポスターダイアログのフィールド
-
/apps/weretail-run/components/content/poster
の下にproduction.html.
という名前のファイルを作成します。ファイルに以下のように入力します。
code language-xml <!--/* /apps/weretail-run/components/content/poster/production.html */--> <div data-sly-use.image="image.js" data-duration="${properties.duration}" class="cmp-poster" style="background-image: url(${request.contextPath @ context='uri'}${image.src @ context='uri'});"> <div class="cmp-poster__text cmp-poster__text--${properties.textPosition @ context='attribute'} cmp-poster__text--${properties.textColor @ context='attribute'}"> <h1 class="cmp-poster__title">${properties.jcr:title}</h1> <h2 class="cmp-poster__description">${properties.jcr:description}</h2> </div> <img class="cmp-poster__logo" src="/content/dam/we-retail-run/logos/we-retail-run_dark.png" alt="we-retail-logo" /> </div>
ポスターコンポーネントの実稼動マークアップは、すぐ上に表示されます。HTL スクリプトで
screens/core/components/content/image/production.html
が上書きされます。image.js
は、POJO に似た画像オブジェクトを作成するサーバー側スクリプトです。この画像オブジェクトを呼び出して、src
をインラインスタイルの背景画像としてレンダリングできます。The h1
タグと h2 タグを追加して、コンポーネントプロパティ${properties.jcr:title}
および${properties.jcr:description}
に基づいて「タイトル」と「説明」を表示します。「
cmp-poster__text
」のバリエーションを使用する 3 つの CSS クラスを含んだ div ラッパーで、h1
タグとh2
タグを囲みます。textPosition
プロパティとtextColor
プロパティの値を使用し、作成者によるダイアログ選択に基づいてレンダリングされる CSS クラスを変更します。次の節では、クライアントライブラリの CSS を記述して、これらの変更をディスプレイに反映します。コンポーネントには、ロゴもオーバーレイとして含まれます。この例では、
We.Retail
ロゴのパスが DAM にハードコーディングされています。ユースケースによっては、ダイアログフィールドを作成して、ロゴのパスを動的に入力される値にする方が合理的な場合があります。また、コンポーネントでは BEM(ブロック要素修飾子)表記が使用されることにも注意してください。BEM は、再利用可能なコンポーネントを容易に作成できる CSS コーディング規則です。BEM は、AEM のコアコンポーネントで使用される表記です。
-
/apps/weretail-run/components/content/poster
の下にedit.html.
という名前のファイルを作成します。ファイルに以下のように入力します。
code language-xml <!--/* /apps/weretail-run/components/content/poster/edit.html */--> <div class="aem-Screens-editWrapper ${image.cssClass} cmp-poster" data-sly-use.image="image.js" data-emptytext="${'Poster' @ i18n, locale=request.locale}"> <img class="cmp-poster__image" src="${request.contextPath}${image.src @ context='uri'}" width="100%" /> <div class="cmp-poster__text cmp-poster__text--${properties.textPosition @ context='attribute'} cmp-poster__text--${properties.textColor @ context='attribute'}"> <p class="cmp-poster__title">${properties.jcr:title}</p> <p class="cmp-poster__description">${properties.jcr:description}</p> </div> </div>
ポスターコンポーネントの 編集 マークアップは、すぐ上に表示されます。HTL スクリプトで
/libs/screens/core/components/content/image/edit.html
が上書きされます。このマークアップはproduction.html
のマークアップと似ており、画像の上にタイトルと説明が表示されます。コンポーネントがエディターでフルスクリーンでレンダリングされないように、
aem-Screens-editWrapper
を追加します。data-emptytext
属性を指定すると、画像やコンテンツが入力されていない場合には必ずプレースホルダーが表示されるようになります。
クライアント側ライブラリの作成 clientlibs
クライアント側ライブラリは、AEM の実装で必要な CSS および JavaScript ファイルの編成および管理のための仕組みを提供します。クライアント側ライブラリの使用の詳細については、こちらを参照してください。
AEM Screens コンポーネントは、編集モードとプレビュー/実稼動モードではレンダリングが異なります。2 組のクライアントライブラリが作成されます。1 つは編集モード用、もう 1 つはプレビュー/実稼動用です。
-
ポスターコンポーネントのクライアント側ライブラリ用のフォルダーを作成します。
/apps/weretail-run/components/content/poster
の下に、clientlibs
という名前のフォルダーを作成します。 -
clientlibs
フォルダーの下に、タイプcq:ClientLibraryFolder.
のshared
という名前のノードを作成します。 -
共有クライアントライブラリに次のプロパティを追加します。
allowProxy
| Boolean |true
categories
| String[] |cq.screens.components
/apps/weretail-run/components/content/poster/clientlibs/shared のプロパティ
categories
プロパティは、クライアントライブラリを識別する文字列です。cq.screens.components
カテゴリは、編集モードとプレビュー/実稼動モードの両方で使用されます。したがって、shared
clientlib で定義された CSS/JavaScript は、すべてのモードで読み込まれます。ベストプラクティスとして、実稼動環境の
/apps
を直接指すパスは、公開しないでください。allowProxy
プロパティにより、クライアントライブラリの CSS と JavaScript が/etc.clientlibs
の接頭辞を付けて参照されるようになります。allowProxy について詳しくは、こちらを参照してください。 -
共有フォルダーの下に
css.txt
という名前のファイルを作成します。ファイルに以下のように入力します。
code language-none #base=css styles.less
-
shared
フォルダーの下にcss
という名前のフォルダーを作成します。css
フォルダーの下に、style.less
という名前のファイルを追加します。クライアントライブラリの構造は次のようになります。このチュートリアルでは、CSS を直接記述するのではなく、LESS を使用します。LESS は、CSS 変数、ミックスイン、関数をサポートしている一般的な CSS プリコンパイラーです。AEM のクライアントライブラリは、LESS によるコンパイルをネイティブにサポートしています。Sass などのプリコンパイラーも使用できますが、AEM の外部でコンパイルする必要があります。
-
/apps/weretail-run/components/content/poster/clientlibs/shared/css/styles.less
に以下を入力します。code language-css /* /apps/weretail-run/components/content/poster/clientlibs/shared/css/styles.less Poster component - Shared Style */ @import url('https://fonts.googleapis.com/css?family=Fjalla+One|Open+Sans:400i'); @text-light-color: #fff; @text-dark-color: #000; @title-font-family: 'Fjalla One', sans-serif; @description-font-family: 'Open Sans', sans-serif; .cmp-poster { &__text { position: absolute; color: @text-light-color; top: 0; text-align:center; width: 100%; &--left { text-align: left; margin-left: 1em; } &--right { text-align: right; margin-right: 1em; } &--dark { color: @text-dark-color; } } &__title { font-weight: bold; font-family: @title-font-family; font-size: 1.2em; } &__description { font-style: italic; font-family: @description-font-family; } }
note note NOTE フォントファミリーには Google web フォントが使用されます。Web フォントを使用するにはインターネット接続が必要ですが、すべての AEM Screens 実装に信頼性の高い接続があるとは限りません。オフラインモードへの対応を計画することは、AEM Screens デプロイメントの重要な考慮事項です。 -
クライアントライブラリフォルダー
shared
をコピーします。兄弟として貼り付け、名前をproduction
に変更します。 -
本番用クライアントライブラリの
categories
プロパティをcq.screens.components.production.
に更新します。cq.screens.components.production
カテゴリにより、プレビュー/実稼動モードの場合のみ、スタイルが読み込まれるようになります。/apps/weretail-run/components/content/poster/clientlibs/production のプロパティ
-
/apps/weretail-run/components/content/poster/clientlibs/production/css/styles.less
に以下を入力します。code language-css /* /apps/weretail-run/components/content/poster/clientlibs/production/css/styles.less Poster component - Production Style */ .cmp-poster { background-size: cover; height: 100%; width: 100%; position:absolute; &__text { top: 2em; &--left { width: 40%; top: 5em; } &--right { width: 40%; right: 1em; } } &__title { font-size: 5rem; font-weight: 900; margin: 0.1rem; } &__description { font-size: 2rem; margin: 0.1rem; font-weight: 400; } &__logo { position: absolute; max-width: 200px; top: 1em; left: 0; } }
上記のスタイルでは、「タイトル」と「説明」がスクリーン上の絶対位置に表示されます。タイトルは説明よりも大きく表示されます。コンポーネントの BEM 表記により、cmp-poster クラス内のスタイルを注意深くスコープ設定するのが容易になります。
3 番目のクライアントライブラリカテゴリ cq.screens.components.edit
は、コンポーネントに編集専用のスタイルを追加する場合に使用できます。
cq.screens.components
cq.screens.components.edit
cq.screens.components.production
シーケンスチャネルへのポスターコンポーネントの追加 add-sequence-channel
ポスターコンポーネントは、シーケンスチャネルで使用されます。このチュートリアルのスターターパッケージには、アイドルチャネルが含まれています。アイドルチャネルは、We.Retail Run - Content
グループのコンポーネントを許可するように事前設定されています。ポスターコンポーネントのグループは We.Retail Run - Content
に設定されており、チャネルに追加できるようになっています。
-
We.Retail
実行プロジェクトのアイドルチャネル(http://localhost:4502/editor.html/content/screens/we-retail-run/channels/idle-channel.edit.html
)を開きます。 -
ポスター コンポーネントの新しいインスタンスをサイドバーからページにドラッグ&ドロップします。
-
ポスターコンポーネントのダイアログボックスを編集して、「画像」、「タイトル」、「説明」を追加します。「テキストの位置」と「テキストの色」の選択フィールドを使用して、「タイトル」や「説明」が画像上で読みやすくなるようにします。
-
いくつかのポスターコンポーネントを追加するには、上記の手順を繰り返します。 コンポーネント間にトランジション(トランジション)を追加します。
まとめ putting-it-all-together
以下のビデオでは、完成したコンポーネントと、それをシーケンスチャネルに追加する方法を示しています。この後、チャネルはロケーションのディスプレイに追加され、最終的には Screens Player に割り当てられます。
完成したコード finished-code
チュートリアルで完成したコードは以下のとおりです。screens-weretail-run.ui.apps-0.0.1-SNAPSHOT.zip と screens-weretail-run.ui.content-0.0.1-SNAPSHOT.zip は、コンパイル済みの AEM パッケージです。SRC-screens-weretail-run-0.0.1.zip は、Maven を使用してデプロイできる未コンパイルのソースコードです。
SRC Final AEM Screens We.Retail
Run Project
