送信されたデータを使用した印刷チャネルドキュメントの生成
印刷チャネルのドキュメントは、通常、フォームデータモデルの get サービスを使用してバックエンドのデータソースからデータを取得して生成されます。 場合によっては、指定したデータを含む印刷チャネルドキュメントを生成する必要があります。 例えば、顧客が受取人フォームの変更に記入し、送信されたフォームのデータを使用して印刷チャネルドキュメントを生成するとします。 このユースケースを実現するには、次の手順に従う必要があります
事前入力サービスの作成
このサービスにアクセスするには、サービス名「ccm-print-test」を使用します。 この事前入力サービスを定義したら、サーブレットまたはワークフロープロセスステップの実装でこのサービスにアクセスすると、印刷チャネルドキュメントを生成できます。
import java.io.InputStream;
import org.osgi.service.component.annotations.Component;
import com.adobe.forms.common.service.ContentType;
import com.adobe.forms.common.service.DataOptions;
import com.adobe.forms.common.service.DataProvider;
import com.adobe.forms.common.service.FormsException;
import com.adobe.forms.common.service.PrefillData;
@Component(immediate = true, service = {DataProvider.class})
public class ICPrefillService implements DataProvider {
@Override
public String getServiceDescription() {
// TODO Auto-generated method stub
return "Prefill Service for IC Print Channel";
}
@Override
public String getServiceName() {
// TODO Auto-generated method stub
return "ccm-print-test";
}
@Override
public PrefillData getPrefillData(DataOptions options) throws FormsException {
// TODO Auto-generated method stub
PrefillData data = null;
if (options != null && options.getExtras() != null && options.getExtras().get("data") != null) {
InputStream is = (InputStream) options.getExtras().get("data");
data = new PrefillData(is, options.getContentType() != null ? options.getContentType() : ContentType.JSON);
}
return data;
}
}
WorkflowProcess 実装の作成
以下に、workflowProcess 実装コードスニペットを示します。AEM Workflow のプロセスステップがこの実装に関連付けられている場合に、このコードを実行します。 この実装では、以下に示す 3 つのプロセス引数が必要です。
- アダプティブフォームの設定時に指定した DataFile パスの名前
- 印刷チャネルテンプレートの名前
- 生成された印刷チャネルドキュメントの名前
98 行目 - アダプティブフォームはフォームデータモデルに基づいているので、 afBoundData のデータノードに存在するデータが抽出されます。
128 行目 - データオプションサービス名が設定されています。サービス名をメモしておきます。 前のコードリストの 45 行目で返された名前と一致する必要があります。
135 行目 - PrintChannel オブジェクトのレンダーメソッドを使用してドキュメントが生成されます
String params = arg2.get("PROCESS_ARGS","string").toString();
String payloadPath = workItem.getWorkflowData().getPayload().toString();
String dataFile = params.split(",")[0];
final String icFileName = params.split(",")[1];
String dataFilePath = payloadPath + "/"+dataFile+"/jcr:content";
Session session = workflowSession.adaptTo(Session.class);
Node xmlDataNode = null;
try {
xmlDataNode = session.getNode(dataFilePath);
InputStream xmlDataStream = xmlDataNode.getProperty("jcr:data").getBinary().getStream();
JsonParser jsonParser = new JsonParser();
BufferedReader streamReader = null;
try {
streamReader = new BufferedReader(new InputStreamReader(xmlDataStream, "UTF-8"));
} catch (UnsupportedEncodingException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
StringBuilder responseStrBuilder = new StringBuilder();
String inputStr;
try {
while ((inputStr = streamReader.readLine()) != null)
responseStrBuilder.append(inputStr);
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
String submittedDataXml = responseStrBuilder.toString();
JsonObject jsonObject = jsonParser.parse(submittedDataXml).getAsJsonObject().get("afData").getAsJsonObject()
.get("afBoundData").getAsJsonObject().get("data").getAsJsonObject();
logger.info("Successfully Parsed gson" + jsonObject.toString());
InputStream targetStream = IOUtils.toInputStream(jsonObject.toString());
//InputStream targetStream = new ByteArrayInputStream(jsonObject.toString().getBytes());
// Node dataNode = session.getNode(formName);
logger.info("Got resource using resource resolver"
);
resHelper.callWith(getResolver.getFormsServiceResolver(), new Callable<Void>() {
@Override
public Void call() throws Exception {
System.out.println("The target stream is "+targetStream.available());
// TODO Auto-generated method stub
com.adobe.fd.ccm.channels.print.api.model.PrintChannel printChannel = null;
String formName = params.split(",")[2];
logger.info("The form name I got was "+formName);
printChannel = printChannelService.getPrintChannel(formName);
logger.info("Did i get print channel?");
com.adobe.fd.ccm.channels.print.api.model.PrintChannelRenderOptions options = new com.adobe.fd.ccm.channels.print.api.model.PrintChannelRenderOptions();
options.setMergeDataOnServer(true);
options.setRenderInteractive(false);
com.adobe.forms.common.service.DataOptions dataOptions = new com.adobe.forms.common.service.DataOptions();
dataOptions.setServiceName(printChannel.getPrefillService());
// dataOptions.setExtras(map);
dataOptions.setContentType(ContentType.JSON);
logger.info("####Set the content type####");
dataOptions.setFormResource(getResolver.getFormsServiceResolver().getResource(formName));
dataOptions.setServiceName("ccm-print-test");
dataOptions.setExtras(new HashMap<String, Object>());
dataOptions.getExtras().put("data", targetStream);
options.setDataOptions(dataOptions);
logger.info("####Set the data options");
com.adobe.fd.ccm.channels.print.api.model.PrintDocument printDocument = printChannel
.render(options);
logger.info("####Generated the document");
com.adobe.aemfd.docmanager.Document uploadedDocument = new com.adobe.aemfd.docmanager.Document(
printDocument.getInputStream());
logger.info("Generated the document");
Binary binary = session.getValueFactory().createBinary(printDocument.getInputStream());
Session jcrSession = workflowSession.adaptTo(Session.class);
String dataFilePath = workItem.getWorkflowData().getPayload().toString();
Node dataFileNode = jcrSession.getNode(dataFilePath);
Node icPdf = dataFileNode.addNode(icFileName, "nt:file");
Node contentNode = icPdf.addNode("jcr:content", "nt:resource");
contentNode.setProperty("jcr:data", binary);
jcrSession.save();
logger.info("Copied the generated document");
uploadedDocument.close();
return null;
}
ご使用のサーバーでこれをテストするには、次の手順に従ってください。
-
Day CQ メールサービスを設定します。これは、生成されたドキュメントを添付ファイルとして含むメールを送信するために必要です。
-
Apache Sling Service User Mapper Service の設定に次のエントリが追加されていることを確認します。
-
DevelopingWithServiceUser.core:getformsresourceresolver=fd-service
-
AEM パッケージマネージャーを使用して、次のパッケージを読み込みます。
- beneficiaryconfirmationic.zip
- changeofbeneficiaryform.zip
- generatebeneficiaryworkflow.zip
-
AEM Felix web コンソールを使用して以下をデプロイします。
- GenerateIC.GenerateIC.core-1.0-SNAPSHOT.jar. このバンドルには、この記事で紹介されているコードが含まれています。
-

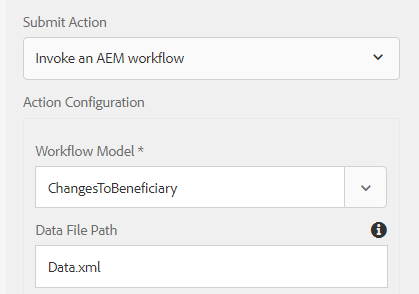

次に示すように、必ずアダプティブフォームが AEM のワークフローに送信されるように設定します。
-
ワークフローモデルを設定します。プロセスステップとメール送信コンポーネントが、お使いの環境に応じて設定されていることを確認します。
-
ChangeOfBeneficiaryForm をプレビューします。 詳細情報を入力して送信します。
-
ワークフローが起動し、送信メールコンポーネントで指定された受信者に、IC 印刷チャネルドキュメントが添付ファイルとして送信されます。
