CloudConvert modules

Last update: Wed Mar 05 2025 00:00:00 GMT+0000 (Coordinated Universal Time)
  • Topics:
  • Workfront Fusion

In an Adobe Workfront Fusion scenario, you can automate workflows that use CloudConvert, as well as connect it to multiple third-party applications and services. The CloudConvert modules allow you to monitor and manage jobs, tasks, and import and export files in your CloudConvert account.

Adobe Workfront plan*
Pro or higher
Adobe Workfront license*
Plan, Work
Adobe Workfront Fusion license**

Current license requirement: No Workfront Fusion license requirement.

Or

Legacy license requirement: Workfront Fusion for Work Automation and Integration

Product

Current product requirement: If you have the Select or Prime Adobe Workfront Plan, your organization must purchase Adobe Workfront Fusion as well as Adobe Workfront to use functionality described in this article. Workfront Fusion is included in the Ultimate Workfront plan.

Or

Legacy product requirement: Your organization must purchase Adobe Workfront Fusion as well as Adobe Workfront to use functionality described in this article.

CloudConvert API information

The CloudConvert connector uses the following:

Base URL
https://api.cloudconvert.com/v2/
API version
v2
API tag
v2.14.22

Connect CloudConvert to Workfront Fusion

To connect your CloudConvert account to Workfront Fusion, you need to obtain the API Key from your CloudConvert account.

  1. Log in to your CloudConvert account and open your Dashboard.

  2. Open the Authorization > API Keys section.

  3. Click Create New API key.

  4. Enter the name for the API key, enable the scopes you want to use, then click Create.

  5. Copy the provided token and store it in a safe place.

  6. In Workfront Fusion, start creating a scenario and open the CloudConvert module’s Create a connection dialog.

    For instructions, see Create a scenario in Adobe Workfront Fusion.

  7. Enter the token you saved in step 5, then click Continue to establish the connection.

CloudConvert modules and their fields

When you configure CloudConvert modules, Workfront Fusion displays the fields listed below. Along with these, additional CloudConvert fields might display, depending on factors such as your access level in the app or service. A bolded title in a module indicates a required field.

If you see the map button above a field or function, you can use it to set variables and functions for that field. For more information, see Map information from one module to another.

Map toggle

  • Common tasks
  • Jobs
  • Tasks
  • Other

Common tasks

  • Capture a Website
  • Convert a file
  • Create an Archive
  • Merge Files
  • Optimize a File

Capture a Website

This action module captures a specified website and saves it in PDF, JPG, or PNG format.

You specify the URL of the website and other information, such as where you want the information stored.

The module returns the ID of the file and any associated fields, along with any custom fields and values that the connection accesses. You can map this information in subsequent modules in the scenario.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
URL
Enter the URL of the website you want to capture.
Output Format
Select whether you want to save the captured website in PNG, JPG, or PDF format.
File Name
Enter a file name (including extension) for the target output file.
Headers

(Optional) Define request headers.

This is useful, for example, when the specified URL requires authorization.

Conversion and engine specific options
Specify conversion and engine specific options. To view available options, see the CloudConvert API documentation for input_format and output_format.
Download a file
Enable this option if you also want to include file data in the module's output.

Convert a file

Converts a file into a selected output format.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Input file
Select whether you want to upload a file using Workfront Fusion or provide the URL the file will be uploaded from.
Upload a file
Select a source file from a previous module, or map the source file's name and data.
Import a File from URL

  • URL

    Enter the URL of the file you want to convert.

  • Headers

    Define request headers (optional). This is useful, for example, when the specified URL requires the authorization.

Format
Select whether you want to specify the input format of the file you want to convert. If not specified, the extension of the input file is used as the input format.
Input Format
Select the current format of the file.
Output Format
Select the target file format you want to convert the file to.
File Name
Choose a filename (including extension) for the target output file.

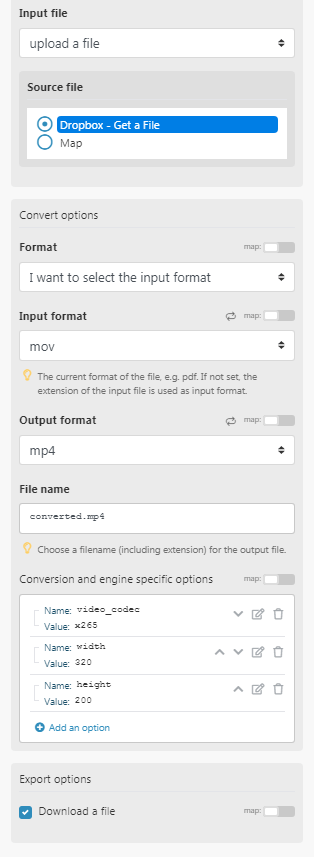

Conversion and engine specific options
Specify conversion and engine specific options. To view available options, see the CloudConvert API documentation for input_format and output_format.
Download a file
Enable this option if you also want to include file data in the module's output.

Create an Archive

Enables you to add one or multiple files to the ZIP, RAR, 7Z, TAR, TAR.GZ or TAR.BZ2 archive.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Input Files
Specify files you want to add to the archive.
Upload a File
Select a source file from a previous module, or map the source file's name and data.
Import a file from URL

URL

Enter the URL of the file you want to archive.

Headers

Define request headers (optional). This is useful, for example, when the specified URL requires the authorization.

Output Format
Select the target format of the archived file.
File name
Enter the file name (including extension) for the target output file.
Conversion and engine specific options
Specify conversion and engine specific options. To view available options, see the CloudConvert API documentation for input_format and output_format.
Download a File
Enable this option if you also want to include file data in the module's output.

Merge Files

Merges at least two files into one PDF. If input files are not PDFs, they are automatically converted to PDF.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Input Files
Specify files you want to merge.
Upload a File
Select a source file from a previous module, or map the source file's name and data.
Import a file from URL

URL

Enter the URL of the file you want to archive.

Headers

Define request headers (optional). This is useful, for example, when the specified URL requires the authorization.

Output Format
Select the target format of the merged file.
File name
Enter the file name (including extension) for the target output file.
Conversion and engine specific options
Specify conversion and engine specific options. To view available options, see the CloudConvert API documentation for input_format and output_format.
Download a File
Enable this option if you also want to include file data in the module's output.

Optimize a File

This action module optimizes and compresses a file in PDF, PNG, or JPG format.

You specify the file and the parameters for optimizing and storing it.

The module returns the ID of the file and any associated fields, along with any custom fields and values that the connection accesses. You can map this information in subsequent modules in the scenario.

When you are configuring this module, the following fields display.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Input File
Select whether you want to upload a file using Workfront Fusion or provide the URL from which the file will be uploaded.
Upload a File
Select a source file from a previous module, or map the source file's name and data.
Import a file from URL
  • URL: Enter the URL of the file you want to convert.
  • Headers: (Optional) Define request headers. This is useful, for example, when the specified URL requires authorization.
Optimization for

Select the optimization profile for specific target needs.

  • Web: Optimization for the web (Default)

    • Remove redundant and unnecessary data for the web
    • Down-sample, clip, and intelligently compress images
    • Merge and subset fonts
    • Convert colors to RGB

  • Print: Optimization for print

    • Remove redundant and unnecessary data for printing

    • Down-sample, clip, and intelligently compress images

    • Merge and subset fonts

    • Convert colors to CMYK

  • Archive: Optimization for archiving purposes

    • Remove redundant and unnecessary data for archiving

    • Intelligently compress images

    • Merge and subset fonts

  • Scanned images: Optimization for scanned images

    • Profile optimized for PDFs that mainly consist of raster images

    • Compress the images without significantly reducing the visual quality

  • maximal size reduction: Optimization for maximal size reduction

    • Use the maximal possible compression

    • Might reduce the visual quality

Input format
Select the format of the input file you want to optimize.
File name
Enter a file name (including extension) for the target output file.
Conversion and engine specific options
Specify conversion and engine specific options. To view available options, see the CloudConvert API documentation for input_format and output_format.
Download a file
Enable this option if you also want to include file data in the module's output.

Jobs

  • Create a Job (advanced)
  • New Job Event
  • List Jobs
  • Get a Job
  • Delete a Job

Create a Job (advanced)

This module creates a job. A job can be one or multiple tasks that are identified in the Name field and linked between each other using the Input field.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Input Files
Select whether you want to upload a file using Workfront Fusion, or provide the URL from which the file will be uploaded.
Upload a File
Select a source file from a previous module, or map the source file's name and data.
Import a File from URL
  • URL: Enter the URL of the file you want to process.
  • Headers: (Optional) Define request headers. This is useful, for example, when the specified URL requires authorization.
Tasks

Add tasks that will be performed within the job.

Please find the descriptions of the operations' fields in the corresponding section.

  • Convert a file
  • Capture a Website
  • Optimize a File
  • Create an Archive
  • Merge Files

  • Execute a Command

    For more information on executing a command, see the CloudConvert API documentation.

  • Export a File to Temporary URL

    Specify the task name and input task name (e.g. Conversion).

Tag
Enter a tag. Tags are arbitrary strings to identify the job. They do not have any effect and can be used to associate the job with an ID.

Delete a Job

This module deletes a job, including all tasks and data.

NOTE
Jobs are deleted automatically 24 hours after they have ended.
Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Job ID
Enter or map the ID of the job you want to delete.

Get a Job

This module retrieves job details.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Job ID
Enter or map the ID of the job you want to retrieve details about.

List Jobs

This module retrieves all jobs that have been run in your account.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Status
Select the job status to filter returned jobs by.
Limit
Set the number of jobs Workfront Fusion 2.0 will return during one execution cycle.

New Job Event

Triggers when a job in your account or task is created, finishes, or fails.

NOTE
  • The job created by the Create a Job (advanced) module consists of several tasks.
  • The New Job Event trigger is also triggered when an individual task is created, has finished, or has failed.
Webhhook name
Enter the webhook name.
Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Output Format
Select whether you want to save the captured website in PNG, JPG, or PDF format.
Event
Select whether the module is triggered when the job or task is created, finishes, or fails.
NOTE

  • If working with the Array Aggregator (e.g. you have many files in different formats to convert), use the I don’t know the input format option in the Add a task dialog. Otherwise the error is returned.

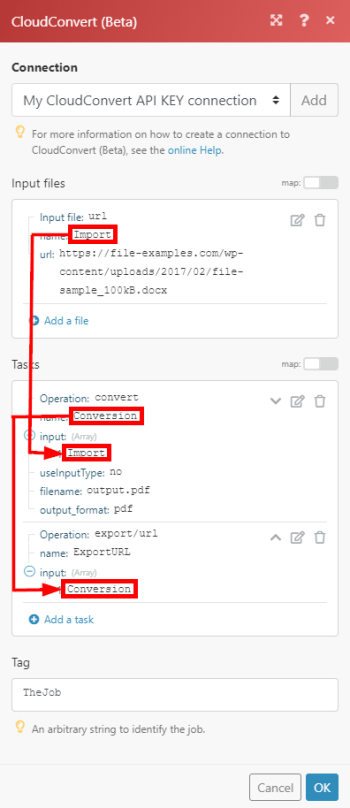

  • Linking tasks within the job (name > input, name > input,…):

    Linking name across jobs >

Tasks

  • Get a Task
  • Download a File
  • List Tasks
  • Retry a Task
  • Cancel a Task
  • Delete a Task

Cancel a Task

This module cancels a task that has a status of waiting or processing.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Task ID
Enter or map the ID of the task you want to cancel.

Delete a Task

Delete a task, including all data.

NOTE
Tasks are deleted automatically 24 hours after they have ended.
Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Task ID
Enter (map) the ID of the task you want to delete.

Download a File

This module retrieves file name and file data from the specified task.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Task ID
Enter or map the ID of the task you want to download the file from.

Get a Task

This module retrieves task details.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Task ID
Enter or map the ID of the task you want to retrieve details about.

List Tasks

This module retrieves all tasks in your account based on filter settings.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Status
Select the task status to filter returned tasks by.
Job ID
Enter or map the Job ID to return only tasks within the specified job.
Operation

Enter the operation type to return only tasks with the specified operation.

Note: Use the List Possible Operations module to retrieve operations.

Limit
Enter or map the maximum number of records you want the module to return during each scenario execution cycle.

Retry a Task

This module creates a new task, based on the settings (payload) of another task.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.
Task ID
Enter or map the ID of the task you want to create a new task from.

Other

  • Get My Info
  • Make an API Call

Get My Info

Retrieves authenticated account details about the current user.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Connect CloudConvert to Workfront Fusion in this article.

Make an API Call

Allows you to perform a custom API call.

Select the HTTP request method you need to configure the API call. For more information, see HTTP request methods.

Connection
For instructions about connecting your CloudConvert account to Workfront Fusion, see Create a connection to Adobe Workfront Fusion - Basic instructions
URL

Enter a path relative to https://api.cloudconvert.com/. For example: /v2/tasks

For the list of available endpoints, see the CloudConvert API v2 Documentation.

Method
Headers

Add the headers of the request in the form of a standard JSON object.

For example, {"Content-type":"application/json"}

Workfront Fusion 2.0 adds the authorization headers for you.

Query String

Add the query for the API call in the form of a standard JSON object.

For example: {"name":"something-urgent"}

Body
Add the body content for the API call in the form of a standard JSON object.When using conditional statements such as if in your JSON, put the quotation marks outside of the conditional statement.

Example: List Tasks

The following API call returns all tasks from your CloudFront account:

URL: /v2/tasks

Method: GET

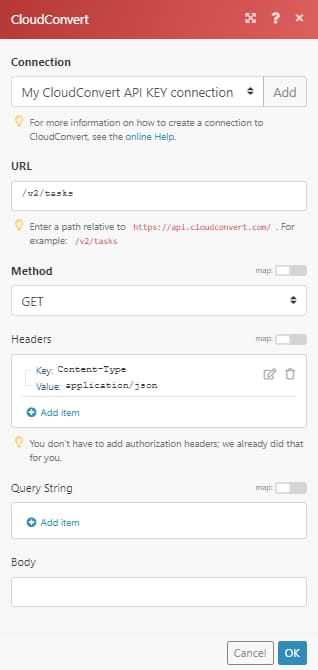

API example input

Matches of the search can be found in the module’s Output under Bundle > Body > data.

In our example, 6 tasks were returned:

API example output

Troubleshooting

See the following table for possible errors and their solutions:

Error
Next steps
The output file size exceeds the limit allowed for your scenario.
Please refer to file size limits.
You have exceeded the maximum conversion time.
The free CloudConvert plan offers 25 conversion minutes daily. If your usage exceeds the limit of the free plan, you may switch to a (prepaid) package or subscription.
Failed to read frame size: Could not seek to 1508. �/output/JLIADSA00137P0.mp3: Invalid argument.
This error is thrown e.g. when converting files from MP3 to WAV. Make sure that you have selected the correct region because it will find references to files but not only just the correct file.

RuntimeError:

Maximum number of repeats exceeded.

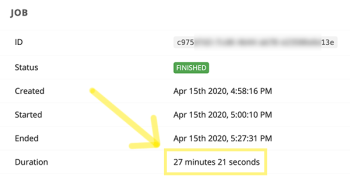

Locate the corresponding CloudConvert job in your CloudConvert dashboard's list of jobs and check the job's duration:

The CloudConvert > Convert a File module's timeout is set to 3 minutes. If the job's duration exceeds 3 minutes (possibly due to a temporary overload of the CloudConvert service), the module throws the above mentioned error.

In this case consider one of these options:

  • Enable the Allow storing of Incomplete Executions option in the scenario settings to store the incomplete executions for later manual resolution. Optionally you may attach an error handling route to the CloudConvert module with the Break directive to resolve the incomplete executions automatically.
  • Disable the Download a file option in the CloudConvert > Convert a file module. In this case the module will not wait for the conversion result. To obtain the conversion result, create a new scenario and use the CloudConvert > New Job Event trigger.

Example workflow for CloudConvert connector

INFO
Example: Converting a video from MOV to MP4 format

  1. Visit https://cloudconvert.com/video-converter

  2. Click Select File and choose your sample MOV file.

  3. Click the dropdown, next to Convert to and choose MP4.

  4. Click the wrench icon.

  5. Configure the MP4 compression settings as you see fit.

  6. Click Convert.

  7. Once the conversion is complete, click Download.

  8. Review the converted video.

  9. Repeat steps 1 to 8 until you have found the optimal conversion settings for step 5.

  10. Visit https://cloudconvert.com/api/v2/convert#convert-tasks

  11. Choose mov for the input_format field.

  12. Choose mp4 for the output_format field.

  13. A list of all possible parameters like video_codec, crf, etc. will appear.

  14. In Workfront Fusion 2.0, insert the CloudConvert > Convert a File module in your scenario.

  15. Open the module’s settings.

  16. Configure the module as shown below:

    CloudConvert example

  17. Make sure to include all the settings in the Conversion and engine specific options field: for each setting from step 5, locate the corresponding parameter from step 13 and its corresponding value.

recommendation-more-help
7e1891ad-4d59-4355-88ab-a2e62ed7d1a3
