Feature Flagging

October 16, 2021

Topics:
Implement Mobile

CREATED FOR:

Intermediate
Developer

Mobile app product owners need the flexibility to roll out new features in their app without having to invest in multiple app releases. They may also want to roll out features gradually to a percentage of the user base, to test effectiveness. Adobe Target can be used to experiment with UX features like color, copy, buttons, text & images and provide those features to specific audiences.

In this lesson, we’ll create a “feature flag” offer which can be used as a trigger to enable specific app features.

Learning Objectives

At the end of this lesson, you will be able to:

Add a new location to the batch prefetch request
Create a Target activity with an offer that will be used as a feature flag
Load and validate the feature flag offer in your app

Add a New Location to the Prefetch Request to the Home Activity

In the demo app from our previous lessons, we’ll add a new location called “wetravel_feature_flag_recs” to the prefetch request in the Home Activity and load it to the screen with a new Java method.

NOTE

One of the benefits of using a prefetch request is that adding a new request does not add any additional network overhead or cause additional load work since the request is packaged within the prefetch request

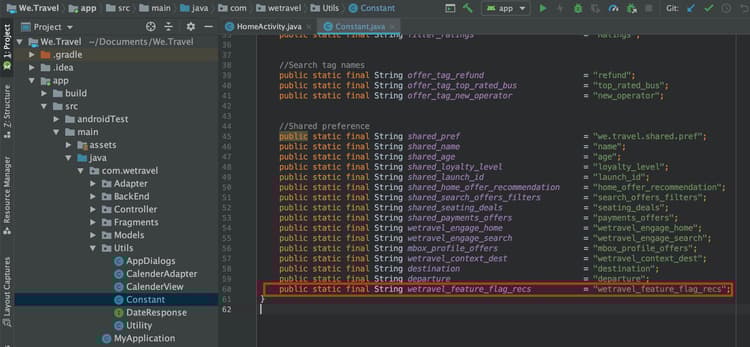

First, verify that the wetravel_feature_flag_recs constant is added in the Constant.java file:

Add feature flag constant

Here is the code:

public static final String wetravel_feature_flag_recs = "wetravel_feature_flag_recs";

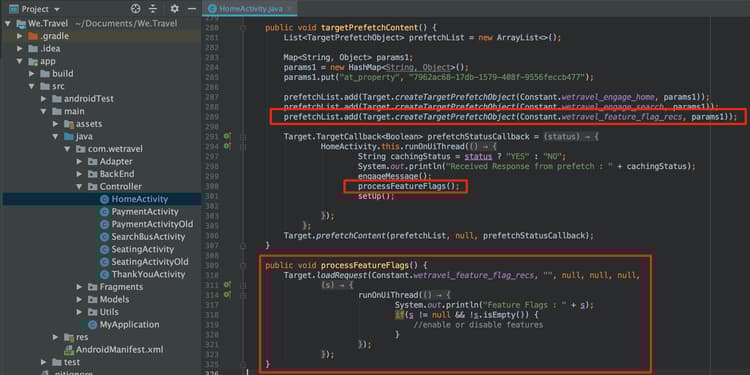

Now add the location to the prefetch request and load a new function called processFeatureFlags():

Feature Flag Code

Here is the full updated code:

public void targetPrefetchContent() {
    List<TargetPrefetchObject> prefetchList = new ArrayList<>();

    Map<String, Object> params1;
    params1 = new HashMap<String, Object>();
    params1.put("at_property", "7962ac68-17db-1579-408f-9556feccb477");

    prefetchList.add(Target.createTargetPrefetchObject(Constant.wetravel_engage_home, params1));
    prefetchList.add(Target.createTargetPrefetchObject(Constant.wetravel_engage_search, params1));
    prefetchList.add(Target.createTargetPrefetchObject(Constant.wetravel_feature_flag_recs, params1));

    Target.TargetCallback<Boolean> prefetchStatusCallback = new Target.TargetCallback<Boolean>() {
        @Override
        public void call(final Boolean status) {
            HomeActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    String cachingStatus = status ? "YES" : "NO";
                    System.out.println("Received Response from prefetch : " + cachingStatus);
                    engageMessage();
                    processFeatureFlags();
                    setUp();

                }
            });
        }};
    Target.prefetchContent(prefetchList, null, prefetchStatusCallback);
}

public void processFeatureFlags() {
    Target.loadRequest(Constant.wetravel_feature_flag_recs, "", null, null, null,
            new Target.TargetCallback<String>(){
                @Override
                public void call(final String s) {
                    runOnUiThread(new Runnable() {
                        @Override
                        public void run() {
                            System.out.println("Feature Flags : " + s);
                            if(s != null && !s.isEmpty()) {
                                //enable or disable features
                            }
                        }
                    });
                }
            });
}

Validate the Feature Flag Request

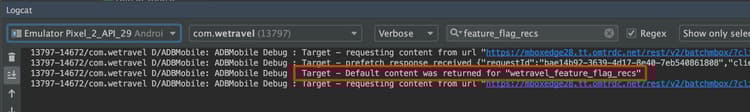

Once the code is added, run the Emulator on the Home Activity and watch Logcat for the updated response:

Validate feature flag location

Create a Feature Flag JSON Offer

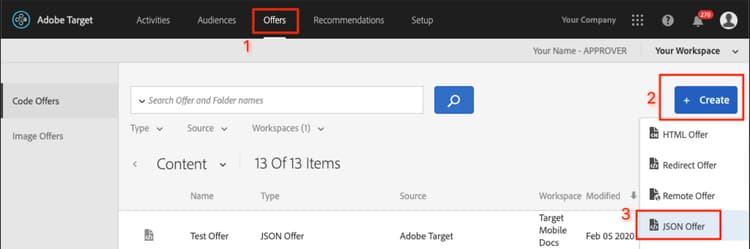

We’ll now create a simple JSON offer that will act as a flag or trigger for a specific audience - the audience that would receive the feature roll-out in their app. In the Target interface, create a new offer:

Create Feature Flag JSON Offer

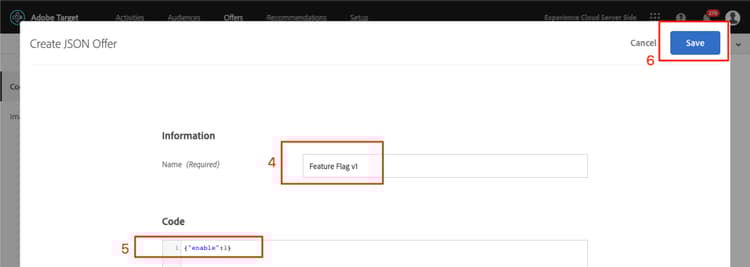

Let’s name it “Feature Flag v1” with the value

feature_flag_v1 JSON Offer

Create an Activity

Now let’s create an A/B Test activity with that offer. For detailed steps on creating an activity see the previous lesson. The activity will only need one audience for this example. In a live scenario, you may want to build out specific custom audiences for specific feature roll-outs, then set the activity to use those audiences. In this example, we’ll just allocate traffic 50/50 (50% to visitors who would see the feature updates, and 50% to visitors who would see a standard experience). Here is the configuration for the activity:

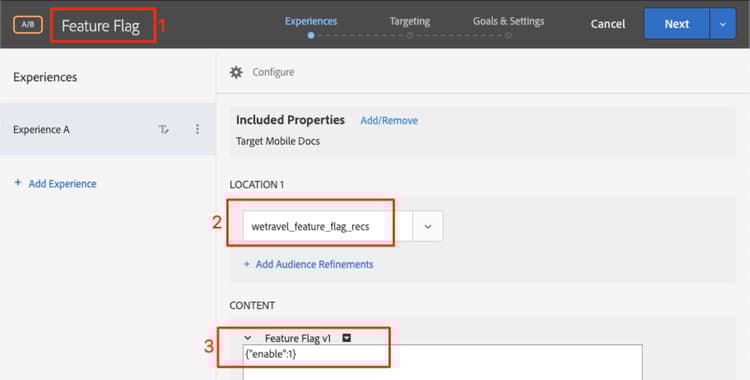

Name the Activity “Feature Flag”
Select the “wetravel_feature_flag_recs” location
Change the content to the “Feature Flag v1” JSON offer

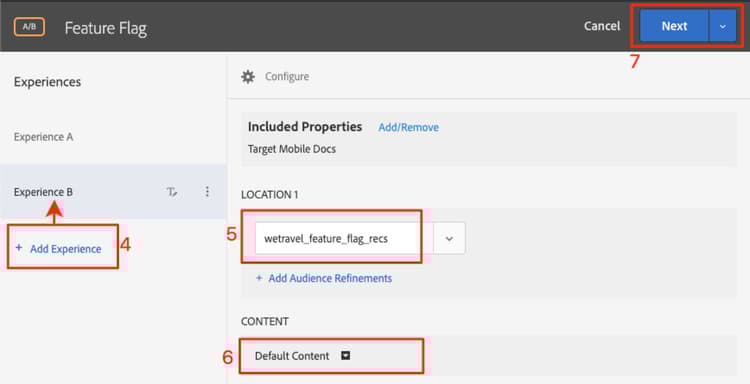

Click Add Experience to add experience B.
Leave the “wetravel_feature_flag_recs” location
Leave Default Content for the content
Click Next to advance to the Targeting screen

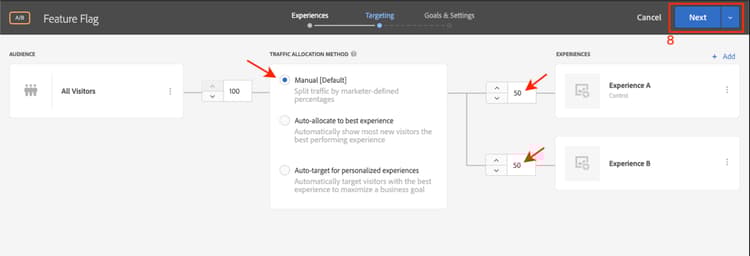

On the Targeting screen, verify that the Traffic Allocation method is set to the default setting (Manual) and that each experience has the default 50% allocation. Select Next to advance to Goals & Settings.

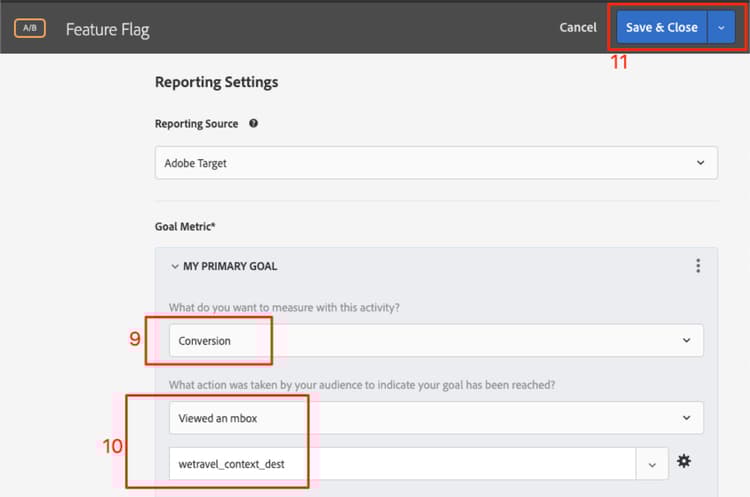

Set the Primary Goal to Conversion.
Set the action to Viewed an Mbox. We’ll use the “wetravel_context_dest” location (since this location is on the Confirmation screen, we can use it to see if the new feature leads to more conversions).
Click Save & Close.

Activate the activity.

Validate the Feature Flag Activity

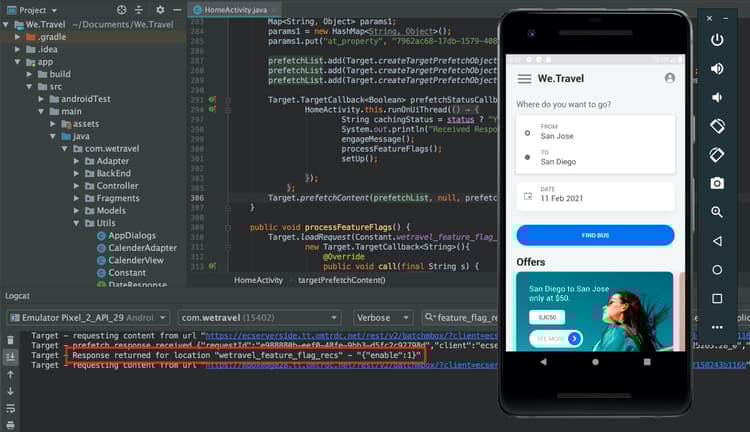

Now use the emulator to watch for the request. Since we set the targeting to 50% of users, there’s a 50% you’ll see the feature flag response contain the {enable:1} value.

Feature Flag Validation

If you don’t see the {enable:1} value, that means you weren’t targeted for the experience. As a temporary test, to force the offer to show, you could:

Deactivate the activity.
Change the traffic allocation to 100% on the new feature experience.
Save and reactivate.
Wipe the data on your emulator and then restart the app.
The offer should now return the {enable:1} value.

In a live scenario, the {enable:1} response can be used to enable more custom logic in your app to display the specific feature set you want to show your target audience.

Conclusion

Nice work! You now have the skills needed to roll-out features to specific user audiences.
