Messy fibers 3
In: Texture generators > Noises
Description
A variation of the Messy fibers structured noises.
See also: Messy fibers 1, Messy fibers 2
Outputs
Output Grayscale
The generated noise as a grayscale bitmap.
Parameters
Scale Integer
The subdivision of the grid used to generate the noise tiles. A higher value results in more tiles being drawn and a denser noise.
Disorder Float
Displaces the ingredients of the noise. This can be used to animate the noise.
Disorder speed Float
Adjusts the distance of displacement applied by the Disorder parameter. This can be used to control the speed of displacement when animating the noise.
Disorder anisotropy Float
Controls the span of directions of the displacement applied by the Disorder parameter, where a higher value results in a narrower, more defined direction. The direction is controlled by the Disorder anisotropy angle parameter.
Disorder anisotropy angle Float
Controls the direction of the displacement applied by the Disorder parameter, when the ‘Disorder anisotropy’ parameter is not zero.
Angle Float
The angle used to set the direction of the threads, in number of turns and starting from horizontal right.
Angle random Float
The maximum amout of random variation applied to the Angle value, in number of turns.
Luminance random Float
The range of luminance randomly subtracted from the threads, where 1 is the full range.
Tile offset Float2
Controls the position of the portion of infinite plane used to render the noise.
Non-square expansion Boolean
In non-square images, keeps the generated tile square and expands the noise generation to the image’s bounds.

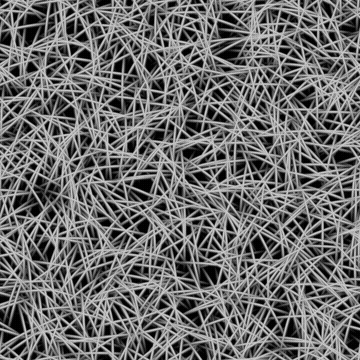

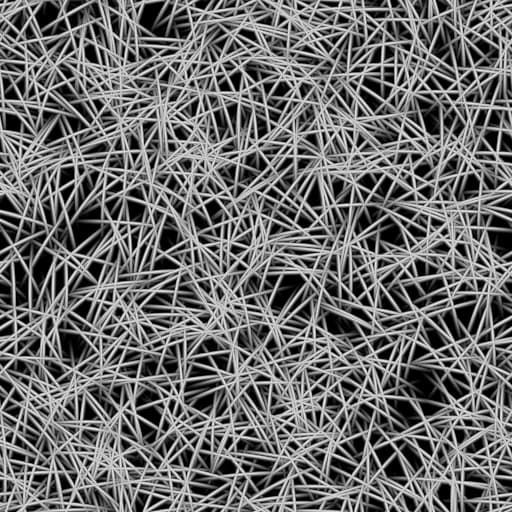

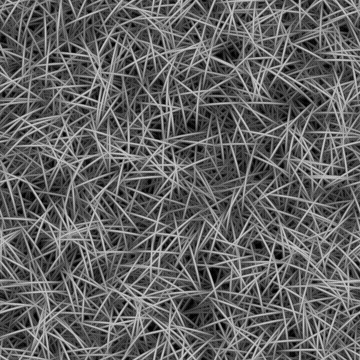

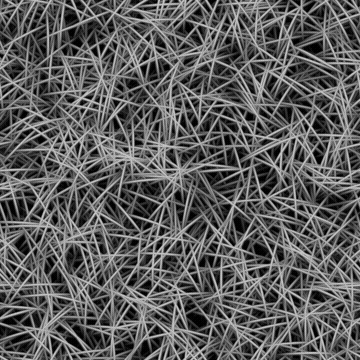

Examples
