DocumentationSubstance 3D

Grunge Rust Fine

Last update: Thu Feb 26 2026 00:00:00 GMT+0000 (Coordinated Universal Time)

{width="200px"}

In: Texture Generators /Noises

Simple

Description

The Grunge Rust Fine node generates a grunge map akin to a fine grunge rust overlay.

Parameters

  • Balance FloatAdjusts the balance between dark and bright values.

  • Contrast FloatAdjusts the contrast of the image.

  • Invert BooleanInverts the output of the image, using a 1-x operation.

  • Non Square Expansion BooleanEnables compensation of squash and stretch with non-square ratios.

  • Advanced

    • Base Grunge Contrast FloatAdjusts the contrast of the grunge texture used as a base for the rust.
    • Base Warp Intensity FloatAdjusts the intensity of the warping effect applied on the grunge map used as base for the rust.
    • Streaks Intensity FloatAdjusts the intensity of the brighter streaks and spots overlaid on the base grunge texture.
    • Noise Intensity FloatAdjusts the intensity of the noise applied on the base grunge texture.
    • Sharpen Intensity FloatAdjusts the intensity of the global sharpening effect.

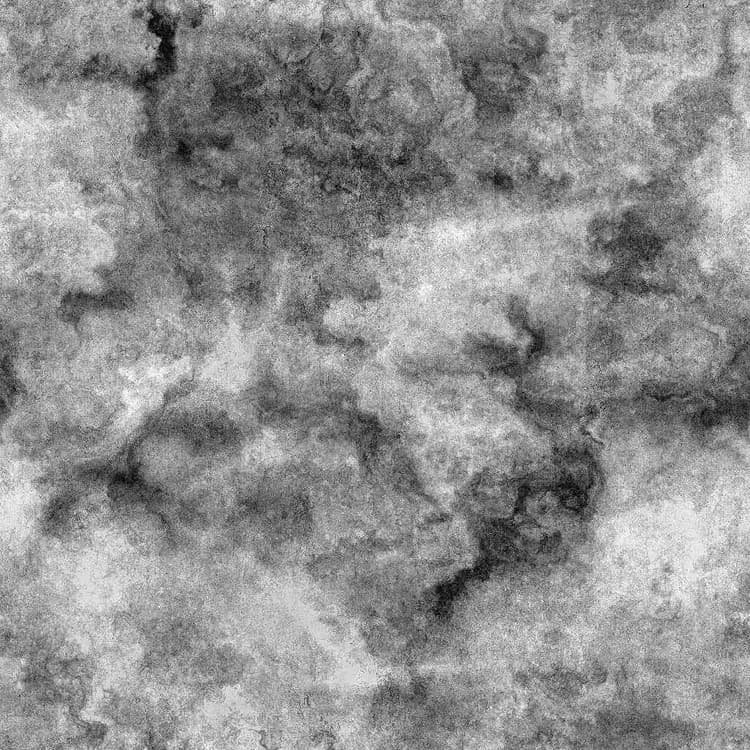

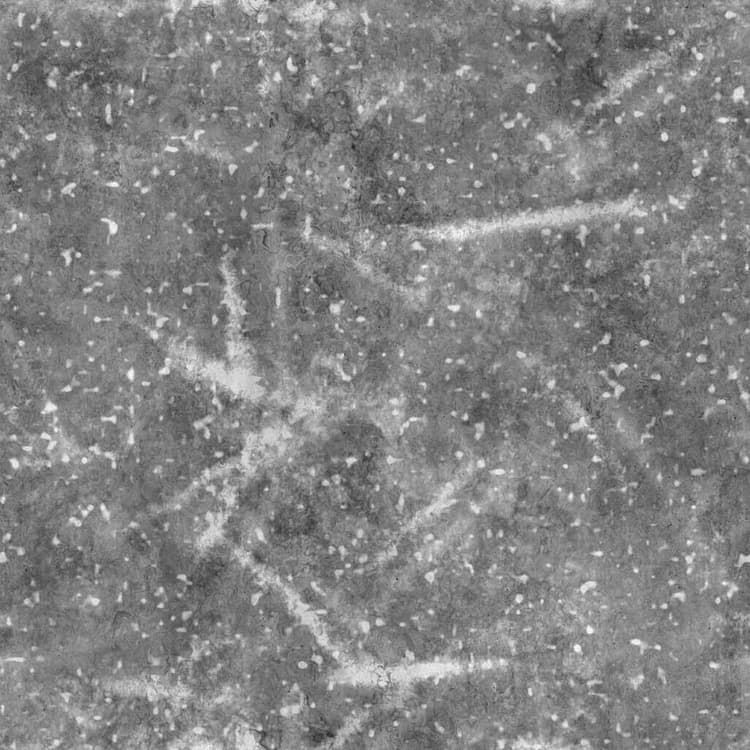

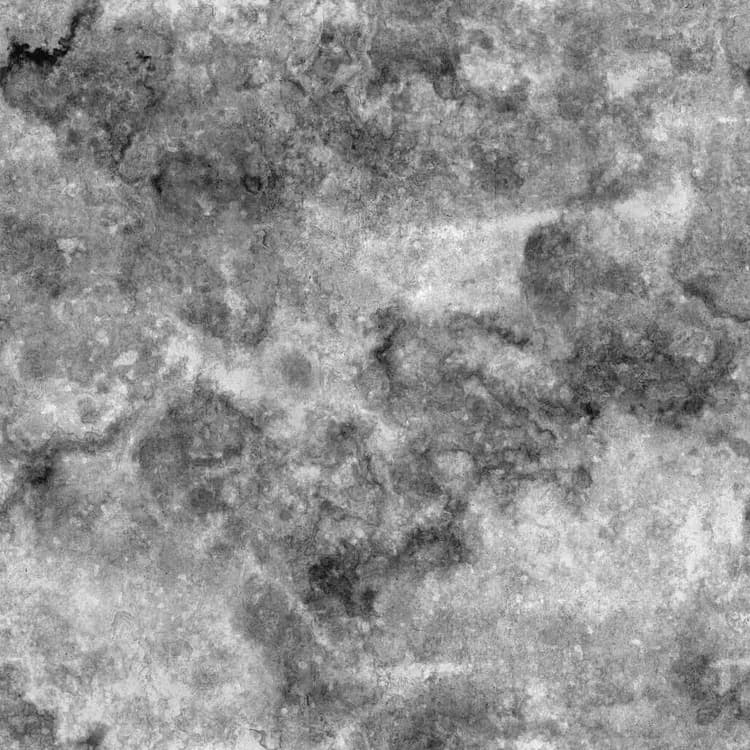

Example Images

{width="256px"}
{width="256px"}
