Dirt gradient

Last update: September 10, 2026

Dirt gradient - Icon {width="200px"}

In: Texture generators > Noises

Description

A variation of the grainy Dirt noises, featuring a directional falloff gradient.

See also: Dirt 1, Dirt 2, Dirt 3, Dirt 4, Dirt 5

Outputs

Output Grayscale
The generated noise as a grayscale bitmap.

Parameters

Disorder Float
Displaces the ingredients of the noise. This can be used to animate the noise.
Disorder speed Float
Adjusts the distance of displacement applied by the Disorder parameter. This can be used to control the speed of displacement when animating the noise.
Disorder anisotropy Float
Controls the span of directions of the displacement applied by the Disorder parameter, where a higher value results in a narrower, more defined direction. The direction is controlled by the Disorder anisotropy angle parameter.
Disorder anisotropy angle Float
Controls the direction of the displacement applied by the Disorder parameter, when the Disorder anisotropy parameter is not zero.
Non-square expansion Boolean
In non-square images, keeps the generated tile square and expands the noise generation to the image’s bounds.

Examples

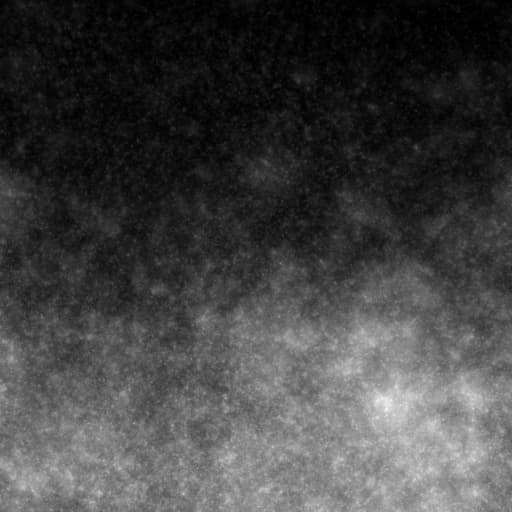

Dirt gradient - Example 1 {modal="regular"}

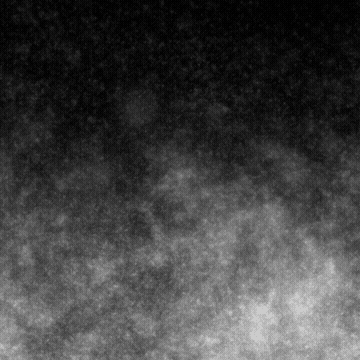

Dirt gradient - Example 2 {modal="regular"}

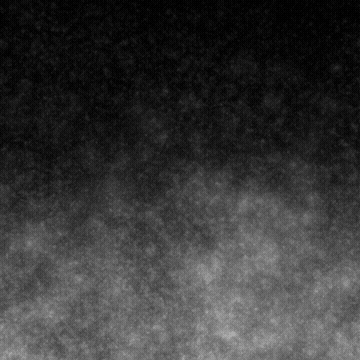

Dirt gradient - Example 3 {modal="regular"}

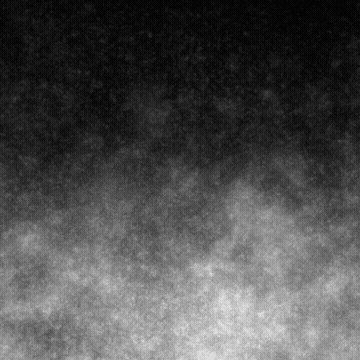

Dirt gradient - Example 4 {modal="regular"}
