3D Voronoi
In: Texture Generators > Noises
Description
The 3D Voronoi node generates a Voronoi noise in 3D space based on the Position Map input.

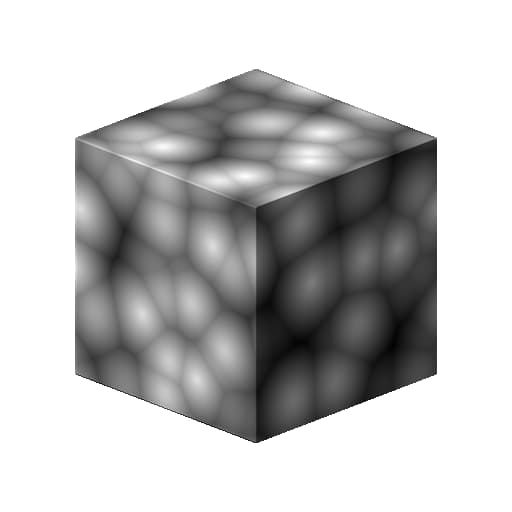

This node can be tested with Cube 3D GBuffers as input instead of an actual baked map (as seen in the Example Image below).
WARNING
This noise is meant to be used with the GPU engine only (i.e., Direct3D or OpenGL). Go to Tools > Switch engine… or press the F9 key to select the desired engine.
Parameters
Invert Boolean
Inverts the output image.
Scale Float
Controls the scale of the 3D Voronoi noise.
Note: When Tiling is enabled on any axis, the scale adjustement is stepped. This is expected.
Note: When Tiling is enabled on any axis, the scale adjustement is stepped. This is expected.
Size Float3
Controls the size of the 3D Voronoi noise in the X, Y and Z axes. Non-uniform values result in a stretching or squashing effect.
Note: When Tiling is enabled on any axis, the size adjustment is stepped. This is expected.
Note: When Tiling is enabled on any axis, the size adjustment is stepped. This is expected.
Offset Float3
Applies an offset to the position of the 3D Voronoi noise in the X, Y and Z axes.
Disorder Float3
The intensity of the random offset applied to each point of the noise in the X, Y and Z axes.
Distortion Intensity Float
Controls the intensity of a warping effect applied on the 3D Voronoi noise.
Distortion Scale Multiplier Float
Controls the scale of the deforming pattern used in the warping effect controlled by the Distortion Intensity.
Rounded Curve Float
Rounds the slope around each point of the noise to make it convex.
Note: This parameter is not available when the Style parameter is set to Edge.
Note: This parameter is not available when the Style parameter is set to Edge.
Distance Scale Float
Adjusts the distance of the gradient around each point of the noise.
Distance Mode Integer
Sets the method to compute the distance gradient around each point of the noise:
- Euclidean
- Manhattan
- Chebyshev
- Minkowski
- Euclidean
- Manhattan
- Chebyshev
- Minkowski
Minkowski Number Float
The order p of the Minkowski distance. If we divide the distance gradient into quadrants, this number impacts these quadrants as follows:
- p is exactly 1: Straight
- p is lower than 1: Concave
- p is greater than 1: Convex
Interesting values:
- 1.0: Manhattan distance
- 2.0: Euclidean distance
- Infinity: Chebyshev distance
Note: This parameter is only available when the Distance Mode parameter is set to Minkowski.
- p is exactly 1: Straight
- p is lower than 1: Concave
- p is greater than 1: Convex
Interesting values:
- 1.0: Manhattan distance
- 2.0: Euclidean distance
- Infinity: Chebyshev distance
Note: This parameter is only available when the Distance Mode parameter is set to Minkowski.
Style Integer
Sets the method rendering the data of the 3D Voronoi noise, considering the noise is based on a set of points in 3D space:
- F1: the distance to the closest point in 3D space
- F2: the distance to the second closest point in 3D space
- F2-F1
- F1*F2
- F1/F2
- Edge: the edge between each cell of the noise in 3D space
- Random color: assign a random flat color to each cell of the noise in 3D space
- F1: the distance to the closest point in 3D space
- F2: the distance to the second closest point in 3D space
- F2-F1
- F1*F2
- F1/F2
- Edge: the edge between each cell of the noise in 3D space
- Random color: assign a random flat color to each cell of the noise in 3D space
Edge Thickness Float
Adjusts the thickness of the edges detected between cells of the 3D Voronoi noise. Edges are detected in the X, Y and Z axes, thus some thicknesses may increase quicker than other depending on the cells’ depth.
Note: This parameter is only available when the Style parameter is set to Edge.
Note: This parameter is only available when the Style parameter is set to Edge.
Enable Tiling Boolean
Adjusts the 3D Voronoi noise so its resulting pattern repeats in the X, Y and Z axes.

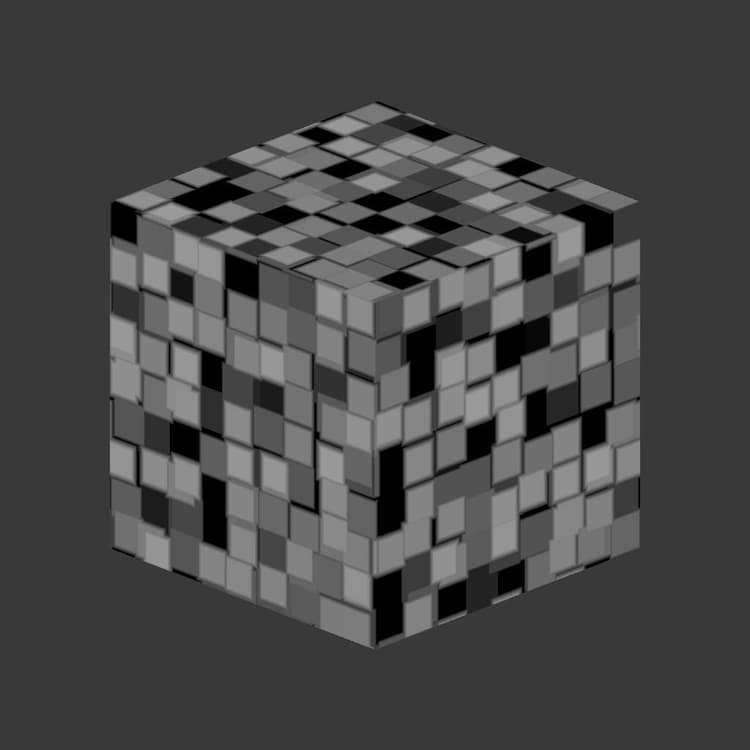

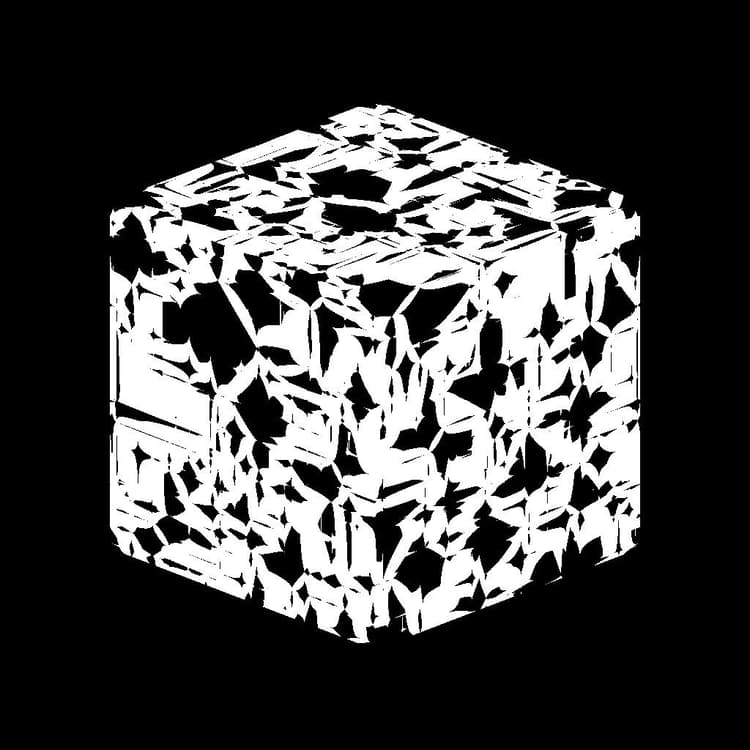

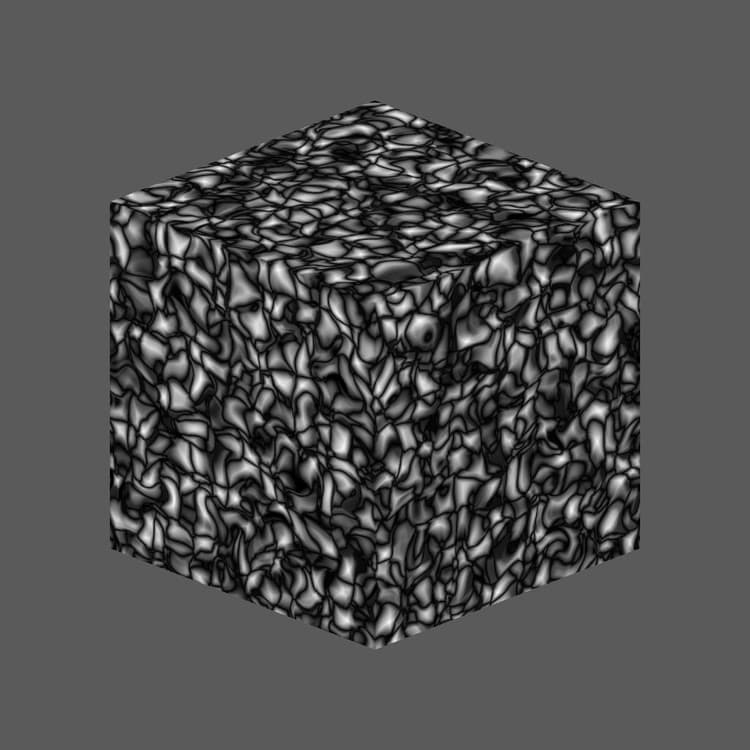

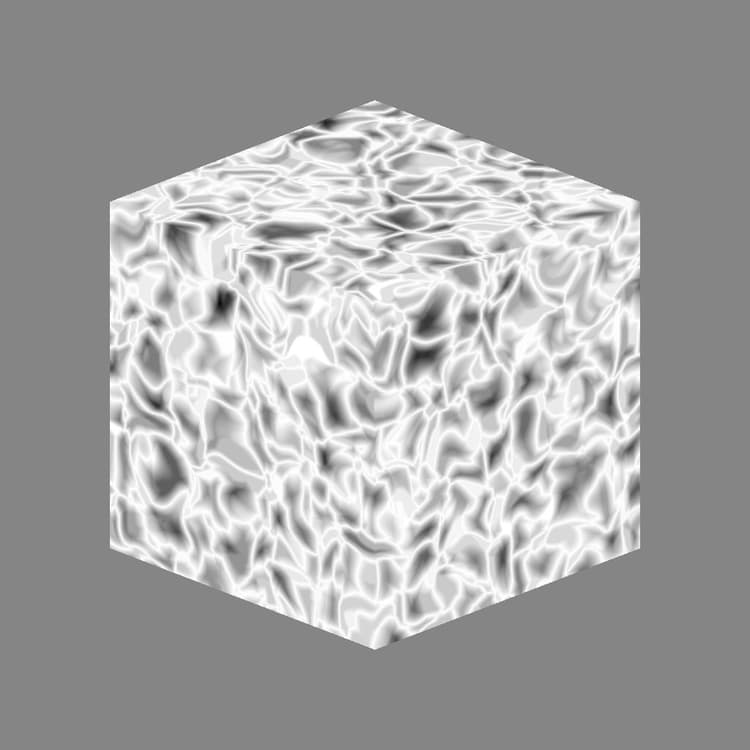

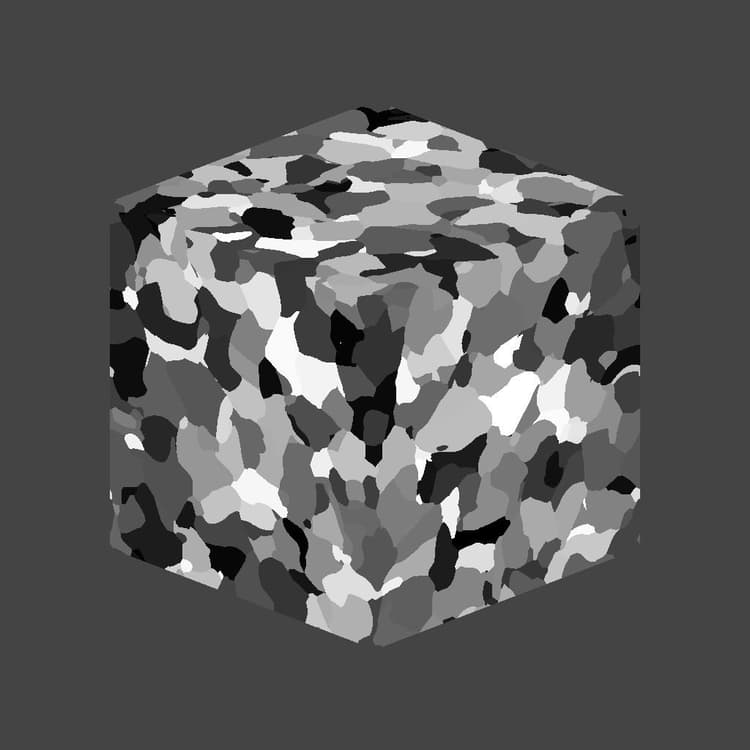

Examples
