3D Perlin Noise Fractal

Last update: Thu Feb 26 2026 00:00:00 GMT+0000 (Coordinated Universal Time)

{width="200px"}

In: Texture Generators*/Noises*

Intermediate

Description

The 3D Perlin Noise Fractal node generates a fractal Perlin noise in 3D space based on the Position Map input.

This node can be tested with Cube 3D GBuffers as input instead of an actual baked map (as seen in the Example Image below).

note warning
WARNING
This noise is meant to be used with the GPU engine only (i.e., Direct3D or OpenGL). Go to Tools > Switch engine… or press the F9 key to select the desired engine.

Parameters

  • Invert Boolean
    Inverts the output image.
  • Scale Float
    Controls the scale of the fractal 3D Perlin noise.
  • Size Float3
    Controls the size of the fractal 3D Perlin noise in the X, Y and Z axes. Non-uniform values result in a stretching or squashing effect.
  • Offset Float3
    Applies an offset to the position of the fractal 3D Perlin noise in the X, Y and Z axes.
  • Distortion Intensity Float
    Controls the intensity of a warping effect applied on the fractal 3D Perlin noise.
  • Distortion Scale Multiplier Float
    Controls the scale of the deforming pattern used in the warping effect controlled by the Distortion Intensity.
  • Min Level Integer
    The minimum level of of repetition used in the fractal pattern. A wider minimum/maximum range results in a richer pattern with variation on more frequency ranges.
  • Max Level Integer
    The maximum level of of repetition used in the fractal pattern. A wider minimum/maximum range results in a richer pattern with variation on more frequency ranges.
  • Roughness Float
    Controls the balance between low and high levels of repetition in the fractal pattern.
    Note: A value of 0 results in an output which is not in line with other low values following it. This is expected.
  • Lacunarity Float
    Controls how the applied fractal pattern fills space. A higher value results in less gaps in the pattern and a denser noise.
  • Global Opacity Float
    Controls the range of the fractal 3D Perlin noise values around the Baseline value.
  • Baseline Float
    Applies an offset to the baseline luminance value for the 3D Perlin noise value distribution.
  • Contrast Float
    Adjusts the contrast of the 3D Perlin noise.
  • Absolute Boolean
    Uses absolute values in the 3D Perlin noise. This effectively inverts the value distribution for values below 0.5.
  • Enable Tiling Boolean
    Adjusts the 3D Perlin noise so its resulting pattern repeats in the X, Y and Z axes.

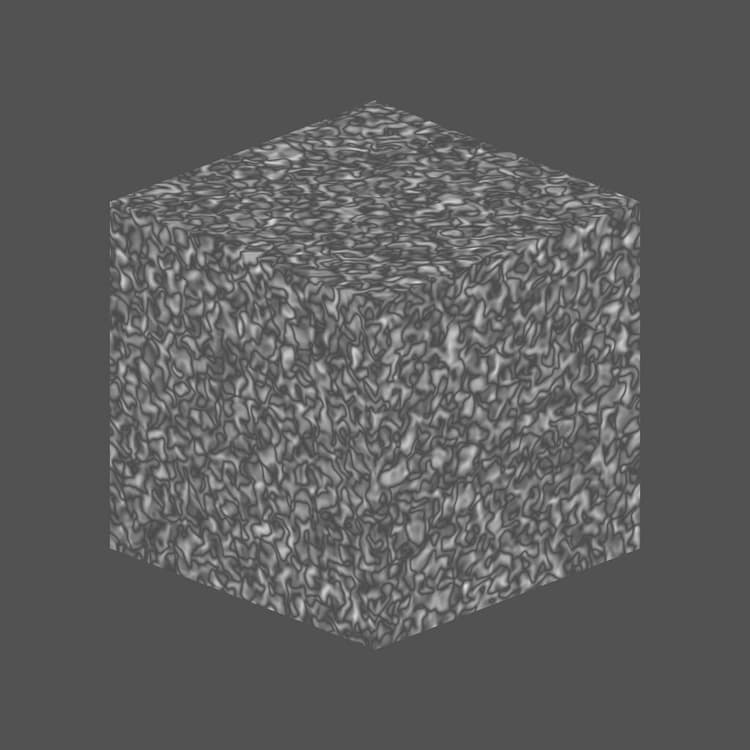

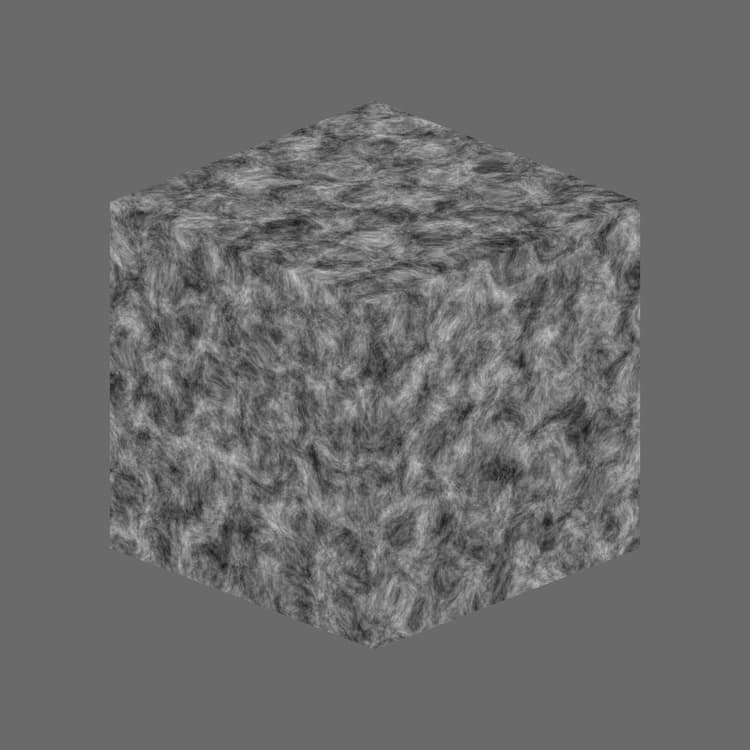

Example Images

{width="256px"}
{width="256px"}
{width="256px"}
