UV Mapper Grayscale

Last update: September 10, 2026

Node icon

In: Spline & Path Tools > Spline Tools

Description

Maps the input grayscale image using the coordinates provided in the UV input.

NOTE
See also UV Mapper Color.

Inputs

UV Color
Image coordinates encoded in the red (U) and green (V) channels of a color image.
Input Color
The grayscale image which should be mapped to the coordinates provided in the UV input.

Outputs

Output Color
The result of mapping the Input image using the input UV coordinates, as a grayscale image.

Examples

table 0-row-2 html-authored no-header
UVMapper-Variant1-Before

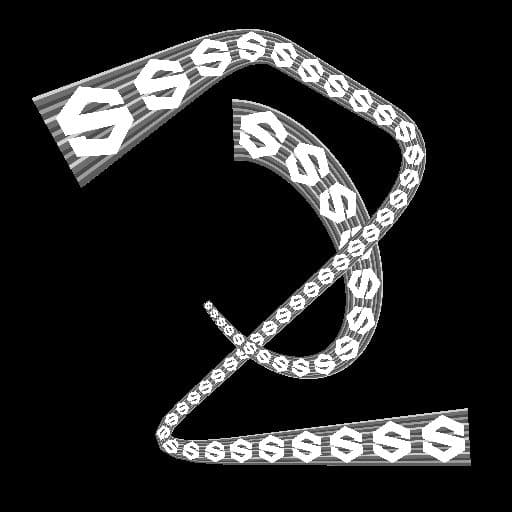

Before 		UVMapperGrayscale-Variant1-After
After
table 0-row-2 html-authored no-header
UVMapper-Variant2-Before

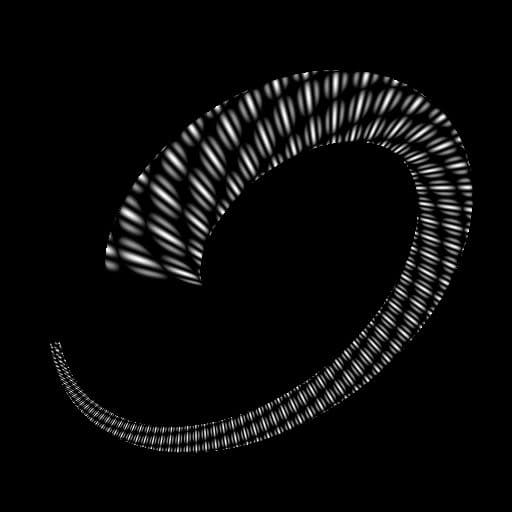

Before 		UVMapper-Variant2-After
After

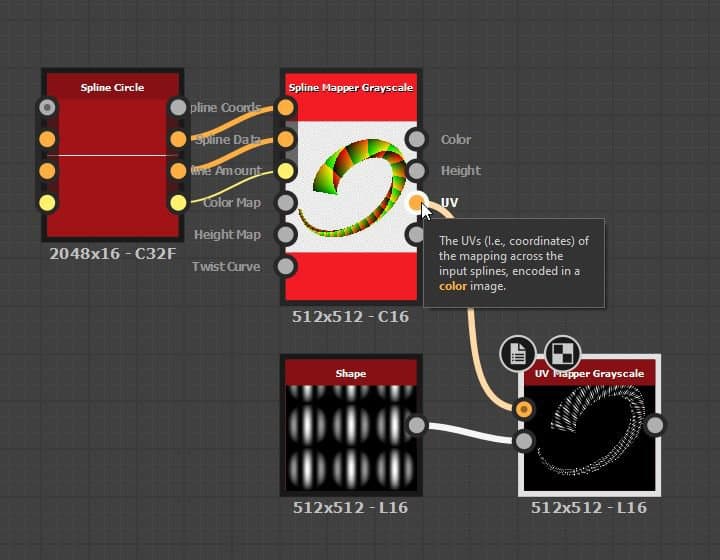

Node example 1
