Spline Render
| table 0-row-2 0-border-0px 1-border-0px 1-width-33.33% 2-border-0px 2-width-100.00% html-authored no-header | |
|---|---|
|
In: Spline & Path Tools > Spline Tools |
DescriptionDraws strings of segments along the input Splines over the input Background. |
Input connectors
BackgroundGrayscaleThe grayscale image over which splines should be drawn.
Spline Coords ColorThe coordinates of the input splines’ points encoded in the RGBA channels of a color image:
R - X position
G - Y position
B - Height
A - Packed data:
* Sign: Spline is closed (negative) or open (positive);
* Absolute value: Thickness + 1.
Spline Data ColorAdditional data of the input splines encoded in the RGBA channels of a color image.
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
Spline Amount IntegerThe number of input splines.
Output connectors
Output Grayscale
The result image of drawing the input Splines on top of the Background.
Parameters
Mode IntegerThe method of selecting which splines should be drawn:
- Draw Spline List: Draw all splines in the input list;
- Draw Single Spline: Draw only the specified spline from the input list;
- Draw Spline Range: Draw only the splines in the specified range from the input list.
Draw Spline Index Integer (Available when ‘Mode’ is set to ‘Draw Single Spline’)The index of the spline that should be drawn.
Draw Spline Range Integer2 (Available when ‘Mode’ is set to ‘Draw Spline Range’)The range of indexes for the splines that should be drawn.
Show Direction Helper BooleanFor each spline, draws a dot at the start of the spline and an arrowhead at its end.
Segments Amount IntegerAdjusts the number of segments drawn along the splines.
A higher value results in smoother lines.
Envelope Spline Amount Integer
The number of duplicate segments that should be drawn along each spline’s thickness.
Start FloatOffsets the start of the portion of the spline which should be drawn.
The value represents the normalized length of the spline.
End FloatOffsets the end of the portion of the spline which should be drawn.
The value represents the normalized length of the spline.
Thickness Size Mode IntegerThe method of computing the thickness of the drawn segments:
- Image: the value is normalized in texture space, where 1 is the full width of the image. Thickness is relative to the texture resolution;
- Pixel: the value is an absolute number of pixels in the texture, where 1 is a full pixel. Thickness is separate from the texture resolution.
Thickness (image) Float (available when ‘Thickness Size Mode’ is set to Image)The thickness of the drawn segments normalized in texture space, where 1 is the full width of the image.
Thickness (px) Float (available when ‘Thickness Size Mode’ is set to Pixel)The thickness of the drawn segments as an absolute number of pixels in the texture, where 1 is a full pixel.
Enable Joints BooleanFills the gaps between the individual segments drawn along the splines, using discs.
Non-Square CorrectionBooleanAdjust the points’ positions and thickness to retain the spline shape in non-square resolutions.
This also impacts uniform distribution.
| accordion |
|---|
| Color |
|
Background Intensity FloatThe value multiplied against the Background input image. Spline Style IntegerThe method used to color the splines:
Spline Color FloatThe uniform grayscale value used to draw the segments. Random Luminance FloatFor each string of uncut segments in a spline, applies a random offset in the specified range to the grayscale value used to draw that string. Blend Mode IntegerThe method of blending the colors of the background and overlapping segments drawn along the splines:
|
| accordion |
|---|
| Random Segments |
|
Random Segments Start FloatAdjusts the probability that the string of segments closer to the start of the spline is cut. Random Segments End FloatAdjusts the probability that the string of segments closer to the end of the spline is cut. Random Offset FloatSets the maximum amount of displacement applied to each cut segment along its normal. Random Offset Center FloatOffsets the center of the random displacement applied to each cut segment along its normal. |

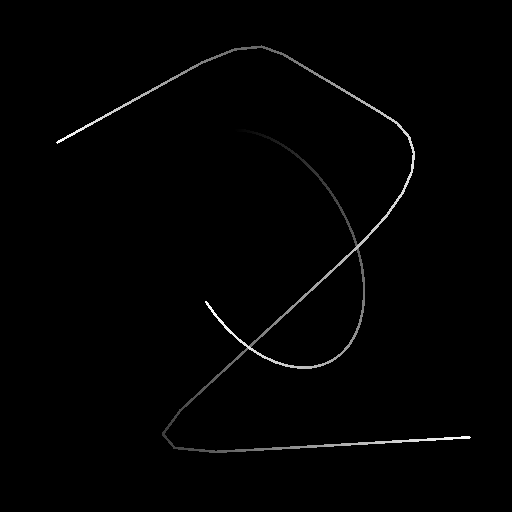

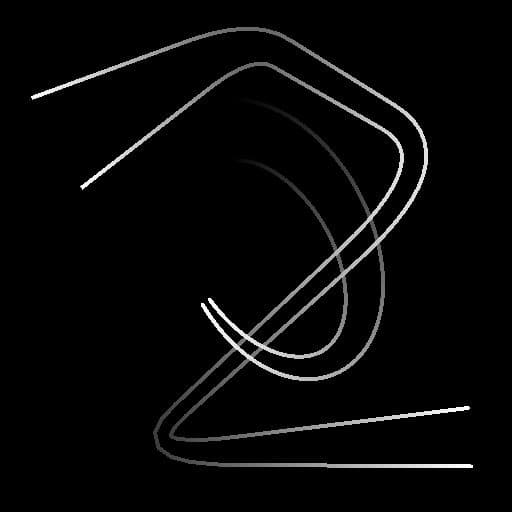

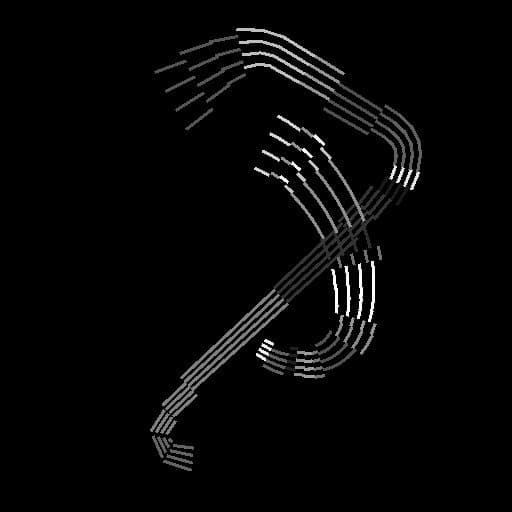

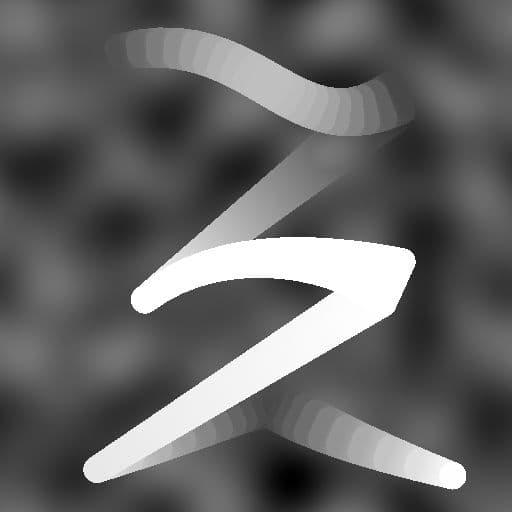

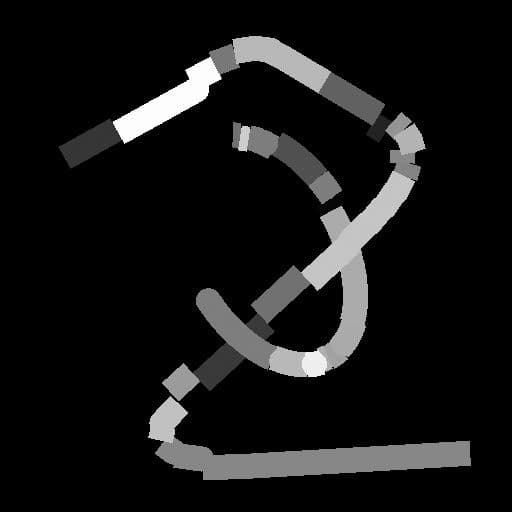

Examples
