Mirror (Filter Node)

{width="128px"} {width="128px"}

Mirror (Grayscale)

In: Filters/Transforms

Intermediate

Description

Mirrors the input image over a chosen axis, from a chosen side. Very useful, quick way to get symmetrical effects.

Parameters

• Mode: Mirror Axis X, Mirror Axis Y, Mirror CornerChoose to mirror left-right, top-bottom, or both.
• Axis X Offset: 0.0 - 1.0Only used when Axis X is chosen, define an offset.
• Axis Y Offset: 0.0 - 1.0Only used when Axis Y is chosen, define an offset.
• Invert Axis X: False/TrueOnly used when Axis X is chosen, Flip direction.
• Invert Axis Y: False/TrueOnly used when Axis Y is chosen, Flip direction.
• Corner Type: Top Left, Top Right, Bottom Left, Bottom RightOnly used when Corner type is chosen, define what corner to mirror from.

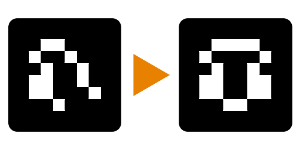

Example Images

table 0-row-1 1-row-1
{width="300px"}
