Shadows (Filter Node)

{width="128px"}

Shadows

In: Filters/Effects

Simple

Description

A raw, grayscale-only version of the Shape Drop Shadow node. It only takes a black and white, binary shapes as input and returns only the shadow.

Can be useful if you’re just after the shadow and do not want to work with a more complete node, for example when building your own material or baked lighting.

Parameters

• Shadow Distance: 0.0 - 1.0Controls how far away the shadow should fall.
• Light Angle: 0.0 - 1.0Controls the incidence angle of the light.
• Edges Softness: 0.0 - 1.0Determines how hard or soft the shadows edges are.
• Samples: 1 - 16Sets quality for the Edges Softness setting.

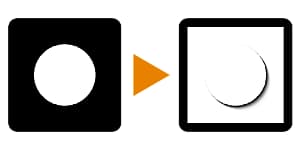

Example Images

table 0-row-1 1-row-1
{width="300px"}
