Mosaic

{width="128px"} {width="128px"}

Mosaic (Grayscale)

In: Filters/Effects

Intermediate

Description

“Facetises” an existing, smooth, sloping gradient map by performing a multi-pass Warp effect. When the same map is used for both inputs, it essentially grows and accentuates the brightest areas.

This is useful for adding more definition to grayscale maps such as Heightmap, as it can introduce more definition to shapes.

Parameters

Inputs

• Color: Color/Grayscale Input
• Mosaic Map: Grayscale Input
  Warp driver map. Can be the same as First input.

Parameters

• Samples: 0 - 16Determines multi-sample quality.
• Intensity: 0.0 - 1.0Strength of the effect.

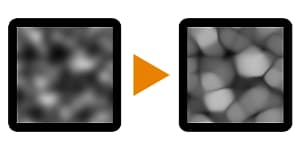

Example Images

table 0-row-1 1-row-1
{width="300px"}
