Intersection smooth

Last update: Tue Apr 14 2026 00:00:00 GMT+0000 (Coordinated Universal Time)

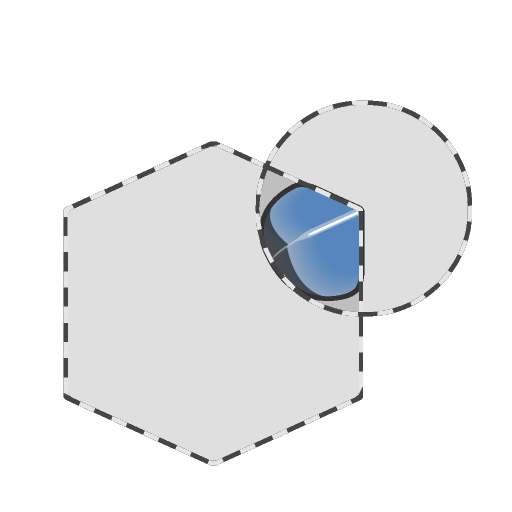

Intersection smooth icon

In: SDF function > Operator

Description

Returns the volume common to two SDF shapes, effectively the volume created where two shapes overlap, with adjustable smoothing of the edges of their intersection.

Inputs

SDF 1 Float
The first SDF shape.
SDF 2 Float
The second SDF shape.
Smoothness Float
The smoothness of the edges at the intersection of the two SDF shapes.

Note: hard edges may appear where the smoothing radiuses intersect.

Default: 0
