Policy decision point policy-desc-pt

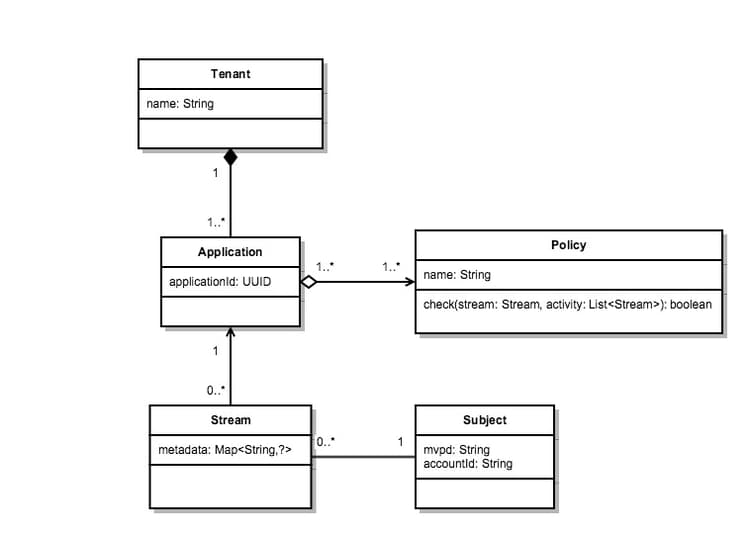

Domain model domain-model

This page is meant to serve as a reference for different usecases and implementations of policies. We advise you to also consult the Glossary part of the documentation for term definitions.

A tenant owns applications for which it wishes to enforce policies. Client applications must be configured with the application ID (provided by Adobe).

The tenant then associates each application with one or more policies, either created by him or created and shared by others. Policies can be linked between multiple tenants.

The subject activity consists of all the streams (no matter the application) that are reported to Concurrency Monitoring for a certain subject.

When a stream is to be authorized for a given subject, the system will first check all the policies defined for the application that created the stream.

For each of the applicable policies, we then need to collect all the relevant activity that will be passed to the rule. The relevant activity for a policy P will only include a stream S if it meets the following condition:

Stream “S” is started by an application that includes policy “P” among its policies.

Dry Run Use Cases dry-run-use-cases

The walkthrough below aims to validate the model against some use cases. We’ll do that gradually, by starting with a basic setup and adding complexity in various ways.

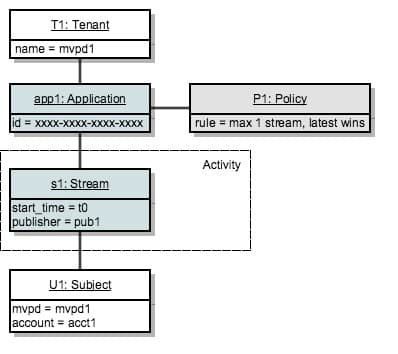

1. One tenant. One application. One policy. One stream onetenant-oneapp-onepolicy-onestream

We’ll start with a single tenant, with a single application and a single policy associated. Let’s assume the policy states that there can be at most one active stream for any user (the latest stream is allowed to play).

Once a stream is started, the activity will only consist of that stream and it is allowed to play.

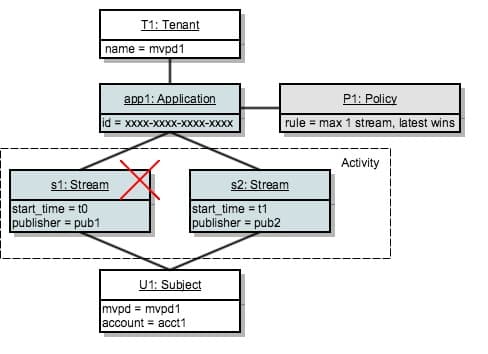

2. One tenant. One application. One policy. Two streams. onetenant-oneapp-onepolicy-twostreams

Once a second stream is started (by the same subject using the same application), the activity used for validation will consist of both s1 and s2.

The limit is exceeded because the policy states that only one stream is allowed to play, so we’ll only allow the latest stream (s2) to play.

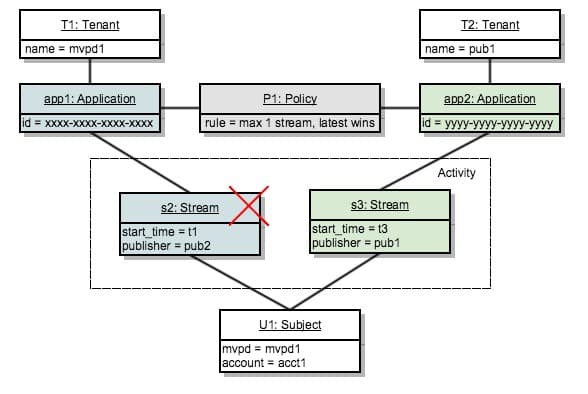

3. Two tenants. Two applications. One policy. Two streams. twotenant-twoapp-onepolicy-twostreams

Let’s now assume that a new tenant wants to enforce the same policy in their applications:

Due to the two tenants being linked by the same policy, the situation described in usecase 2 is applicable here and s3 is allowed to play as it is the latest stream.

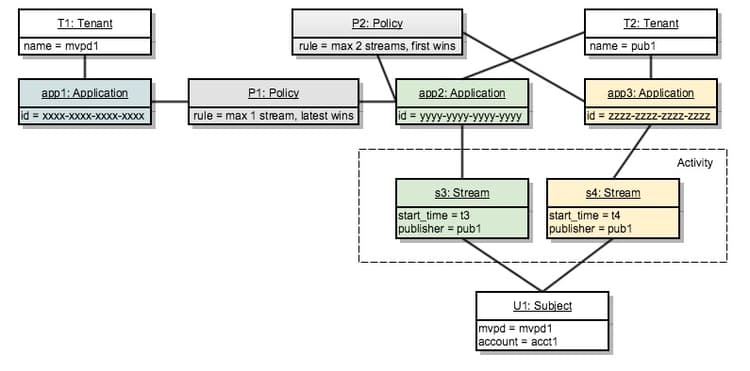

4. Two tenants. Three applications. Two policies. Two streams. twotenants-threeapps-twopolicies-twostreams

Now, let’s assume that the second tenant deploys a new application and wants to define a new policy that will be shared between app2 and app3.

At this moment, the active streams s3 and s4 are both allowed. For s3, when policy P1 is evaluated, the system will only count s3 as relevant activity (s4 is in no way related to policy P1) so there is no violation.

Policy P2 is applied to both streams and it will include both s3 and s4 as relevant activity. As this activity is within the bounds of two streams, both streams are allowed.

5. Two tenants. Three applications. Two policies. Three streams. twotenants-threeapps-twopolicies-threestreams

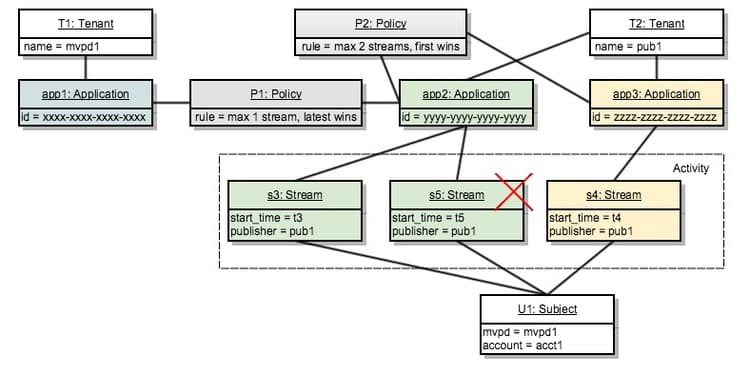

Now assuming that a new stream initialization attempt is performed using app2:

s5 is allowed to start by P1 (which allows newer streams to take over) but it is denied by P2, so it won’t start.

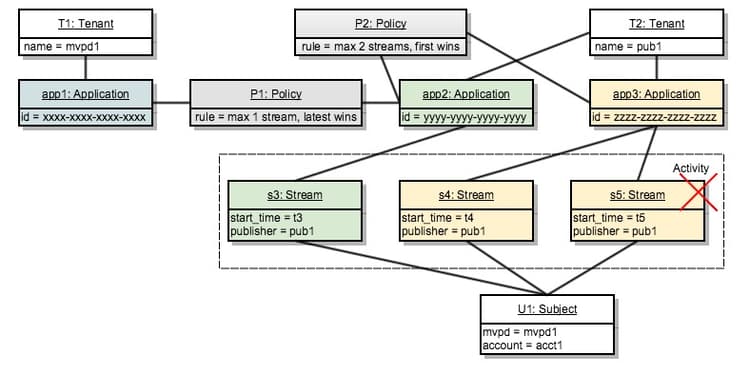

The same will happen if a stream init is attempted with app3: the same policy P2 will deny access for it.

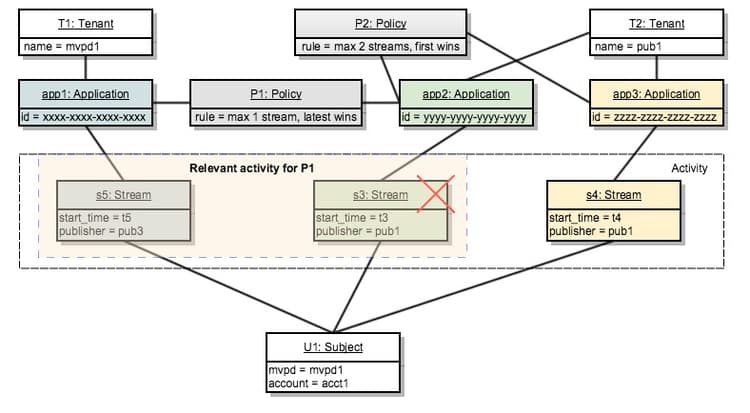

Now, let’s see what would happen if the user tries to create a new stream using app1:

The application app1 is in no way related to the policy P2, so it will only apply the policy P1: which allows the new stream to start and denies the older one (s3 in this case).
