API Overview

Last update: March 4, 2025

View the online API documentation for more details.

Purpose and Prerequisites

This document assists application developers in using our Swagger API specification when implementing an integration with Concurrency Monitoring. It is highly recommended that the reader has a previous understanding of the concepts defined by the service before following this guideline. In order to have this understanding, it is necessary to have an overview of the product documentation and the Swagger API specification.

Introduction

During the development process, the Swagger public documentation represents the reference guideline in understanding and testing the API flows. This is a great place to start in order to have a hands-on approach and get familiar with the way real world applications would behave in different scenarios of user interaction.

Submit a ticket in Zendesk to register your company and applications in Concurrency Monitoring. Adobe will assign an application ID to each entity. In this guide we will use two reference applications with ids demo-app and demo-app-2 which will be under the tenant Adobe.

Use cases

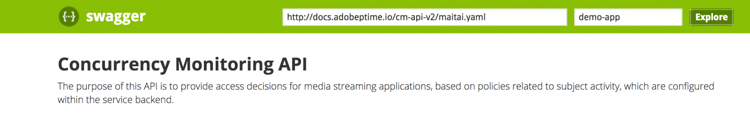

The first step in testing a flow using Swagger is to enter the application id in the top right of the page like so:

After this we press Explore to set the id that will be used in the Authorization header for all calls made to the REST API. Every API call expects the application ID to be passed in via HTTP basic authentication. The username is the application id and the password is empty.

First application

Application with id demo-app has been assigned by Adobe team a policy with one rule that restricts the number of concurrent streams to 3. A policy is assigned to a specific application based on the request submitted in Zendesk.

Retrieving metadata

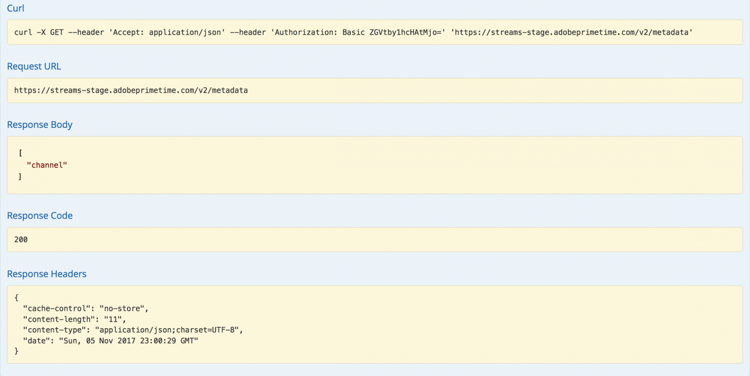

The first call we make is for the Metadata resource in order to obtain the list of metadata attributes needed to be passed as form data during session initialization. This metadata will be used to evaluate the policies assigned for this application.

After pressing “Try it out”, for the application with id demo-app we will get the following result:

As we can see from the response body field, the list of metadata attributes is empty. This means that the attributes required by design are sufficient to evaluate the 3 streams policy assigned to this application. See also, the Standard Metadata Fields documentation. After this call, we can go on and create a new session on the Sessions REST resource.

Session initialization

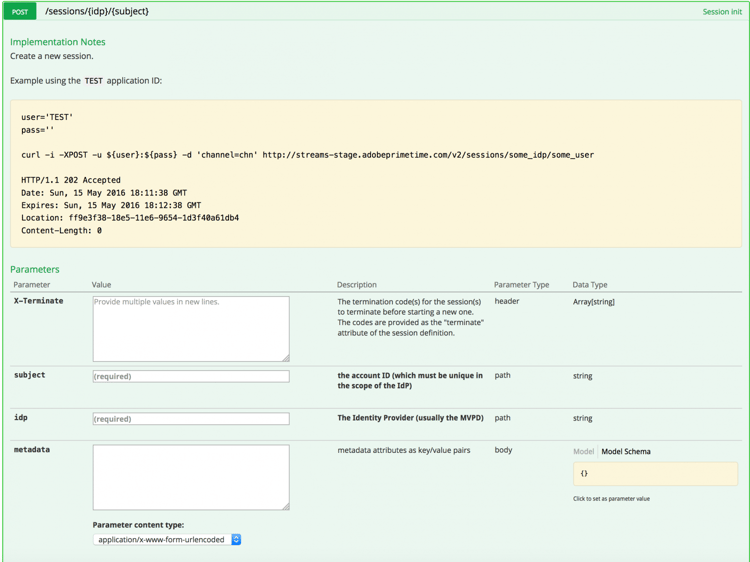

The session initialization call is done by an application after acquiring all the necessary information needed to perform it.

There is no need to provide any termination code on the first call because we do not have any other active streams. And no metadata attribute because none was returned from the Retrieving Metadata call.

The subject and the idp parameters are mandatory, they will be specified as URI path variables. You can obtain the subject and idp parameters by making a call for the mvpd and upstreamUserID metadata fields from Adobe Pass Authentication. See also, the overview of Metadata APIs. For this example we will provide the value “12345” as the subject and “adobe” as the idp.

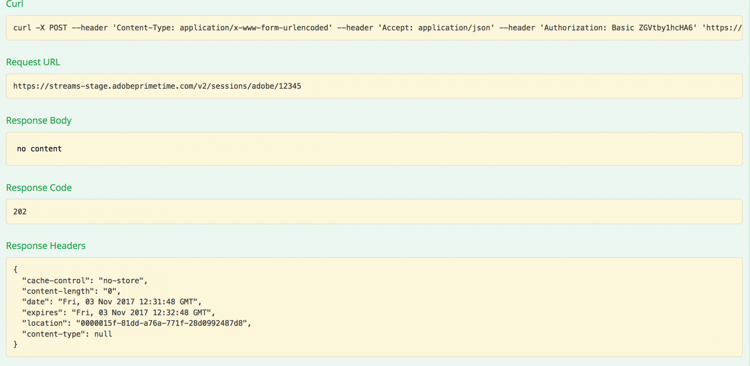

Make the session initialization call. You will get the following response:

All the data we need is contained in the response headers. The Location header represents the id of the new created session and the Date and Expires headers represent the values used to schedule your application to make the next heartbeat in order to keep the session alive.

With every call you are allowed to send any metadata that you need, not only the mandatory metadata for you application. Sending metadata can be achieved in 2 ways:

  • using query parameters:

    curl -i -XPOST -u "user:pass" "https://streams-stage.adobeprimetime.com/v2/sessions/some_idp/some_user?metadata1=value1&metadata2=value2"

  • using request body:

    curl -i -XPOST -u "user:pass" https://streams-stage.adobeprimetime.com/v2/sessions/some_idp/some_user -d "metadata1=value1" -d "metadata2=value2" -H "Content-Type=application/x-www-form-urlencoded"

Heartbeat

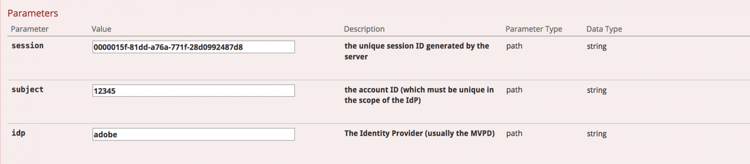

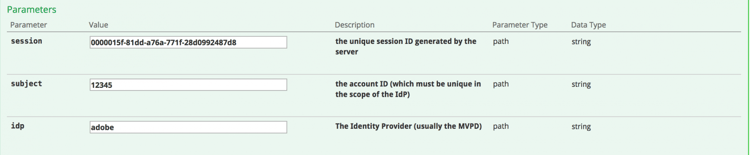

Make a heartbeat call. Provide the session id obtained in the session initialization call, along with the subject and idp parameters used.

For heartbeat call you are allowed to send metadata in the same way you’re doing for session init. One can add anytime new metadata and can update previously sent values with some exceptions. The following values, once set, cannot be changed: package, channel, platform, assetId, idp, mvpd, hba_status, hba,
mobileDevice

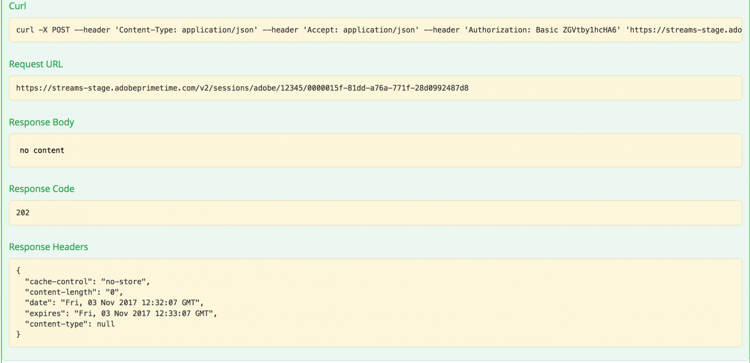

If the session is still valid (it has not expired or has been manually deleted), you will receive a successful result:

As in the first case, we will use the Date and Expires headers to schedule another heartbeat for this particular session. If the session is no longer valid, this call will fail with a 410 GONE HTTP Status code.

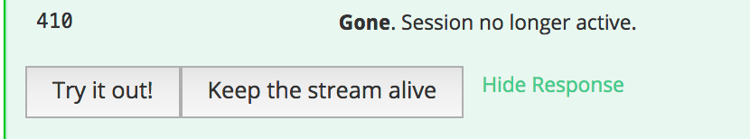

You can use the “Keep the stream alive” option available in the Swagger UI in order to execute automatic heartbeats on a specific session, this can help you test a rule without having to worry about the boilerplate needed to do timely session heartbeats. This button is placed alongside the “Try it out” button in the Swagger Heartbeat tab. To set an automatic heartbeat for all the sessions created, you need to have them scheduled each one in a separate Swagger UI opened in a web browser tab.

Session Termination

Your company’s business case might require Concurrency Monitoring to terminate a specific session when, for example, a user stops watching a video. This can be done by making a DELETE call on the Sessions resource.

Use the same parameters for the call as for the session heartbeat. The response HTTP status codes are:

  • 202 ACCEPTED for a successful response
  • 410 GONE if the session was already stopped.

Get all running streams

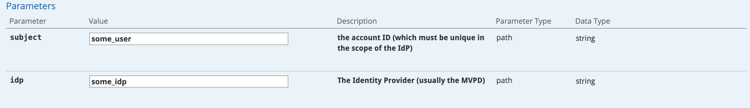

This endpoint offers all currently running sessions for a specific tenant on all its applications. Use subject and idp parameters for the call:

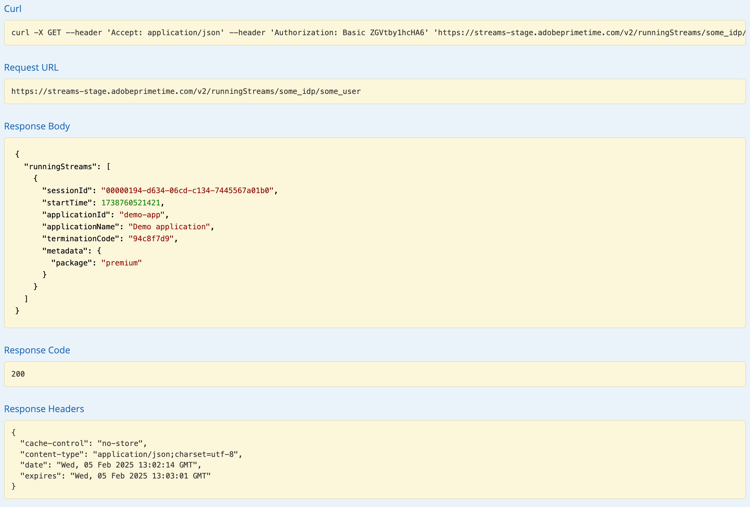

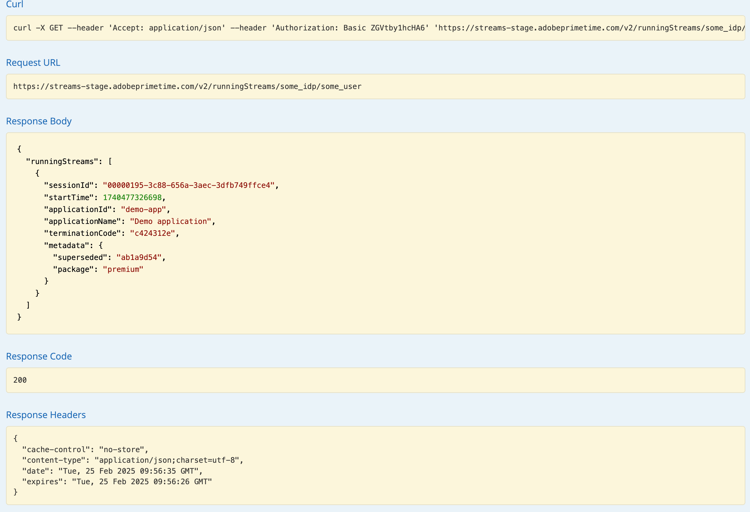

When you make the call you’ll get the following response:

For each sessions one will get the terminationCode and complete metadata.

Please note the Expires header. That is the time when the first session should expire unless a heartbeat is sent.
The metadata field will be populated with all the metadata sent when the session started. We do not filter it, you’ll receive everything you sent.
The response include all streams running on other tenants’ apps as long as the apps are sharing the same policy.

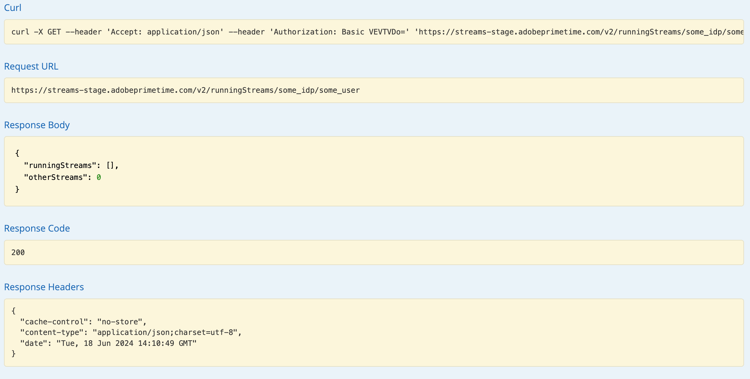

If there are no running sessions for a specific user when you do the call you’ll get this response:

Also note that in this case the Expires header is not present.

In case that a session was created killing another one, using X-Terminate header, under metadata you’ll find field superseded. It’s value is an indicator of the session killed to make room for the current one.

Breaking the policy

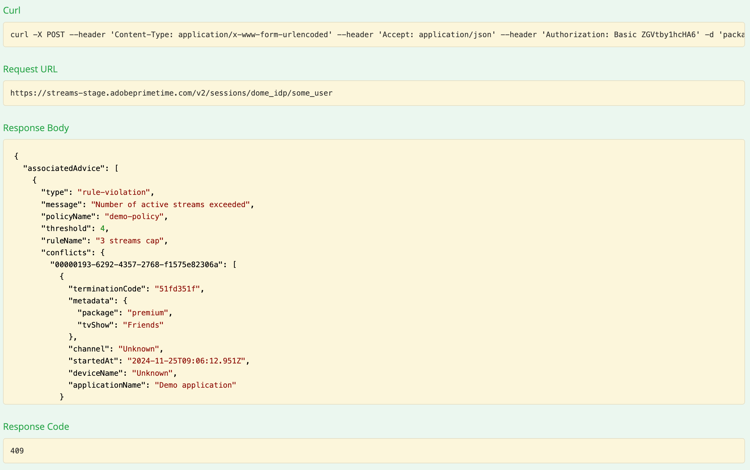

In order to simulate the behavior of our application when the 3 streams policy assigned to it is broken we need to make 3 calls for session initialization. For the policy to take effect, the calls need to be done before one of the session expires due to lack of heartbeats. We will see that these calls all succeed but if we make a 4th one it will fail with the following error:

We get a 409 CONFLICT response along with an evaluation result object in the payload. This indicates that the server-side policies do not allow this session to be created or to continue. The response body will contain an EvaluationResult object with a non-empty AssociatedAdvice, which is the list of Advice objects containing explanations for each rule violation.

The application should prompt the user with the error message(s) carried by each Advice instance. Also, every advice also indicates the rule details like attribute, threshold, rule and policy names. Moreover, the conflicting values will also be included with the list of active sessions for each value.

This information is intended for advanced error message formatting and for allowing the user to take action regarding the conflicting sessions.

Every conflicting session will carry a terminationCode that can be used for killing that stream. This way, the application may allow the user to choose what session(s) to terminate in order to try to gain access for the current session.

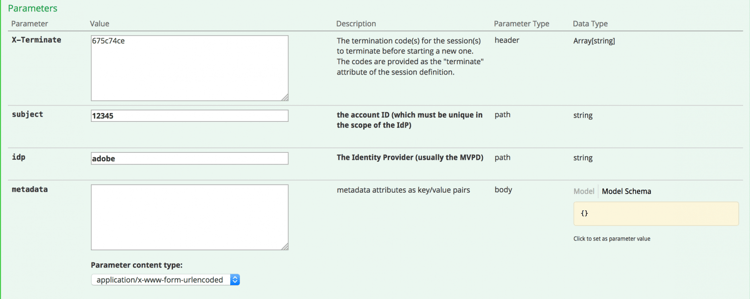

The application can use the information from the evaluation result to display a certain message to the user when stopping the video and to take further actions if needed. One use case can be to stop other existing streams in order to start a new one. This is done by using the terminationCode value present in the conflicts field for a specific conflicting attribute. The value will be provided as the X-Terminate HTTP header in the call for a new session initialization.

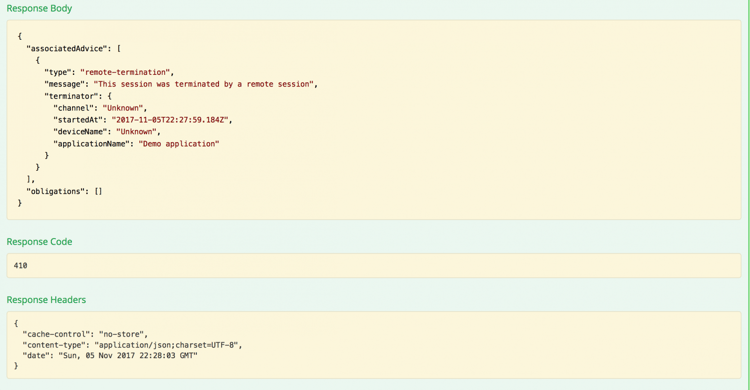

When providing one or more termination codes at session initialization the call will succeed and a new session will be generated. Then if we try and make a heartbeat with one of the sessions that have been remotely stopped we will get a 410 GONE response back with an evaluation result payload that describes the fact that the session has been remotely terminated, like in the example:

410 can be returned with or without a body, based on what caused the current session to be terminated.

When the response has no body, 410 means that a heartbeat (or termination) call is attempted for a session that is no longer active (due to timeout or a previous conflict or whatever). The only way to recover from this state is for the application to initiate a new session. Since there is no body, the application is supposed to handle this error without the user being aware of it.

On the other hand, when a response body is provided, the application needs to look within the associatedAdvice attribute to find a remote-termination advice that indicates the remote session that was initiated with an explicit intention of killing the current one. This should result in an error message like “Your session was kicked out by device/application”.

Response Body

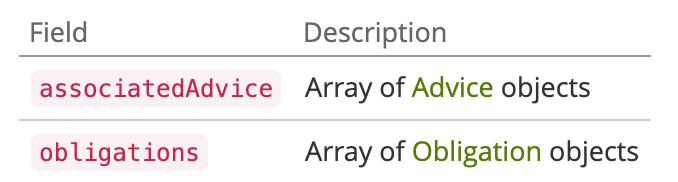

For all the session lifecycle API calls, the the response body (when present) will be a JSON object containing the following fields:

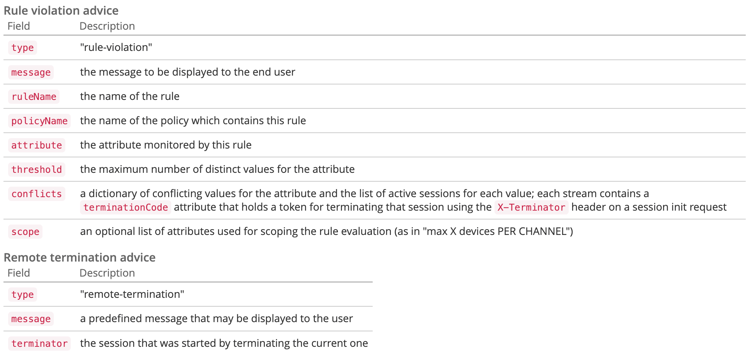

Advice
The EvaluationResult will include an array of Advice objects under associatedAdvice. The advices are intended for the application to display a comprehensive error message for the user and (potentially) allow the user to take action.

Currently, there are two types of advices (specified by their type attribute value): rule-violation and remote-termination. The first one provides details regarding a rule that was broken and the sessions that are conflicting with the current one (including the terminate attribute that can be used to terminate that session remotely). The second is just stating that the current session was deliberately terminated by a remote one, so the users will know who kicked them out when the limits were reached. In case superseded is included in the metadata then the session in question was created using X-Terminate header.

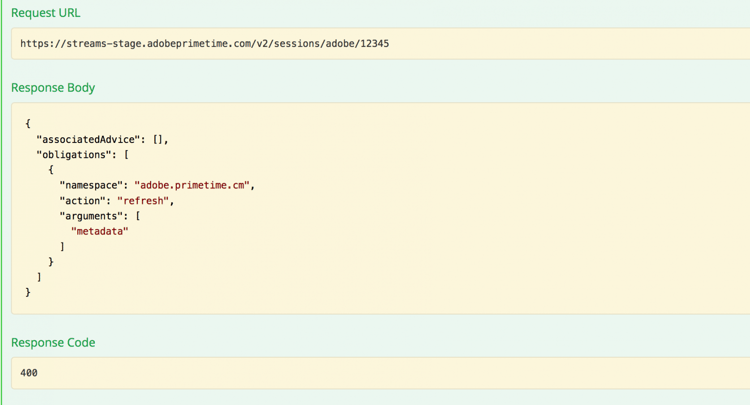

Obligation
The evaluation may also contain one or more predefined actions that must be triggered by the application as a result of this evaluation.

Second application

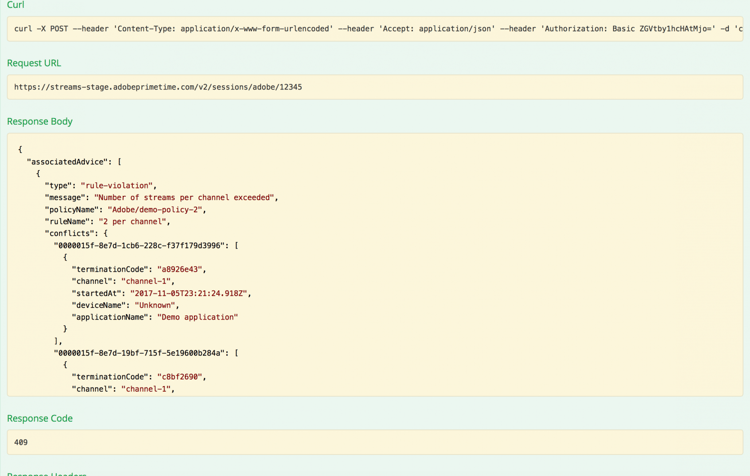

The other example application that we will be using is the one with id demo-app-2. This one has been assigned a policy with one rule that limits the number of streams available for a channel to a maximum of 2. You must provide the channel variable in order to evaluate this policy.
