Large result sets in AEM Headless
AEM Headless GraphQL queries can return large results. This article describes how to work with large results in AEM Headless to ensure the best performance for your application.
AEM Headless supports a offset/limit and cursor-based pagination queries to smaller subsets of a larger result set. Multiple requests can be made to collect as many results as required.
The examples below use small subsets of results (four records per request) to demonstrate the techniques. In a real application, you would use a larger number of records per request to improve performance. 50 records per request is a good baseline.
Content Fragment Model
Pagination and sorting can be used against any Content Fragment Model.
GraphQL persisted queries
When working with large datasets, both offset and limit and cursor-based pagination can be used to retrieve a specific subset of the data. However, there are some differences between the two techniques that may make one more appropriate than the other in certain situations.
Offset/limit
List queries, using limit and offset provide a straightforward approach that specifies the starting point (offset) and the number of records to retrieve (limit). This approach allows a subset of results to be selected from anywhere within the full result set, such as jumping to a specific page of results. While it’s easy to implement, it can be slow and inefficient when dealing with large result, as retrieving many records requires scanning through all the previous records. This approach can also lead to performance issues when the offset value is high, as it may require retrieving and discarding many results.
GraphQL query
# Retrieves a list of Adventures sorted price descending, and title ascending if there is the prices are the same.
query adventuresByOffetAndLimit($offset:Int!, $limit:Int) {
adventureList(offset: $offset, limit: $limit, sort: "price DESC, title ASC", ) {
items {
_path
title
price
}
}
}
Query variables
{
"offset": 1,
"limit": 4
}
GraphQL response
The resulting JSON response contains the 2nd, 3rd, 4th and 5th most expensive Adventures. The first two adventures in the results have the same price (4500 so the list query specifies adventures with the same price is then sorted by title in ascending order.)
{
"data": {
"adventureList": {
"items": [
{
"_path": "/content/dam/wknd-shared/en/adventures/cycling-tuscany/cycling-tuscany",
"title": "Cycling Tuscany",
"price": 4500
},
{
"_path": "/content/dam/wknd-shared/en/adventures/west-coast-cycling/west-coast-cycling",
"title": "West Coast Cycling",
"price": 4500
},
{
"_path": "/content/dam/wknd-shared/en/adventures/surf-camp-in-costa-rica/surf-camp-costa-rica",
"title": "Surf Camp in Costa Rica",
"price": 3400
},
{
"_path": "/content/dam/wknd-shared/en/adventures/cycling-southern-utah/cycling-southern-utah",
"title": "Cycling Southern Utah",
"price": 3000
}
]
}
}
}
Paginated query
Cursor-based pagination, available in Paginated queries, involves using a cursor (a reference to a specific record) to retrieve the next set of results. This approach is more efficient as it avoids the need to scan through all the previous records to retrieve the required subset of data. Paginated queries are great for iterating through large result sets from the beginning, to some point in the middle, or to the end. List queries, using limit and offset provide a straightforward approach that specifies the starting point (offset) and the number of records to retrieve (limit). This approach allows a subset of results to be selected from anywhere within the full result set, such as jumping to a specific page of results. While it’s easy to implement, it can be slow and inefficient when dealing with large result, as retrieving many records requires scanning through all the previous records. This approach can also lead to performance issues when the offset value is high, as it may require retrieving and discarding many results.
GraphQL query
# Retrieves the most expensive Adventures (sorted by title ascending if there is the prices are the same)
query adventuresByPaginated($first:Int, $after:String) {
adventurePaginated(first: $first, after: $after, sort: "price DESC, title ASC") {
edges {
cursor
node {
_path
title
price
}
}
pageInfo {
endCursor
hasNextPage
}
}
}
Query variables
{
"first": 3
}
GraphQL response
The resulting JSON response contains the 2nd, 3rd, 4th and 5th most expensive Adventures. The first two adventures in the results have the same price (4500 so the list query specifies adventures with the same price is then sorted by title in ascending order.)
{
"data": {
"adventurePaginated": {
"edges": [
{
"cursor": "NTAwMC4...Dg0ZTUwN2FkOA==",
"node": {
"_path": "/content/dam/wknd-shared/en/adventures/bali-surf-camp/bali-surf-camp",
"title": "Bali Surf Camp",
"price": 5000
}
},
{
"cursor": "SFNDUwMC4wC...gyNWUyMWQ5M2Q=",
"node": {
"_path": "/content/dam/wknd-shared/en/adventures/cycling-tuscany/cycling-tuscany",
"title": "Cycling Tuscany",
"price": 4500
}
},
{
"cursor": "AVUwMC4w...0ZTYzMjkwMzE5Njc=",
"node": {
"_path": "/content/dam/wknd-shared/en/adventures/west-coast-cycling/west-coast-cycling",
"title": "West Coast Cycling",
"price": 4500
}
}
],
"pageInfo": {
"endCursor": "NDUwMC4w...kwMzE5Njc=",
"hasNextPage": true
}
}
}
}
Next set of paginated results
The next set of results can be fetched using the after parameter and the endCursor value from the previous query. If there are no more results to fetch, hasNextPage is false.
Query variables
{
"first": 3,
"after": "NDUwMC4w...kwMzE5Njc="
}
React examples
The following are React examples that demonstrate how to use offset and limit and cursor-based pagination approaches. Typically the number of results per request is larger, however for the purposes of these examples, the limit is set to 5.

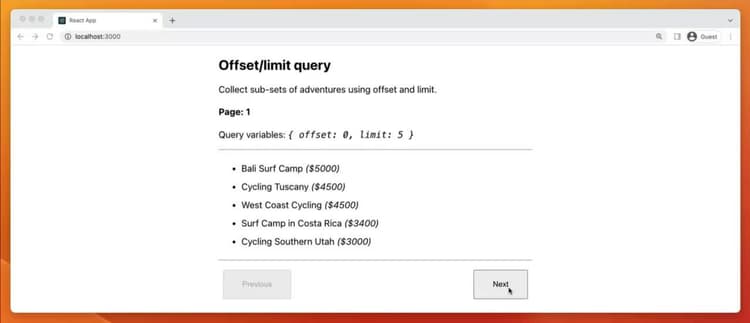

Offset and limit example
Using offset and limit, subsets of results can easily be retrieved and displayed.
useEffect hook
The useEffect hook invokes a persisted query (adventures-by-offset-and-limit) that retrieves a list of Adventures. The query uses the offset and limit parameters to specify the starting point and the number of results to retrieve. The useEffect hook is invoked when the page value changes.
import { useState, useEffect } from "react";
import AEMHeadless from "@adobe/aem-headless-client-js";
...
export function useOffsetLimitAdventures(page, limit) {
const [adventures, setAdventures] = useState([]);
const [hasMore, setHasMore] = useState(true);
useEffect(() => {
async function fetchData() {
const queryParameters = {
offset: page * limit, // Calculate the offset based on the current page and the limit
limit: limit + 1, // Add 1 to the limit to determine if there are more adventures to fetch
};
// Invoke the persisted query with the offset and limit parameters
const response = await aemHeadlessClient.runPersistedQuery(
"wknd-shared/adventures-by-offset-and-limit",
queryParameters
);
const data = response?.data;
if (data?.adventureList?.items?.length > 0) {
// Collect the adventures - slice off the last item since the last item is used to determine if there are more adventures to fetch
setAdventures([...data.adventureList.items].slice(0, limit));
// Determine if there are more adventures to fetch
setHasMore(data.adventureList.items.length > limit);
} else {
setHasMore(false);
}
}
fetchData();
}, [page]);
return { adventures, hasMore };
}
Component
The component uses the useOffsetLimitAdventures hook to retrieve a list of Adventures. The page value is incremented and decremented to fetch the next and previous set of results. The hasMore value is used to determine if the next page button should be enabled.
import { useState } from "react";
import { useOffsetLimitAdventures } from "./api/persistedQueries";
export default function OffsetLimitAdventures() {
const LIMIT = 5;
const [page, setPage] = useState(0);
let { adventures, hasMore } = useOffsetLimitAdventures(page, LIMIT);
return (
<section className="offsetLimit">
<h2>Offset/limit query</h2>
<p>Collect sub-sets of adventures using offset and limit.</p>
<h4>Page: {page + 1}</h4>
<p>
Query variables:
<em>
<code>
{ offset: {page * LIMIT}, limit: {LIMIT} }
</code>
</em>
</p>
<hr />
<ul className="adventures">
{adventures?.map((adventure) => {
return (
<li key={adventure._path}>
{adventure.title} <em>(${adventure.price})</em>
</li>
);
})}
</ul>
<hr />
<ul className="buttons">
<li>
<button disabled={page === 0} onClick={() => setPage(page - 1)}>
Previous
</button>
</li>
<li>
<button disabled={!hasMore} onClick={() => setPage(page + 1)}>
Next
</button>
</li>
</ul>
</section>
);
}
Paginated example
Each red box represents a discrete paginated HTTP GraphQL query.
Using cursor-based pagination, large result sets can easily be retrieved and displayed, by incrementally collecting the results and concatenating them to the existing results.
UseEffect hook
The useEffect hook invokes a persisted query (adventures-by-paginated) that retrieves a list of Adventures. The query uses the first and after parameters to specify the number of results to retrieve and the cursor to start from. fetchData continuously loops, collecting the next set of paginated results, until there are no more results to fetch.
import { useState, useEffect } from "react";
import AEMHeadless from "@adobe/aem-headless-client-js";
...
export function usePaginatedAdventures() {
const LIMIT = 5;
const [adventures, setAdventures] = useState([]);
const [queryCount, setQueryCount] = useState(0);
useEffect(() => {
async function fetchData() {
let paginatedAdventures = [];
let paginatedCount = 0;
let hasMore = false;
let after = null;
do {
const response = await aemHeadlessClient.runPersistedQuery(
"wknd-shared/adventures-by-paginated",
{
first: LIMIT,
after: after
}
);
// The GraphQL data is stored on the response's data field
const data = response?.data;
paginatedCount = paginatedCount + 1;
if (data?.adventurePaginated?.edges?.length > 0) {
// Add the next set page of adventures to full list of adventures
paginatedAdventures = [...paginatedAdventures, ...data.adventurePaginated.edges];
}
// If there are more adventures, set the state to fetch them
hasMore = data.adventurePaginated?.pageInfo?.hasNextPage;
after = data.adventurePaginated.pageInfo.endCursor;
} while (hasMore);
setQueryCount(paginatedCount);
setAdventures(paginatedAdventures);
}
fetchData();
}, []);
return { adventures, queryCount };
}
Component
The component uses the usePaginatedAdventures hook to retrieve a list of Adventures. The queryCount value is used to display the number of HTTP requests made to retrieve the list of Adventures.
import { useState } from "react";
import { usePaginatedAdventures } from "./api/persistedQueries";
...
export default function PaginatedAdventures() {
let { adventures, queryCount } = usePaginatedAdventures();
return (
<section className="paginated">
<h2>Paginated query</h2>
<p>Collect all adventures using {queryCount} cursor-paginated HTTP GraphQL requests</p>
<hr/>
<ul className="adventures">
{adventures?.map((adventure) => {
return (
<li key={adventure.node._path}>
{adventure.node.title} <em>(${adventure.node.price})</em>
</li>
);
})}
</ul>
<hr/>
</section>
);
}
