Set up OpenAPI-based AEM APIs

Last update: June 18, 2025

Applies to:
Experience Manager as a Cloud Service

Topics:
Developing

CREATED FOR:

Beginner
Developer
Leader

Learn how to set up your AEM as a Cloud Service environment to enable access to the OpenAPI-based AEM APIs.

In this example, the AEM Assets API using the Server-to-Server authentication method is used to demonstrate the setup process. The same steps can be followed for other OpenAPI-based AEM APIs.

The high-level setup process involves the following steps:

Modernization of AEM as a Cloud Service environment.
Enable AEM APIs access.
Create Adobe Developer Console (ADC) Project.
Configure ADC Project.
Configure the AEM instance to enable ADC Project communication.

Modernization of AEM as a Cloud Service environment

The modernization of AEM as a Cloud Service environment is a one-time per environment activity that involves the following steps:

Update to the AEM Release 2024.10.18459.20241031T210302Z or later.
Add new Product Profiles to it, if the environment was created before the release 2024.10.18459.20241031T210302Z.

Update AEM instance

To update the AEM instance, in the Adobe Cloud Manager’s Environments section, select the ellipsis icon next to the environment name and select Update option.

Update AEM instance

Then click the Submit button and run the suggested Fullstack Pipeline.

Select latest AEM release version

In my case, the Fullstack Pipeline is named Dev :: Fullstack-Deploy, and the AEM environment is called wknd-program-dev. Your names may be different.

Add new Product Profiles

To add new Product Profiles to the AEM instance, in the Adobe Cloud Manager’s Environments section, select the ellipsis icon next to the environment name and select the Add Product Profiles option.

Add new Product Profiles

You can review the newly added Product Profiles by clicking on the ellipsis icon next to the environment name and selecting Manage Access > Author Profiles.

The Admin Console window displays the newly added Product Profiles.

Review new Product Profiles

The above steps complete the modernization of the AEM as a Cloud Service environment.

Enable AEM APIs access

The presence of the new Product Profiles enable OpenAPI-based AEM API access in the Adobe Developer Console (ADC). Recall that the Adobe Developer Console (ADC) is the developer hub for accessing Adobe APIs, SDKs, real-time events, serverless functions, and more.

The newly added Product Profiles are associated with the Services that represent AEM user groups with predefined Access Control Lists (ACLs). The Services are used to control the level of access to the AEM APIs.

You can also select or deselect the Services associated with the Product Profile to reduce or increase the level of access.

Review the association by clicking on the View Details icon next to the Product Profile name.

Review services associated with Product Profile

Enable AEM Assets APIs access

By default, the AEM Assets API Users Service is not associated with any Product Profile. Let’s associate it with the newly added AEM Assets Collaborator Users - author - Program XXX - Environment XXX Product Profile or any other Product Profile that you want to use for AEM Assets API access.

Associate AEM Assets API Users Service with Product Profile

Enable Server-to-Server authentication

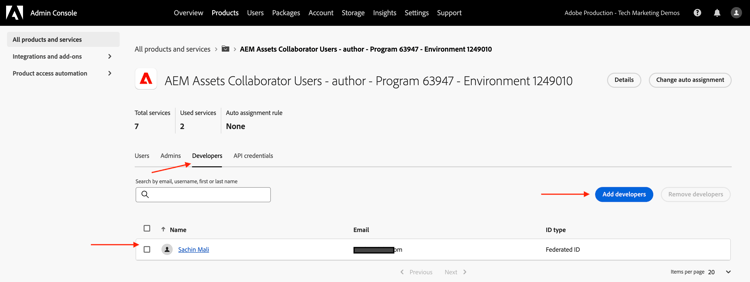

To enable the Server-to-Server authentication for the desired AEM APIs, the user setting up integration using the Adobe Developer Console (ADC) must be added as a Developer to the Product Profile where the Service is associated.

For example, to enable the Server-to-Server authentication for the AEM Assets API, the user must be added as a Developer to the AEM Assets Collaborator Users - author - Program XXX - Environment XXX Product Profile.

Associate Developer to Product Profile

After this association, the ADC Project’s Asset Author API can set up the desired Server-to-Server authentication and associate the authentication account from the ADC Project (created in the next step) with the Product Profile.

IMPORTANT

The above step is critical to enable the Server-to-Server authentication for the desired AEM API. Without this association, the AEM API cannot be used with the Server-to-Server authentication method.

Create Adobe Developer Console (ADC) Project

The ADC Project is used to add the desired APIs, set up its authentication, and associate the authentication account with the Product Profile.

To create an ADC Project:

Login to the Adobe Developer Console using your Adobe ID.
From the Quick Start section, click on the Create new project button.
It creates a new project with the default name.
Edit the project name by clicking the Edit project button in the top right corner. Provide a meaningful name and click Save.

Configure ADC Project

After creating the ADC Project, you have to add the desired AEM APIs, set up its authentication, and associate the authentication account with the Product Profile.

To add AEM APIs, click on the Add API button.
In the Add API dialog, filter by Experience Cloud and select the desired AEM API. For example, in this case, the Asset Author API is selected.

TIP
If the desired AEM API card is disabled and Why is this disabled? information shows the License required message one of the reasons could be that you have NOT modernized your AEM as a Cloud Service environment, see Modernization of AEM as a Cloud Service environment for more information.
Next, in the Configure API dialog, select the desired authentication option. For example, in this case, the Server-to-Server authentication option is selected.

The Server-to-Server authentication is ideal for backend services needing API access without user interaction. The Web App and Single Page App authentication options are suitable for applications needing API access on behalf of users. See Difference between OAuth Server-to-Server vs Web App vs Single Page App credentials for more information.

TIP
If you do not see the Server-to-Server authentication option, it means that the user setting up the integration is not added as a Developer to the Product Profile where the Service is associated. See Enable Server-to-Server authentication for more information.
If needed, you can rename the API for easier identification. For demo purposes, the default name is used.
In this case, the authentication method is OAuth Server-to-Server so you need to associate the authentication account with the Product Profile. Select the AEM Assets Collaborator Users - author - Program XXX - Environment XXX Product Profile and click Save.
Review the AEM API and authentication configuration.

If you choose the OAuth Web App or OAuth Single Page App authentication method, the Product Profile association is not prompted but application redirect URI is required. The application redirect URI is used to redirect the user to the application after authentication with an authorization code. The relevant use cases tutorials outline such authentication specific configurations.

Configure the AEM instance to enable ADC Project communication

To enable the ADC Project’s ClientID to communication with the AEM instance, you need to configure the AEM instance.

It is done by defining the API configuration in a YAML file and deploying it using the Config Pipeline in the Cloud Manager. The YAML file defines the allowed ClientIDs from the ADC Project that can communicate with the AEM instance.

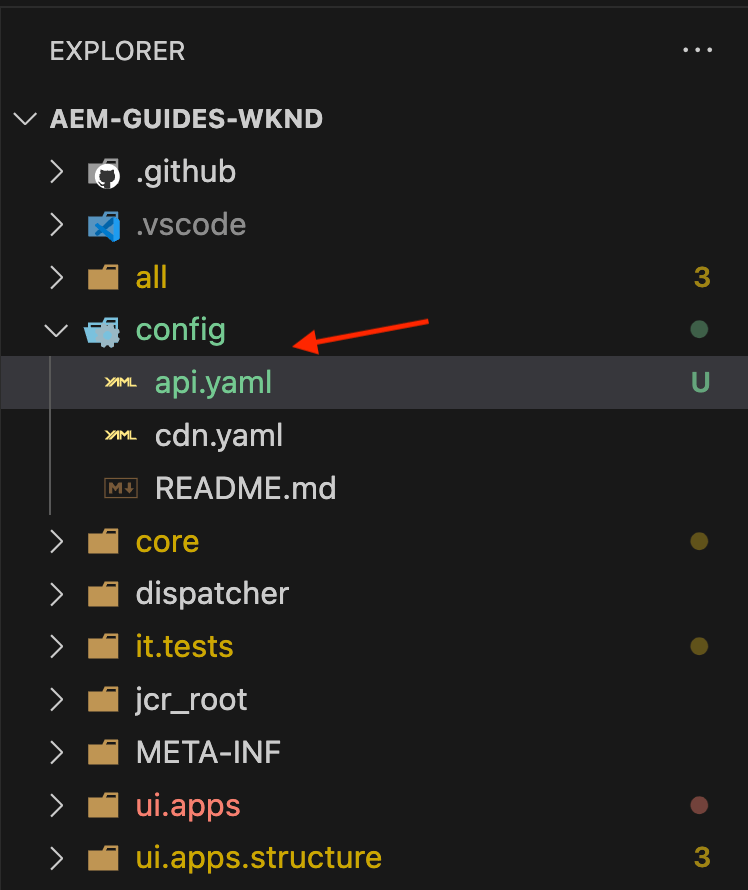

In AEM Project, locate or create the api.yaml file from the config folder.
Add the following configuration to the api.yaml file.
kind: "API" version: "1.0" metadata: envTypes: ["dev", "stage", "prod"] data: allowedClientIDs: author: - "<ADC Project's Credentials ClientID>"
Replace <ADC Project's Credentials ClientID> with the actual ClientID of the ADC Project’s Credentials value. The API endpoint that is used in this tutorial is available only on the author tier, but for other APIs, the yaml config can also have a publish or preview node.

CAUTION
For demo purposes, the same ClientID is used for all environments. It is recommended to use separate ClientID per environment (dev, stage, prod) for better security and control.
Commit the config changes and push the changes to the remote Git repository the Cloud Manager pipeline is connected to.
Deploy the above changes using the Config Pipeline in the Cloud Manager. Note that the api.yaml file can also be installed in an RDE, using command line tooling.

Next steps

Once the AEM instance is configured to enable ADC Project communication, you can start using the OpenAPI-based AEM APIs. Learn how to use the OpenAPI-based AEM APIs using different OAuth authentication methods:

Invoke API using Server-to-Server authentication

Learn how to invoke OpenAPI-based AEM APIs from a custom NodeJS application using OAuth Server-to-Server authentication.

Learn more

Invoke API using Web App authentication

Learn how to invoke OpenAPI-based AEM APIs from a custom web application using OAuth Web App authentication.

Learn more

Invoke API using Single Page App authentication

Learn how to invoke OpenAPI-based AEM APIs from a custom Single Page App (SPA) using OAuth 2.0 PKCE flow.

Learn more
