Configuring the synchronization scheduler

Last update: May 3, 2023

CREATED FOR:

  • Admin
CAUTION
AEM 6.4 has reached the end of extended support and this documentation is no longer updated. For further details, see our technical support periods. Find the supported versions here.

By default, the synchronization scheduler runs after every 3 minutes to synchronize all the assets modified and updated in the repository via LiveCycle Workbench 11. Applications containing forms and resources are visible in the AEM Forms user interface once the synchronization process is complete.

Change interval of the synchronization scheduler

Perform the following steps to change the interval of the synchronization scheduler:

  1. Log in to AEM Configuration Manager. The URL of Configuration Manager is https://[Server]:[Port]/lc/system/console/configMgr

  2. Locate and open the FormsManagerConfiguration bundle.

  3. Specify a new value for the Synchronization Scheduler Frequency option.

    The unit of the frequency is minutes. For example, to configure the scheduler to run after every 60 minutes, specify 60.

Synchronizing assets

You can use the Synchronize Assets from Repository option to manually synchronize the assets. Perform the following steps to manually synchronize the assets:

  1. Log in to AEM Forms. The default URL is https://[Server]:[Port]/lc/aem/forms/.

    AEM Forms user interface

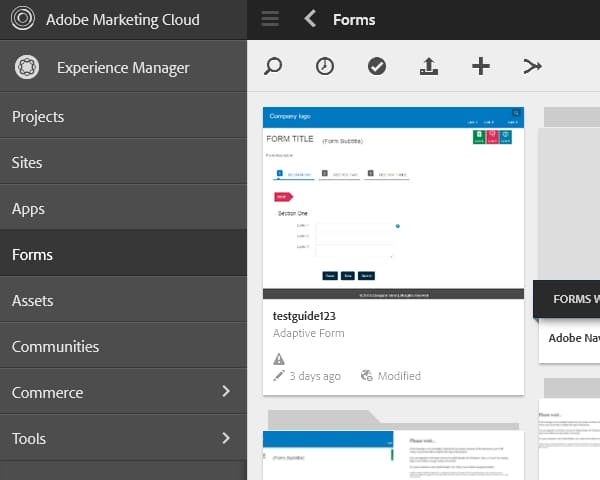

    Figure: AEM Forms user interface

  2. Click the aem6forms_sync icon in the toolbar. If you do not have any assets at last configured path then the dialog box as shown below. Click Start to initiate the synchronization.

    Synchronization dialog box

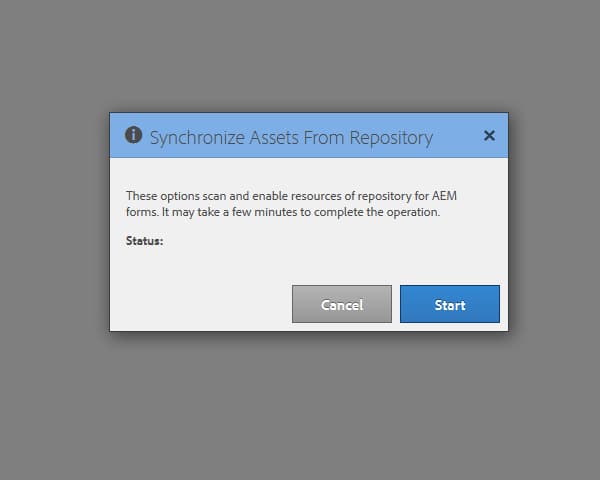

    Figure: Synchronization dialog box
