Developing with SAP Commerce Cloud developing-with-sap-commerce-cloud

Last update: Wed May 03 2023 00:00:00 GMT+0000 (Coordinated Universal Time)

Topics:
Developing

CREATED FOR:

Developer

CAUTION

AEM 6.4 has reached the end of extended support and this documentation is no longer updated. For further details, see our technical support periods. Find the supported versions here.

NOTE

The eCommerce framework can be used with any eCommerce solution. Certain specifics and examples dealt with here will refer to the hybris solution.

The integration framework includes an integration layer with an API. This allows you to:

plug in an eCommerce system and pull product data into AEM
build AEM components for commerce capabilities independent of the specific eCommerce engine

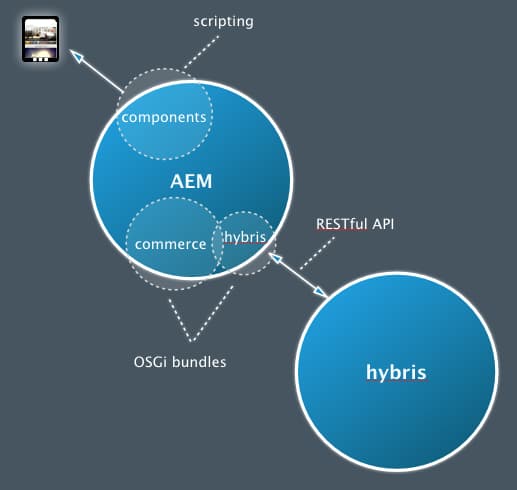

chlimage_1-11

NOTE

API documentation is also available.

A number of out-of-the-box AEM components are provided to use the integration layer. Currently these are:

a product display component
a shopping cart
check-out

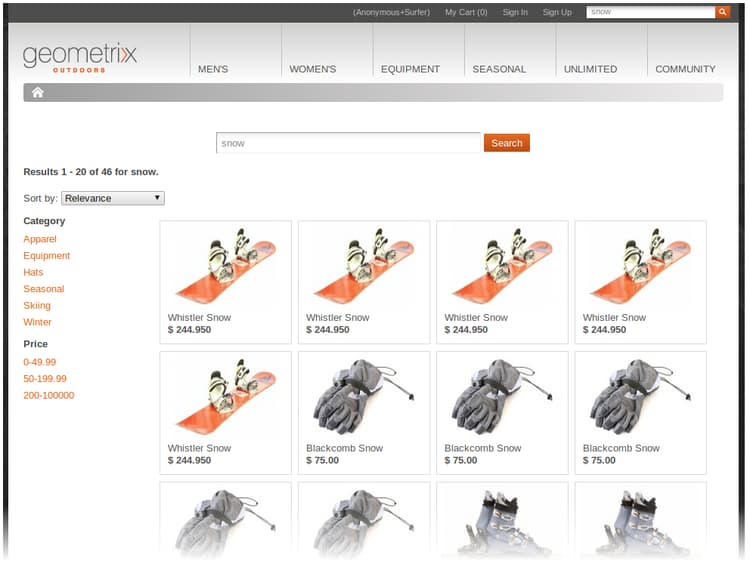

For search an integration hook is provided that allows you to use the AEM search, the search of the eCommerce system, a third party search, or a combination thereof.

eCommerce Engine Selection ecommerce-engine-selection

The eCommerce framework can be used with any eCommerce solution, the engine being used needs to be identifiable by AEM:

eCommerce Engines are OSGi services supporting the CommerceService interface
- Engines can be distinguished by a commerceProvider service property
AEM supports Resource.adaptTo() for CommerceService and Product
- The adaptTo implementation looks for a cq:commerceProvider property in the resource’s hierarchy:
  - If found, the value is used to filter the commerce service lookup.
  - If not found, the highest-ranked commerce service is used.
- A cq:Commerce mixin is used so the cq:commerceProvider can be added to strongly-typed resources.
The cq:commerceProvider property is also used to reference the appropriate commerce factory definition.
- For example, a cq:commerceProvider property with the value hybris will correlate to the OSGi configuration for Day CQ Commerce Factory for Hybris (com.adobe.cq.commerce.hybris.impl.HybrisServiceFactory) - where the parameter commerceProvider also has the value hybris.
- Here further properties, such as Catalog version can be configured (when appropriate and available).

See the following examples below:

cq:commerceProvider = geometrixx

in a standard AEM installation a specific implementation is required; for example, the geometrixx example, which includes minimal extensions to the generic API

cq:commerceProvider = hybris

hybris implementation

Example example

/content/store
+ cq:commerceProvider = hybris
  + mens
    + polo-shirt-1
    + polo-shirt-2
    + employee
+ cq:commerceProvider = jcr
  + adobe-logo-shirt
    + cq:commerceType = product
    + price = 12.50
  + adobe-logo-shirt_S
    + cq:commerceType = variant
    + size = S
  + adobe-logo-shirt_XL
    + cq:commerceType = variant
    + size = XL
    + price = 14.50

NOTE

Using CRXDE Lite you can see how this is handled in the product component for the hybris implementation:

/apps/geometrixx-outdoors/components/hybris/product/product.jsp

Developing for hybris 4 developing-for-hybris

The hybris extension of the eCommerce Integration Framework has been updated to support Hybris 5, while maintaining backward compatibility with Hybris 4.

The default settings in the code are tuned for Hybris 5.

To develop for Hybris 4 the following is required:

When invoking maven add the following command line argument to the command

-P hybris4

It downloads the pre-configured Hybris 4 distribution and embeds it in the bundle:

code language-none
`cq-commerce-hybris-server`

In the OSGi configuration manager:
- Disable Hybris 5 support for the Default Response Parser service.
- Ensure that Hybris Basic Authentication Handler service has a lower service ranking than Hybris OAuth Handler service.

Session Handling session-handling

hybris uses a user session to store information such as the customer’s shopping cart. The session id is returned from hybris in a JSESSIONID cookie that needs to be sent on subsequent requests to hybris. To avoid storing the session id in the repository it is encoded in another cookie that is stored in the shopper’s browser. The following steps are performed:

On the first request no cookie is set on the shopper’s request; so a request is sent to the hybris instance to create a session.
The session cookies are extracted from the response, encoded in a new cookie (for example, hybris-session-rest) and set on the response to the shopper. The encoding in a new cookie is required, because the original cookie is only valid for a certain path and would otherwise not be sent back from the browser in subsequent requests. The path information must also be added to the cookie’s value.
On subsequent requests, the cookies are decoded from the hybris-session-<*xxx*> cookies and set on the HTTP client that is used to request data from hybris.

NOTE

A new, anonymous session is created when the original session is no longer valid.

CommerceSession commercesession

This session “owns” the shopping cart
- performs add/remove/etc
- performs the various calculations on the cart;

  commerceSession.getProductPrice(Product product)
Owns the storage location for the order data

CommerceSession.getUserContext()
Also owns the payment processing connection
Also owns the fulfillment connection

Product Synchronization and Publishing product-synchronization-and-publishing

Product data that is maintained in hybris needs to be available in AEM. The following mechanism has been implemented:

An initial load of IDs is provided by hybris as a feed. There can be updates to this feed.
hybris will supply update information via a feed (which AEM polls).
When AEM is using product data it will send requests back to hybris for the current data (conditional get request using last modified date).
On hybris it is possible to specify feed contents in a declarative way.
Mapping the feed structure to the AEM content model happens in the feed adapter on the AEM side.

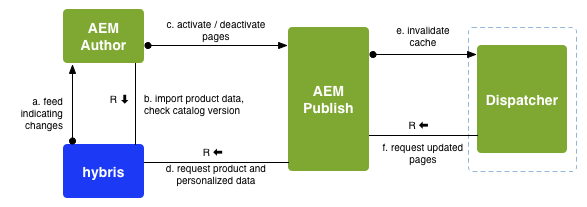

chlimage_1-12

The importer (b) is used for the initial setup of the page tree structure in AEM for catalogs.
Catalog changes in hybris are indicated to AEM via a feed, these then propagate to AEM (b)
- Product added/deleted/changed with respect to catalog version.
- Product approved.

The hybris extension provides a polling importer (“hybris” scheme"), which can be configured to import changes into AEM at a specified interval (for example, every 24 hours where the interval is specified in seconds):

code language-none

code language-none
`http://localhost:4502/content/geometrixx-outdoors/en_US/jcr:content.json { * "jcr:mixinTypes": ["cq:PollConfig"], * "enabled": true, * "source": "hybris:outdoors", * "jcr:primaryType": "cq:PageContent", * "interval": 86400 }`

  http://localhost:4502/content/geometrixx-outdoors/en_US/jcr:content.json
   {
   * "jcr:mixinTypes": ["cq:PollConfig"],
   * "enabled": true,
   * "source": "hybris:outdoors",
   * "jcr:primaryType": "cq:PageContent",
   * "interval": 86400
   }

The catalog configuration in AEM recognizes Staged and Online catalog versions.
Syncing products between catalog versions will require a (de-)activation of the corresponding AEM page (a, c)
- Adding a product to an Online catalog version requires activation of the product’s page.
- Removing a product requires deactivation.
Activating a page in AEM © requires a check (b) and is only possible if
- The product is in an Online catalog version for product pages.
- The referenced products are available in an Online catalog version for other pages (e.g. campaign pages).
Activated product pages need to access the product data’s Online version (d).
The AEM publish instance requires access to hybris for the retrieval of product and personalized data (d).

Architecture architecture

Architecture of Product and Variants architecture-of-product-and-variants

A single product can have multiple variations; for instance, it might vary by color and/or size. A product must define which properties drive variation; we term these variant axes.

However, not all properties are variant axes. Variations can also affect other properties; for example, the price might be dependant on size. These properties cannot be selected by the shopper and therefore are not considered variant axes.

Each product and/or variant is represented by a resource, and therefore maps 1:1 to a repository node. It is a corollary that a specific product and/or variant can be uniquely identified by its path.

The product/variant resource does not always hold the actual product dataIt might be a representation of data actually held on another system (such as hybris). For example, product descriptions, pricing, etc, are not stored in AEM, but retrieved in real-time from the eCommerce engine.

Any product resource can be represented by a Product API. Most calls in the product API are variation specific (although variations might inherit shared values from an ancestor), but there are also calls which list the set of variations ( getVariantAxes(), getVariants(), etc.).

NOTE

In effect a variant axes is determined by whatever Product.getVariantAxes() returns:

hybris defines it for the hybris implementation

While products (in general) can have many variant axes, the out-of-the-box product component only handles two:

size
plus one more

This additional variant is selected via the variationAxis property of the product reference (usually color for Geometrixx Outdoors).

Product References and Product Data product-references-and-product-data

In general:

product data is located under /etc
and product references under /content.

There must be a 1:1 map between product variations and product data nodes.

Product references must also have a node for each variation presented - but there is no requirement to present all variations. For instance, if a product has S, M, L variations, the product data might be:

etc
  commerce
    products
      shirt
        shirt-s
        shirt-m
        shirt-l

While a “Big and Tall” catalog might have only:

content
  big-and-tall
    shirt
      shirt-l

Finally, there is no requirement to use product data. You can place all product data under the references in the catalog; but then you cannot really have multiple catalogs without duplicating all the product data.

API

com.adobe.cq.commerce.api.Product interface com-adobe-cq-commerce-api-product-interface

public interface Product extends Adaptable {

    public String getPath();            // path to specific variation
    public String getPagePath();        // path to presentation page for all variations
    public String getSKU();             // unique ID of specific variation

    public String getTitle();           // shortcut to getProperty(TITLE)
    public String getDescription();     // shortcut to getProperty(DESCRIPTION)
    public String getImageUrl();        // shortcut to getProperty(IMAGE_URL)
    public String getThumbnailUrl();    // shortcut to getProperty(THUMBNAIL_URL)

    public <T> T getProperty(String name, Class<T> type);

    public Iterator<String> getVariantAxes();
    public boolean axisIsVariant(String axis);
    public Iterator<Product> getVariants(VariantFilter filter) throws CommerceException;
}

com.adobe.cq.commerce.api.VariantFilter com-adobe-cq-commerce-api-variantfilter

/**
 * Interface for filtering variants and AxisFilter provided as common implementation
 *
 * The <code>VariantFilter</code> is used to filter variants,
 * e.g. when using {@link Product#getVariants(VariantFilter filter)}.
 */
public interface VariantFilter {
    public boolean includes(Product product);
}

/**
 * A {@link VariantFilter} for filtering variants by the given
 * axis and value. The following example returns a list of
 * variant products that have a value of <i>blue</i> on the
 * <i>color</i> axis.
 *
 * <p>
 * <code>product.getVariants(new AxisFilter("color", "blue"));</code>
 */
public class AxisFilter implements VariantFilter {

    private String axis;
    private String value;

    public AxisFilter(String axis, String value) {
        this.axis = axis;
        this.value = value;
    }

    /**
     * {@inheritDoc}
     */
    public boolean includes(Product product) {
        ValueMap values = product.adaptTo(ValueMap.class);

        if(values != null) {
            String v = values.get(axis, String.class);

            return v != null && v == value;
        }

        return false;
    }
}

General Storage Mechanism
- Product nodes are nt:unstructured.
- A product node can be either:
  - A reference, with the product data stored elsewhere:
    - Product references contain a productData property, which points to the product data (typically under /etc/commerce/products).
    - The product data is hierarchical; product attributes are inherited from a product data node’s ancestors.
    - Product references can also contain local properties, which override those specified in their product data.
  - A product itself:
    - Without a productData property.
    - A product node which holds all properties locally (and does not contain a productData property) inherits product attributes directly from its own ancestors.
AEM-generic Product Structure
- Each variant must have its own leaf node.
- The product interface represents both products and variants, but the related repository node is specific about which it is.
- The product node describes the product attributes and variant axes.

Example example-1

+ banyan_shirt
    - cq:commerceType = product
    - cq:productAttributes = [jcr:title, jcr:description, size, price, color]
    - cq:productVariantAxes = [color, size]
    - jcr:title = Banyan Shirt
    - jcr:description = Flowery, all-cotton shirt.
    - price = 14.00
    + banyan_shirt_s
        - cq:commerceType = variant
        - size = S
        + banyan_shirt_s_red
            - cq:commerceType = variant
            - color = red
        + banyan_shirt_s_blue
            - cq:commerceType = variant
            - color = blue
    + banyan_shirt_m
        - cq:commerceType = variant
        - size = M
        + banyan_shirt_m_red
            - cq:commerceType = variant
            - color = red
        + banyan_shirt_m_blue
            - cq:commerceType = variant
            - color = blue
    + banyan_shirt_l
        - cq:commerceType = variant
        - size = L
        + banyan_shirt_l_red
            - cq:commerceType = variant
            - color = red
        + banyan_shirt_l_blue
            - cq:commerceType = variant
            - color = blue
    + banyan_shirt_xl
        - cq:commerceType = variant
        - size = XL
        - price = 18.00

Architecture of the Shopping Cart architecture-of-the-shopping-cart

Components

The shopping cart is owned by the CommerceSession:
- The CommerceSession performs add/remove/etc.
- The CommerceSession also performs the various calculations on the cart. ``
While not directly cart-related, the CommerceSession must also provide catalog pricing information (since it owns pricing)
- Pricing might have several modifiers:
  - Quantity discounts.
  - Different currencies.
  - VAT-liable and VAT-free.
- The modifiers are completely open-ended with the following interface:
  - int CommerceSession.getQuantityBreakpoints(Product product)
  - String CommerceSession.getProductPrice(Product product)

Storage

Storage
- In the hybris case, the hybris server owns the cart.
- In the AEM-generic case carts of are stored in the ClientContext.

Personalization

Personalization should always be driven through the ClientContext.
A ClientContext /version/ of the cart is created in all cases:
- Products should be added by using the CommerceSession.addCartEntry() method.

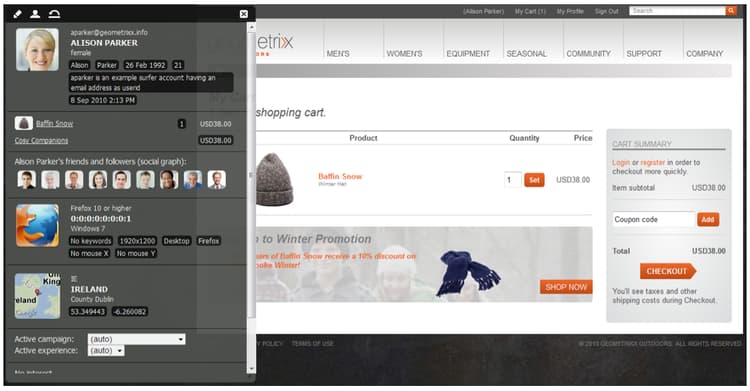

The following illustrates an example of cart information in the ClientContext cart:

chlimage_1-13

Architecture of Checkout architecture-of-checkout

Cart and Order Data

The CommerceSession owns the three elements:

Cart contents
Pricing
The order details

Cart contents

The cart contents schema is fixed by the API:

code language-java
`public void addCartEntry(Product product, int quantity); public void modifyCartEntry(int entryNumber, int quantity); public void deleteCartEntry(int entryNumber);`

Pricing

The pricing schema is also fixed by the API:

code language-java

code language-java
`public String getCartPreTaxPrice(); public String getCartTax(); public String getCartTotalPrice(); public String getOrderShipping(); public String getOrderTotalTax(); public String getOrderTotalPrice();`

    public String getCartPreTaxPrice();
    public String getCartTax();
    public String getCartTotalPrice();
    public String getOrderShipping();
    public String getOrderTotalTax();
    public String getOrderTotalPrice();

Order Details

However, order details are not fixed by the API:

code language-java
`public void updateOrderDetails(Map<String, String> orderDetails); public Map<String, String> getOrderDetails(); public void submitOrder();`

Shipping Calculations

Order forms often need to present multiple shipping options (and prices).
The prices might be based on items and details of the order, such as weight and/or delivery address.
The CommerceSession has access to all the dependencies, so it can be treated in a similar manner as product pricing:
- The CommerceSession owns shipping pricing.
- Can retrieve/update delivery details by using updateOrder(Map<String, Object> delta)

NOTE

You could implement a shipping selector; for example:

yourProject/commerce/components/shippingpicker:

Essentially this could be a copy of foundation/components/form/radio, but with callbacks to the CommerceSession for:
Checking if the method is available
Adding pricing information
To enable shoppers to update the order page in AEM (including the superset of shipping methods and the text describing them), while still having the control to expose the relevant CommerceSession information.

Payment Processing

The CommerceSession also owns the payment processing connection.
Implementors need to add specific calls (to their chosen payment processing service) to the CommerceSession implementation.

Order Fulfillment

The CommerceSession also owns the fulfillment connection.
Implementors will need to add specific calls (to their chosen payment processing service) to the CommerceSession implementation.

Search Definition search-definition

Following the standard service API model, the eCommerce project provides a set of search-related APIs that can be implemented by individual commerce engines.

NOTE

Currently, only the hybris engine implements the search API out-of-the-box.

However, the search API is generic and can be implemented by each CommerceService individually.

The eCommerce project contains a default search component, located in:

/libs/commerce/components/search

chlimage_1-14

This makes use of the search API to query the selected commerce engine (see eCommerce Engine Selection):

Search API search-api

There are several generic / helper classes provided by the core project:

CommerceQuery

Is used to describe a search query (contains information about the query text, current page, page size, sort and selected facets). All eCommerce services that implement the search API will receive instances of this class in order to perform their search. A CommerceQuery can be instantiated from a request object ( HttpServletRequest).
FacetParamHelper

Is a utility class that provides one static method - toParams - that is used for generating GET parameter strings from a list of facets and one toggled value. This is useful on the UI side, where you need to display a hyperlink for each value of each facet, such that when the user clicks on the hyperlink the respective value is toggled (i.e. if it was selected it is removed from the query, otherwise added). This takes care of all the logic of handling multiple/single-valued facets, overriding values, etc.

The entry point for the search API is the CommerceService#search method which returns a CommerceResult object. See the API Documentation for more information on this topic.

User Integration user-integration

Integration is provided between AEM and various eCommerce systems. This requires a strategy for synchronizing shoppers between the various systems so that AEM-specific code only has to know about AEM and vice-versa:

Authentication

AEM is presumed to be the only web front-end and therefore performs all authentication.
Accounts in Hybris

AEM creates a corresponding (subordinate) account in hybris for each shopper. The username of this account is the same as the AEM username. A cryptographically-random password is auto-generated and stored (encrypted) in AEM.

Pre-existing Users pre-existing-users

A AEM front-end can be positioned in front of an existing hybris implementation. Also a hybris engine can be added to an existing AEM installation. To do this, the systems must be able to gracefully handle existing users in either system:

AEM -> hybris
- When logging in to hybris, if the AEM user does not already exist:
  - create a new hybris user with a cryptographically random password
  - store the hybris username in the user directory of the AEM user
- See: com.adobe.cq.commerce.hybris.impl.HybrisSessionImpl#login()
hybris -> AEM
- When logging in to AEM, if the system recognizes the user:
  - attempt to log in to hybris with supplied username/pwd
  - if successful, create the new user in AEM with the same password (AEM-specific salt will result in AEM-specific hash)
- The above algorithm is implemented in a Sling AuthenticationInfoPostProcessor
  - See: com.adobe.cq.commerce.hybris.impl.user.LazyUserImporter.java

Customizing the Import Process customizing-the-import-process

To build upon existing functionality your custom import handler:

has to implement the ImportHandler interface
can extend the DefaultImportHandler

/**
 * Services implementing the <code>ImportHandler</code> interface are
 * called by the {@link HybrisImporter} to create actual commerce entities
 * such as products.
 */
public interface ImportHandler {

    /**
     * Not used.
     */
    public void createTaxonomie(ImporterContext ctx);

    /**
     * Creates a catalog with the given name.
     * @param ctx   The importer context
     * @param name  The catalog's name
     * @return Path of created catalog
     */
    public String createCatalog(ImporterContext ctx, String name) throws Exception;

    /**
     * Creates a product from the given values.
     * @param ctx                The importer context
     * @param values             The product's properties
     * @param parentCategoryPath The containing category's path
     * @return Path of created product
     */
    public String createProduct(ImporterContext ctx, ValueMap values, String parentCategoryPath) throws Exception;

    /**
     * Creates a variant product from the given values.
     * @param ctx             The importer context
     * @param values          The product's properties
     * @param baseProductPath The base product's path
     * @return Path of created product
     */
    public String createVariantProduct(ImporterContext ctx, ValueMap values, String baseProductPath) throws Exception;

    /**
     * Creates an asset for a product. This is usually a product
     * image.
     * @param ctx             The importer context
     * @param values          The product's properties
     * @param baseProductPath The product's path
     * @return Path of created asset
     */
    public String createAsset(ImporterContext ctx, ValueMap values, String productPath) throws Exception;

    /**
     * Creates a category from the given values.
     * @param ctx           The importer context
     * @param values        The category's properties
     * @param parentPath    Path of parent category or base path of import in case of root category
     * @return Path of created category
     */
    public String createCategory(ImporterContext ctx, ValueMap values, String parentCategoryPath) throws Exception;
}

For your custom handler to be recognized by the importer, it must specify the service.rankingproperty with a value higher than 0; for example:

@Component
@Service
@Property(name = "service.ranking", value = 100)
public class MyImportHandler extends DefaultImportHandler {
    ...
}

recommendation-more-help

2315f3f5-cb4a-4530-9999-30c8319c520e
